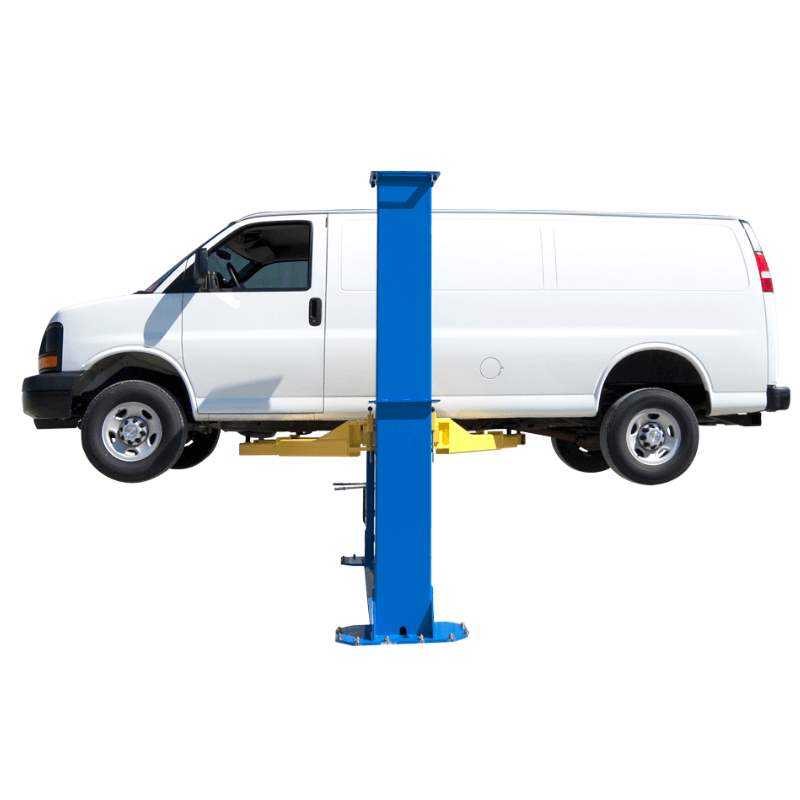

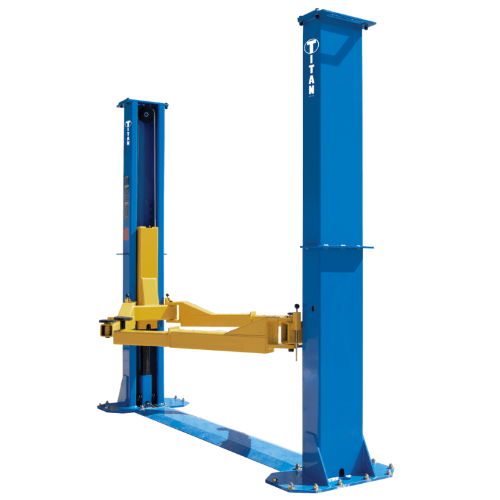

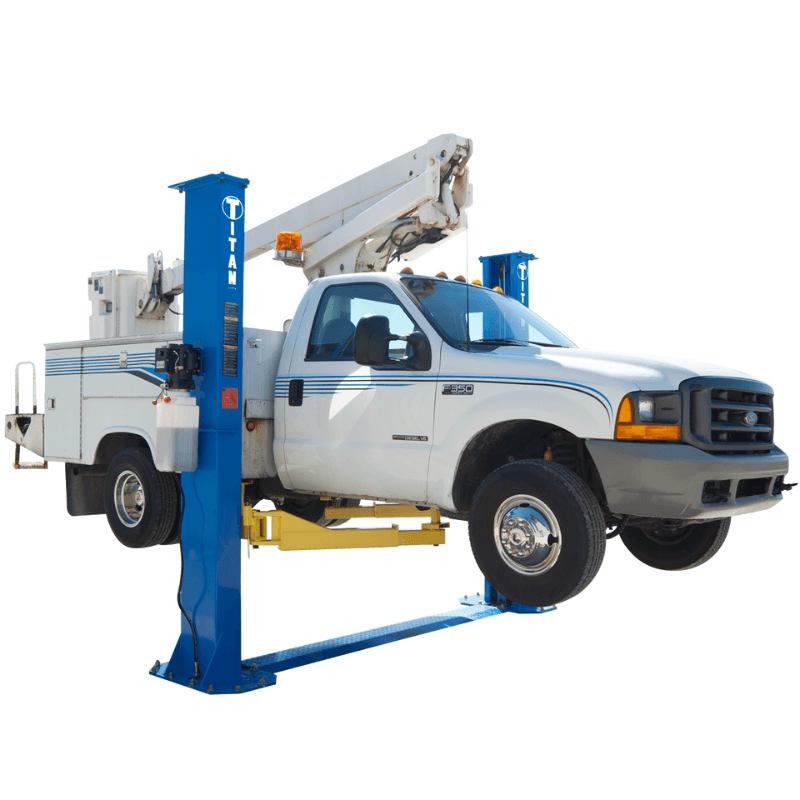

The Titan HD2P-12000F Two-Post Lift is engineered for shops that regularly service larger vehicles, heavy-duty trucks, and commercial fleets. Featuring a substantial 12,000 lb lifting capacity, this lift combines strength, stability, and reliability to handle demanding lifting applications with confidence.
Built with an extra-wide design that provides over 10 feet of drive-thru clearance, the HD2P-12000F offers excellent accessibility for larger vehicles while maintaining a compact footprint within the service bay. Its heavy-duty "Big Foot" base plates enhance stability during lifting operations, while dual 3-inch hydraulic cylinders paired with low-friction chain rollers ensure smooth, consistent lifting performance.
The lift provides a generous maximum lifting height of 76.5 inches while maintaining a low 5-inch pad height, making it suitable for servicing both low-clearance vehicles and taller trucks. Durable powder-coated protection, low-profile arm restraints, and included mounting hardware make the HD2P-12000F a practical and dependable solution for professional automotive facilities.
Specifications
Lifting Capacity: 12,000 lbs
Overall Height: 122"
Overall Width: 148"
Width Between Posts: 120.25"
Drive-Thru Width: 107.5"
Minimum Pad Height: 5"
Maximum Lift Height: 76.5"
Lifting Speed: Approximately 60 seconds
Minimum Concrete Requirement: 6" thick at 3,000 PSI
Power Unit: 220V, Single-Phase, 60Hz, 20 Amp
Motor: 3 HP

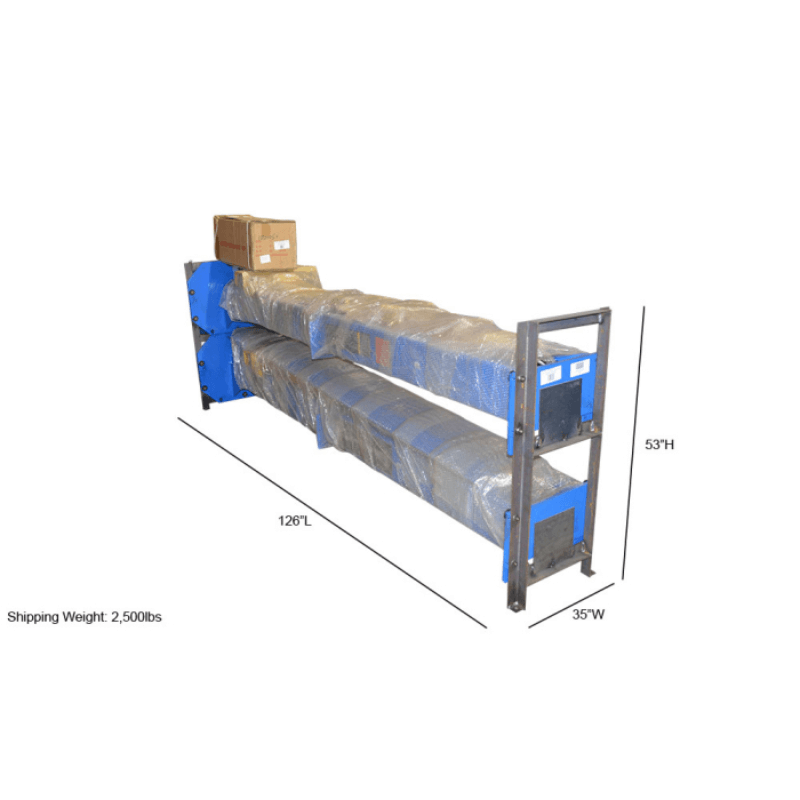

Shipping Dimensions: 126"L x 35"W x 53"H
Shipping Weight: 2,500 lbs
Features
12,000 lb lifting capacity
Extra-wide design ideal for trucks and larger vehicles
"Big Foot" base plates for enhanced stability
Dual 3" hydraulic cylinders
Low-friction chain roller system for smooth lifting operation
Low-profile arm restraints
Low 5" pad height for improved access to low-clearance vehicles
Durable powder-coated finish for long-lasting protection
Mounting hardware included for installation
Commercial-grade construction designed for demanding shop environments
Warranty
1-Year Electrical and Hydraulic Components Warranty
5-Year Structural Warranty
The Titan HD2P-12000F delivers the lifting capacity, stability, and durability required for servicing larger vehicles and commercial fleets, making it an excellent choice for professional repair shops seeking dependable heavy-duty performance.
