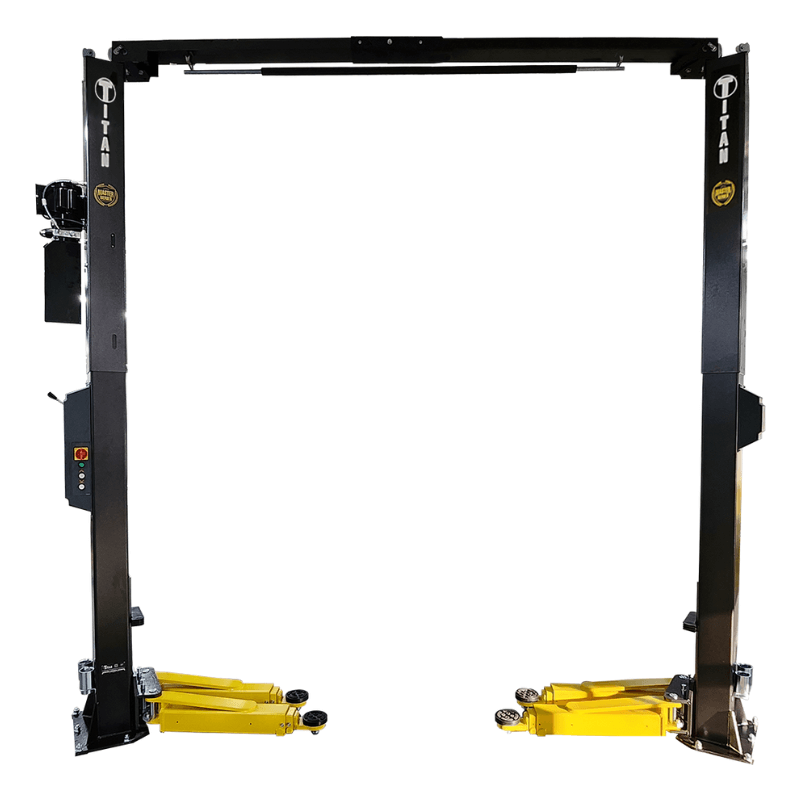

Titan HD2P-12KMSC 12,000 lb Two-Post Lift
The Titan HD2P-12KMSC Master Series 12,000 lb Two-Post Lift is designed for shops and enthusiasts who need a dependable, heavy-duty lifting solution with exceptional versatility. Featuring a robust 12,000 lb lifting capacity and direct-drive hydraulic cylinders, this lift delivers smooth, consistent lifting performance for a wide range of vehicles, from passenger cars and SUVs to light-duty trucks.
One of the standout features of the HD2P-12KMSC is its ability to be configured in either symmetric or asymmetric column layouts, allowing you to optimize the installation based on your workspace and vehicle service requirements. Premium components, including a Bucher Hydraulics power unit, single-point safety lock release, and overhead shut-off bar with integrated limit switch, ensure safe and reliable operation every day.
Designed with convenience in mind, the lift offers single-button controls, an electrical disconnect, serviceable arm restraints, and two available overall height configurations of 154" or 176". Its durable powder-coated hammered dark finish provides long-lasting protection against wear and corrosion, while Titan's extensive warranty coverage offers added peace of mind.

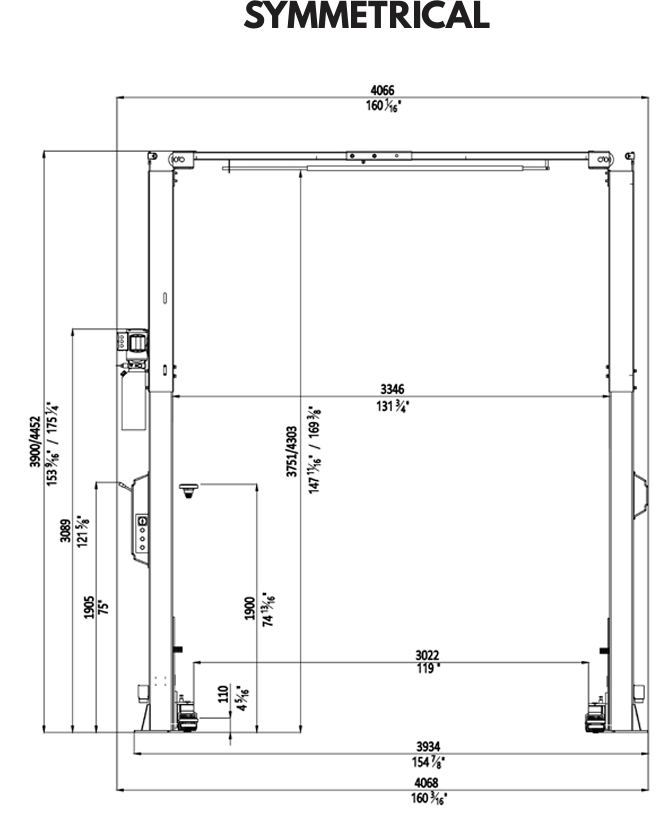

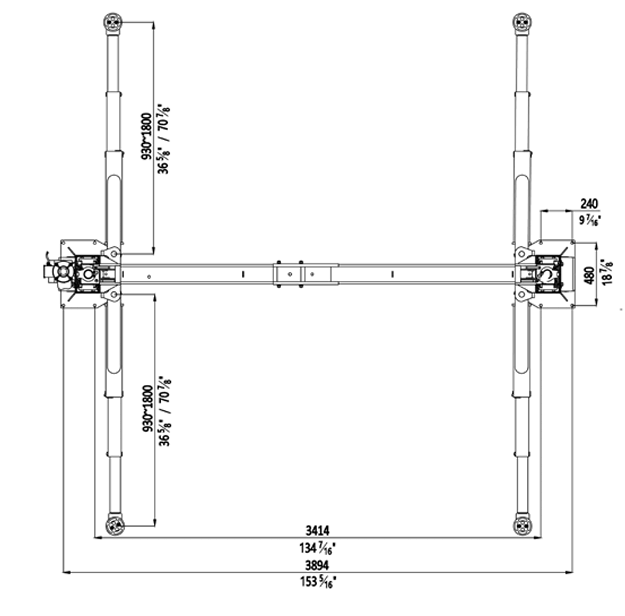

Symmetric Column Configuration Specifications
- Capacity: 12,000 lbs
- Outside Baseplate Width: 154-7/8"
- Inside Column Width: 131-3/4"
- Overall Width (Including Motor): 160-3/16"
- Drive-Thru Clearance: 119"
- Lifting Height: 4-5/16" – 74-13/16"
- Overall Height: 153-9/16" or 175-1/4"
- Power Unit: 220V, 60Hz, Single-Phase, 2.2 kW
- Shipping Dimensions: 113"L x 23"W x 47"H
- Shipping Weight: 2,190 lbs

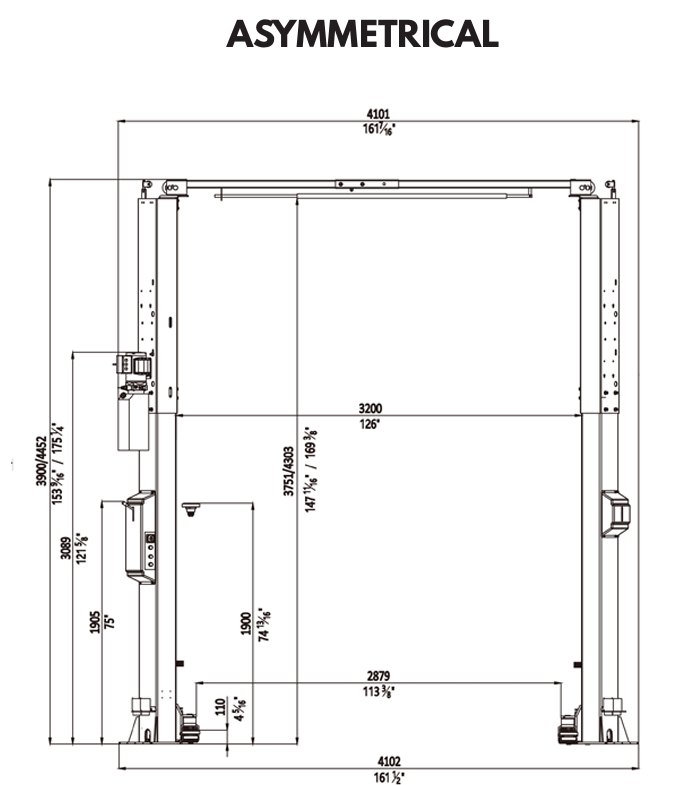

Asymmetric Column Configuration Specifications
- Capacity: 12,000 lbs
- Outside Baseplate Width: 161-1/2"
- Inside Column Width: 126"
- Overall Width (Including Motor): 161-1/2"
- Drive-Thru Clearance: 113-3/8"
- Lifting Height: 4-5/16" – 74-13/16"
- Overall Height: 153-9/16" or 175-1/4"
- Power Unit: 220V, 60Hz, Single-Phase, 2.2 kW
- Motor: 3 HP
- Shipping Dimensions: 113"L x 23"W x 47"H
- Shipping Weight: 2,190 lbs
Features
- 12,000 lb lifting capacity
- Configurable symmetric or asymmetric column setup
- Available in 154" or 176" overall height configurations

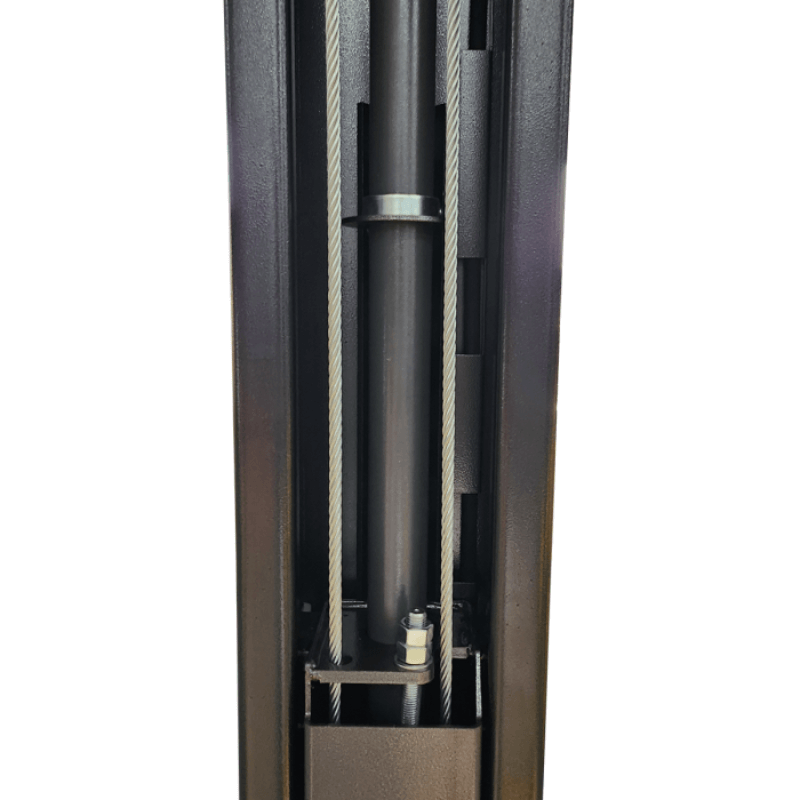

- Direct-drive hydraulic cylinders for powerful, reliable lifting

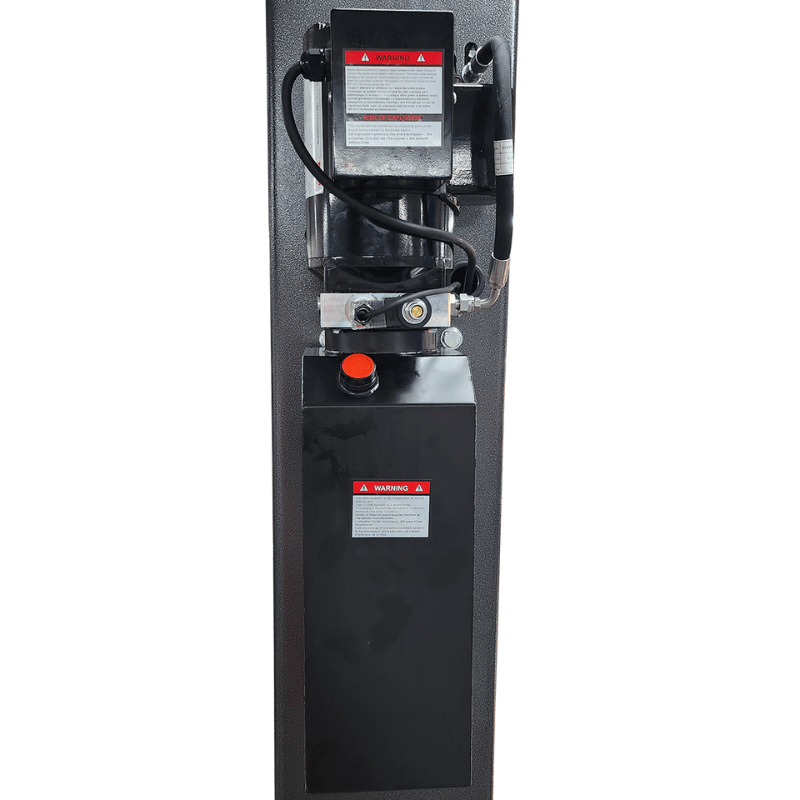

- Premium Bucher Hydraulics power unit

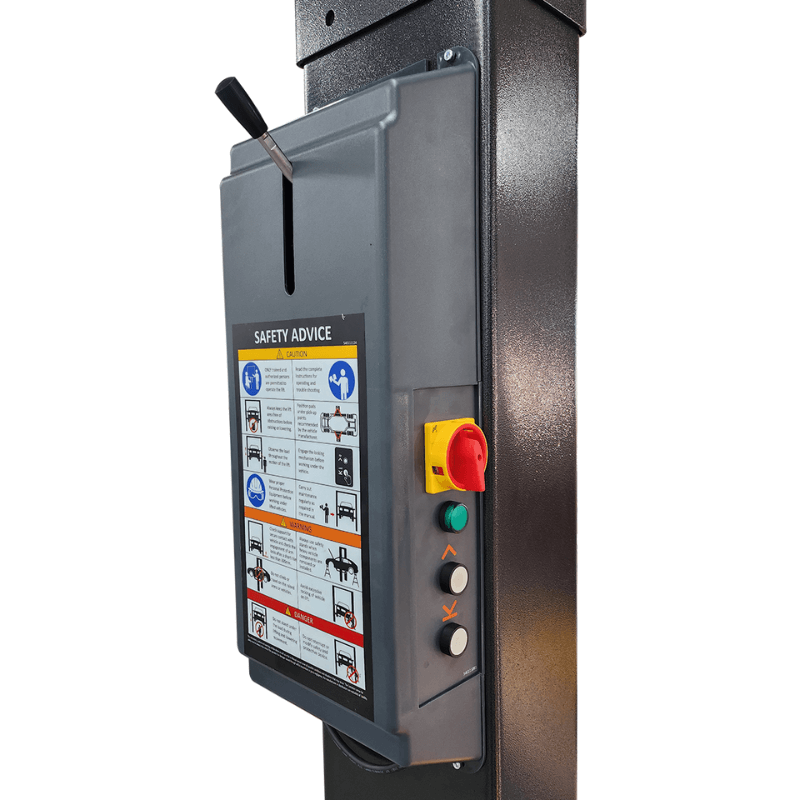

- Simple single-button lift operation
- Green LED power-on indicator
- Single-point safety lock release system
- Overhead shut-off bar with integrated limit switch
- Additional carriage limit switch protection
- Single-lever lowering control
- Electrical disconnect included
- Serviceable arm restraint locking system

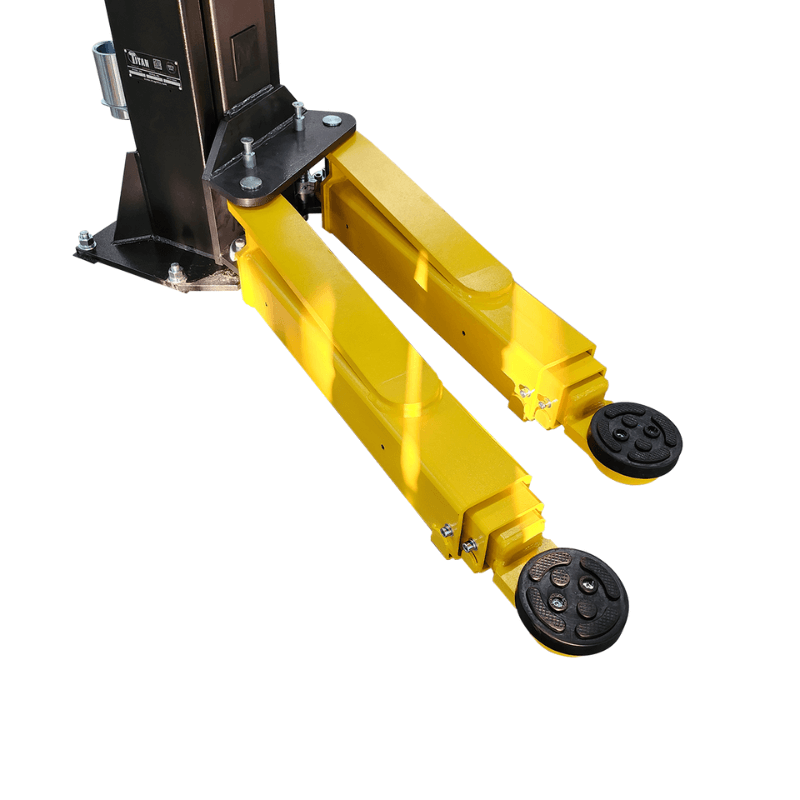

- Four 3-stage lifting arms for maximum reach and flexibility
- European-style carriages for accurate vehicle positioning
- Adjustable thread-up lifting pads
- Includes 4" truck adapters
- Rubber door guards help prevent vehicle damage
- Heavy-duty steel hydraulic oil reservoir
- Durable powder-coated hammered dark finish
Warranty
- 5-Year Structural Warranty
- 2-Year Electrical and Hydraulic Components Warranty
- Lifetime Warranty on Nylon Slide Blocks
Built for demanding service environments, the Titan HD2P-12KMSC combines commercial-grade durability, advanced safety features, and flexible installation options, making it an excellent choice for professional repair facilities and serious home garages alike.
