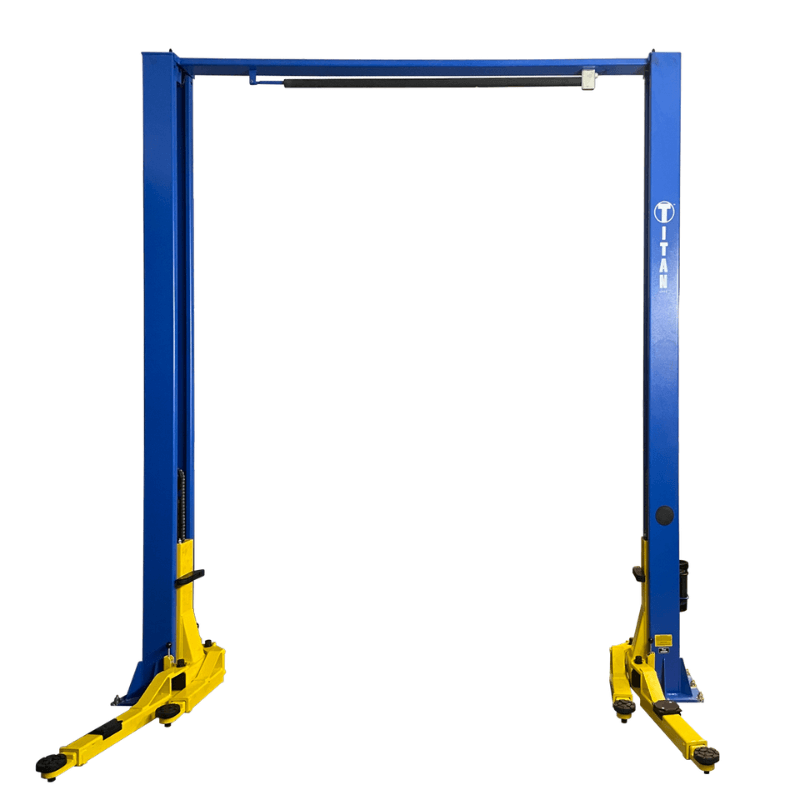

The Titan HD2P-9000AC Gen-2 Two-Post Lift is a dependable, commercial-grade lifting solution built for professional automotive repair facilities and dedicated home garages. With a 9,000 lb lifting capacity, this lift is designed to accommodate a wide range of passenger vehicles, SUVs, and light-duty trucks while delivering the durability and performance required for daily use.
Featuring an asymmetric arm configuration, the HD2P-9000AC provides improved door clearance and easier vehicle entry and exit. Its heavy-duty construction is complemented by dual 3-inch hydraulic cylinders and low-friction chain rollers, ensuring smooth and reliable lifting performance. A durable powder-coated finish, internal hose routing, and integrated hose guards contribute to a clean appearance and long-term durability.
Safety and convenience are built into every aspect of the design. Features such as automatic arm restraints, dual-point safety release, rubber door guards, and a padded overhead shut-off bar help protect both the operator and vehicle throughout the lifting process. The included anchor bolt kit and space-saving power unit mounting bracket simplify installation and maximize available workspace.
Specifications
Lift Type: Two-Post Lift
Lifting Capacity: 9,000 lbs
Arm Configuration: Asymmetric

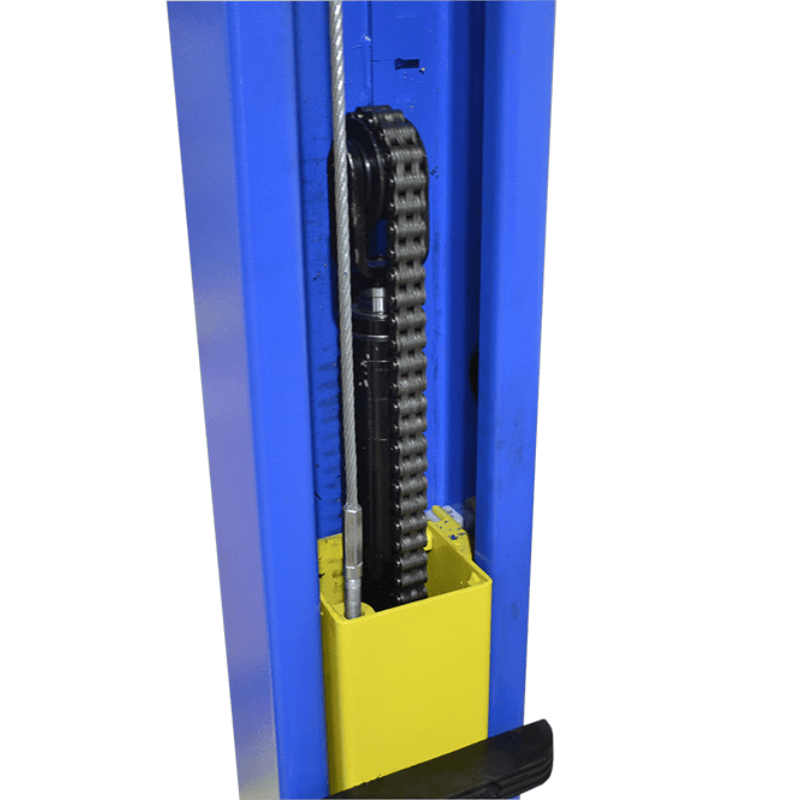

Hydraulic System: Dual 3" cylinders with low-friction chain rollers

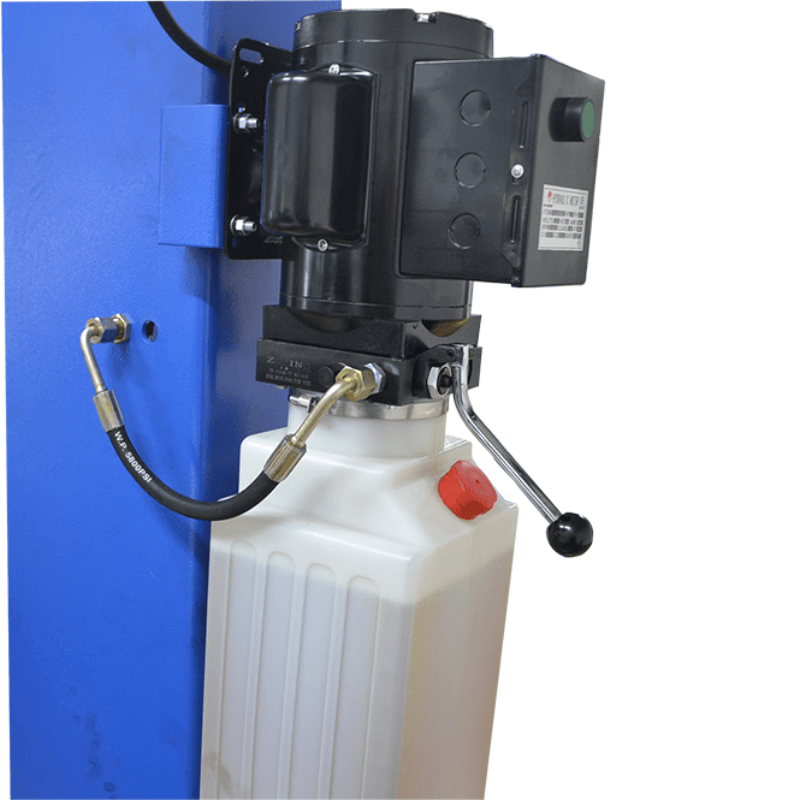

Power Unit: 220V
Motor: 3 HP
Amp Draw: 15–26 Amps
Lifting Speed: Approximately 45 seconds

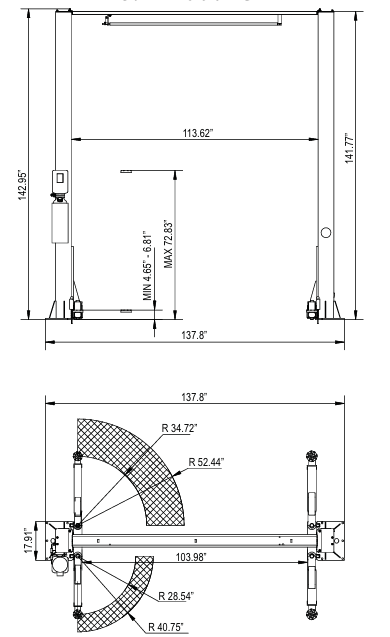

Overall Width: 137.8"
Overall Height: 142.95"
Width Between Posts: 113.62"
Drive-Thru Clearance: 103.98"
Lifting Height Range: 4.65" – 72.84"
Minimum Concrete Requirement: 4" thick at 3,000 PSI
Shipping Dimensions: 145"L x 19"W x 44"H
Shipping Weight: 1,380 lbs
Features
Commercial-grade design for professional and enthusiast applications
9,000 lb lifting capacity
Asymmetric arm layout for improved vehicle access
Dual 3" hydraulic cylinders with low-friction chain rollers
Automatic arm restraint system

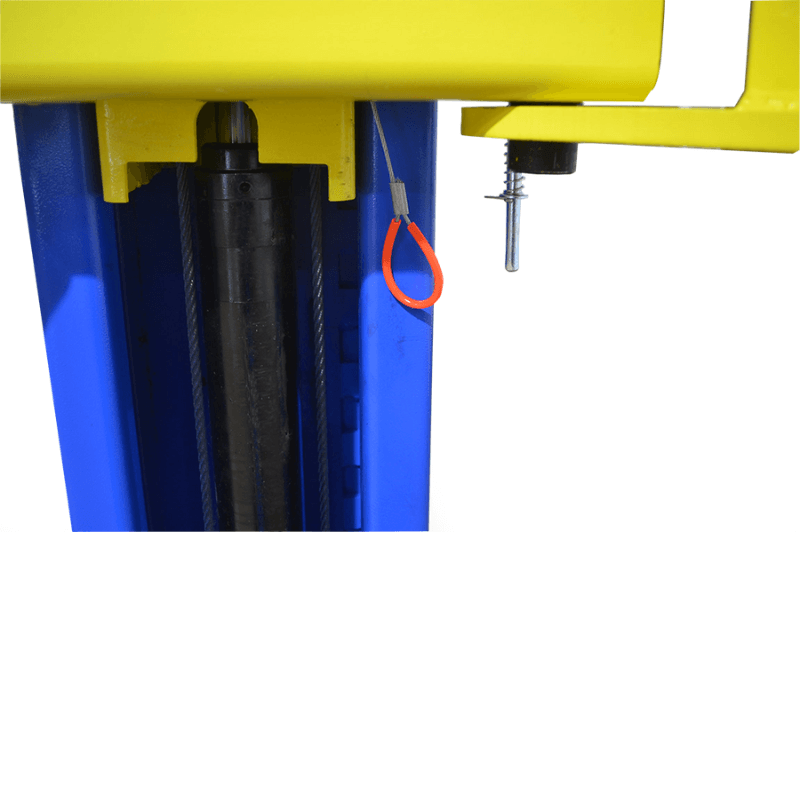

Dual-point safety release mechanism

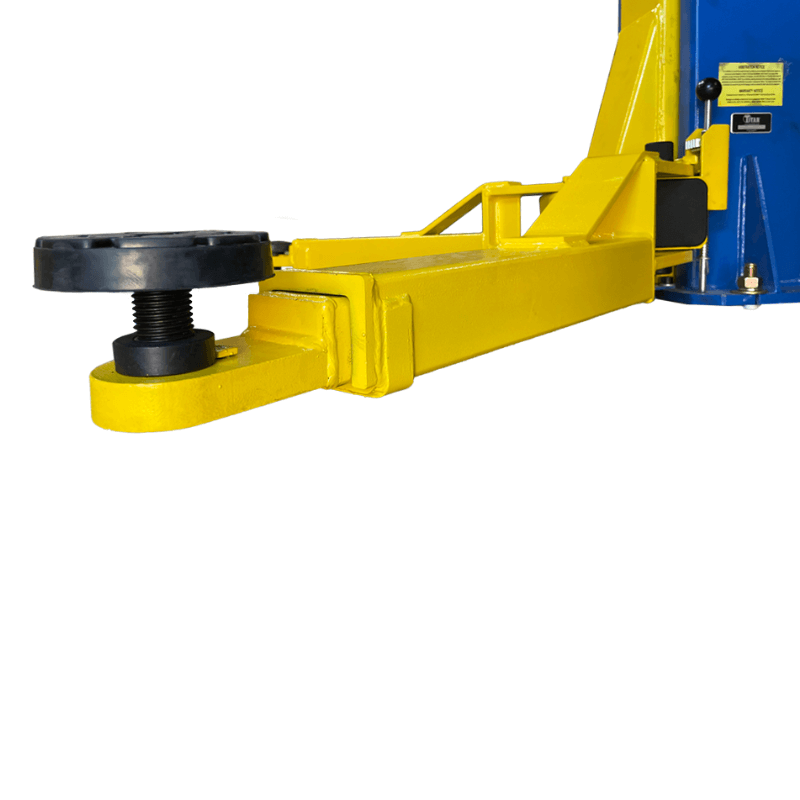

Low-profile lifting arms
Rubber door guards to help protect vehicle finishes
Padded overhead safety shut-off bar

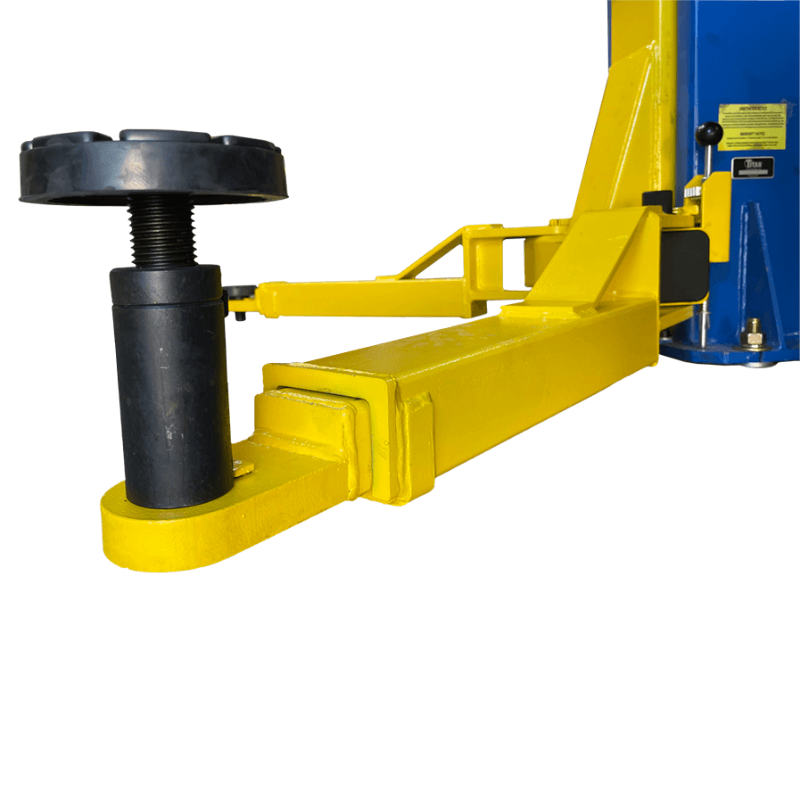

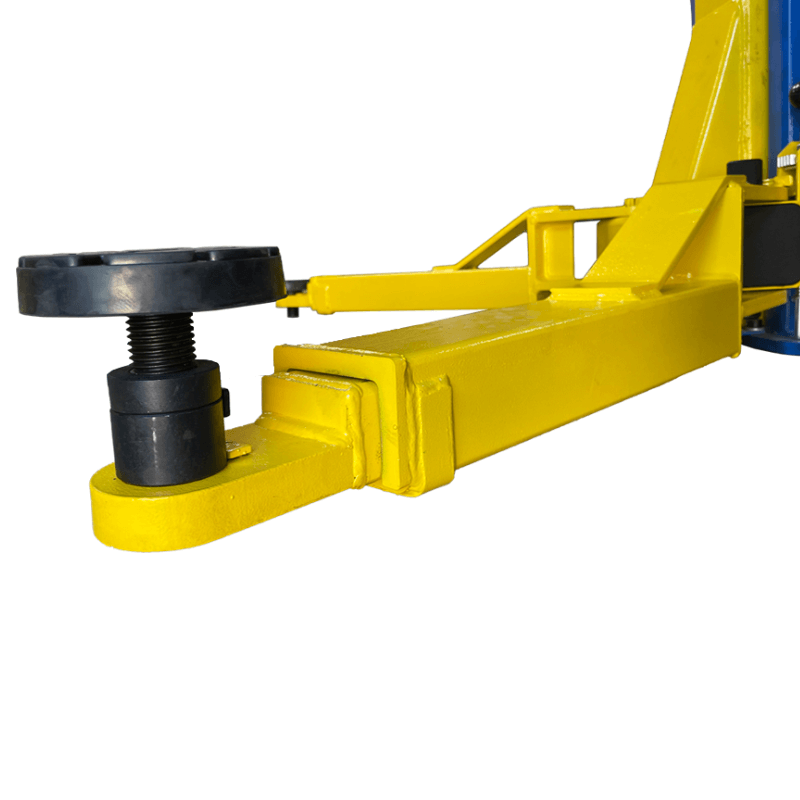

Adjustable threaded lifting pads
Stackable truck adapters included
Durable powder-coated finish in Cobalt Blue with yellow lift arms
Internal hose routing with integrated hose guards for a cleaner appearance
Space-saving power unit mounting bracket
Anchor bolt installation kit included
Warranty
5-Year Structural Warranty
1-Year Electrical & Hydraulic Parts Warranty
Combining proven lifting performance, user-friendly operation, and commercial-grade durability, the Titan HD2P-9000AC Gen-2 is an excellent choice for shops and enthusiasts seeking a reliable two-post lift capable of handling a wide variety of service applications.
