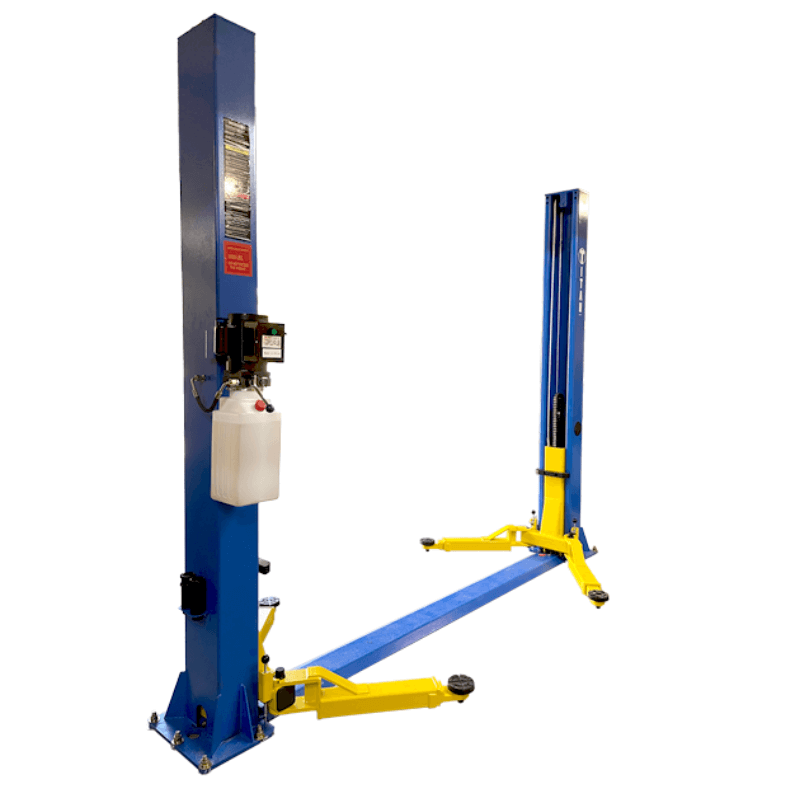

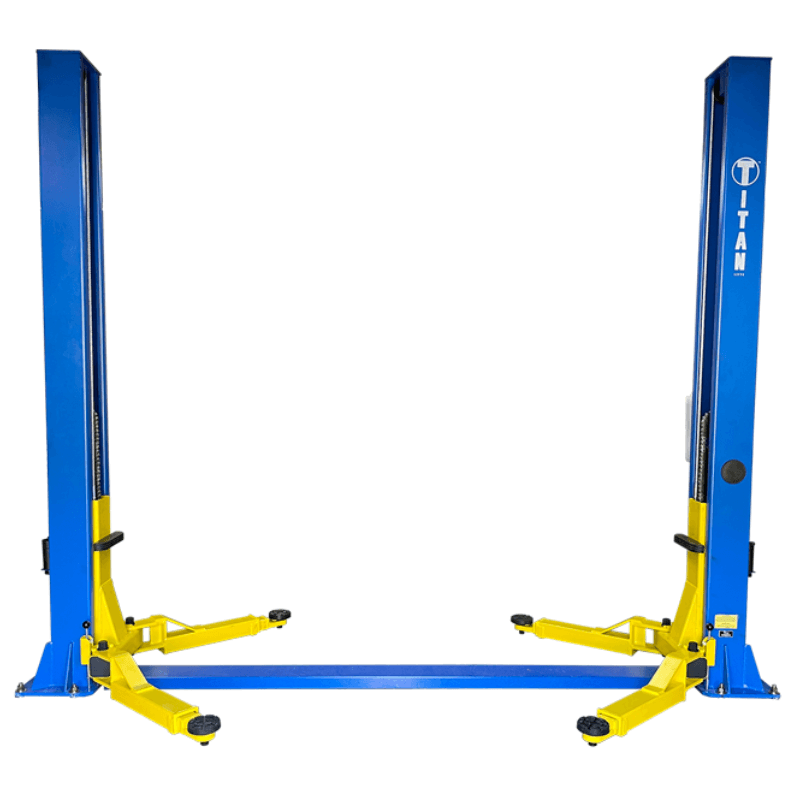

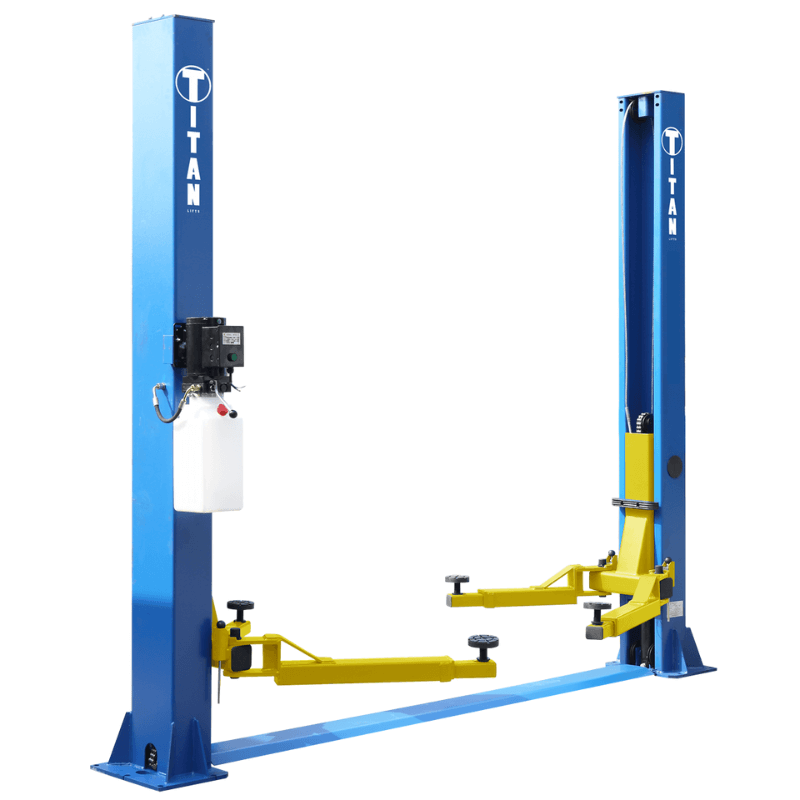

The Titan HD2P-9000AF Gen-2 Two-Post Lift is a heavy-duty, commercial-grade lifting solution engineered for professional repair facilities and serious automotive enthusiasts. With a 9,000 lb lifting capacity, this lift delivers dependable performance for servicing a wide variety of cars, SUVs, and light-duty trucks.
Designed with a symmetric arm configuration, the HD2P-9000AF provides balanced vehicle positioning and stable lifting performance. Dual 3-inch hydraulic cylinders paired with low-friction chain rollers ensure smooth, controlled operation, while the low-profile floor plate design protects hydraulic hoses and equalization cables without sacrificing accessibility. Powered by a 220V system, this lift is well-suited for commercial shops and home garages alike.
Built for long-term durability, the lift incorporates heavy-duty leaf chains, steel pulleys, and a high-strength cable equalization system to withstand demanding daily use. Additional safety and convenience features, including automatic arm restraints, dual-point safety release, rubber door guards, and stackable truck adapters, help improve efficiency and operator confidence. A durable powder-coated finish protects against corrosion and wear, ensuring years of reliable service.
Specifications
Lifting Capacity: 9,000 lbs
Overall Height: 112"
Overall Width: 134-5/8"
Width Between Posts: 110-3/8"
Drive-Thru Width: 100-5/8"
Minimum Pad Height: 4-5/8"
Maximum Lift Height: 72-3/4"
Lifting Speed: Approximately 45 seconds
Minimum Concrete Requirement: 4" thick at 3,000 PSI

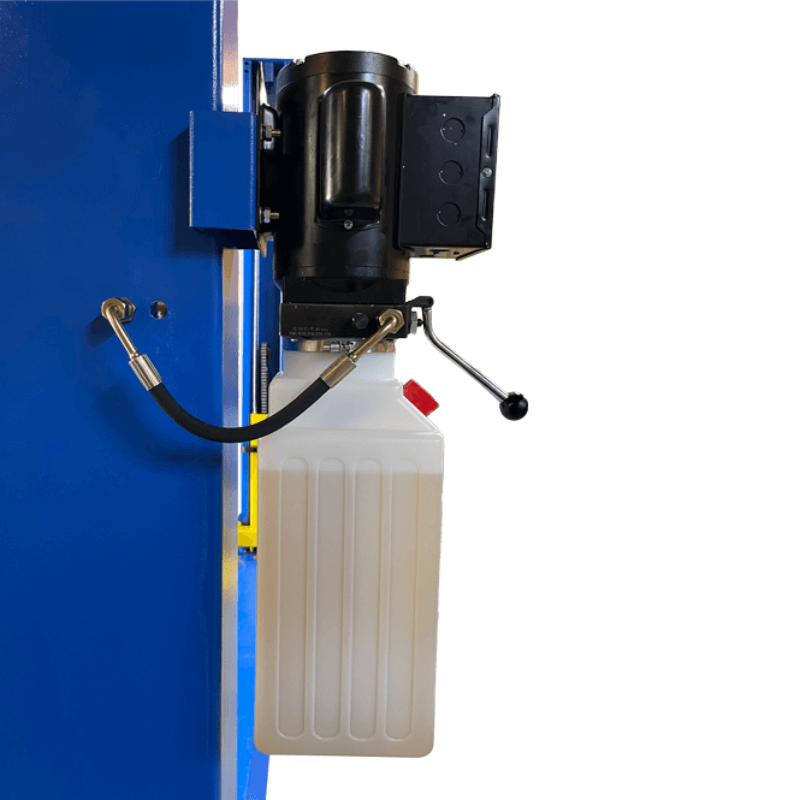

Power Unit: 220V, Single-Phase, 60Hz, 20 Amp
Motor: 3 HP
Shipping Dimensions: 115"L x 19"W x 45"H
Shipping Weight: 1,300 lbs
Features
Commercial-grade construction for professional and home garage applications
9,000 lb lifting capacity

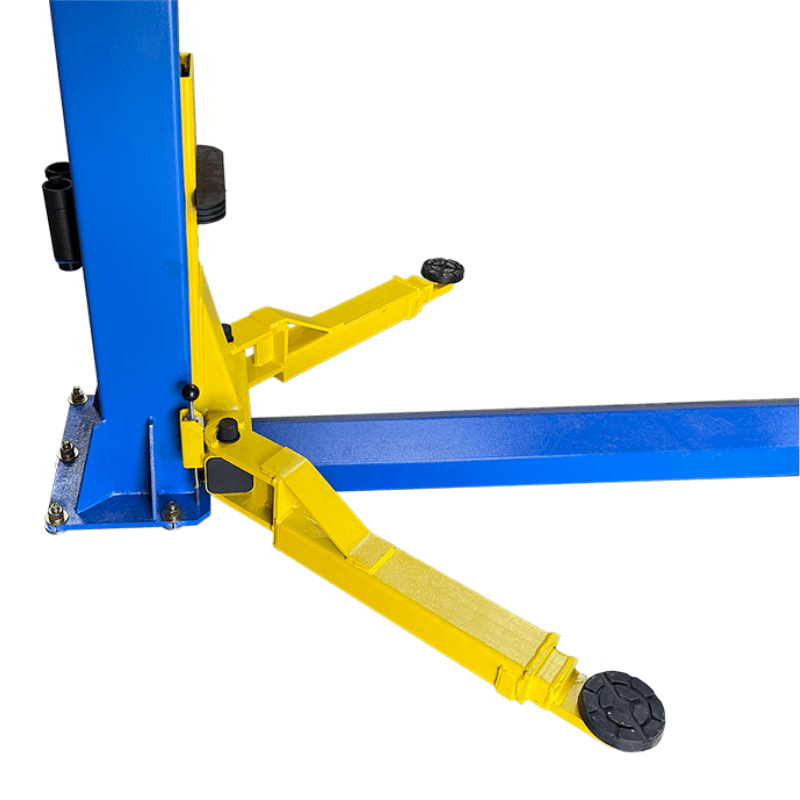

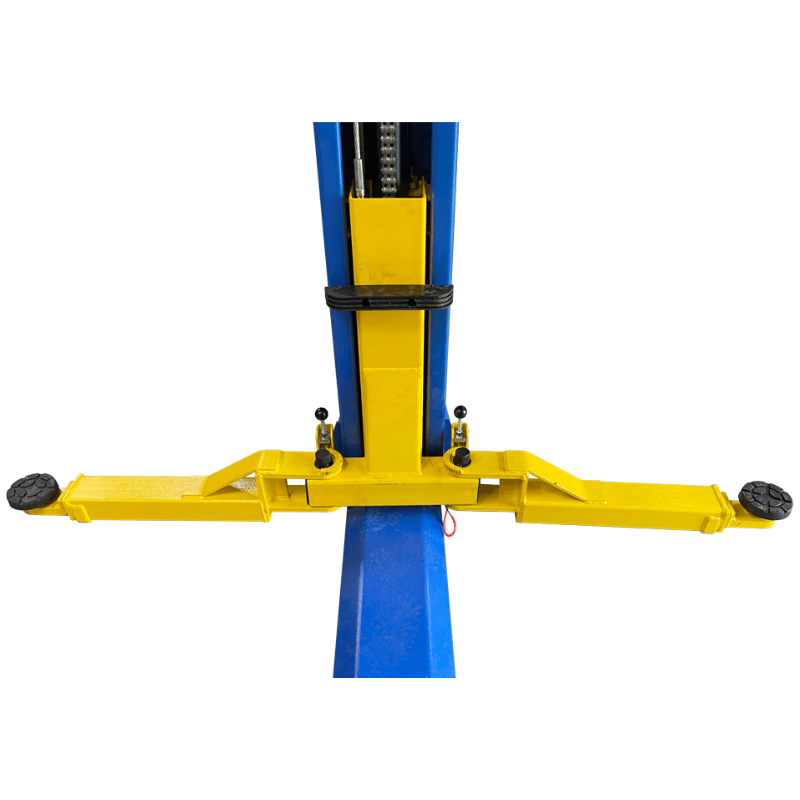

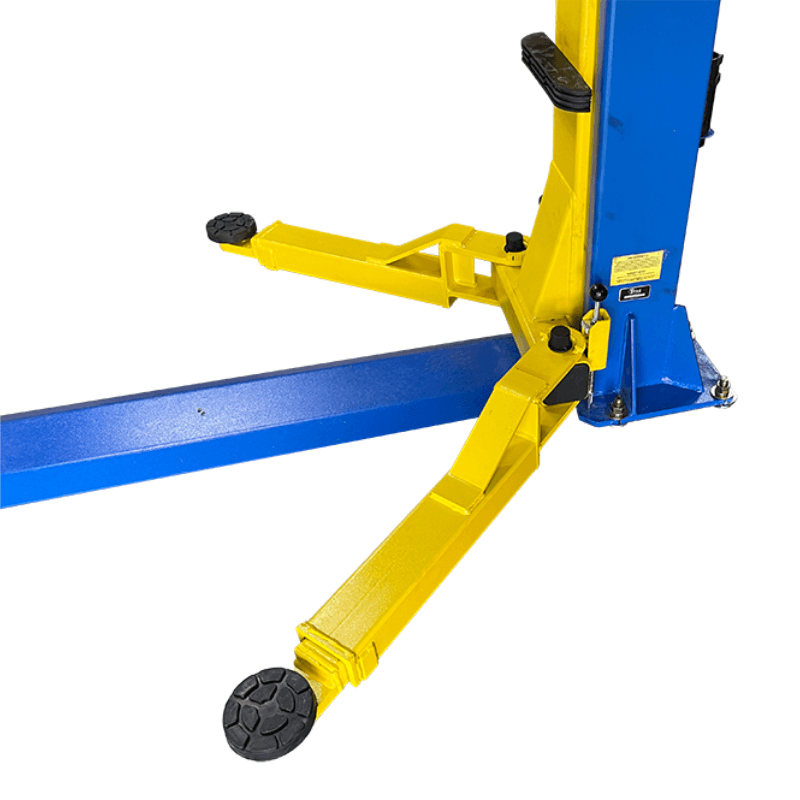

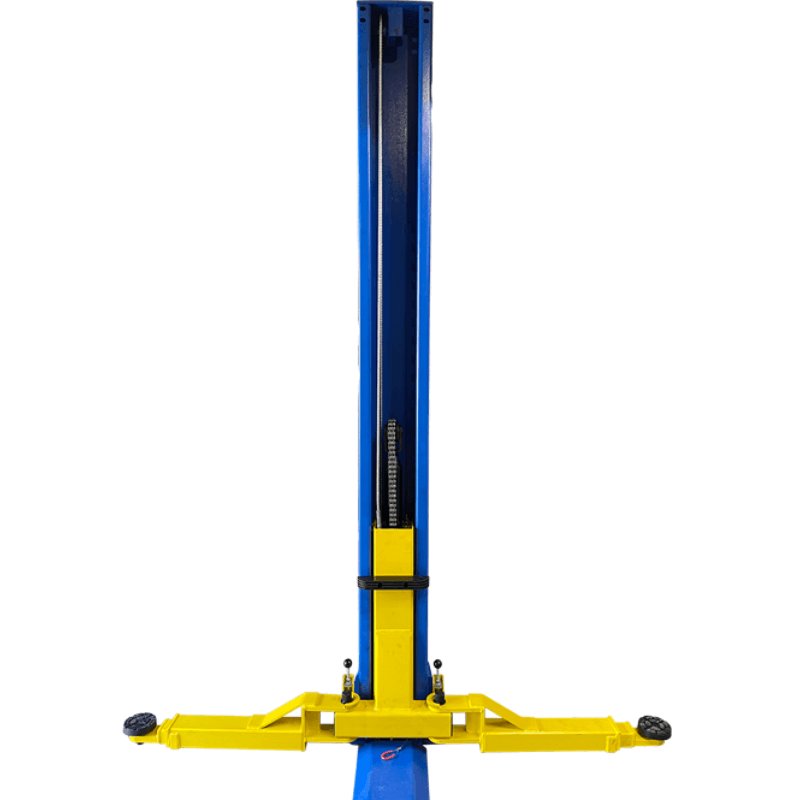

Symmetric arm design for balanced lifting and vehicle support

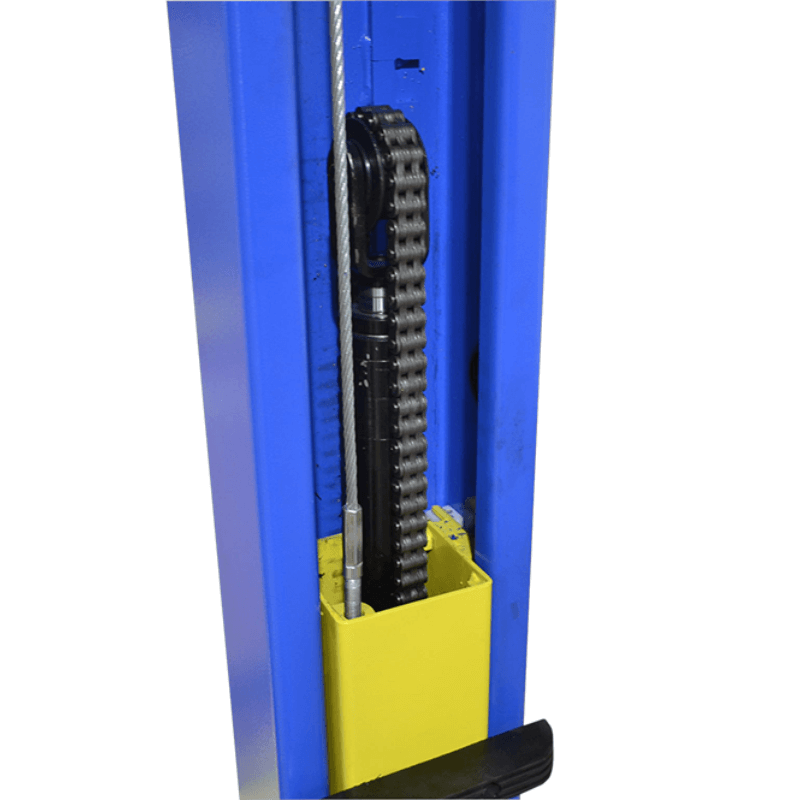

Dual 3" hydraulic cylinders with low-friction chain rollers
Heavy-duty leaf chains and steel pulleys

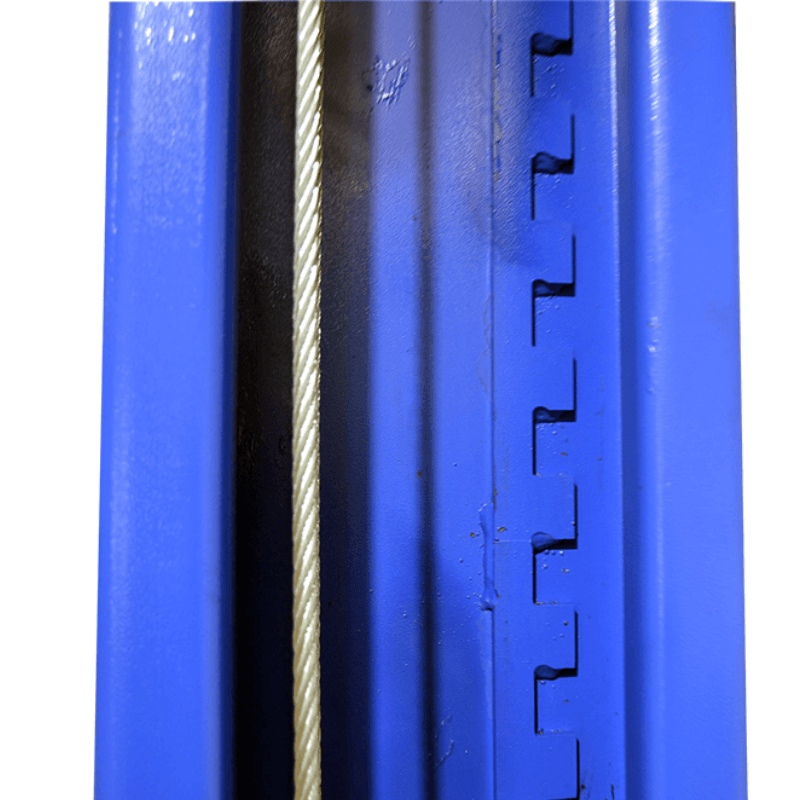

High-strength cable equalization system
Low-profile floor plate design protects hoses and cables

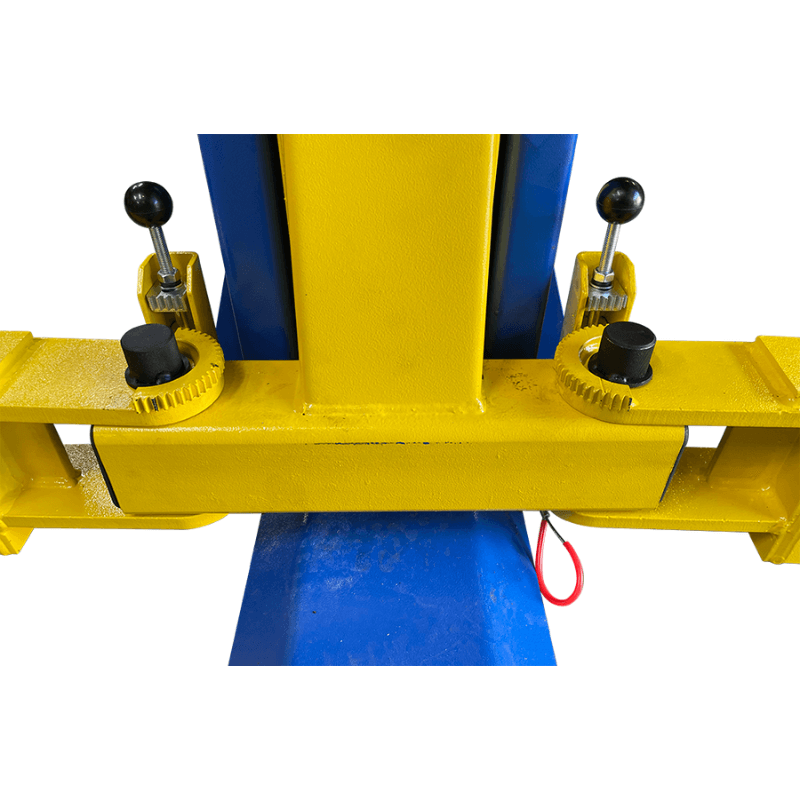

Automatic arm restraint system
Dual-point safety release mechanism
Low-profile lifting arms for improved vehicle access

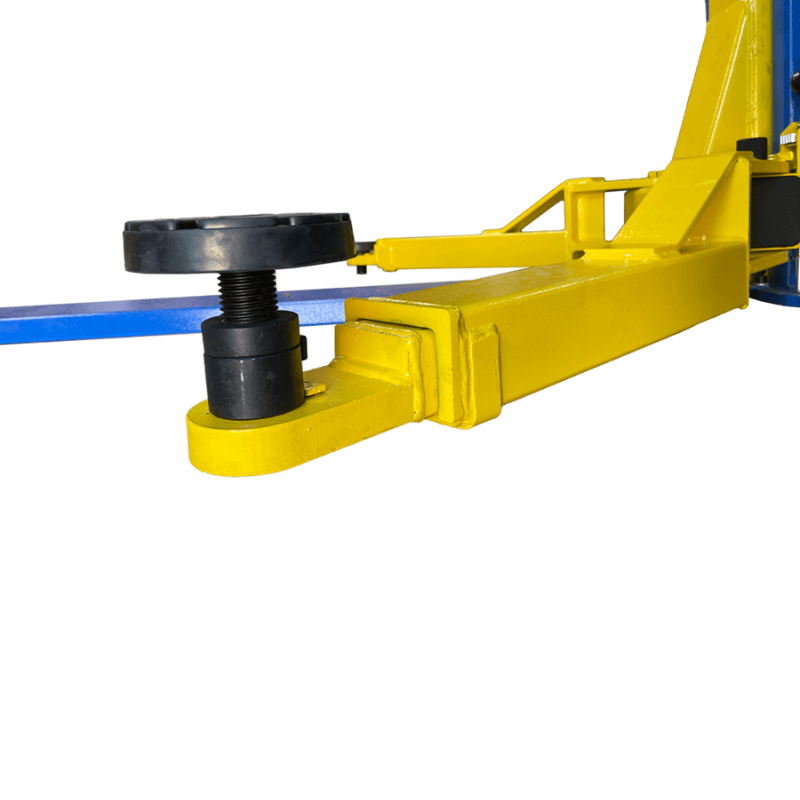

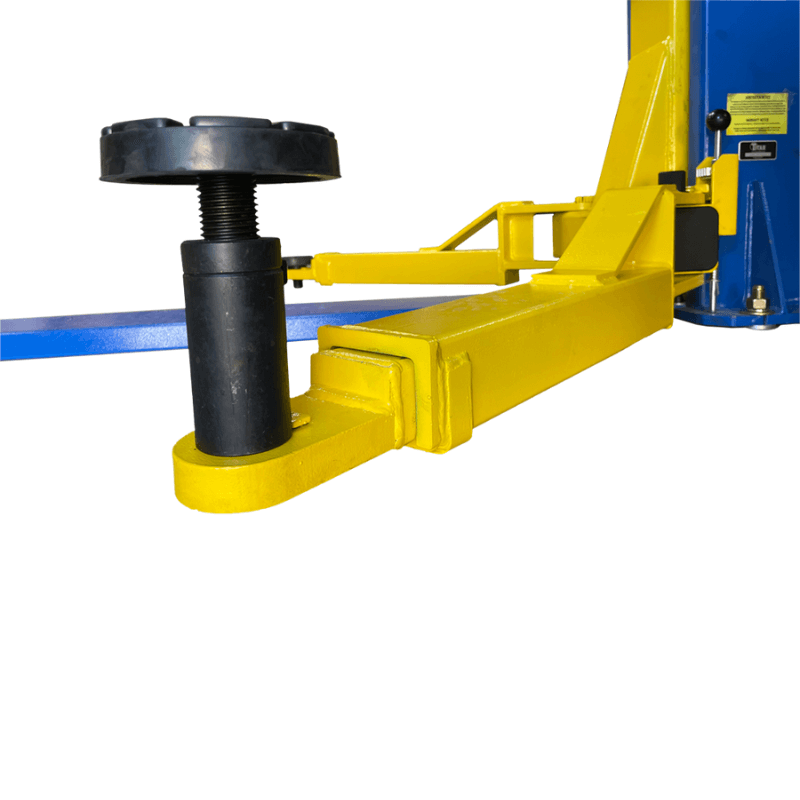

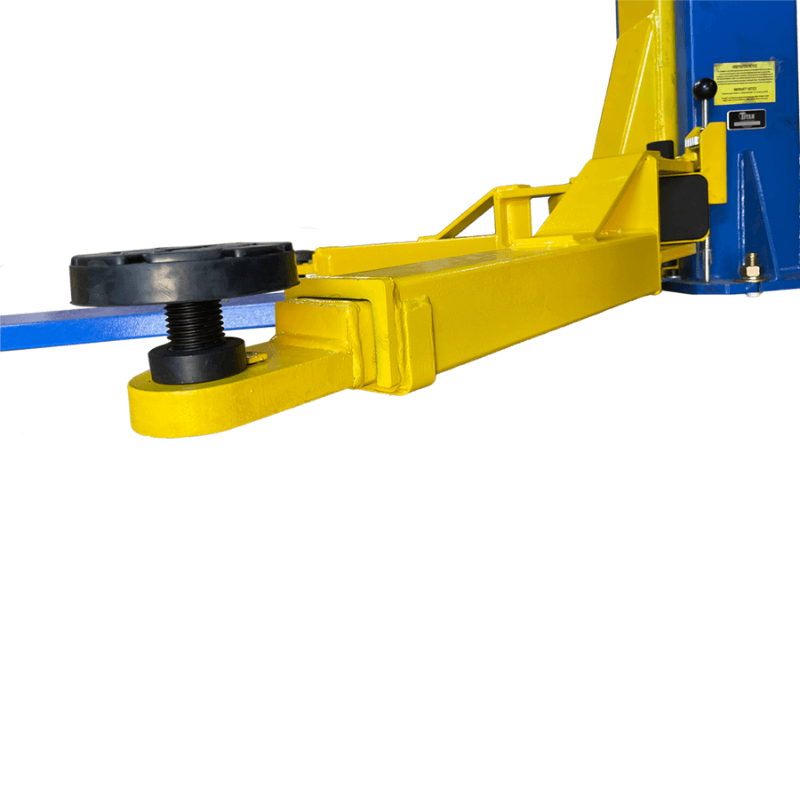

Adjustable threaded lifting pads

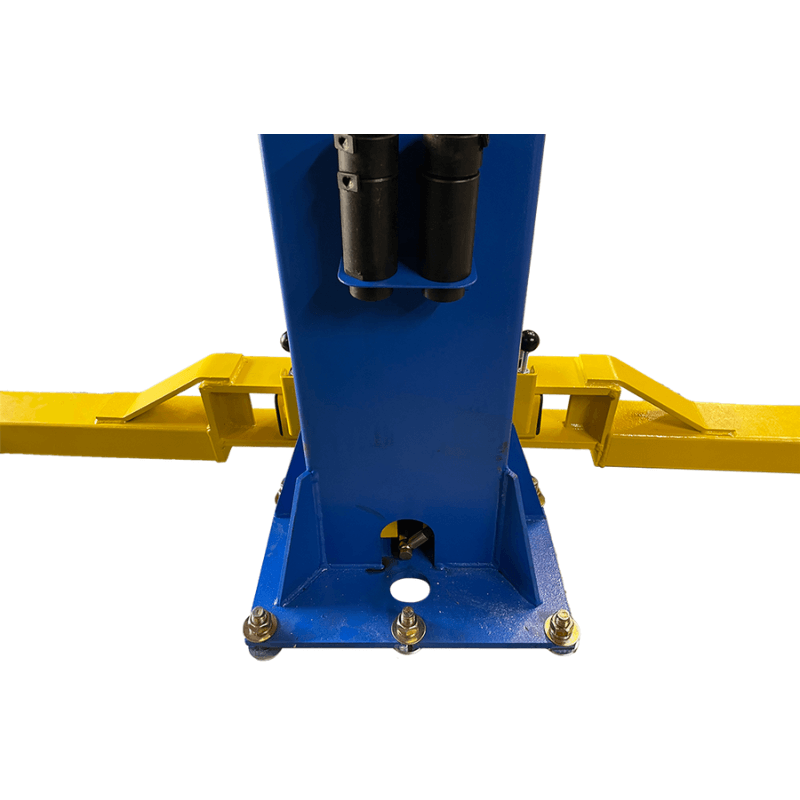

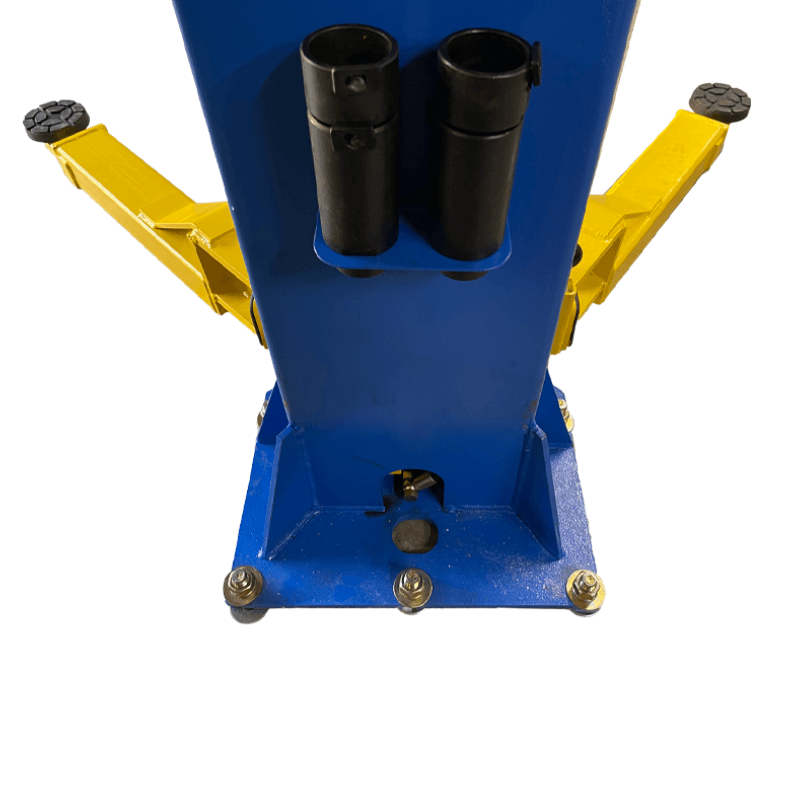

Stackable truck adapters included

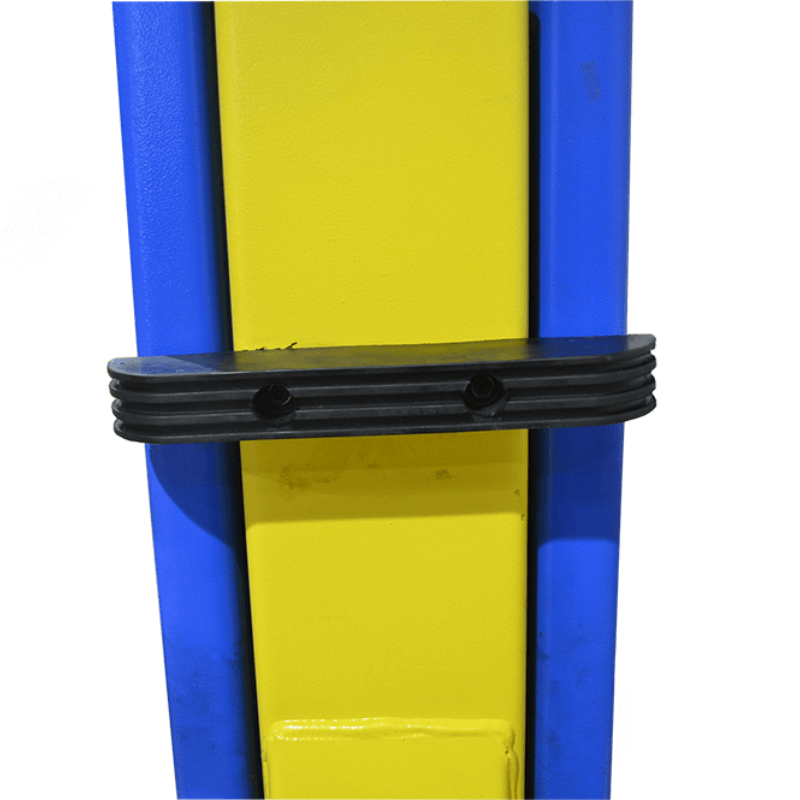

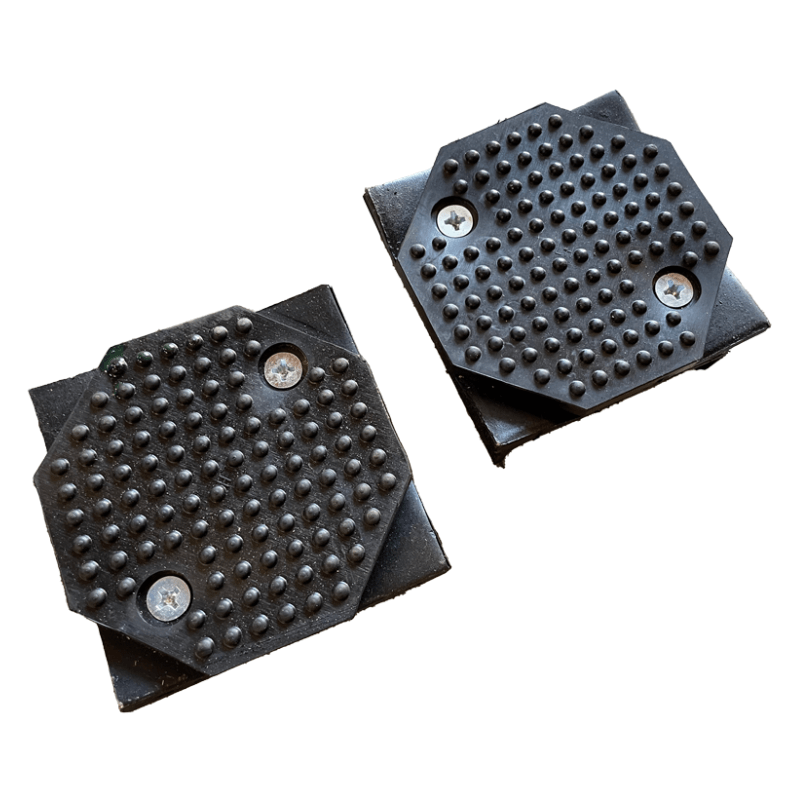

Rubber door guards help protect vehicle finishes
Durable powder-coated finish for corrosion resistance
Internal hose routing with integrated hose guards for a cleaner appearance
Space-saving power unit mounting bracket
Anchor bolt installation kit included
Warranty
5-Year Structural Warranty
1-Year Parts Warranty
Combining commercial-grade construction, reliable lifting performance, and practical safety features, the Titan HD2P-9000AF Gen-2 is an excellent choice for shops and enthusiasts seeking a durable, versatile two-post lift built to handle everyday service demands.
