Description

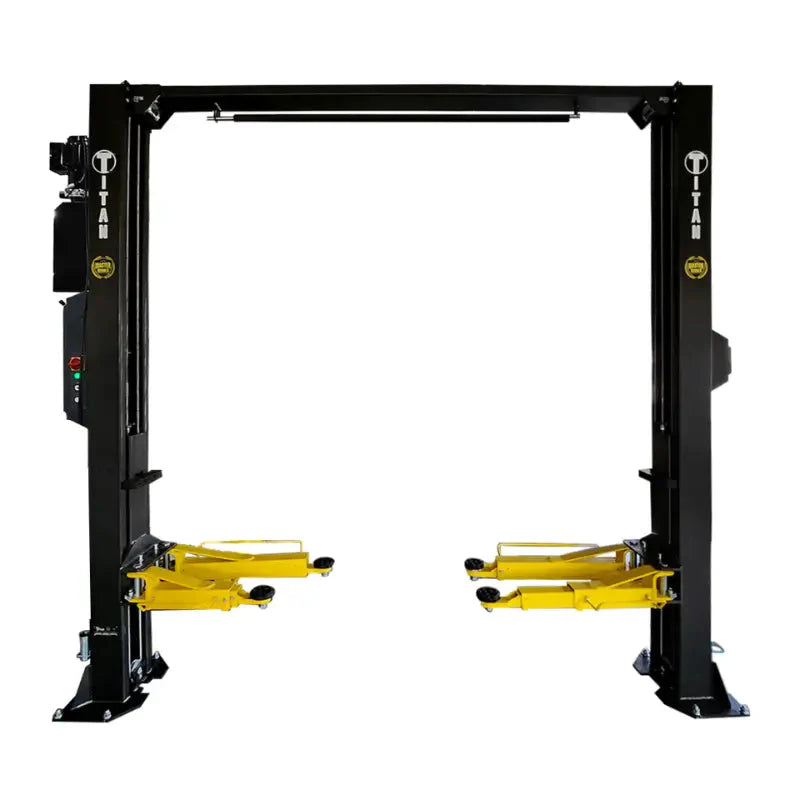

Titan HD2P-9KMSC 9,000 lb Clear Floor Two-Post Lift
The Titan HD2P-9KMSC Clear Floor Two-Post Lift is a professional-grade lifting solution designed to provide exceptional performance, convenience, and accessibility. With a 9,000 lb lifting capacity and a maximum lifting height of up to 82-1/4" when using the included truck adapters, this lift is ideal for servicing a wide range of vehicles, from passenger cars and SUVs to light-duty trucks.
Its clear-floor, asymmetric design allows unobstructed access beneath the vehicle while eliminating floor-mounted cables and components that can interfere with movement around the work area. Direct-drive hydraulic cylinders deliver smooth, dependable lifting performance, while the single-point lock release system simplifies operation and enhances safety.
Built for daily use, the HD2P-9KMSC features durable construction, advanced 3-stage front arms for improved vehicle positioning, and a steel hydraulic oil reservoir for long-term reliability. Additional safety and convenience features—including an overhead shut-off bar, carriage limit switch, rubber door guards, and steel toe guards—make this lift an excellent choice for both professional service facilities and serious home garages.
Specifications
- Type: Clear Floor / Asymmetric
- Lifting Capacity: 9,000 lbs
- Lifting Time: 50–60 seconds
- Overall Height: 140-3/4" (carriage lock ladder extends an additional 7-7/8" at maximum height)
- Width Between Posts: 111-1/2"
- Drive-Thru Clearance: 100-3/4"
- Minimum Pad Height: 3-3/4"
- Lifting Height: 74-3/4" (up to 82-1/4" with truck adapters and fully threaded lifting pads)
- Power Unit: 220V, Single-Phase, 60Hz
- Motor: 3 HP

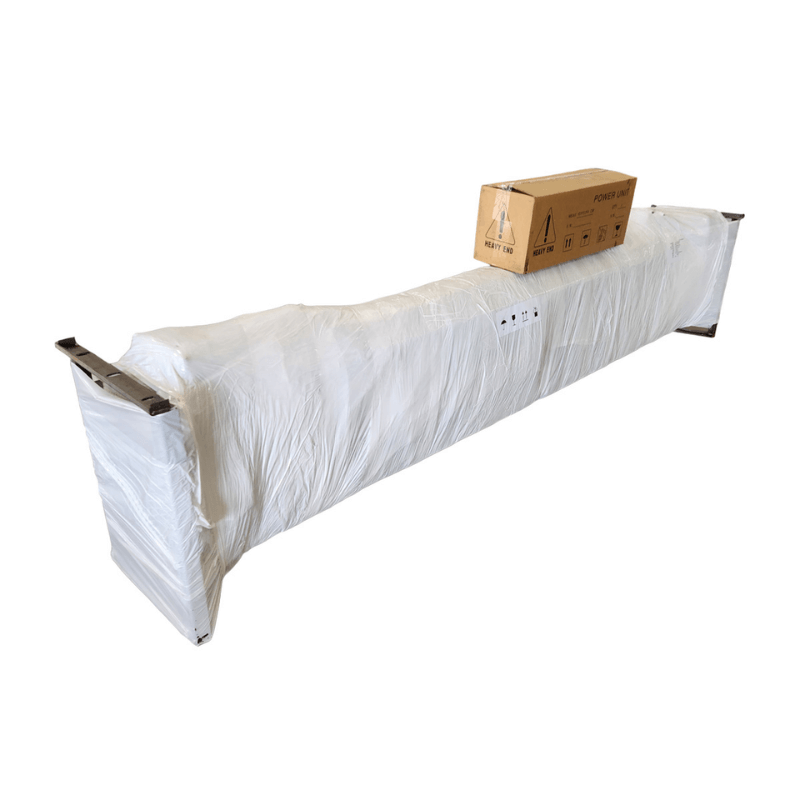

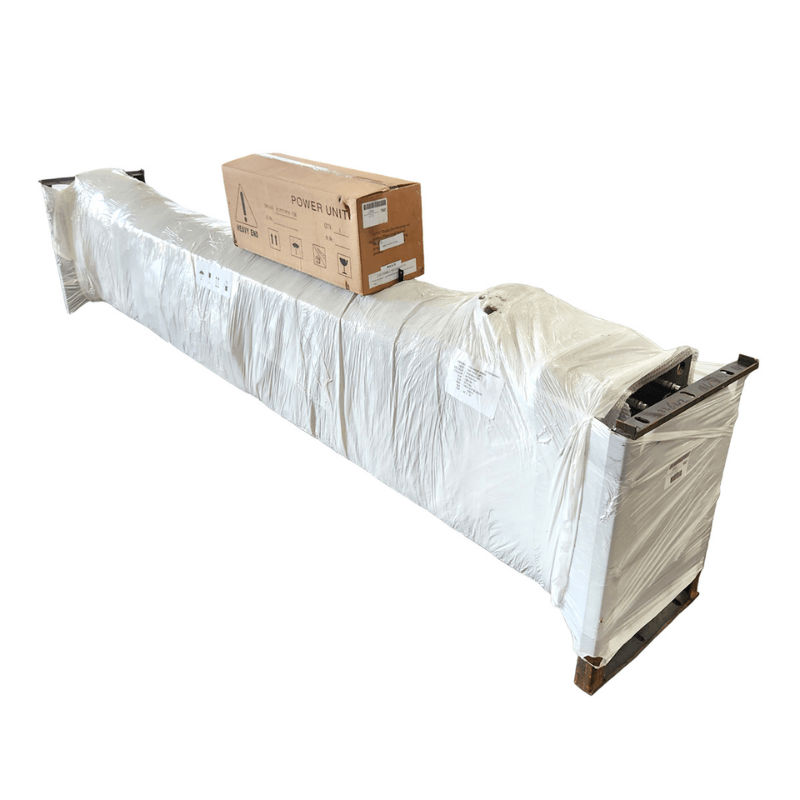

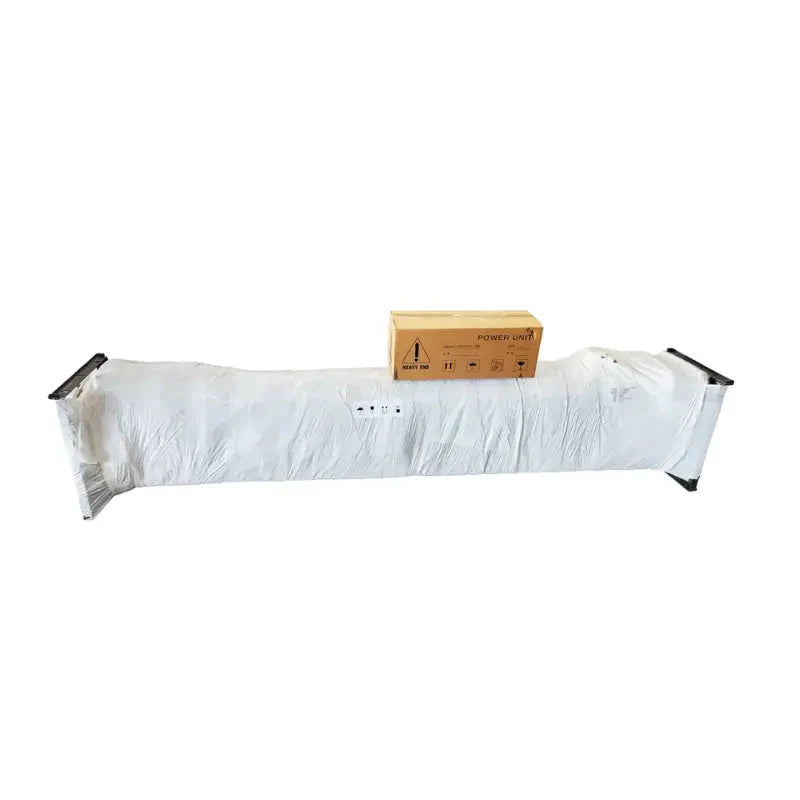

- Shipping Dimensions: 142"L x 22"W x 42"H
- Shipping Weight: 1,380 lbs
Features
- 9,000 lb lifting capacity
- Clear-floor asymmetric design for improved access and workspace efficiency

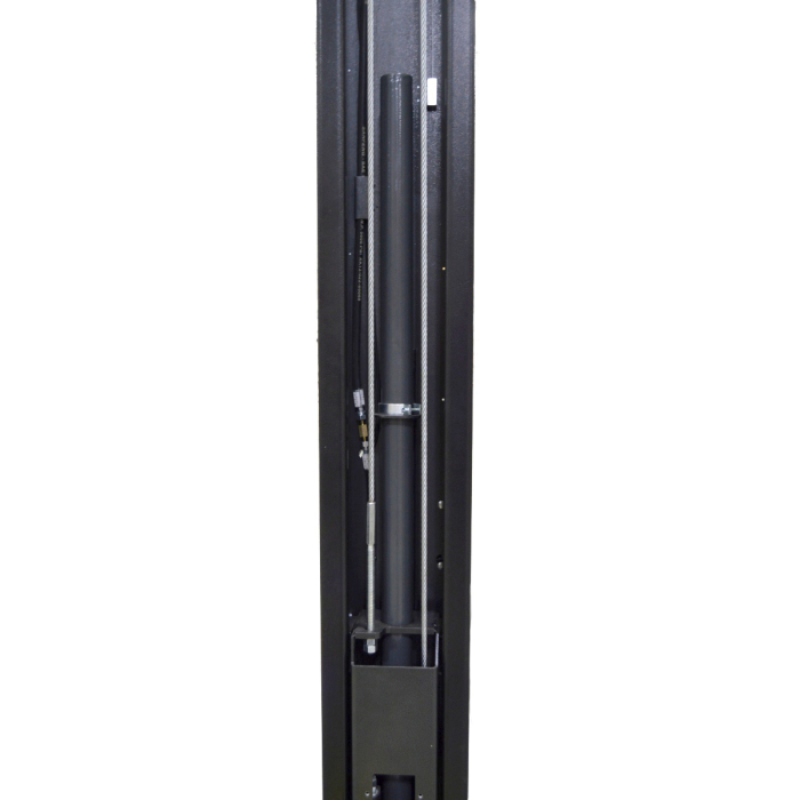

- Direct-drive hydraulic cylinders for smooth, reliable lifting
- Power-on green LED indicator

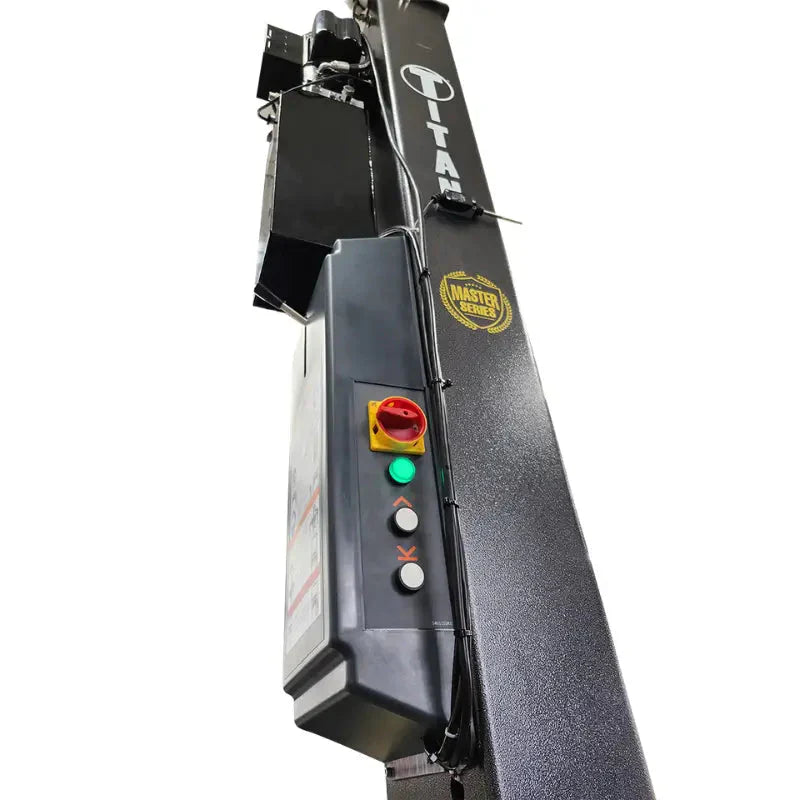

- Simple single-button operation
- Included electrical disconnect
- Single-lever lowering control
- Serviceable arm restraint locks
- Adjustable thread-up lifting pads
- Carriage limit switch for added safety

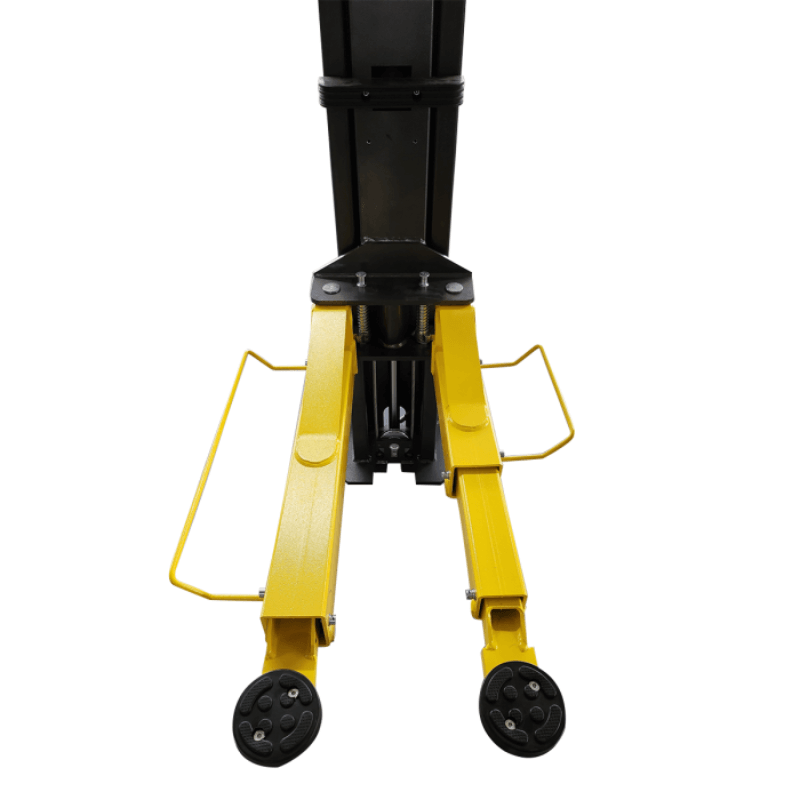

- Three-stage front arms for increased vehicle reach and flexibility
- Single-point safety lock release
- European-style carriages
- Includes 4" truck adapters
- Rubber door guards help protect vehicle doors
- Steel toe guards for enhanced operator safety
- Heavy-duty steel hydraulic oil reservoir
- Durable textured powder-coated finish
Warranty
- 5-Year Structural Warranty
- 2-Year Electrical & Hydraulic Parts Warranty
- Lifetime Warranty on Nylon Slide Blocks
Combining clear-floor convenience, commercial-grade construction, and advanced safety features, the Titan HD2P-9KMSC is a dependable and versatile two-post lift designed to deliver years of reliable service in demanding automotive environments.
HD2P-9KMSC Manual
