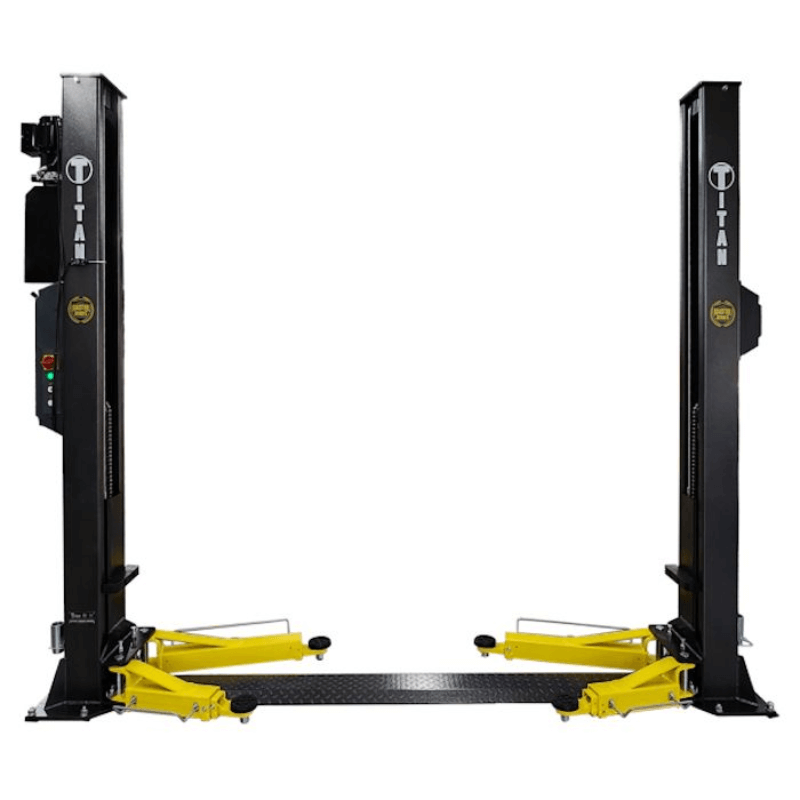

Titan HD2P-9KMSC 9,000 lb Two-Post Lift
Upgrade your garage or automotive shop with the Titan HD2P-9KMSC 9,000 lb Two-Post Lift, a professional-grade lifting solution designed for reliability, safety, and ease of use. Featuring a floor plate design, this lift is ideal for facilities with lower ceilings while still providing excellent vehicle access and lifting performance. With a 9,000 lb lifting capacity and a maximum lifting height of up to 82-1/4" with adapters, it can comfortably service most cars, SUVs, and light-duty trucks.
Engineered for dependable operation, the HD2P-9KMSC utilizes chain-over-roller hydraulic cylinders and direct-drive lifting technology to deliver smooth, consistent performance. Three-stage front arms provide enhanced reach and flexibility, while adjustable thread-up lifting pads allow for accurate vehicle positioning. Convenient features such as single-button controls, a single-point lock release system, and single-lever lowering make operation simple and efficient.
Safety remains a top priority with an integrated carriage limit switch, overhead shut-off protection, steel toe guards, and durable arm restraint locks. Finished in a rugged textured powder-coated coating, this lift is built to withstand years of daily use in demanding environments.
Specifications
- Lifting Capacity: 9,000 lbs
- Lifting Speed: 50–60 seconds
- Width Between Columns: 111-1/2"
- Drive-Thru Clearance: 100-3/4"
- Minimum Pad Height: 3-3/4"
- Maximum Lift Height: 74-3/4" (82-1/4" with adapters)
- Baseplate-to-Baseplate Width: 134-5/8"
- Overall Height: 112" (carriage lock ladder extends an additional 10" at full height)
- Power Unit: 220V, Single-Phase, 60Hz
- Electrical Requirement: 30-Amp Breaker
- Motor: 3 HP

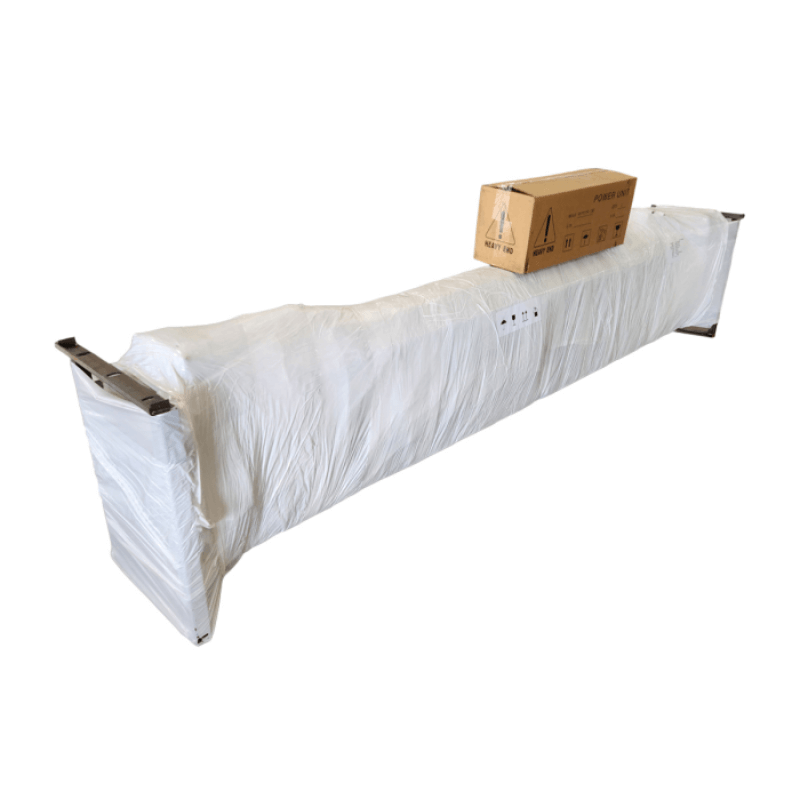

- Shipping Dimensions: 142"L x 22"W x 42"H
- Shipping Weight: 1,380 lbs
Features
- 9,000 lb lifting capacity
- Floor plate design ideal for lower ceiling installations
- Power-on green LED status indicator
- Simple single-button operation
- Included electrical disconnect for added safety
- Single-lever lowering control

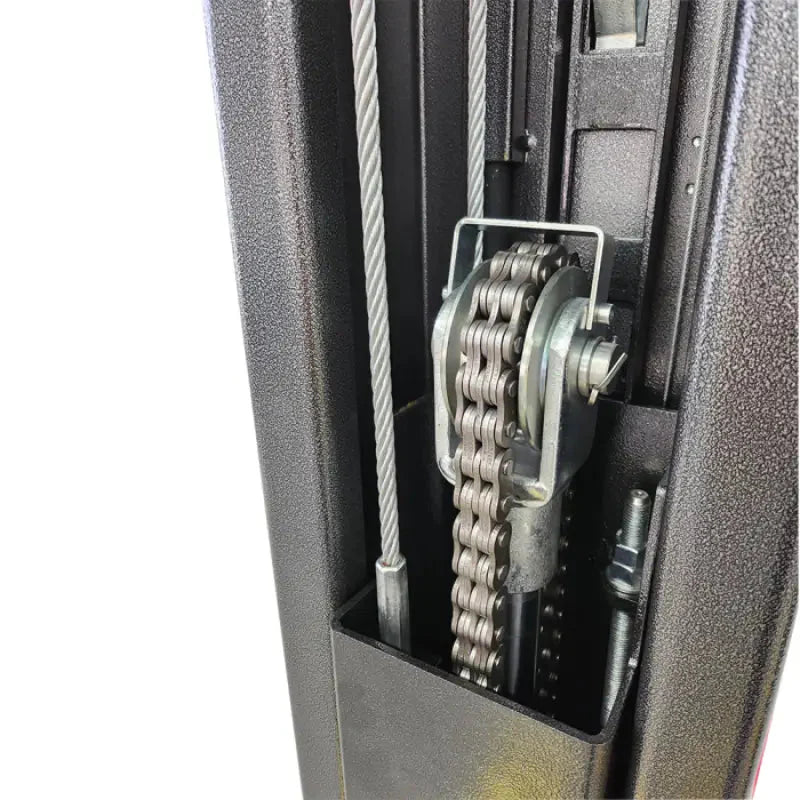

- Chain-over-roller hydraulic cylinders for smooth lifting
- Serviceable arm restraint locking system
- Adjustable thread-up lifting pads
- Integrated carriage limit switch

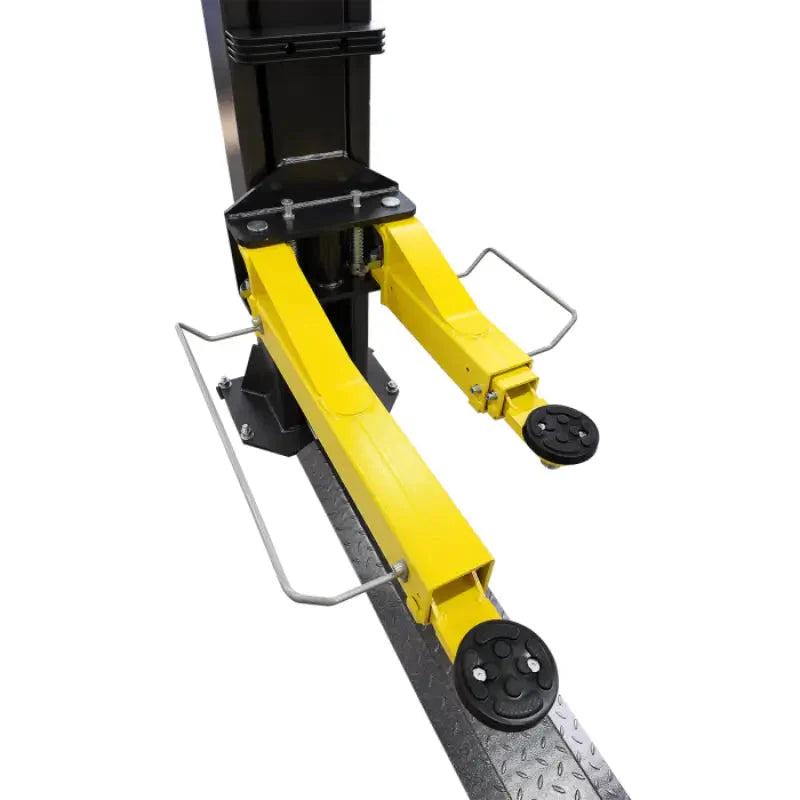

- Three-stage front arms for improved vehicle reach
- Single-point safety lock release
- European-style carriages for smooth operation

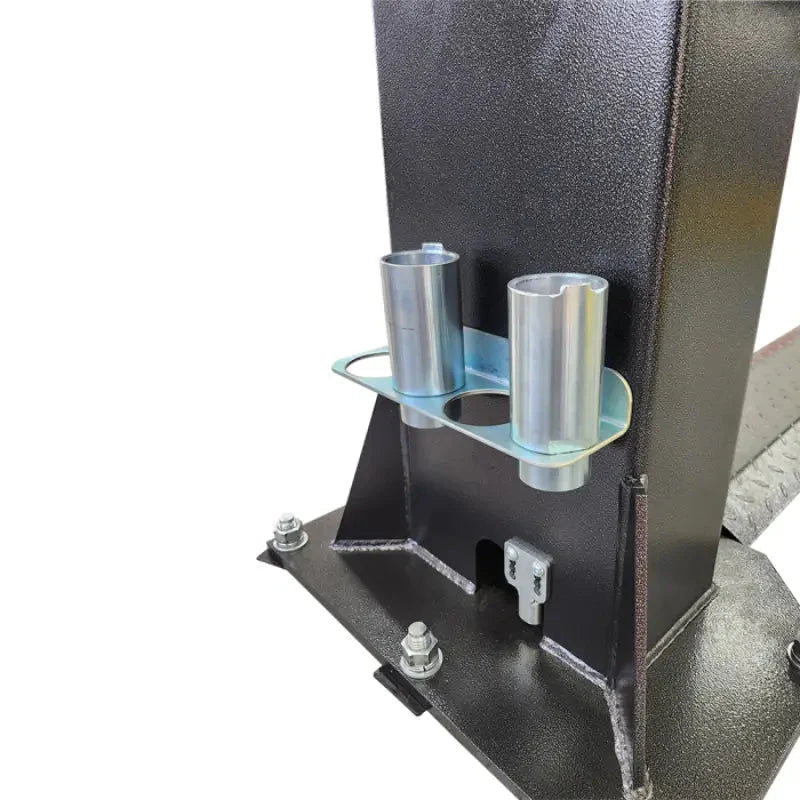

- Includes 4" truck adapters
- Rubber door guards help protect vehicle doors
- Steel toe guards for enhanced operator safety
- Heavy-duty steel hydraulic oil reservoir
- Durable textured powder-coated finish
Warranty
- 5-Year Structural Warranty
- 2-Year Electrical and Hydraulic Warranty
- Lifetime Warranty on Nylon Slide Blocks
The Titan HD2P-9KMSC combines commercial-grade durability, flexible vehicle positioning, and advanced safety features, making it an excellent choice for professional repair shops and serious automotive enthusiasts seeking dependable lifting performance.
