Description

SBJ-MS Sliding Bridge Jack

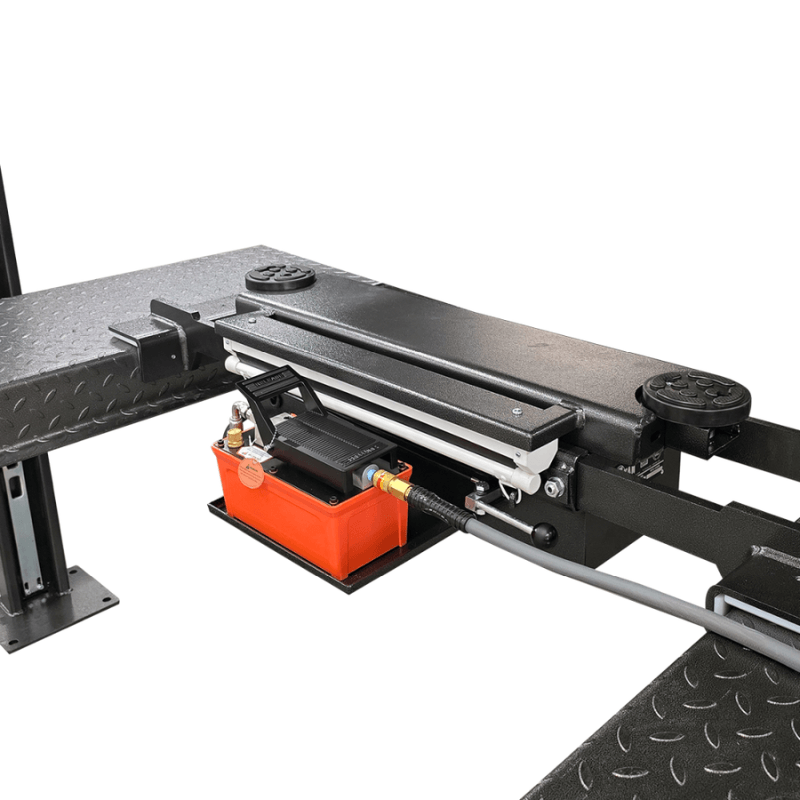

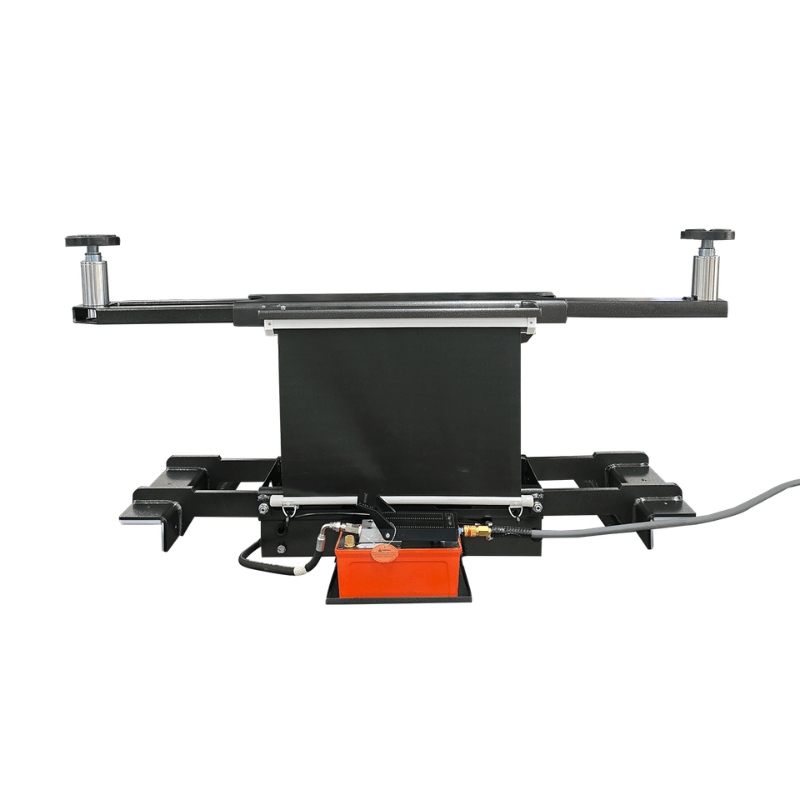

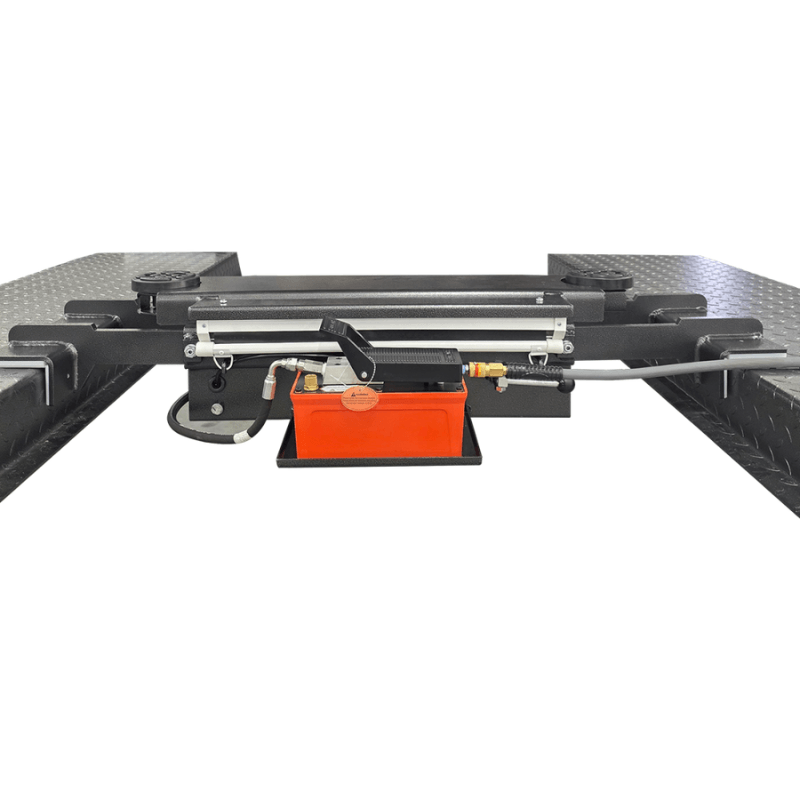

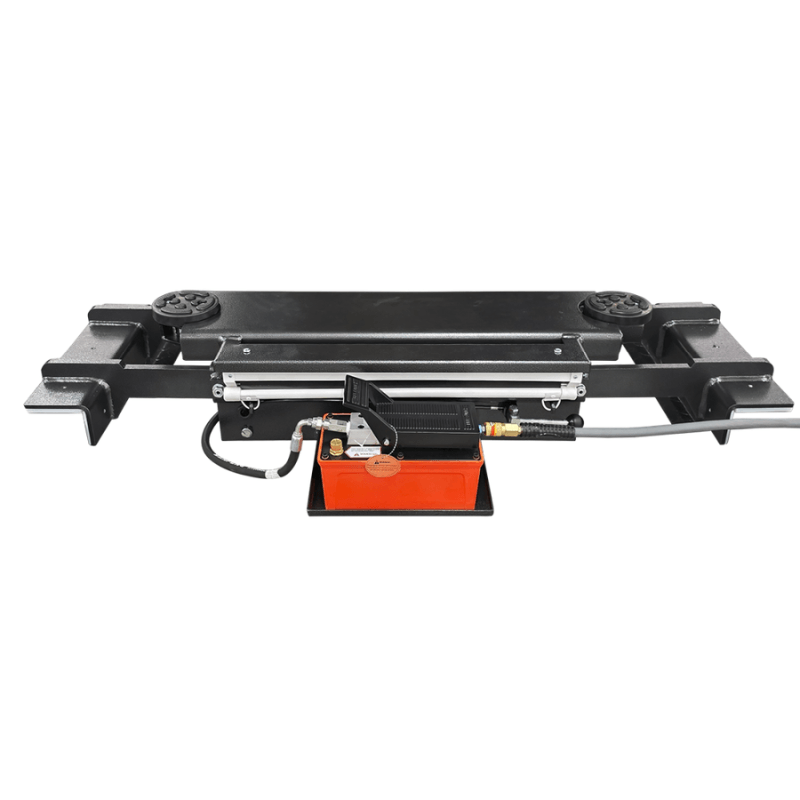

The Titan SBJ-MS Master Series Sliding Bridge Jack is a 4,400 lb capacity air-operated bridge jack designed to expand the service capabilities of compatible Titan four-post lifts. Positioned between the lift runways, the SBJ-MS allows technicians to raise either the front or rear of a vehicle from the runways, providing wheel-free access for tire, brake, suspension, wheel, and general undercar service.

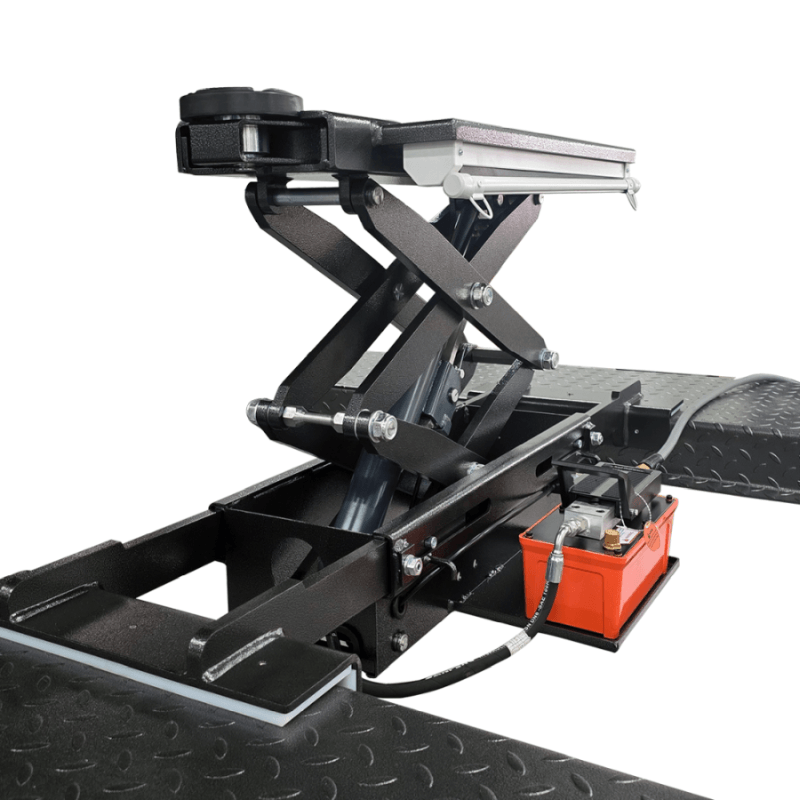

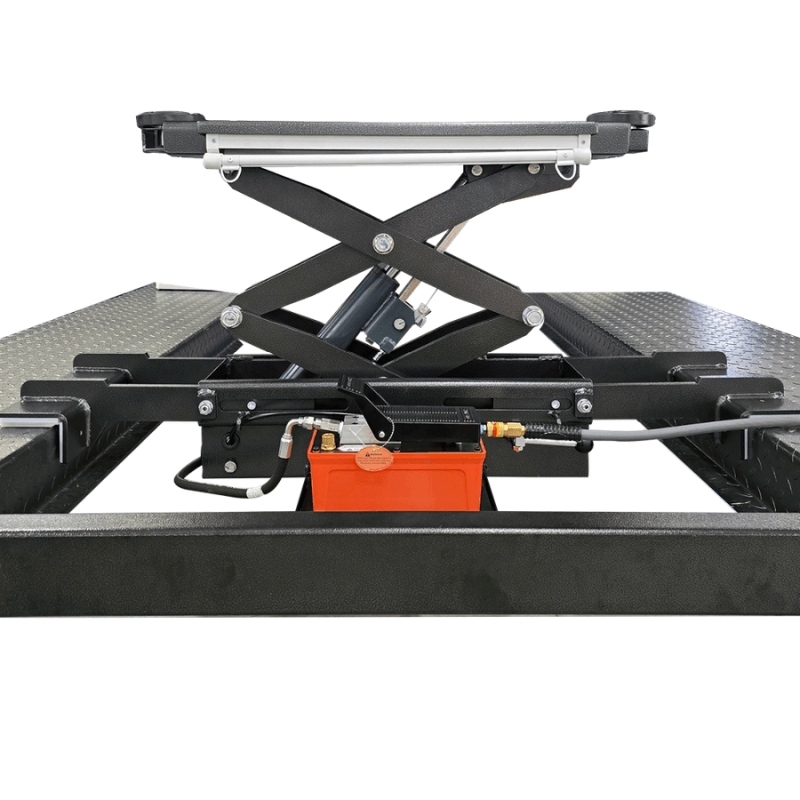

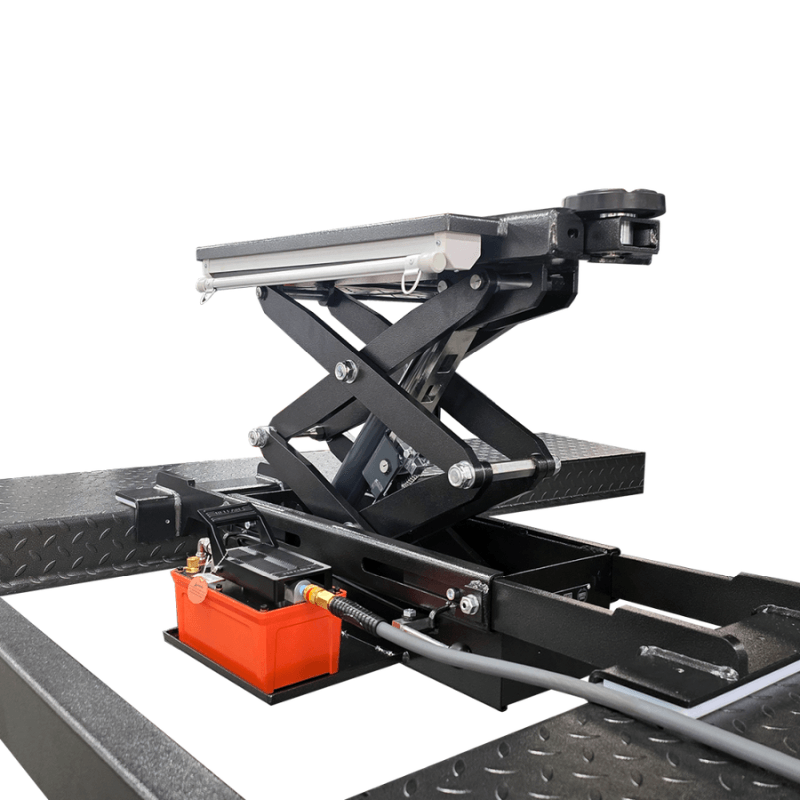

The SBJ-MS features a durable scissor-style air-over-hydraulic lifting system combined with two telescoping arms for convenient positioning beneath different vehicle lifting points. Its adjustable pad width helps accommodate a variety of vehicle sizes, while multiple locking positions allow the vehicle to be supported at several working heights.

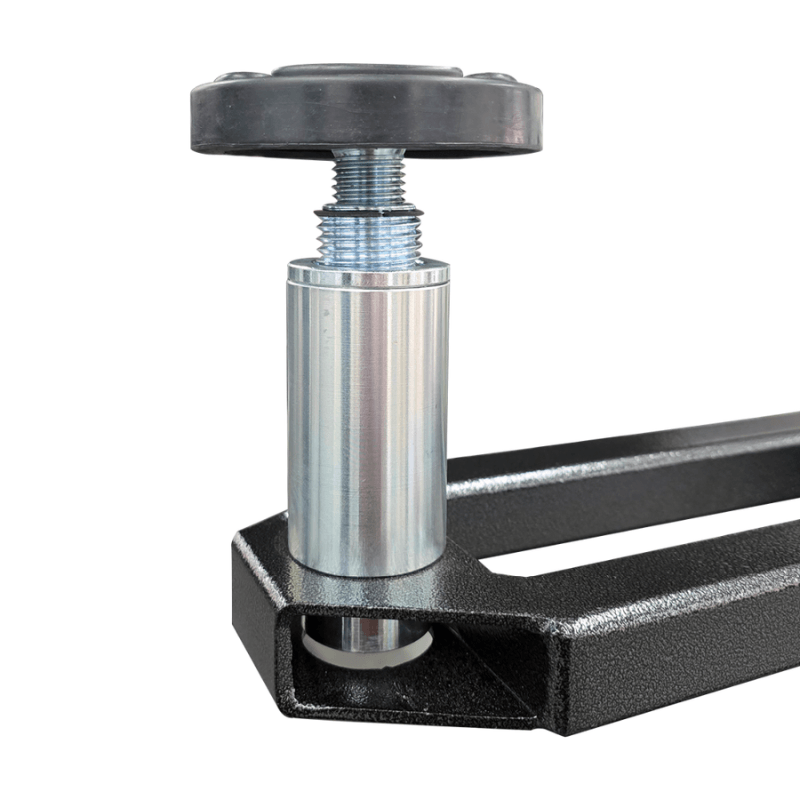

For additional lifting-point flexibility, the SBJ-MS includes four height adapters and two thread-up adapters. The adapters can be configured to provide additional reach when servicing vehicles with higher lifting points, with a maximum stacked adapter height of 8 inches.

Designed for professional automotive service applications, the SBJ-MS is compatible with select Titan four-post lifts, including the SDPL-8KMS, SDPL-8000XLT, and SDPL-9KMS-XLT.

Titan SBJ-MS Specifications

  • Brand: Titan

  • Model: SBJ-MS

  • Product Type: Sliding Bridge Jack

  • Series: Master Series

  • Lifting Capacity: 4,400 lbs

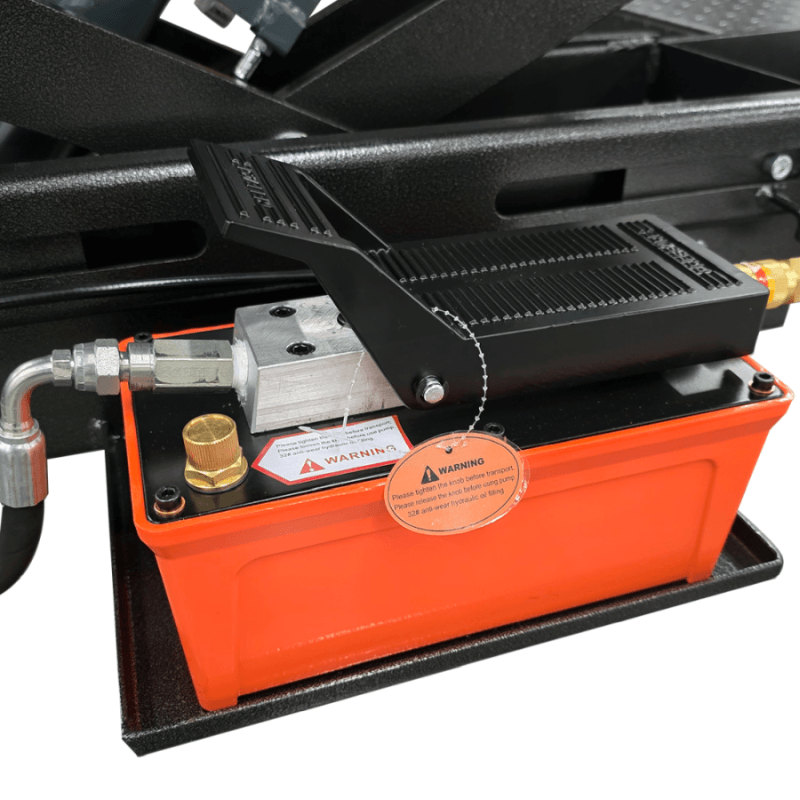

  • Operation: Air-Operated / Air-Over-Hydraulic

  • Minimum Lowered Height with Thread-Up Adapter: 4.5"

  • Raised Lock Position #1: 7"

  • Raised Lock Position #2: 12.5"

  • Raised Lock Position #3: 16.25"

  • Raised Lock Position #4: 19.75"

  • Minimum Pad Width: 31.5" center-to-center

  • Maximum Pad Width: 58.5" center-to-center

  • Short Height Adapter: 2-3/8"

  • Tall Height Adapter: 4"

  • Thread-Up Adapter: 1-5/8"

  • Maximum Stacked Adapter Height: 8"

  • Shipping Length: 43"

  • Shipping Width: 25"

  • Shipping Height: 14"

  • Shipping Weight: 380 lbs

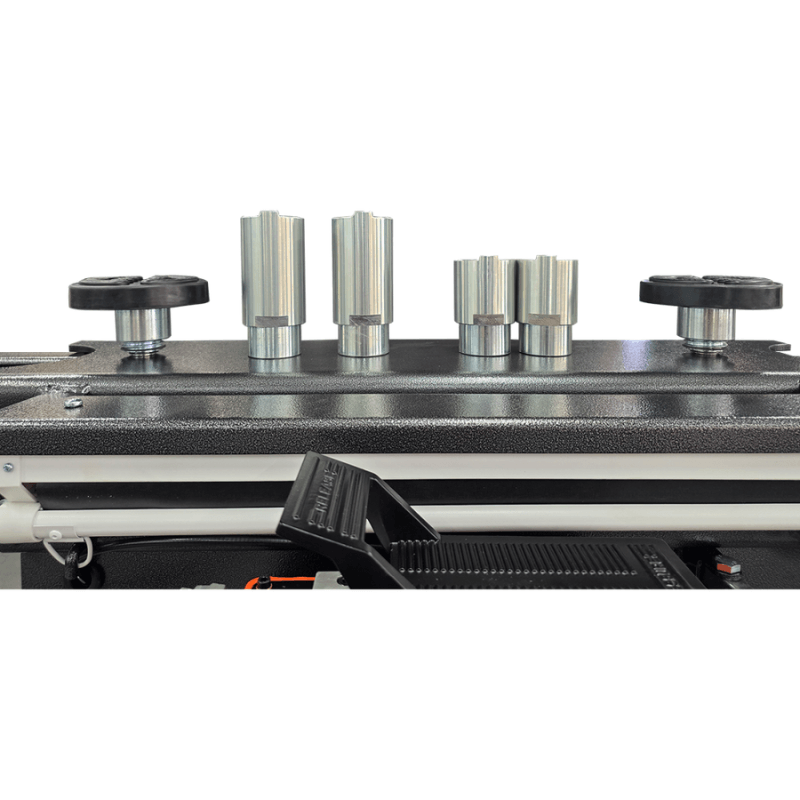

Height Adapters

  • Short Adapter: 2-3/8"

  • Tall Adapter: 4"

  • Thread-Up Adapter: 1-5/8"

  • Maximum Stacked Adapter Height: 8"

Titan SBJ-MS Features

  • 4,400 lb lifting capacity

  • Air-over-hydraulic operation

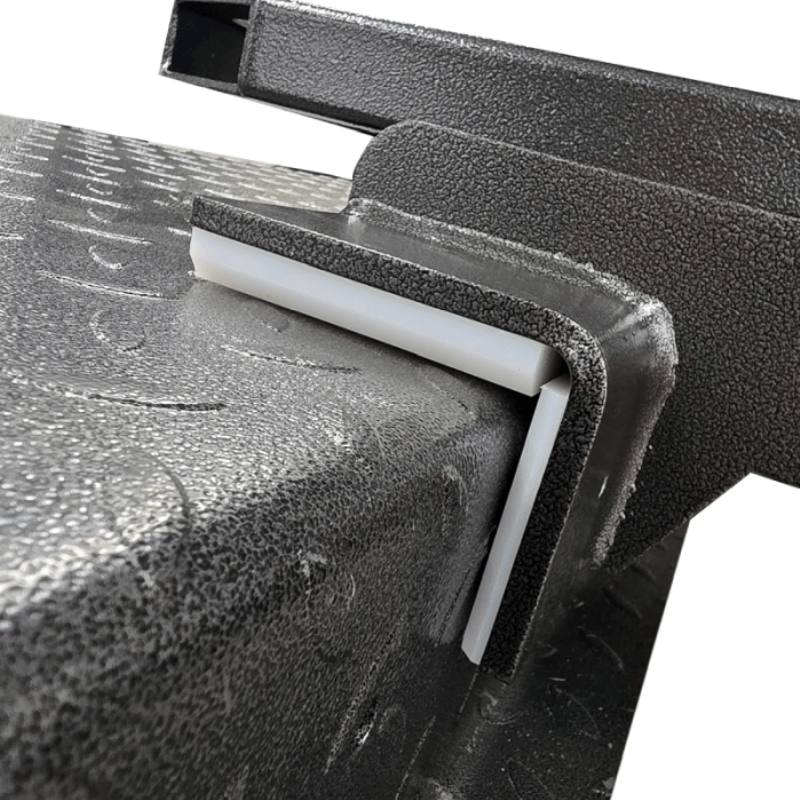

  • Sliding bridge design allows convenient positioning between four-post lift runways

  • Scissor-style lifting mechanism

  • Two telescoping lifting arms

  • Adjustable pad width for accommodating different vehicle sizes and lifting points

  • Raises the front or rear of a vehicle independently from the lift runways

  • Provides wheel-free access for tire, brake, suspension, and related service

  • Multiple locking positions provide a choice of working heights

  • Includes four height adapters

  • Includes two thread-up adapters

  • Stackable adapter configuration provides up to 8" of additional height

  • Designed for use with compatible Titan four-post lifts

  • Compatible with the Titan SDPL-8KMS, SDPL-8000XLT, and SDPL-9KMS-XLT

  • Heavy-duty construction designed for professional automotive service environments

Titan SBJ-MS Manual

Titan SBJ-MS Installation and Operations Manual
