Description

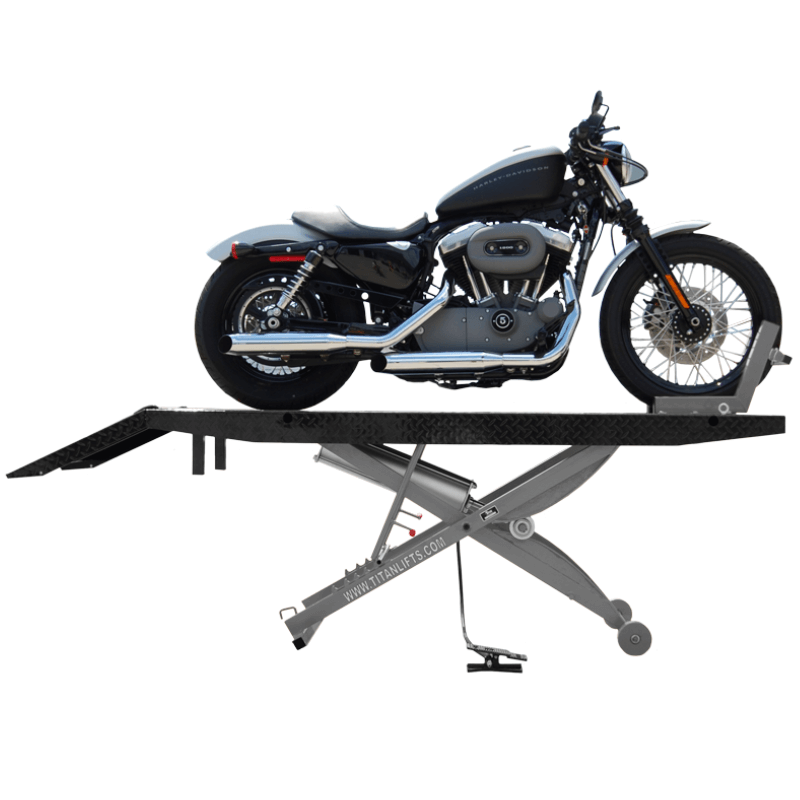

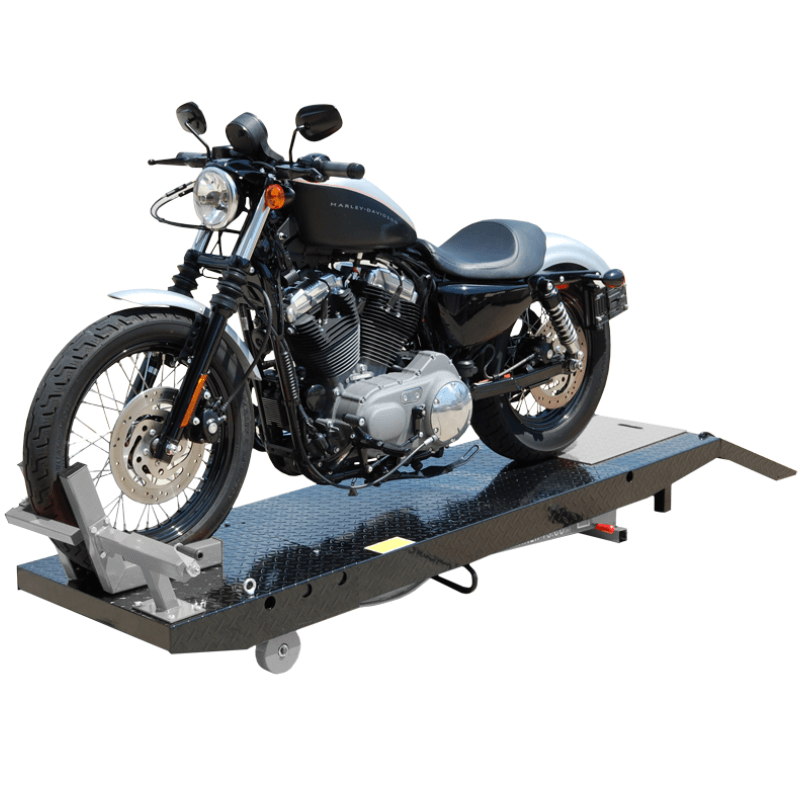

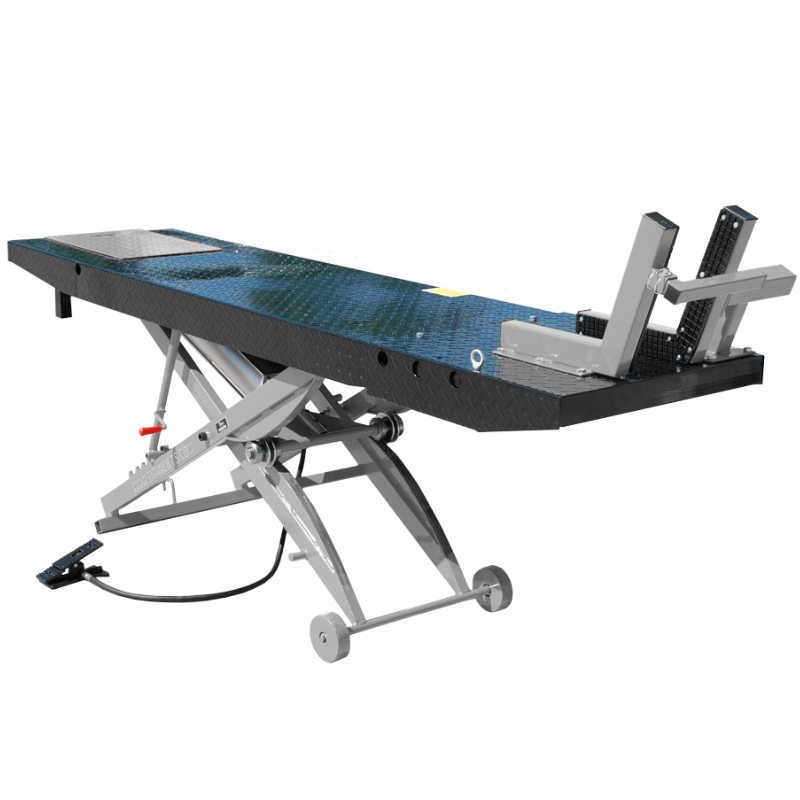

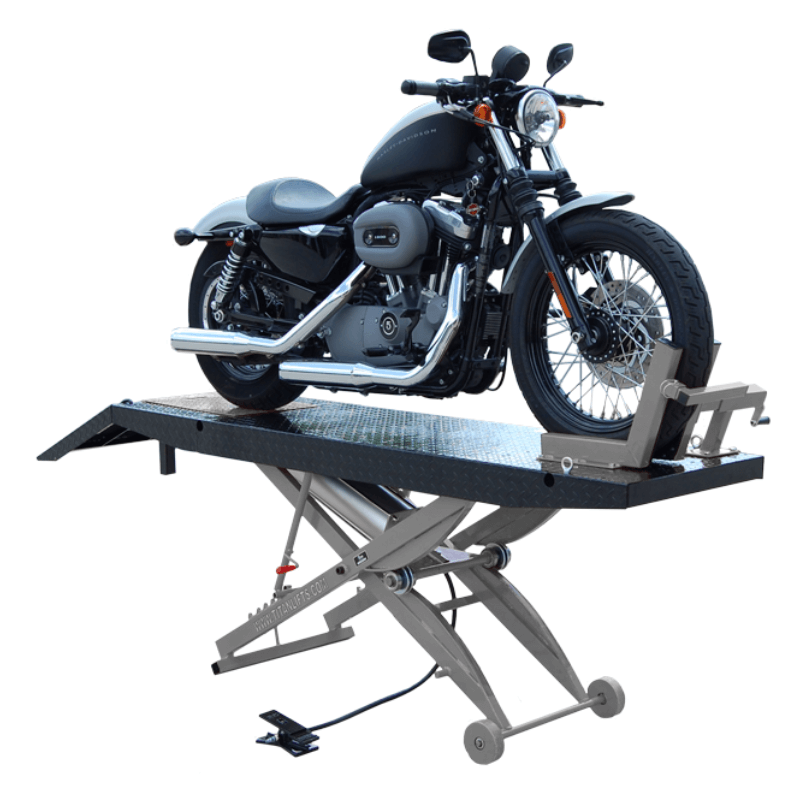

Titan SDML-1000D 1,000 lb Motorcycle Lift
The Titan SDML-1000D Motorcycle Lift is a heavy-duty, air-powered lift table designed to provide exceptional stability, versatility, and convenience for motorcycle maintenance and repair. Built with a robust 1,000 lb lifting capacity and an extended work platform, this lift easily accommodates a wide variety of motorcycles, including larger touring bikes, cruisers, and custom builds.
Featuring a durable diamond-plated work surface, the SDML-1000D offers superior traction and long-lasting durability in demanding shop environments. Its adjustable front table extension, multiple locking positions, and generous 33-inch lifting height provide excellent flexibility for everything from routine maintenance to major repair projects. Whether used in a professional service facility or a home garage, this lift delivers reliable performance and improved working comfort.
Designed for convenience, the SDML-1000D includes a front wheel vise, rear wheel drop-out panel, roller plate drop-out, and detachable ramp system to simplify loading and servicing. Air-powered controls provide smooth lifting operation, while the integrated two-wheel dolly makes repositioning the lift easy when needed.
Specifications
Locking Positions
- Position 1: 25.25"
- Position 2: 27.25"
- Position 3: 28.75"
- Position 4: 30.25"
- Position 5: 31.75"
Platform Dimensions
- Table Length: 87.5" – 99"
- Table Width: 24"
- Front Extension: 24.5" x 23.75"
- Lowered Height: 8"
- Maximum Lift Height: 33"
Extended Length Dimensions
- Position 1 with Front Extension: 99"
- Position 1 with Front Extension & Ramp: 120"
- Position 2 with Front Extension: 94.5"
- Position 2 with Front Extension & Ramp: 114.5"
- Position 3 with Front Extension: 89.5"
- Position 3 with Front Extension & Ramp: 109.5"
Performance
- Lifting Capacity: 1,000 lbs
- Power Type: Air Powered
- Operating Air Pressure: 90–110 PSI
Shipping Information
- Shipping Dimensions: 91"L x 27"W x 13"H
- Shipping Weight: 525 lbs
Features
- 1,000 lb lifting capacity
- Heavy-duty diamond-plated work platform
- Extra-long table design accommodates larger motorcycles
- Maximum lifting height of 33"
- Multiple locking positions for enhanced safety and flexibility
- Adjustable front table extension for additional workspace
- Front wheel vise included for secure motorcycle positioning
- Rear wheel drop-out panel for easier wheel and tire service
- Roller plate drop-out for maintenance convenience
- Standard detachable loading ramp included
- Extended ramp system for smoother loading and unloading
- Air-powered controls for smooth lifting operation
- Integrated two-wheel dolly for easy mobility
- Available in Black & Grey or Black & Orange powder-coated finishes
Additional Information
- Stabilizer Bar Not Included
The Titan SDML-1000D combines professional-grade construction, extended platform versatility, and dependable air-powered performance to create an ideal motorcycle lift for service shops, dealerships, and motorcycle enthusiasts. Its spacious work surface and service-friendly design make routine maintenance and repairs safer, easier, and more efficient.
