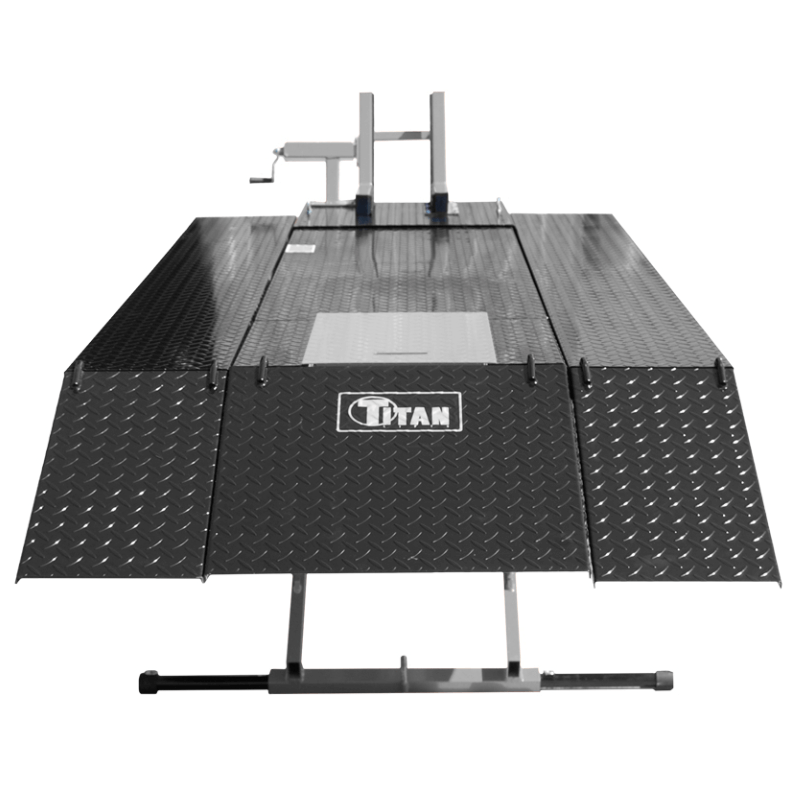

Titan SDML-1000D-XLT 1,000 lb Motorcycle & Powersports Lift
The Titan SDML-1000D-XLT Motorcycle Lift is a heavy-duty, air-powered lifting platform designed to handle a wide range of powersports vehicles, including motorcycles, ATVs, jet skis, and snowmobiles. With a 1,000 lb lifting capacity and an extra-wide expandable work surface, this lift provides the versatility, stability, and convenience needed for professional service facilities and serious enthusiasts alike.

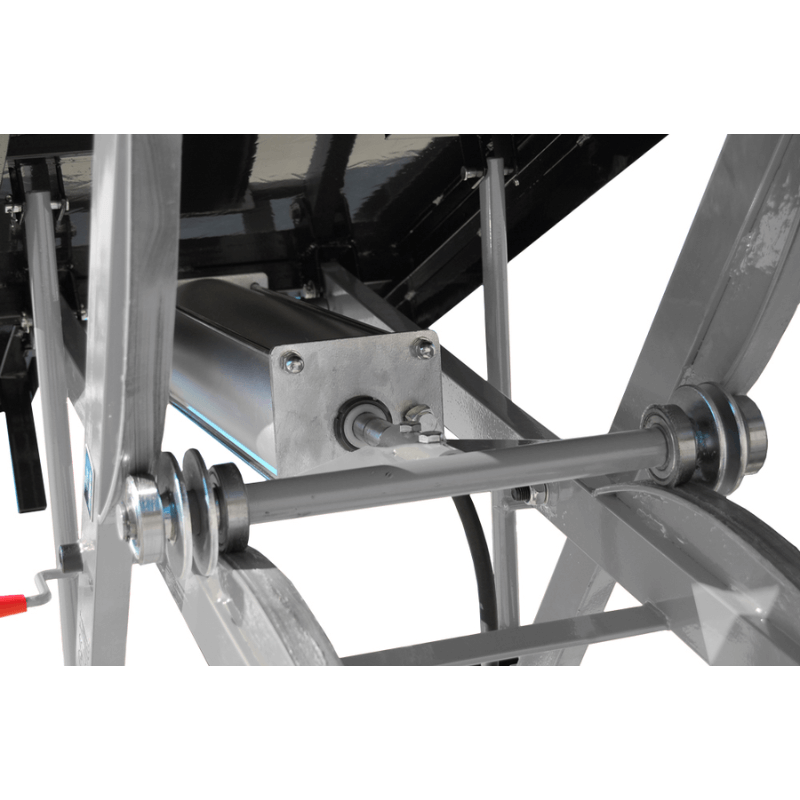

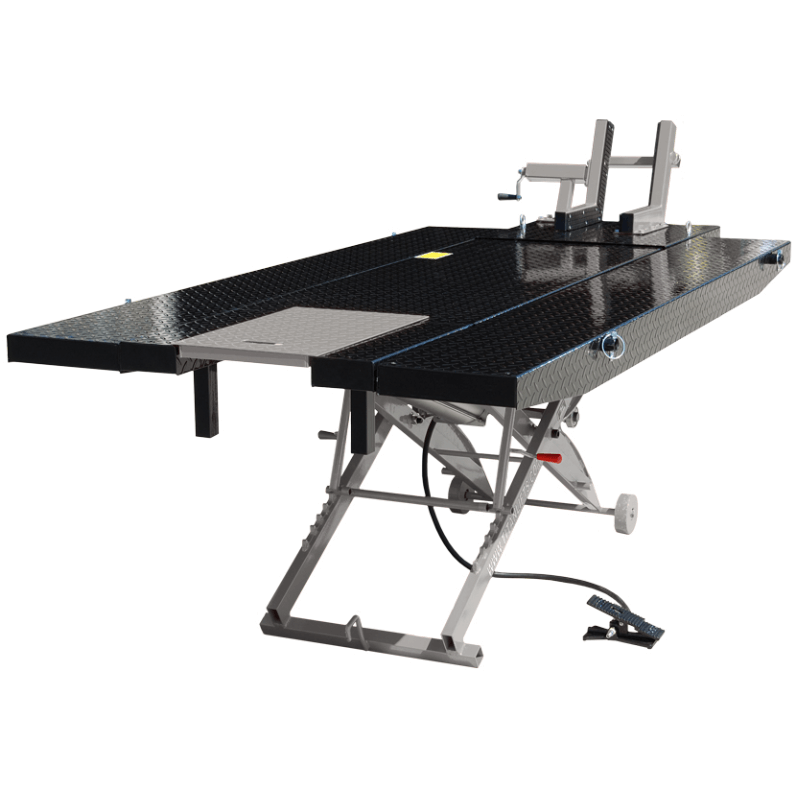

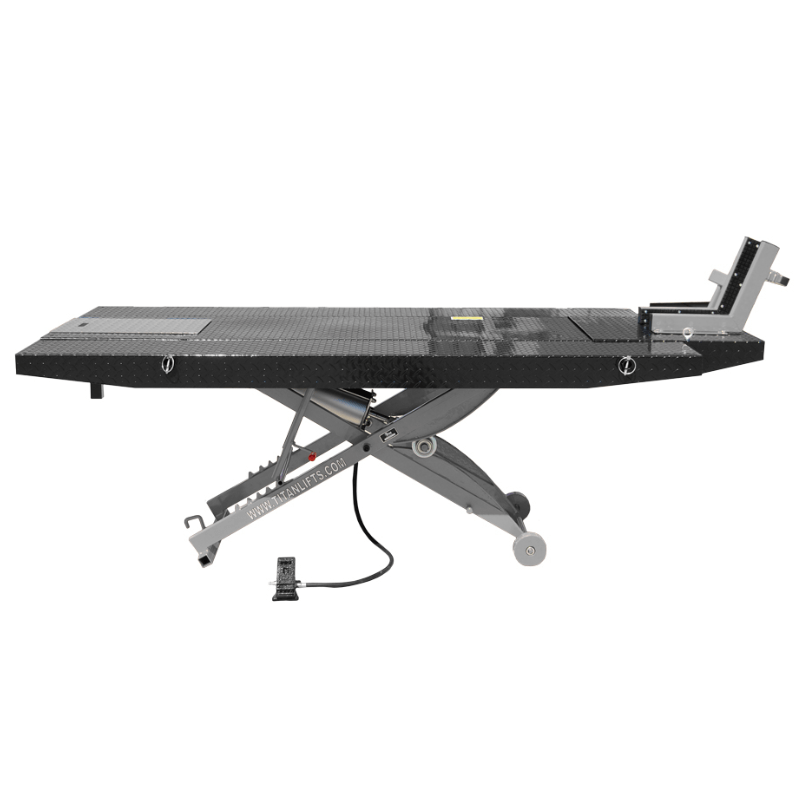

Built around a rugged diamond-plated steel platform, the SDML-1000D-XLT offers outstanding durability and traction while supporting larger vehicles that require additional workspace. The included side extensions expand the platform width to an impressive 48 inches, making it ideal for servicing ATVs and other wider recreational vehicles. A powerful 7-inch air-powered cylinder raises the platform to a maximum height of 33 inches, creating a comfortable working position for maintenance, repairs, and customization projects.
Designed with serviceability in mind, the lift includes a front wheel vise, rear wheel drop-out panel, roller plate drop-out, adjustable front extension, and extended ramp system. Air-powered controls provide smooth lifting operation, while the included stabilizer bar and integrated dolly wheels enhance safety and mobility.
Specifications
Locking Positions
- Position 1: 25.25"
- Position 2: 27.25"
- Position 3: 28.75"
- Position 4: 30.25"
- Position 5: 31.75"
Platform Dimensions
- Table Length: 87.5" – 99"
- Table Width: 24" or 48" with side extensions installed
- Front Extension: 24.5" x 23.75"
- Side Extensions (Each): 11.75" x 87.5"
- Lowered Height: 8"
- Maximum Lift Height: 33"
Extended Length Dimensions
- Position 1 with Front Extension: 99"
- Position 1 with Front Extension & Ramp: 120"
- Position 2 with Front Extension: 94.5"
- Position 2 with Front Extension & Ramp: 114.5"
- Position 3 with Front Extension: 89.5"
- Position 3 with Front Extension & Ramp: 109.5"
Performance
- Lifting Capacity: 1,000 lbs
- Power Type: Air Powered
- Operating Air Pressure: 90–110 PSI
Shipping Information
- Shipping Dimensions: 91"L x 27"W x 23"H
- Shipping Weight: 750 lbs
Features
- 1,000 lb lifting capacity
- Suitable for motorcycles, ATVs, jet skis, and snowmobiles
- Heavy-duty diamond-plated steel platform

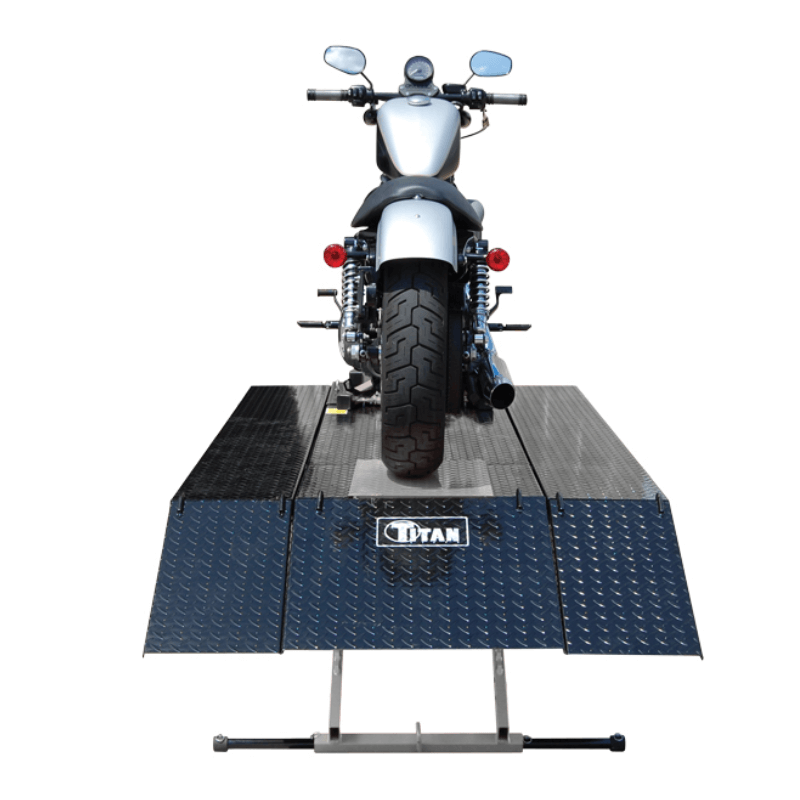

- Expandable platform width up to 48" with included side extensions
- Powerful 7" air-powered lifting cylinder
- Maximum lift height of 33"
- Multiple locking positions for enhanced safety
- Adjustable front table extension

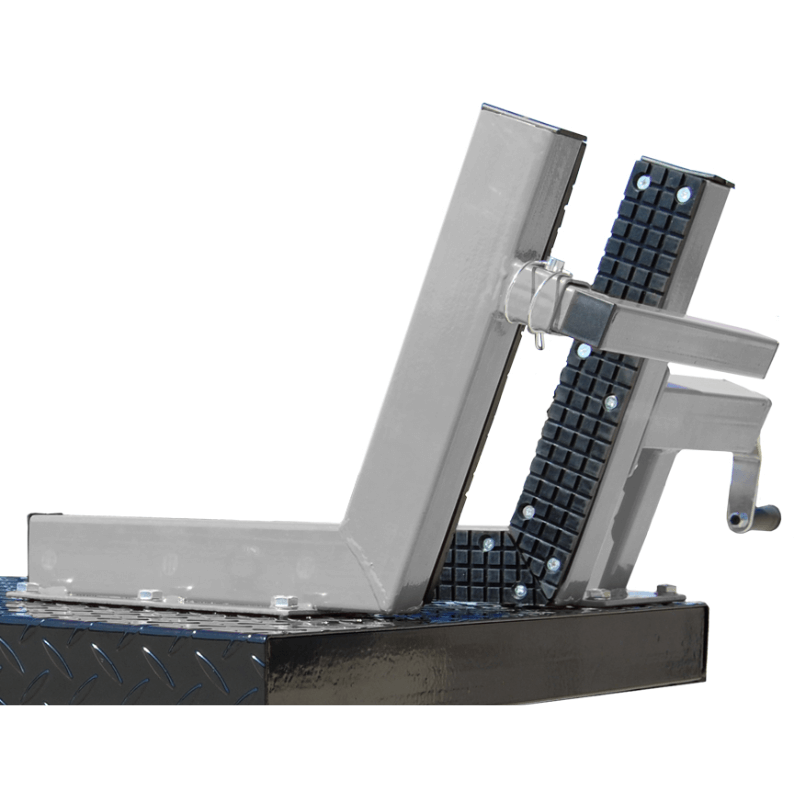

- Front wheel vise included

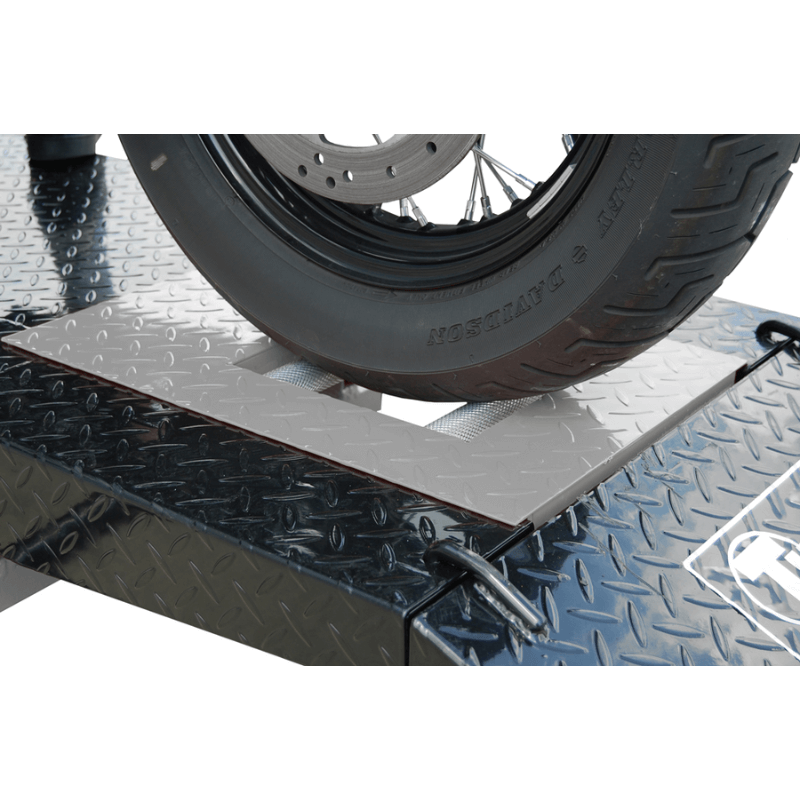

- Rear wheel drop-out panel for wheel and tire service
- Roller plate drop-out for maintenance accessibility
- Extended loading ramp and detachable ramp system included
- Stabilizer bar included for additional support and stability

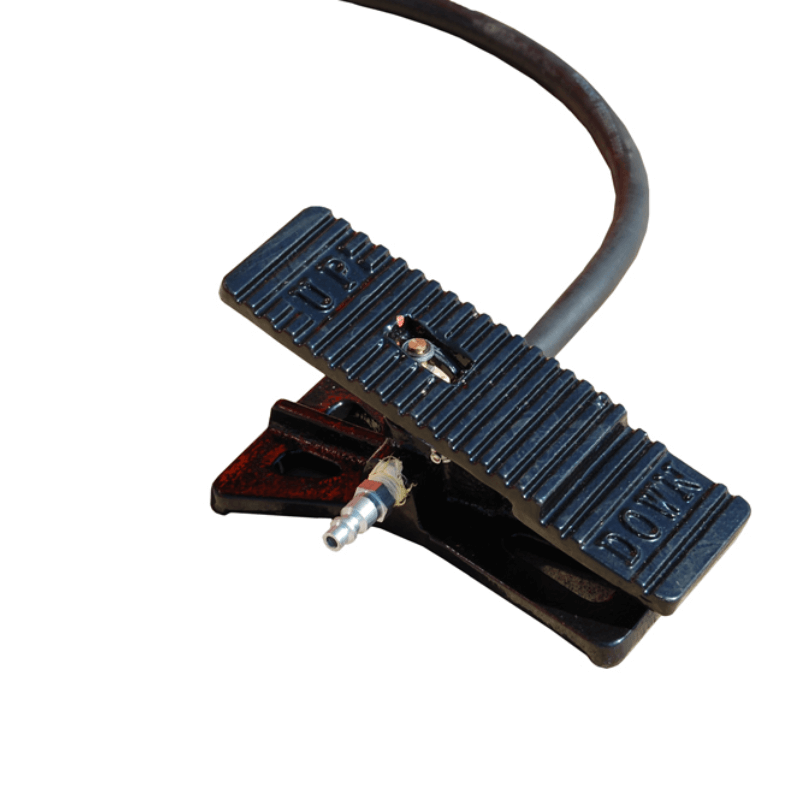

- Air-powered controls for smooth operation

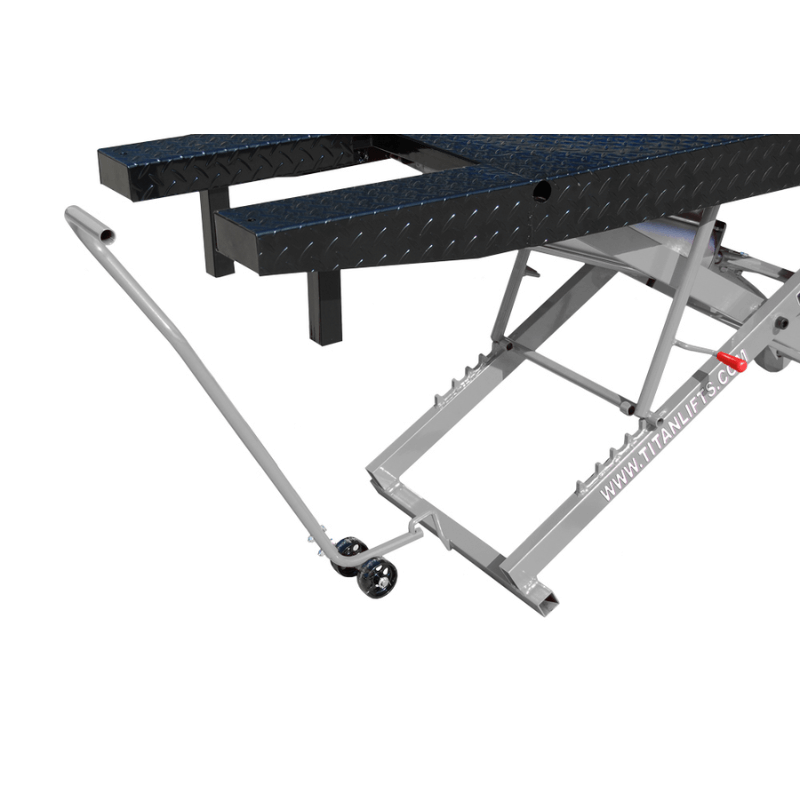

- Integrated two-wheel dolly for easy maneuverability
- Available in Black & Grey or Black & Orange powder-coated finishes
Warranty
- 1-Year Parts Warranty
The Titan SDML-1000D-XLT combines a spacious work platform, rugged construction, and versatile powersports compatibility to deliver a professional-grade lifting solution for a wide variety of maintenance and repair applications. Whether servicing motorcycles or larger recreational vehicles, this lift provides the workspace and stability needed to get the job done efficiently.
