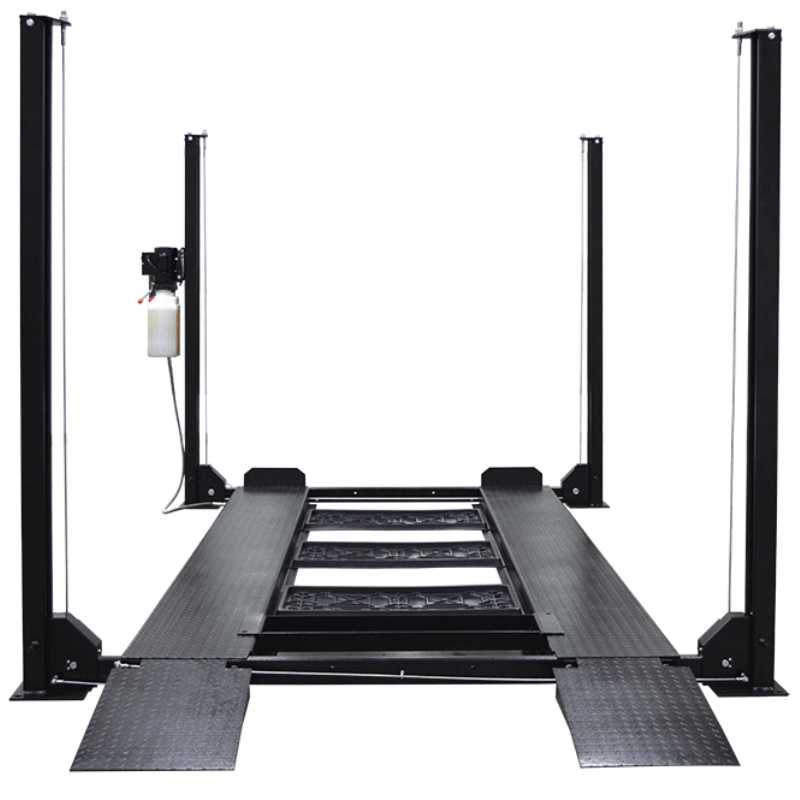

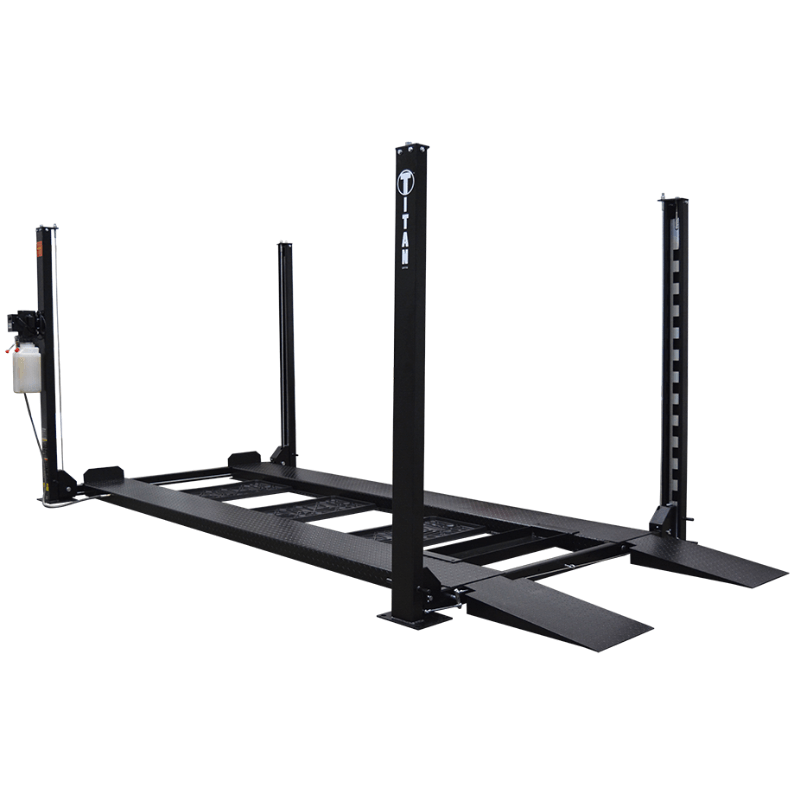

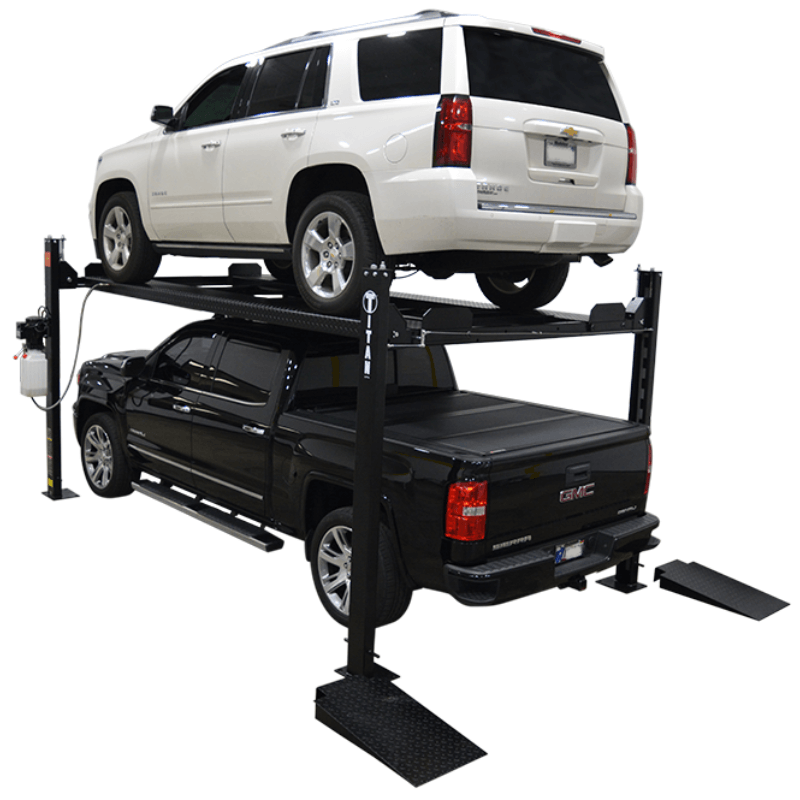

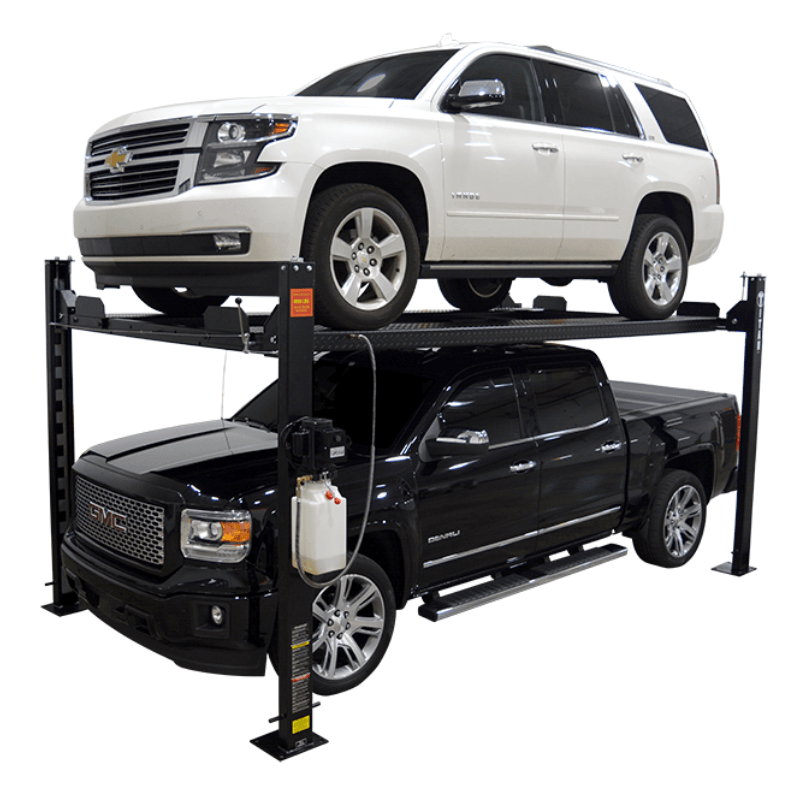

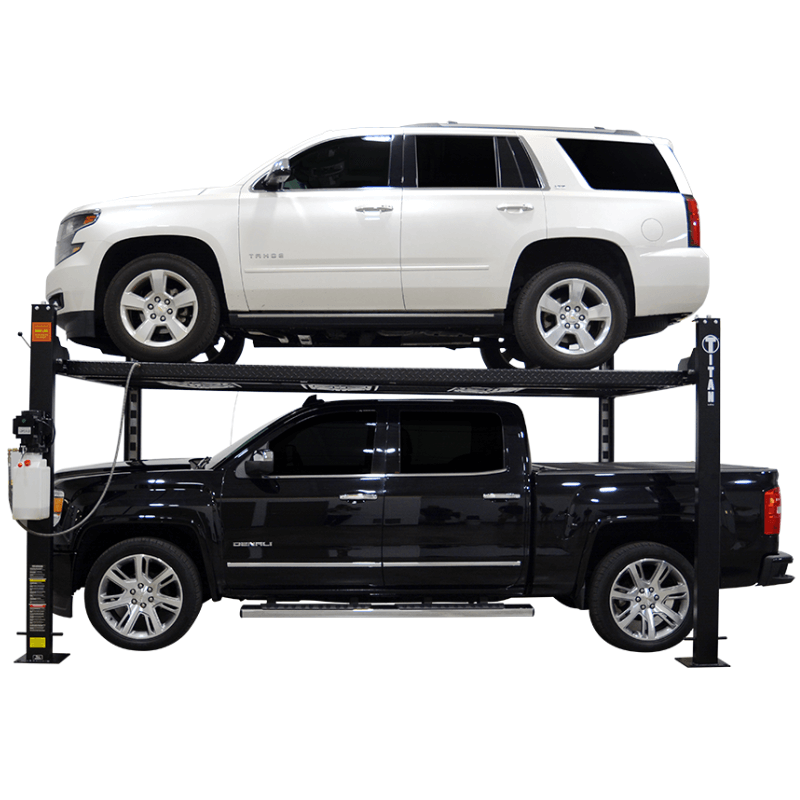

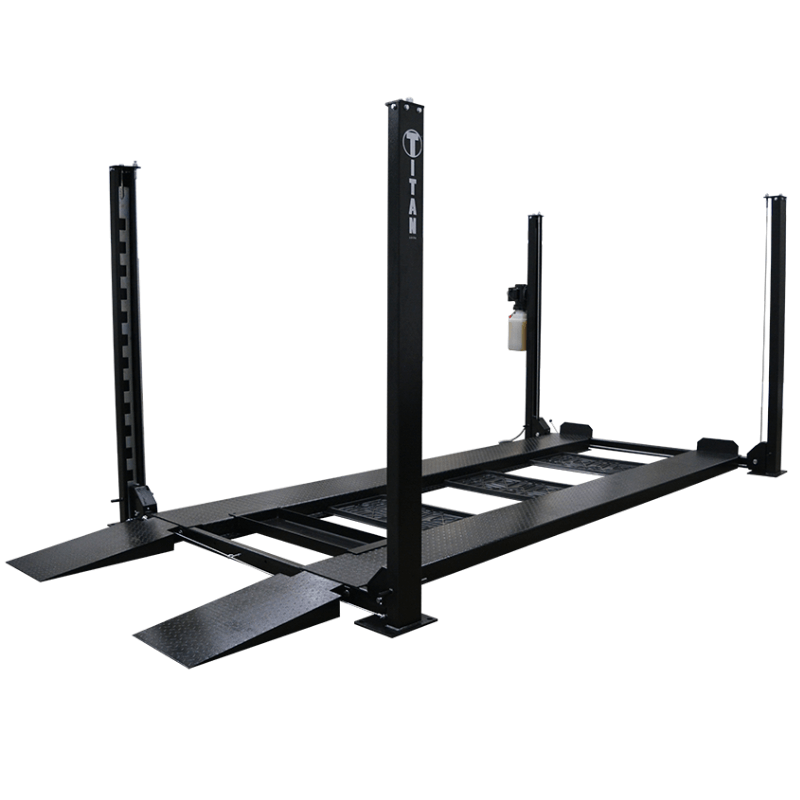

Titan SDPL-8000XLT 8,000 lb Four-Post Lift
The Titan SDPL-8000XLT Four-Post Lift is a premium storage and service lift designed for automotive enthusiasts, collectors, and professional shops looking to maximize garage space while maintaining reliable lifting performance. Built with an impressive 8,000 lb lifting capacity, this extra-long model offers greater runway length and increased under-car clearance than standard four-post lifts, making it ideal for larger vehicles, trucks, SUVs, and specialty applications.
Constructed with heavy-duty diamond-plated steel runways, aircraft-quality lifting cables, and a large 3-inch hydraulic cylinder, the SDPL-8000XLT delivers smooth, dependable operation every time. Its durable midnight black powder-coated finish provides long-lasting protection against wear and corrosion while adding a sleek, professional appearance to any garage or workshop.
Designed with safety and convenience in mind, the lift features a simple single-point lock release handle, a primary locking system with a secondary slack-cable safety lock, and standard accessories that enhance both storage and maintenance capabilities. Whether you're creating additional parking space or performing vehicle service, the SDPL-8000XLT offers the strength, reliability, and versatility needed for years of dependable use.
Specifications
- Lifting Capacity: 8,000 lbs
- Lifting Height: 4-3/4" – 82-1/4"
- Overall Height: 94-3/4"
- Power Unit: 110V–120V, 60Hz, Single-Phase, 3 HP, 20 Amp
- Plug Type: Standard 3-Prong Plug
Runway Dimensions
- Length: 180-1/2"
- Width: 18-5/8"
Platform Dimensions
- Center of Baseplates Width: 99-1/4"
- Overall Width with Motor: 120-3/4"
- Drive-Thru Width: 86-1/2"
- Width Between Runways: 43-1/4"
Column Dimensions
- 3-1/4" x 6"
Baseplate Dimensions
- 10-1/4" x 12"
Weight
- Net Weight: 1,753 lbs

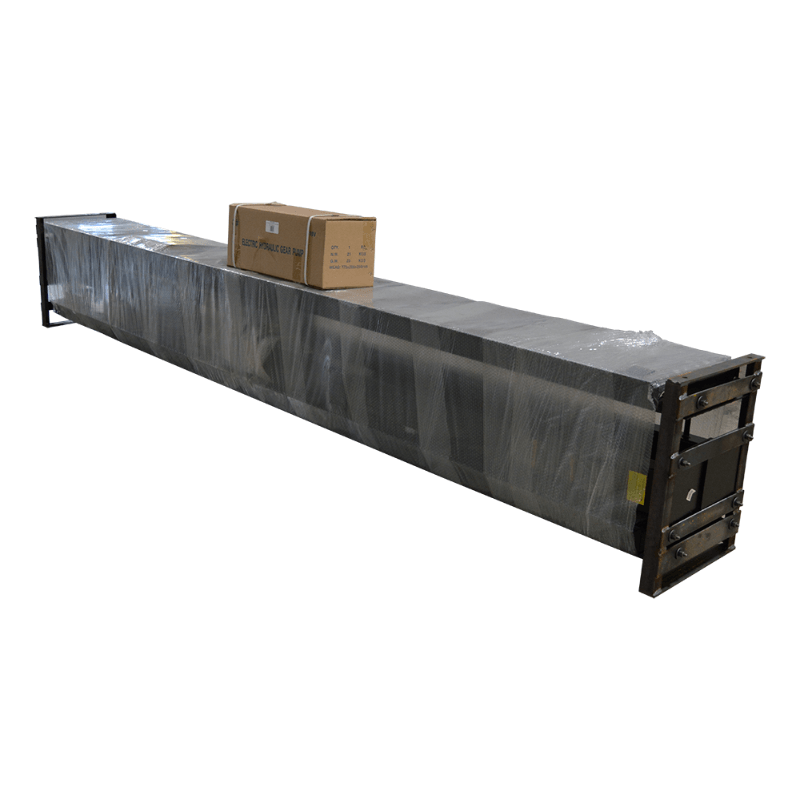

Shipping Information
- Dimensions: 184"L x 22"W x 40"H
- Shipping Weight: 1,800 lbs
Features
- 8,000 lb lifting capacity
- Extra-long design with increased under-car clearance
- Aircraft-quality cables rated at 14,500 lbs
- Heavy-duty diamond-plated steel runways
- Non-skid 3/16" steel runway construction
- Single-point safety lock release handle
- Primary locking system with secondary slack-cable safety lock
- Large 3" hydraulic cylinder for smooth lifting performance
- Durable midnight black powder-coated finish
- Diamond-plated steel approach ramps included
- Ideal for vehicle storage, maintenance, and service applications
Included Accessories

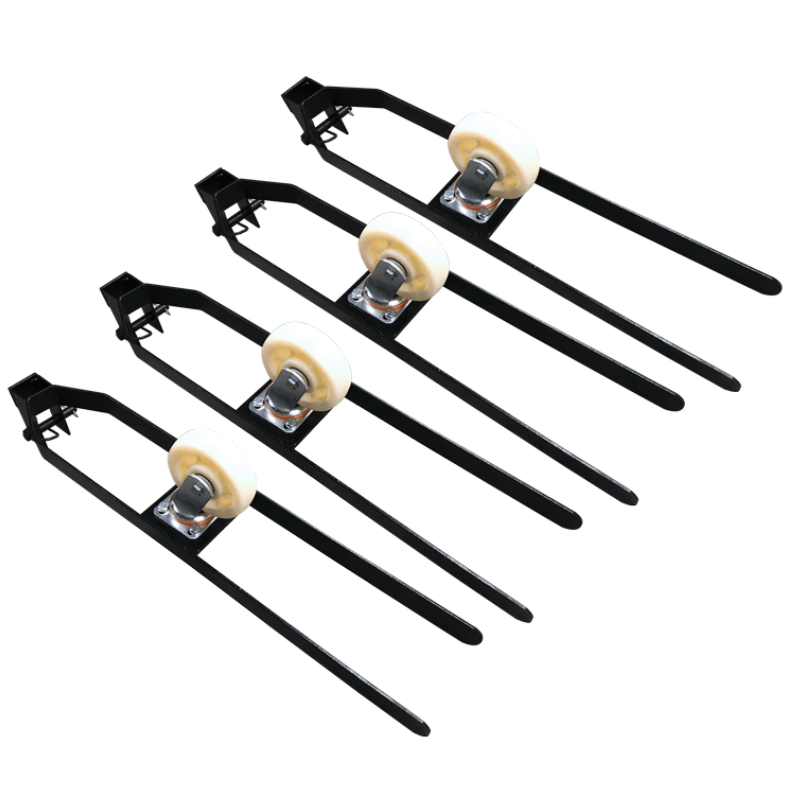

- Caster kit for easy lift mobility
- Jack tray for maintenance work
- Three drip trays to protect vehicles below
- Steel loading ramps
Warranty
- 1-Year Electrical & Hydraulic Warranty
- 5-Year Structural Warranty
The Titan SDPL-8000XLT combines extended length, exceptional lifting capacity, and premium construction to provide a dependable four-post lift solution for vehicle storage, restoration projects, and everyday service work. Whether you're maximizing garage space or enhancing your shop's capabilities, this lift delivers professional-grade performance and long-term value.
Optional Accessories:
-
Sliding jacks available for more functionality
-
Aluminum ramp upgrade for lighter use
SDPL-8000XLT Manual
