Description

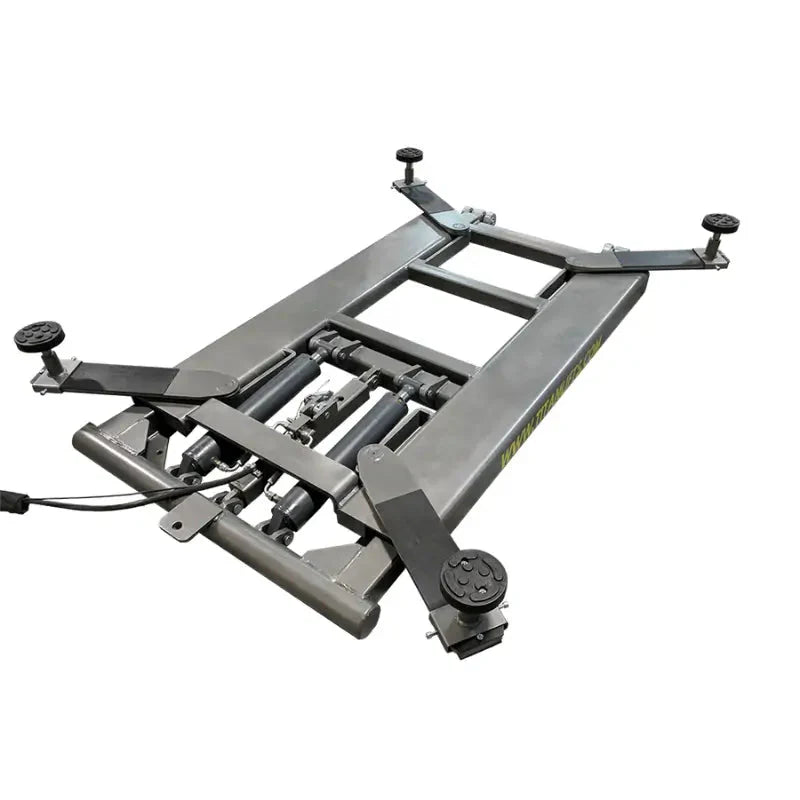

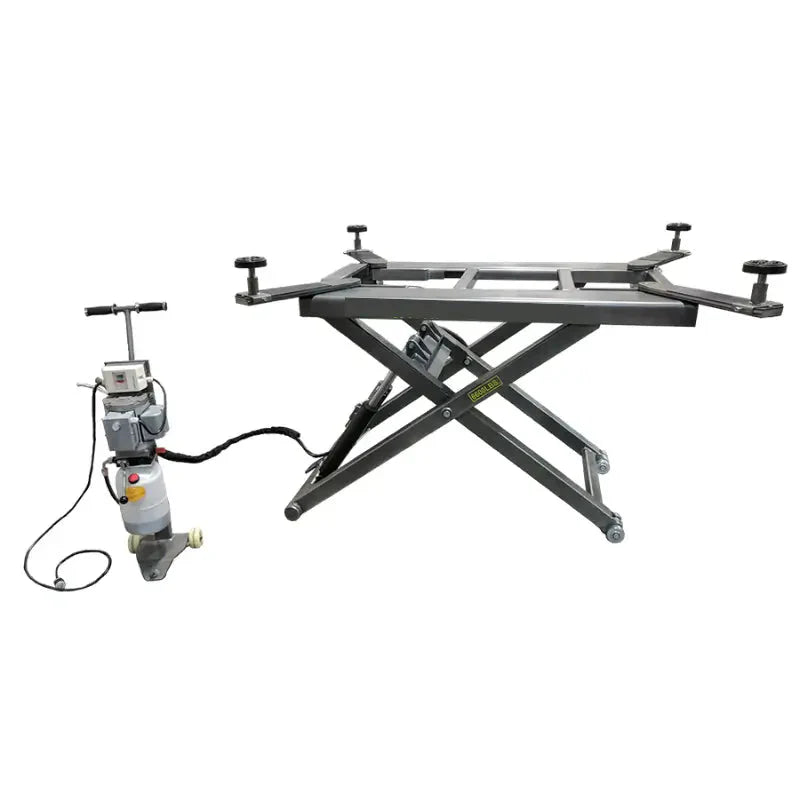

Titan SL-6600 6,600 lb Mid-Rise Scissor Lift
The Titan PREMIER Series SL-6600 Mid-Rise Scissor Lift is a commercial-grade lifting solution engineered for professional repair facilities, tire shops, detailing centers, and dedicated automotive enthusiasts. Combining exceptional durability, stability, and lifting performance, this lift is built to withstand demanding daily use while providing safe and reliable vehicle access.
Constructed from heavy-duty solid steel and finished in a premium hammered gray powder coat, the SL-6600 is designed to resist corrosion, scratches, and everyday wear. Its innovative triple-roller scissor design maximizes stability and floor contact throughout the lifting cycle, while dual 3.25-inch hydraulic cylinders deliver smooth, powerful lifting performance for vehicles weighing up to 6,600 lbs.
With a maximum working height of 51 inches, adjustable screw-style adapters, and rubber-coated lifting arms, the SL-6600 offers the flexibility needed for a wide range of maintenance and repair applications. The included 110V power unit is mounted on a portable dolly for convenient positioning and mobility, making this lift an excellent addition to both professional shops and home garages.
Specifications
- Model: SL-6600
- Lifting Capacity: 6,600 lbs
- Power Unit: 110V, 20 Amp Circuit
- Plug Type: Standard 3-Prong Outlet
- Lifting Speed: Approximately 45 Seconds
- Overall Length: 82.75"
- Overall Width: 39.5" – 78.75"
- Minimum Height: 5.81"
- Maximum Working Height: 51"
Lift Lock Positions
| Position | Lift Height | Height with Adapters |
|---|---|---|
| Position 1 | 21" | 26.5" |
| Position 2 | 27.25" | 32.75" |
| Position 3 | 32.5" | 38" |
| Position 4 | 37" | 42.5" |
| Position 5 | 41.5" | 47" |
| Position 6 | 45.5" | 51" |
Shipping Information
- Shipping Dimensions: 92"L x 41"W x 29"H
- Shipping Weight: 1,180 lbs
- Eligible for Lift Gate Delivery
Features
- 6,600 lb lifting capacity
- Heavy-duty commercial-grade steel construction
- Premium hammered gray powder-coated finish

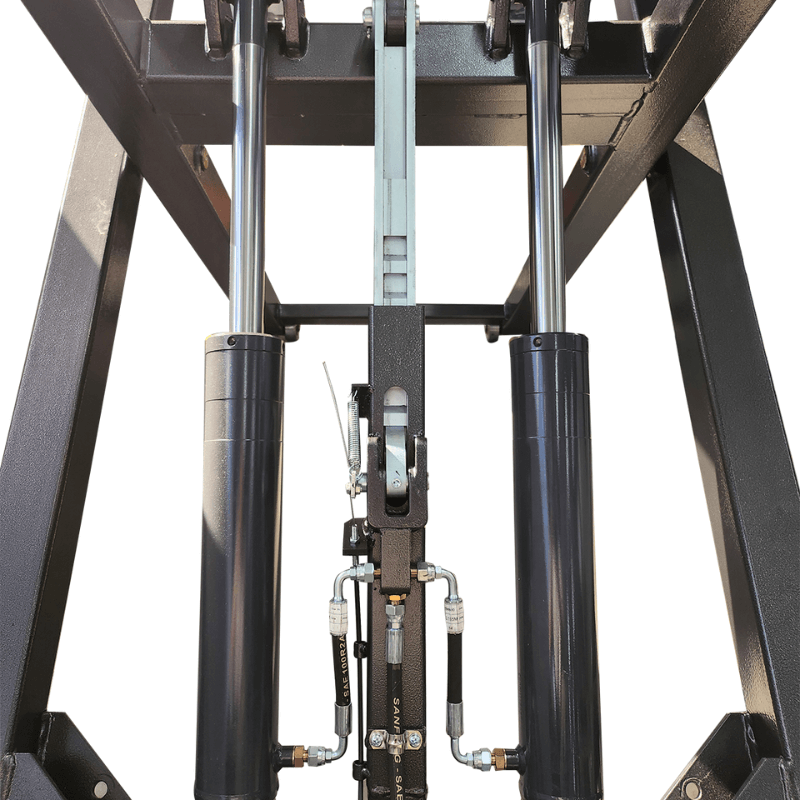

- Dual 3.25" hydraulic cylinders for smooth, dependable lifting
- Triple-roller scissor design for enhanced stability and floor contact

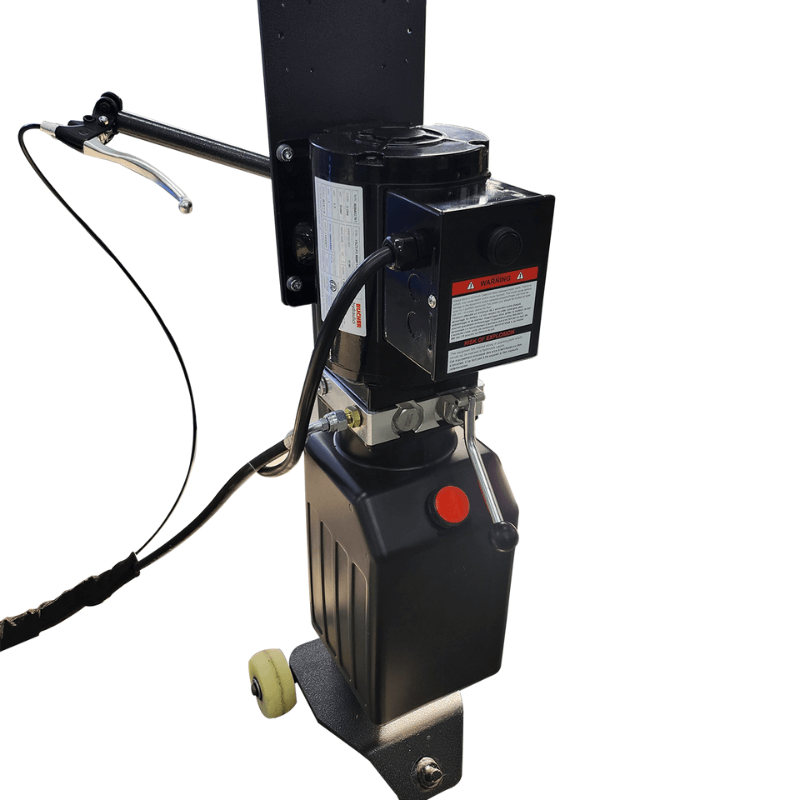

- Portable 110V power unit mounted on a rolling dolly

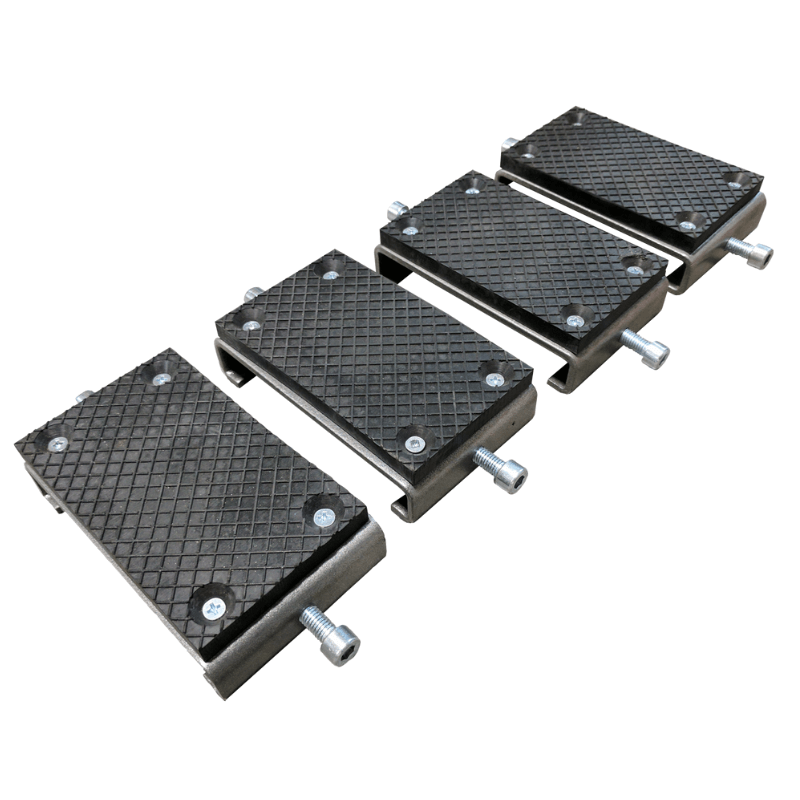

- Adjustable screw-style height adapters
- Rubber-coated lifting arms to help protect vehicle lift points
- Fast 45-second lifting cycle
- Compact mid-rise design ideal for tire service, detailing, brake work, and body repairs
- Designed for professional and enthusiast use
Warranty
- 5-Year Structural Warranty
- 2-Year Hydraulic & Electrical Warranty
The Titan SL-6600 delivers professional-grade lifting performance in a compact, versatile package. Its robust construction, advanced scissor design, and user-friendly features make it an excellent choice for shops and garages seeking dependable lifting capability without the footprint of a full-size lift.
SL-6600 Manual
Free Warehouse Pickup Available At:
- Greenwood, IN 46143
