Description

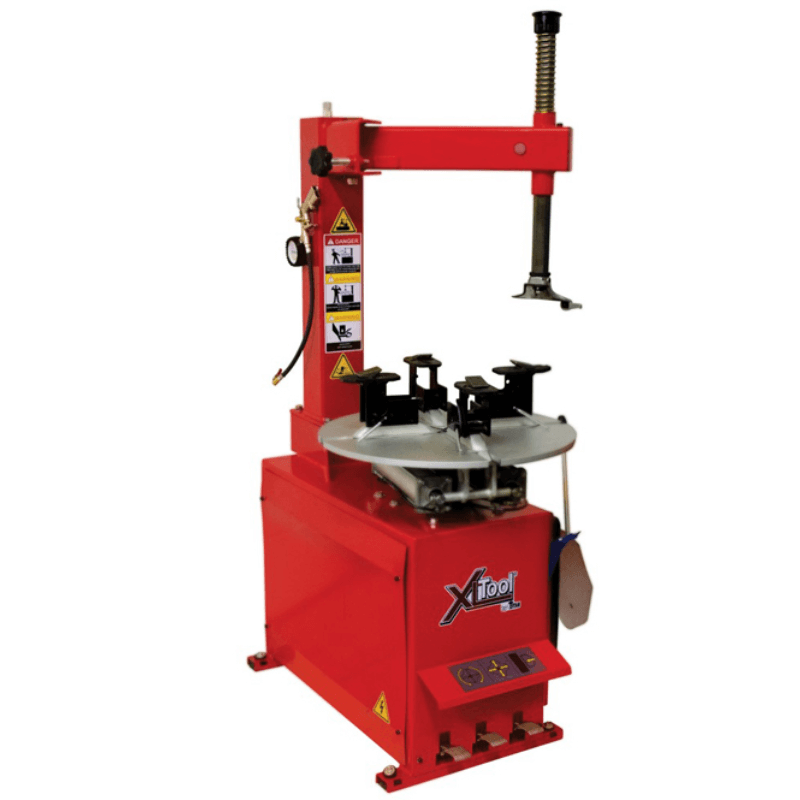

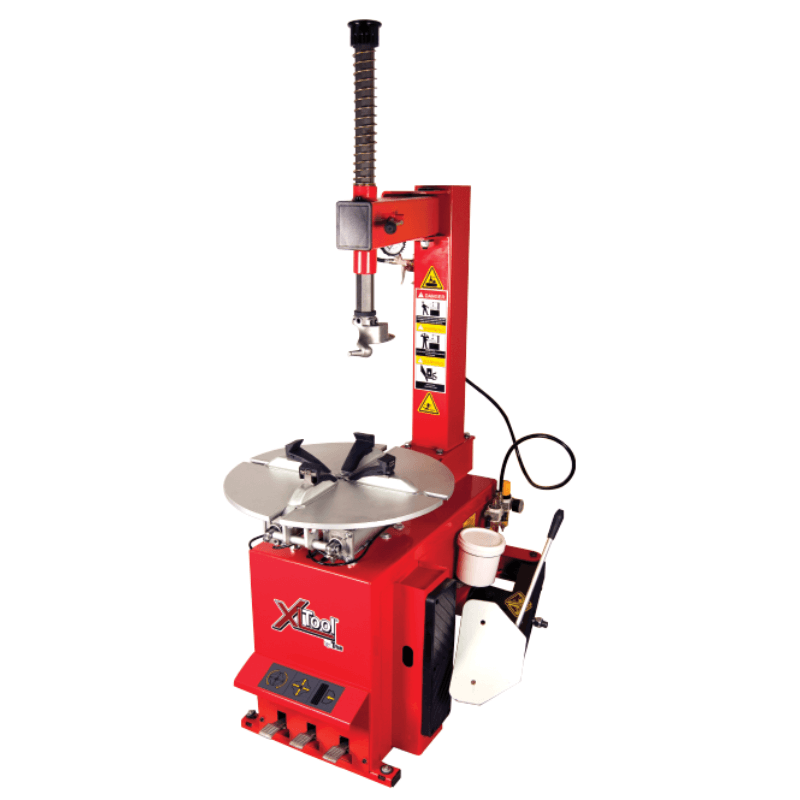

Titan TC-350 Tire Changer
The Titan TC-350 Tire Changer is a dependable, high-performance machine designed to simplify tire mounting and demounting operations for professional automotive shops and home garages. Featuring a durable swing-arm design and a powerful side-mounted bead breaker, the TC-350 provides the strength, precision, and reliability needed to service a wide variety of tire and wheel combinations.
Built for efficiency and ease of use, the TC-350 utilizes a manual mount and demount tool system that gives operators complete control throughout the tire-changing process. Four pneumatic clamping jaws powered by double-acting cylinders securely hold wheels in place, ensuring safe and accurate operation. Whether working on passenger vehicles, light trucks, or performance wheels, this tire changer delivers consistent results and dependable performance.
To promote long-term reliability, the machine includes an integrated air preparation system featuring a water separator, lubricator, and pressure regulator. Combined with a powerful 5,500 lb bead breaker and adjustable operating pressure, the TC-350 is capable of handling even stubborn tire beads while maintaining smooth, efficient operation.
Specifications
Tire & Wheel Capacity
- Maximum Tire Diameter: 37.8"
- Minimum Wheel Width: 3"
- Maximum Wheel Width: 12"
Wheel Clamping Range
Inside Clamping Jaws
- Minimum Wheel Diameter: 12"
- Maximum Wheel Diameter: 21"
Outside Clamping Jaws
- Minimum Wheel Diameter: 10"
- Maximum Wheel Diameter: 18"
Performance
- Working Pressure: 8–10 Bar
- Bead Breaker Force: 5,500 lbs
- Power Supply: 110V
Shipping Information
- Shipping Dimensions: 38"L x 30"W x 39"H
- Shipping Weight: 475 lbs
Features
- Heavy-duty swing-arm design for stability and ease of operation
- Side-mounted bead breaker with 5,500 lb breaking force
- Manual mount and demount tool system for precise tire servicing
- Four pneumatic clamping jaws with double-acting cylinders
- Adjustable operating pressure from 8–10 bar
- Integrated water separator, lubricator, and pressure regulator
- Suitable for a wide range of wheel and tire sizes
- Reliable 110V power supply
- Durable construction for commercial and residential use
- Designed for efficient tire mounting and demounting operations
Warranty
- 1-Year Parts Warranty
The Titan TC-350 combines rugged construction, dependable performance, and user-friendly operation to provide an excellent tire-changing solution for shops seeking professional results at an exceptional value. Its versatile wheel capacity and powerful bead-breaking system make it a valuable addition to any tire service operation.
TC-350 Manual
