Description

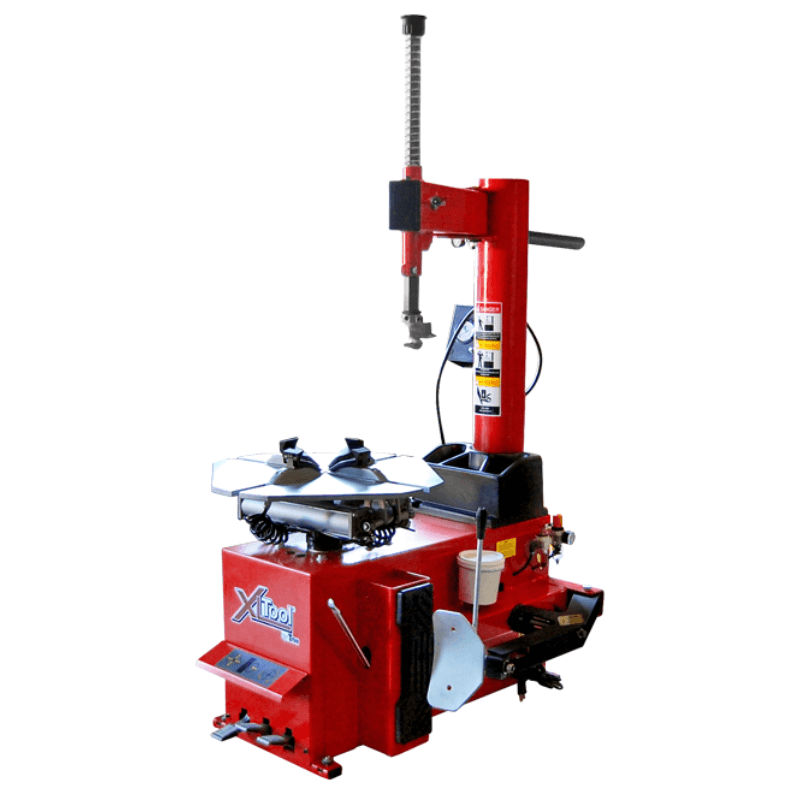

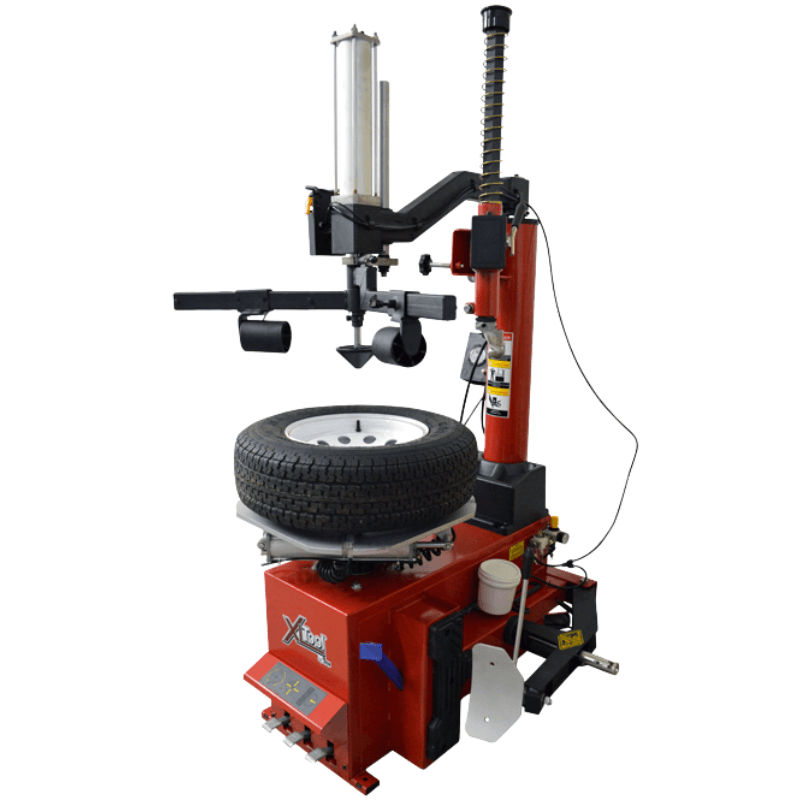

Titan TC-450S Tire Changer with Bead Blaster
The Titan TC-450S Tire Changer is a heavy-duty, professional-grade machine engineered to handle larger tires and wheels with speed, precision, and reliability. Designed for automotive repair facilities, tire shops, and high-volume service centers, this tire changer combines powerful performance with user-friendly operation to streamline tire mounting and demounting tasks.
Equipped with an integrated bead blaster system, the TC-450S delivers a powerful burst of compressed air that quickly seats difficult tire beads, reducing installation time and improving efficiency. Its swing-arm design provides exceptional stability and ease of use, while the side-mounted bead breaker generates an impressive 5,500 lbs of force to effortlessly separate even stubborn tire beads from the wheel.
The machine utilizes four pneumatic clamping jaws with double-acting cylinders to securely hold a wide variety of wheel sizes during operation. Combined with manual mount and demount controls, the TC-450S gives technicians precise control throughout the tire-changing process. An integrated air preparation system, including a water separator, lubricator, and pressure regulator, helps maintain optimal machine performance and long-term reliability.
Capable of accommodating tires up to 49 inches in diameter and wheels up to 15 inches wide, the TC-450S is an excellent solution for passenger vehicles, light trucks, SUVs, and off-road applications.
Specifications
Tire & Wheel Capacity
- Maximum Tire Diameter: 49"
- Maximum Wheel Width: 15"
Wheel Clamping Range
Inside Clamping Jaws
- Minimum Wheel Diameter: 12"
- Maximum Wheel Diameter: 23"
Outside Clamping Jaws
- Minimum Wheel Diameter: 10"
- Maximum Wheel Diameter: 20"
Performance
- Working Pressure: 8–10 Bar
- Bead Breaker Force: 5,500 lbs
- Power Supply: 110V
Shipping Information

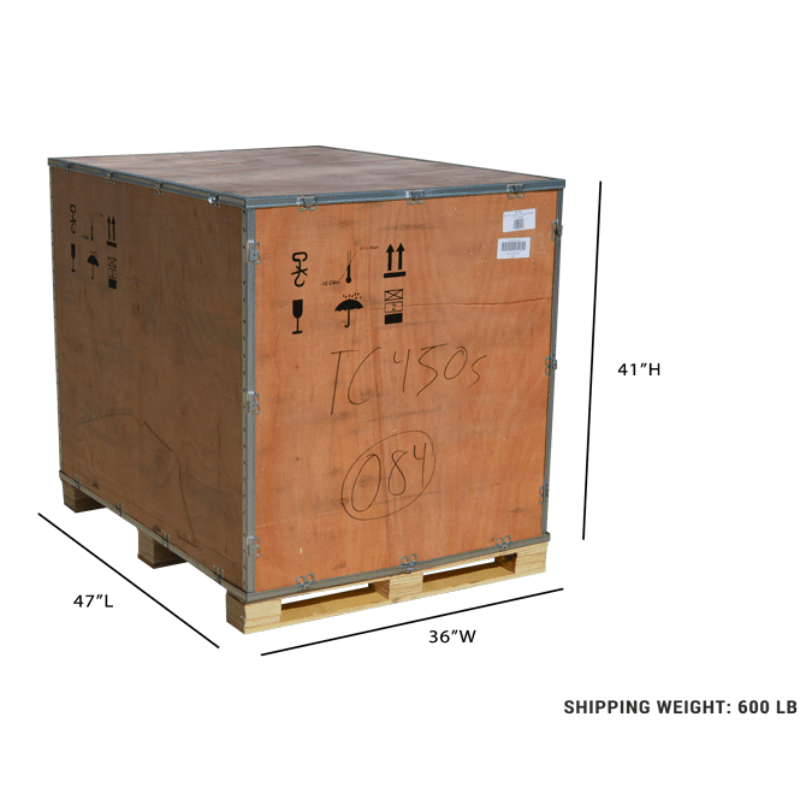

- Shipping Dimensions: 48"L x 37"W x 42"H
- Shipping Weight: 600 lbs
Features
- Integrated bead blaster for fast and efficient tire bead seating
- Heavy-duty swing-arm design for stability and ease of operation
- Side-mounted bead breaker with 5,500 lbs of force
- Manual mount and demount tool operation for precise control
- Four pneumatic clamps with double-acting cylinders for secure wheel retention
- Adjustable operating pressure from 8–10 bar
- Water separator, lubricator, and pressure regulator included
- Suitable for larger passenger vehicle, truck, SUV, and off-road tires
- Reliable 110V power supply
- Built for professional shop and commercial use
Warranty
- 1-Year Parts Warranty
The Titan TC-450S delivers the power, versatility, and durability required for demanding tire service operations. With its integrated bead blaster, large tire capacity, and commercial-grade construction, this tire changer is an ideal choice for shops looking to improve efficiency and expand their service capabilities.
TC-450S Manual
