Description

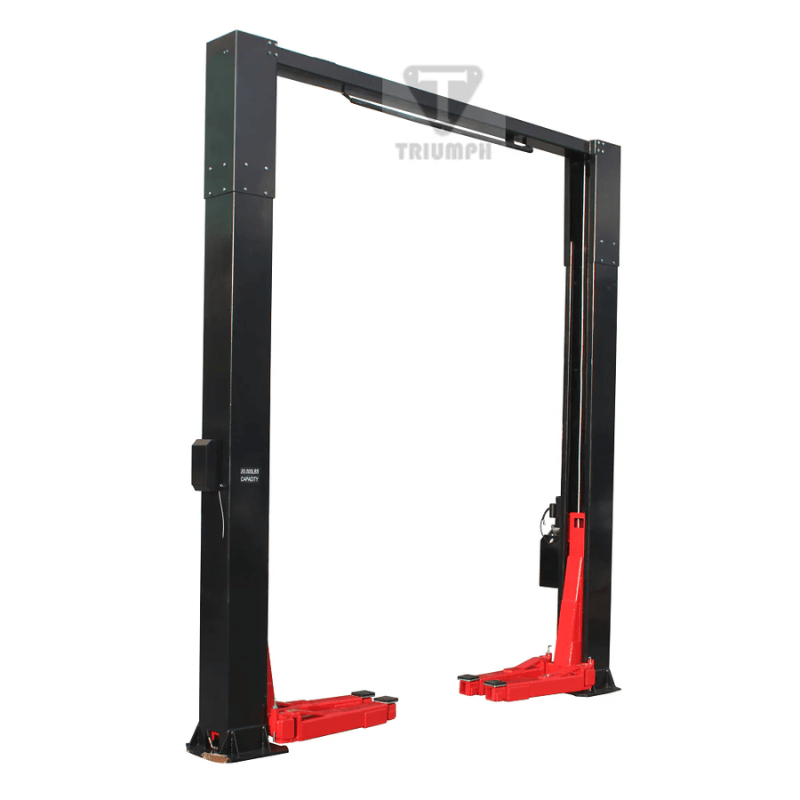

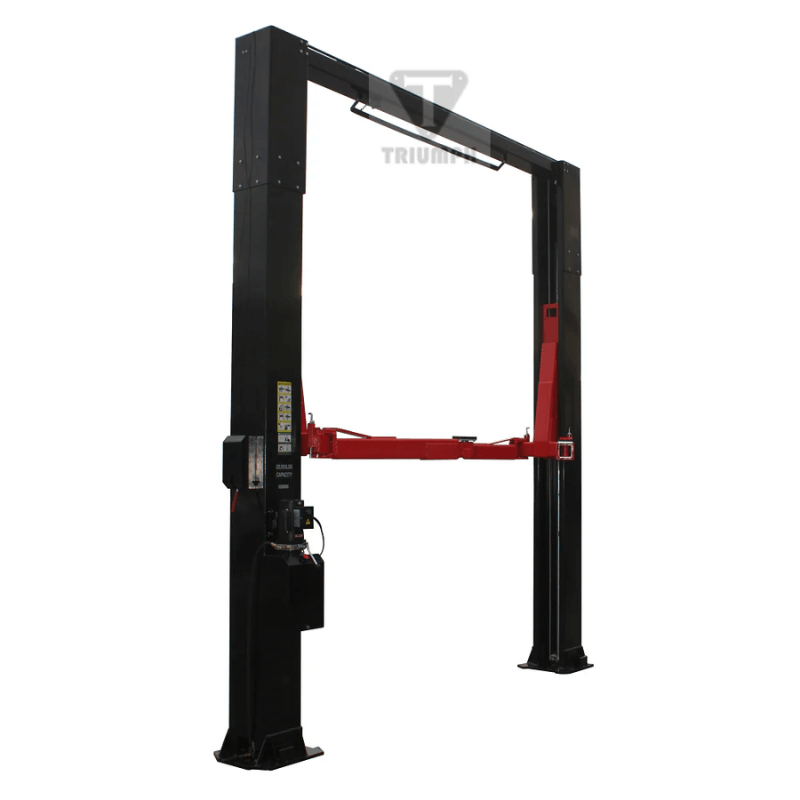

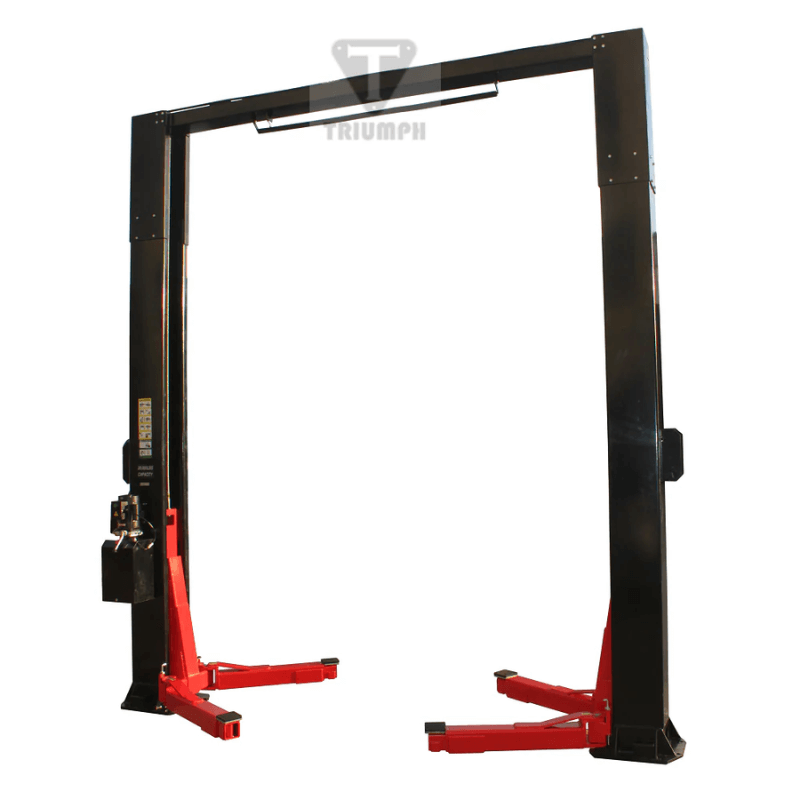

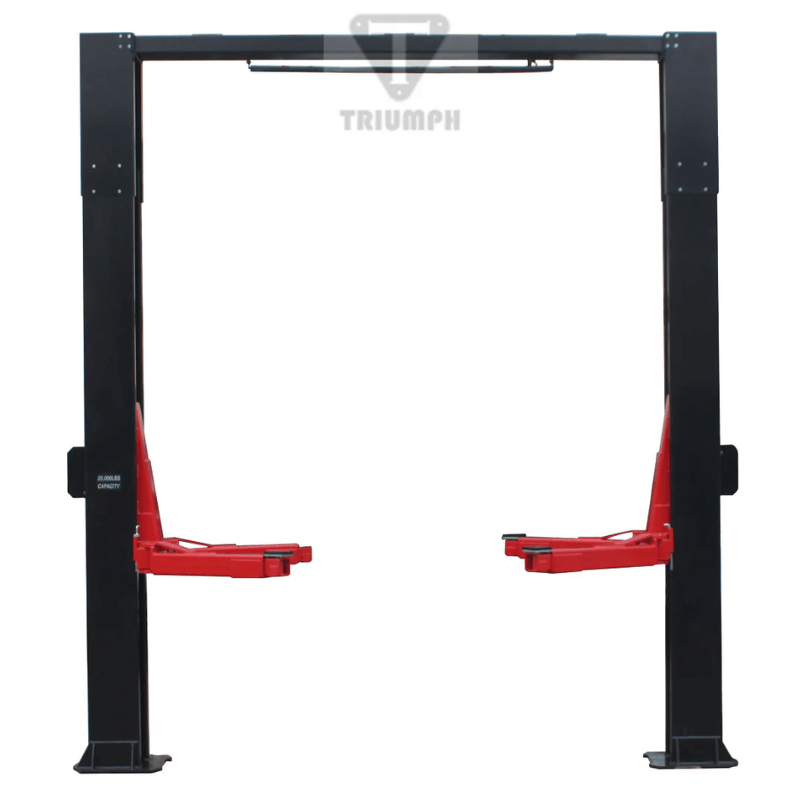

Triumph NTO-20S 20,000 lb Two Post Auto Lift

The Triumph NTO-20S 20,000 lb Two Post Lift is designed for heavy-duty automotive service environments that require the ability to lift larger vehicles safely and efficiently. With an impressive 20,000 lb lifting capacity, this lift is well suited for servicing large trucks, commercial vehicles, and heavy-duty equipment.

Featuring a maximum lifting height of 74 inches and a 170.5-inch overall height, the NTO-20S provides technicians with ample working space for inspections, maintenance, and repairs. Its 124-inch spacing between posts and 113-inch drive-through width allow for easier positioning of larger vehicles during service.

The lift utilizes direct-drive hydraulic cylinders designed to provide smooth and consistent lifting performance. A single-point lock release system simplifies operation, while the electrical override automatic safety shut-off provides an additional safety feature during use.

Powered by a 3 HP motor and operating on 220V power, the NTO-20S raises vehicles in approximately 40 seconds, helping maintain efficiency in busy repair facilities. Manufactured in ISO9001-certified facilities and CE certified, this lift is built to support demanding service applications.

Triumph NTO-20S Specifications

Lifting Capacity: 20,000 lbs
Overall Height: 170.5"
Overall Width: 155"
Maximum Lifting Height: 74"
Distance Between Posts: 124"
Drive-Thru Width: 113"
Lowered Height: 6"
Base Plate Size: 21" × 20"
Lift Time: 40 seconds
Power Requirement: 220V
Motor: 3 HP
Concrete Requirement: 6" slab, 4,000 PSI
Style: Overhead
Lock Release: Single-point
Electric Safety Cutoff: Yes
Shipping Weight: 2,700 lbs
Shipping Dimensions: 144" L × 36" W × 48" H

Triumph NTO-20S 20,000 lb 2 Post Lift Features

  • 20,000 lb lifting capacity designed for heavy-duty service applications

  • Direct-drive cylinders provide smooth and consistent lifting performance

  • Electrical override with automatic safety shut-off for added operational safety

  • 40-second lifting time helps maintain efficient workflow

  • Single-point lock release simplifies lift operation

  • Includes mounting hardware and truck adapters

  • Manufactured in ISO9001-certified facilities and CE certified

Warranty

1-year parts warranty
5-year structural warranty

NTO-20S Manual



Warehouse Pickup Locations (No Shipping Fee):

  • Columbus, OH

  • Fort Worth, TX

  • North Las Vegas, NV

*A $200 additional freight surcharge applies for deliveries to Northern California, South Dakota, North Dakota, Montana, and Wyoming. If applicable, a separate payment link will be sent after your order to complete the freight charge.

NTO-20S 2 Post Lift Diagram
