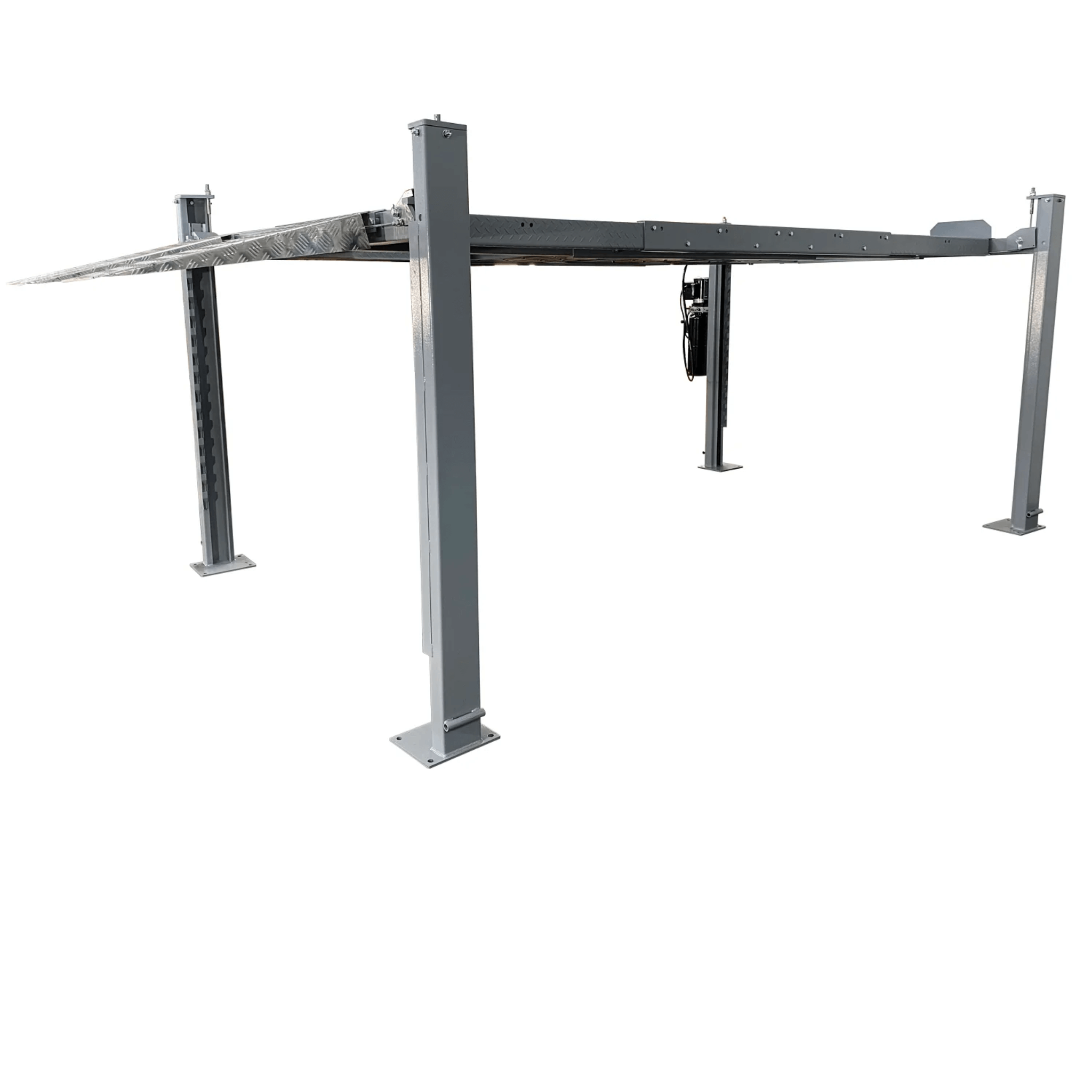

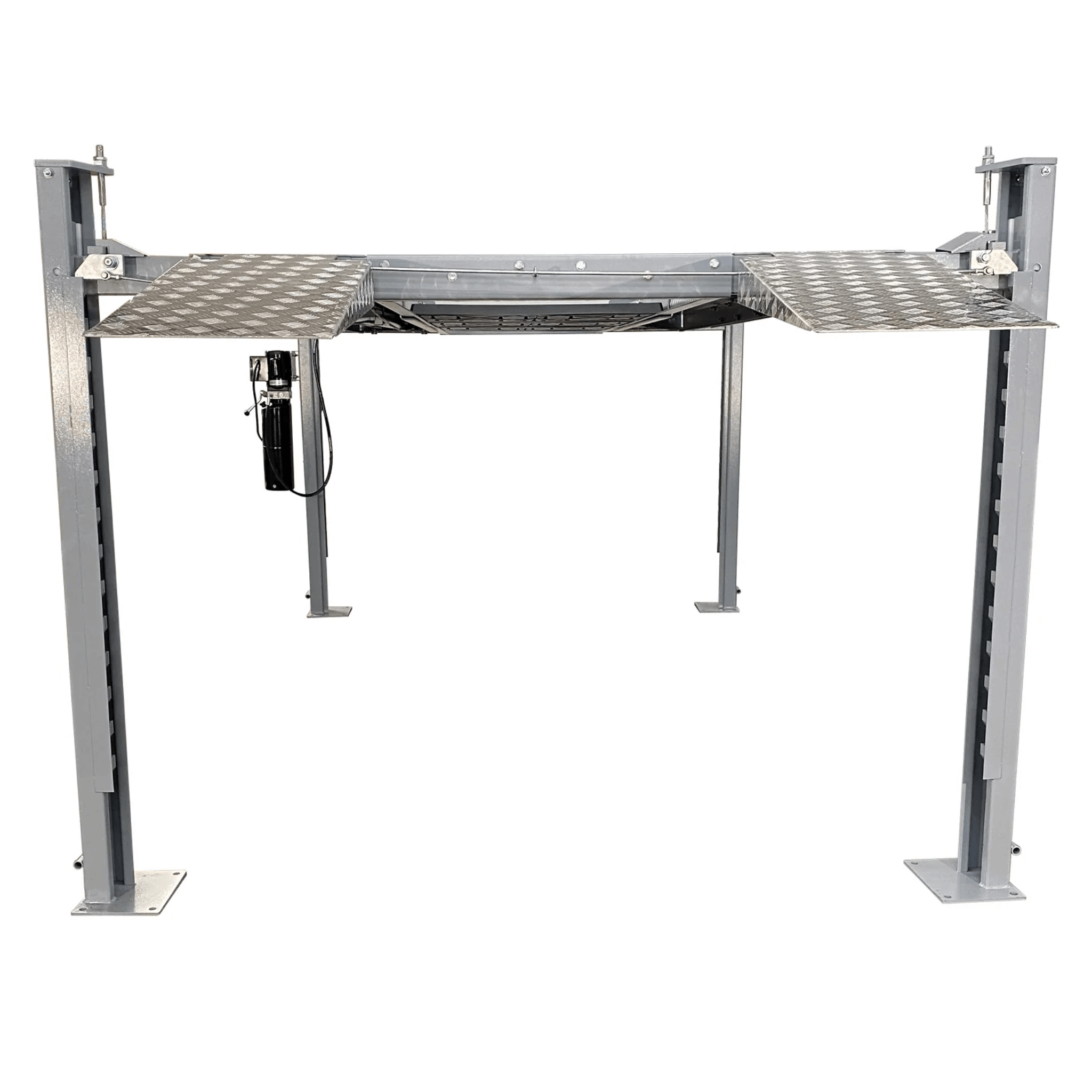

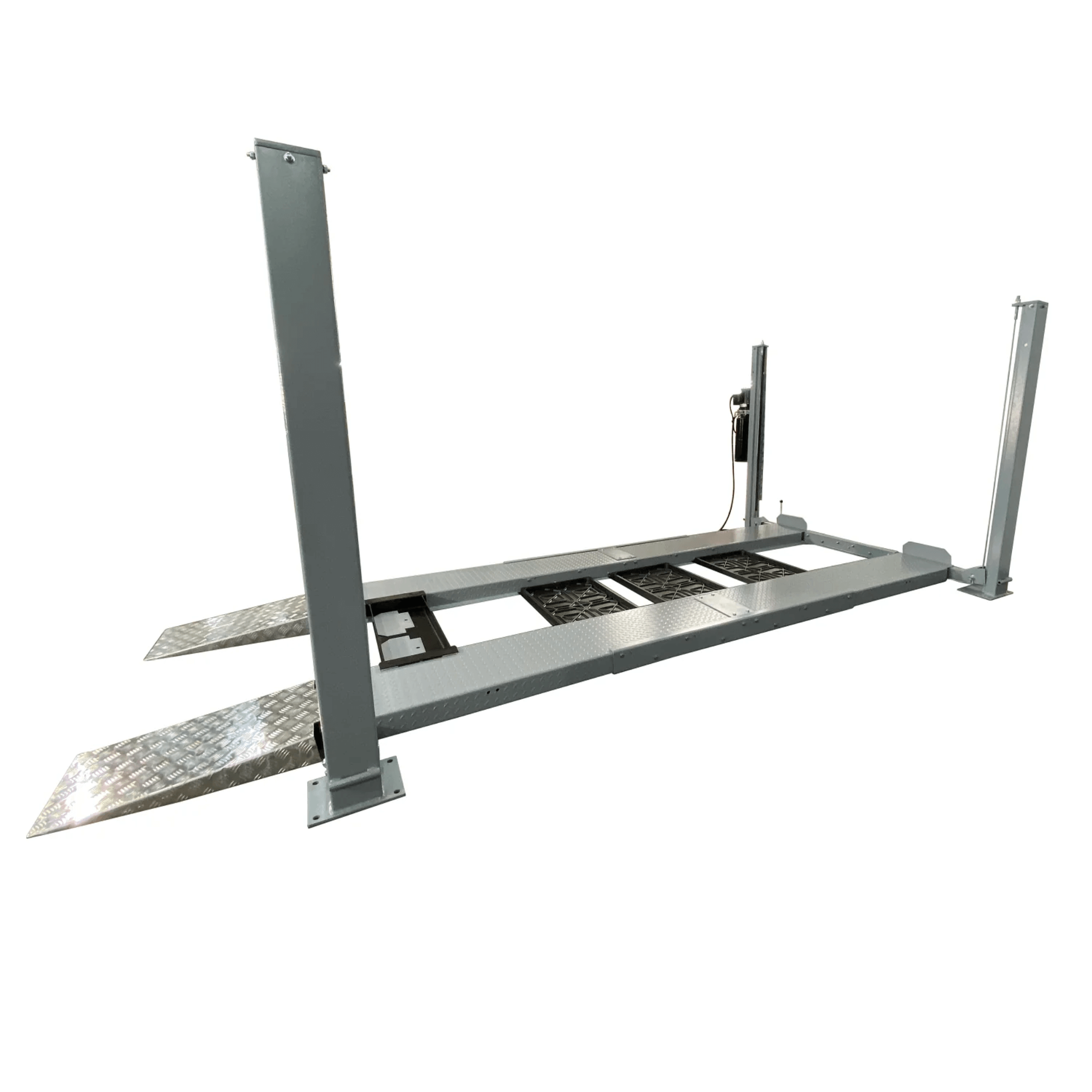

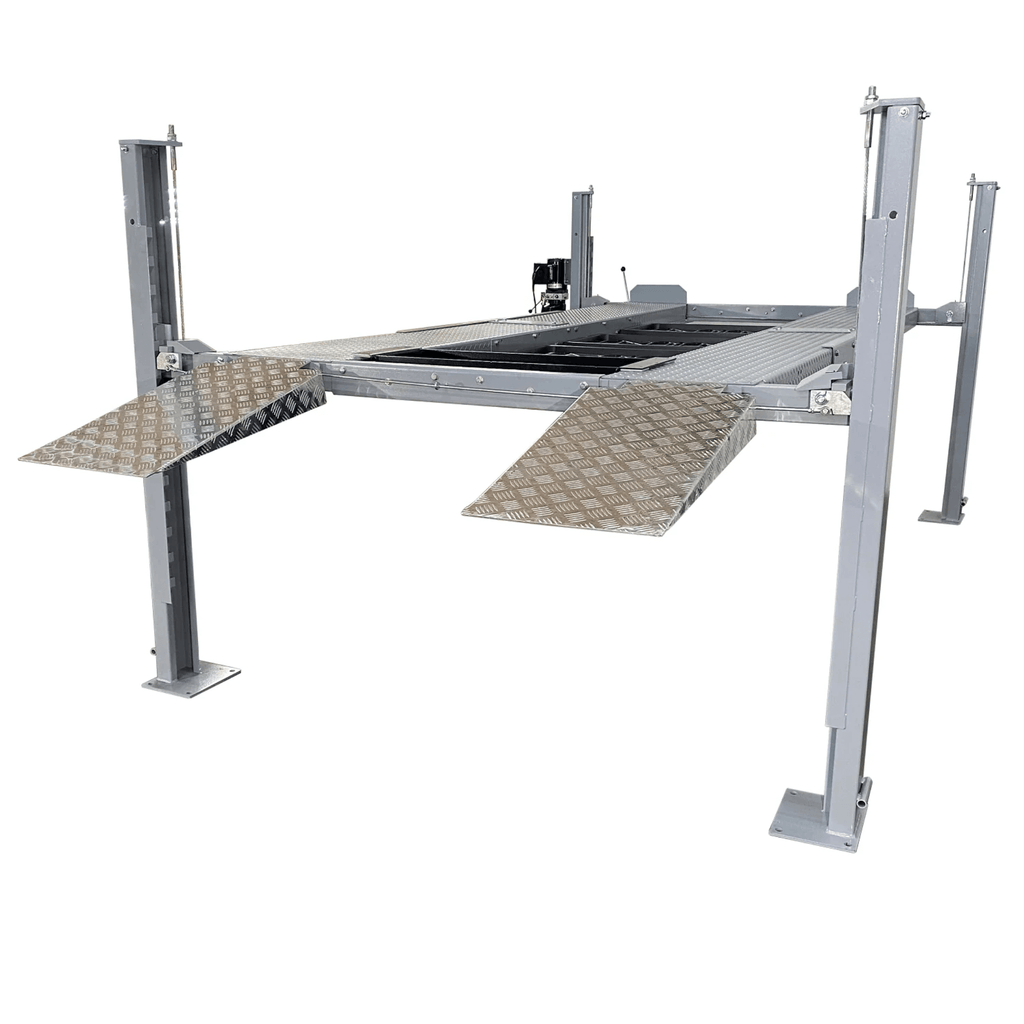

NSS8X-1 Vehicle Storage Lift by Triumph
Tight on garage space? The Triumph NSS8X-1 Easy Park Lift offers a practical solution by transforming a single parking spot into a dual-vehicle setup. With an 8,000 lb lifting capacity and a maximum lift height of 72 inches, it allows you to safely store one vehicle above another—maximizing your available space without sacrificing accessibility. Built with reinforced components and equipped with 10 locking positions, this lift delivers dependable performance for everyday use.
Designed with convenience in mind, the NSS8X-1 includes three drip trays to help keep your garage floor clean, along with a jack tray for added service capability. Its user-friendly packaging allows for easy unloading without the need for a forklift, and installation can be completed by two people without specialized equipment. With a spacious 175" x 106" footprint and a 93" drive-through width, it accommodates a wide range of vehicles, making it a versatile addition to most residential or light commercial garages.
NSS8X-1 Specifications
-
Lifting Capacity: 8,000 lbs
-
Overall Height: 84"
-
Overall Length: 175"
-
Overall Width (base plate to base plate): 106"
-
Maximum Lifting Height: 72"
-
Height Under Runway: 69"
-
Runway Length: 165"
-
Drive-Through Width: 93"
-
Runway Width: 18"
-
Lowered Height: 5"
-
Locking Positions: First lock at 17" up to 68" (approximately every 4")
-
Base Plate Size: 12" x 12"
-
Lock Release: Single-point
-
Lift Time: 40 seconds
-
Voltage: 110V (30 amp breaker)
-
Motor: 3 HP
-
Shipping Weight: 1,600 lbs (ships in 2 packages; liftgate unloading available)
-
Pallet Dimensions: 84.5" x 21" x 29"
NSS8X-1 Special Features
-
No forklift required – packaged for easy delivery and unloading
-
Reinforced runways and cross rails for enhanced structural strength
-
Aluminum approach ramps for durability and ease of use
-
Automatic safety locks engage at 10 positions for secure operation
-
Simple assembly process—can be installed by two people without heavy equipment
Included Accessories:
-

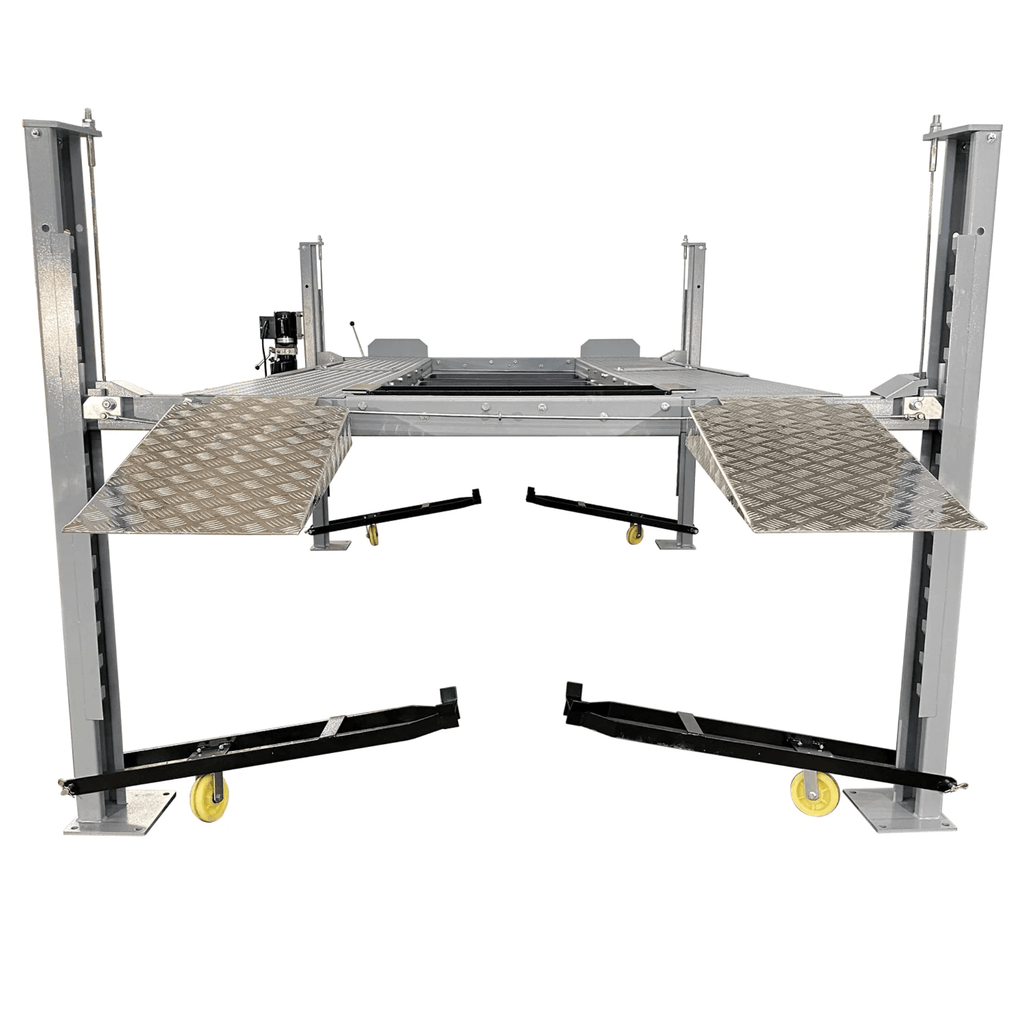

Caster kit for easy movement and positioning within the garage
-
Jack tray for lifting one end of the vehicle using a bottle or floor jack
-

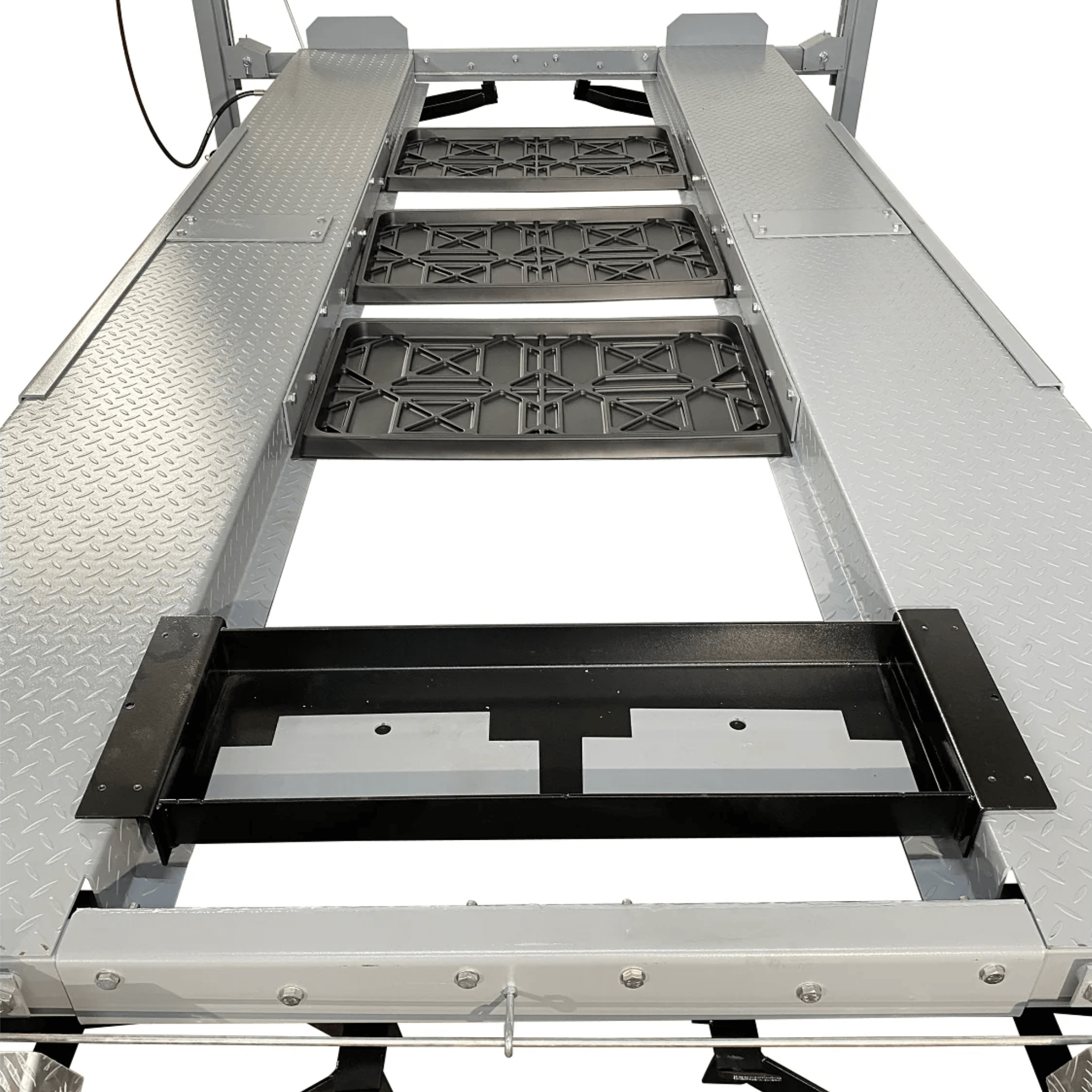

Drip trays to protect the lower vehicle from fluid leaks
-
Warranty: 1-year parts-only
-
Certification: CE Certified and manufactured in ISO9001-certified facilities
Optional Item (Sold Separately)
-
Triumph NSS-8 Storage Lift Bridge Jack (SJ35)
NSS 8 X1 Manual
Warehouse Pickup Locations:
-
Columbus, OH
-
Fort Worth, TX
-
North Las Vegas, NV
Please note: An additional $200 freight surcharge applies to deliveries in Northern CA, SD, ND, MT, and WY. After your initial purchase, a separate payment link will be provided to complete the transaction.
