Description

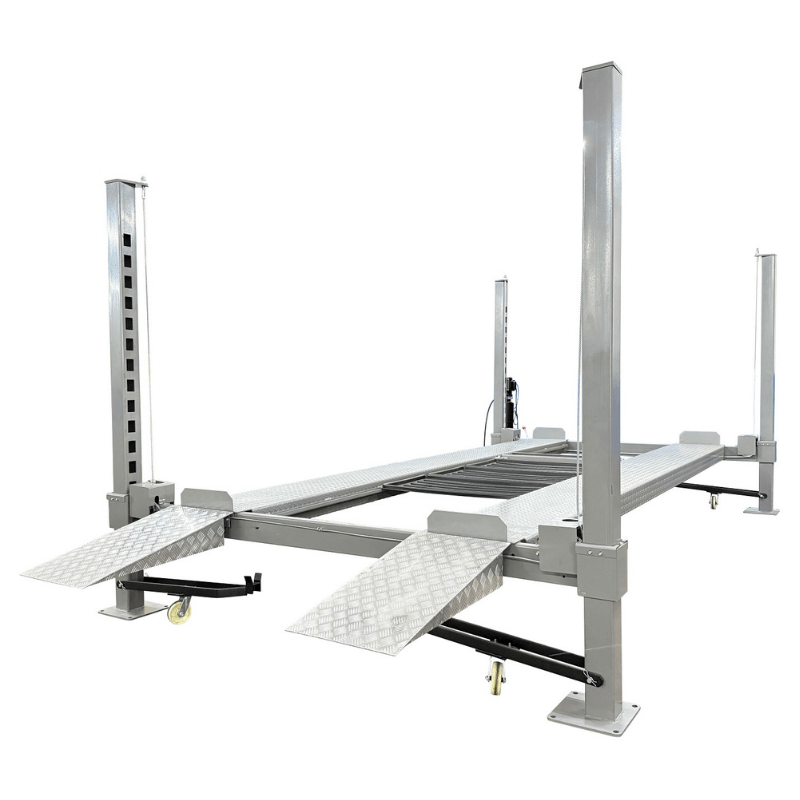

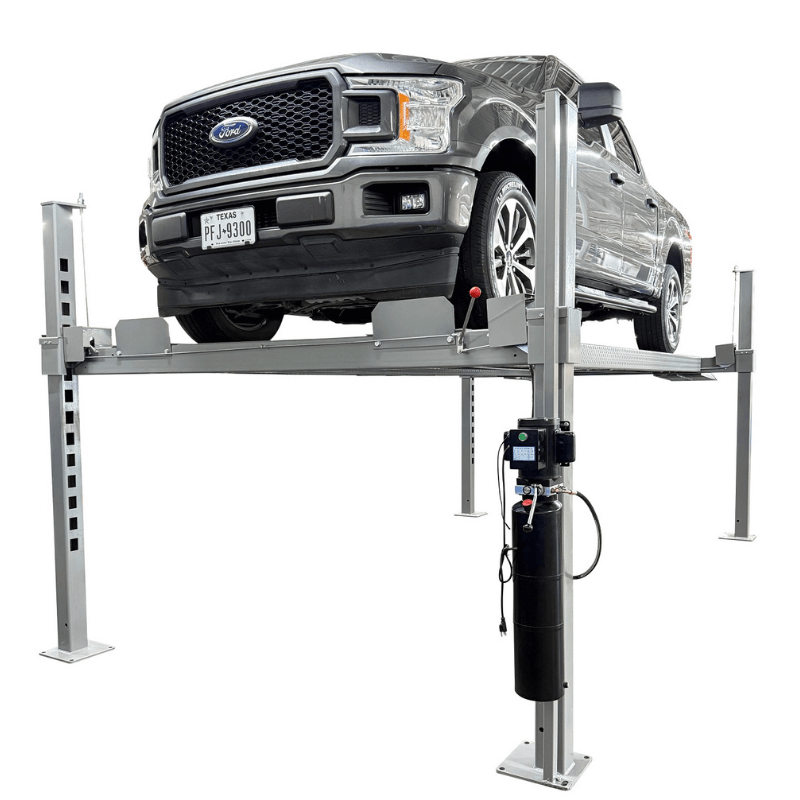

NOS10000 10,000 lb 4-Post Lift by Triumph
The Triumph NOS10000 4-Post Car Lift is engineered for dependable, heavy-duty performance, featuring a rugged outside slider design that delivers enhanced stability and structural strength. Designed for both professional shops and serious home garages, this lift seamlessly combines service capability with long-term vehicle storage—making it one of the most versatile lifts in its class.
With a 10,000 lb lifting capacity, the NOS10000 easily accommodates cars, trucks, and SUVs. Its oversized columns, reinforced boxed runways, and heavy-duty slide collars provide long-lasting durability, while the manual deadbolt locking system with oversized linkage ensures vehicles remain securely elevated at all times. Offering a maximum lift height of 87 inches and 81.5 inches of clearance beneath the runways, it provides ample space for both maintenance and storage applications.
Convenience is built into every detail. The lift includes lightweight aluminum ramps weighing just 29 lbs each, along with drip trays, a rolling jack tray, and heavy-duty caster wheels for easy mobility. Safety is further enhanced with redundant backup systems and integrated cable keepers to help prevent run-off. The Triumph NOS10000 is built to deliver strength, reliability, and flexibility—backed by straightforward pricing that includes freight upfront.
NOS10000 Specifications
-
Capacity: 10,000 lbs
-
Overall Height: 99.5"
-
Overall Length: 210.5"
-
Overall Width: 123" (base plate to base plate)
-
Lift Height: 87"
-
Clearance Under Runway: 81.5"
-
Runway Length: 204"
-
Runway Width: 20"
-
Drive-Thru Width: 109"
-
Lowered Height: 5.5"
-
Locking Positions: 14
-
Base Plate Size: 12" x 12"
-
Lock Release: Single Point
-
Lift Time: 60 seconds
-
Cable: 3/8" aircraft-quality
-
Power: 110V (30-amp breaker required)
-
Motor: 3HP
-
Shipping Dimensions: 206" x 22" x 36"
-
Shipping Weight: 2,535 lbs
Special Features
-
Durable outside slider design for added stability
-
4.75" x 4.75" columns with 6.5" x 6.5" slide collars
-
Manual deadbolt locking system with oversized linkage
-

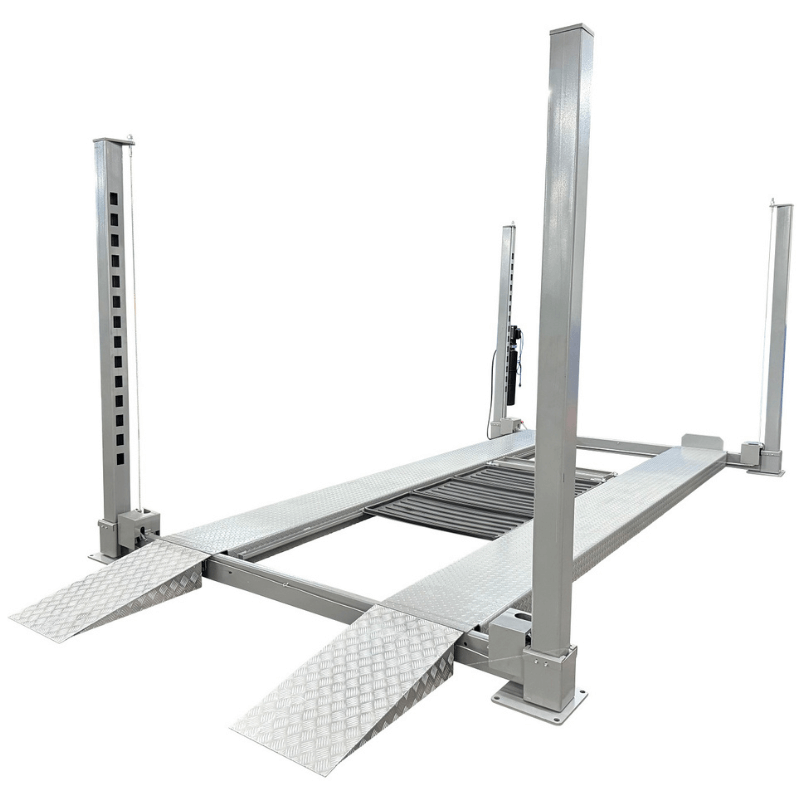

Lightweight 36" aluminum ramps (29 lbs each)
-
Reinforced boxed runways for increased strength
-
Secondary redundant safety system for added protection
-
Cable keepers to help prevent cable run-off
-
12" x 12" reinforced base plates (5/8" thick)
Included Accessories
-
Heavy-duty poly-coated caster kit for mobility
-

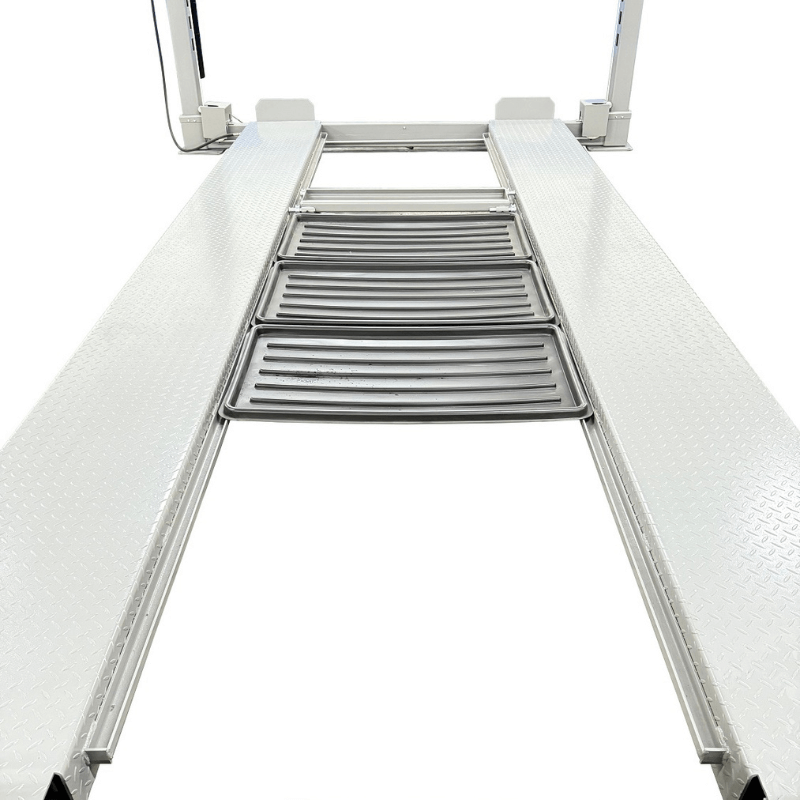

Drip trays for cleaner vehicle storage
-
Rolling jack tray for added service versatility
Warranty
-
1-Year Parts Only
Optional Upgrade (Sold Separately)
-
RJ-5000 Rolling Jack (5,000 lb capacity)
A perfect companion for the NOS10000, allowing you to lift the vehicle off the runways for wheel, brake, and suspension work.
NOS10000 Manual
Warehouse Pickup Locations:
-
Columbus, OH
-
Fort Worth, TX
-
North Las Vegas, NV
Please note: An additional $200 freight surcharge applies to deliveries in Northern CA, SD, ND, MT, and WY. After your initial purchase, a separate payment link will be provided to complete the transaction.
