Description

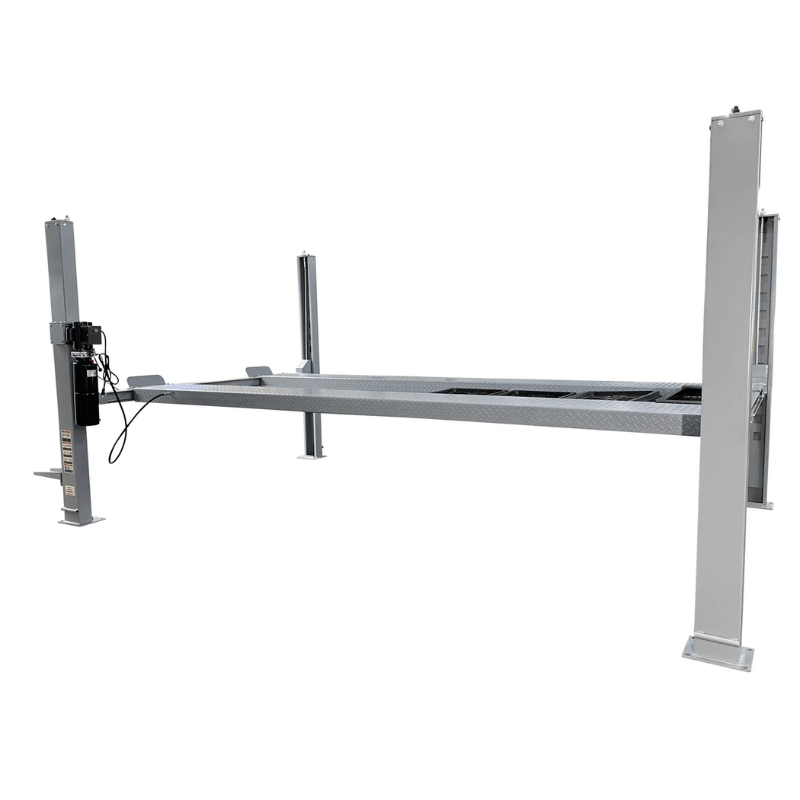

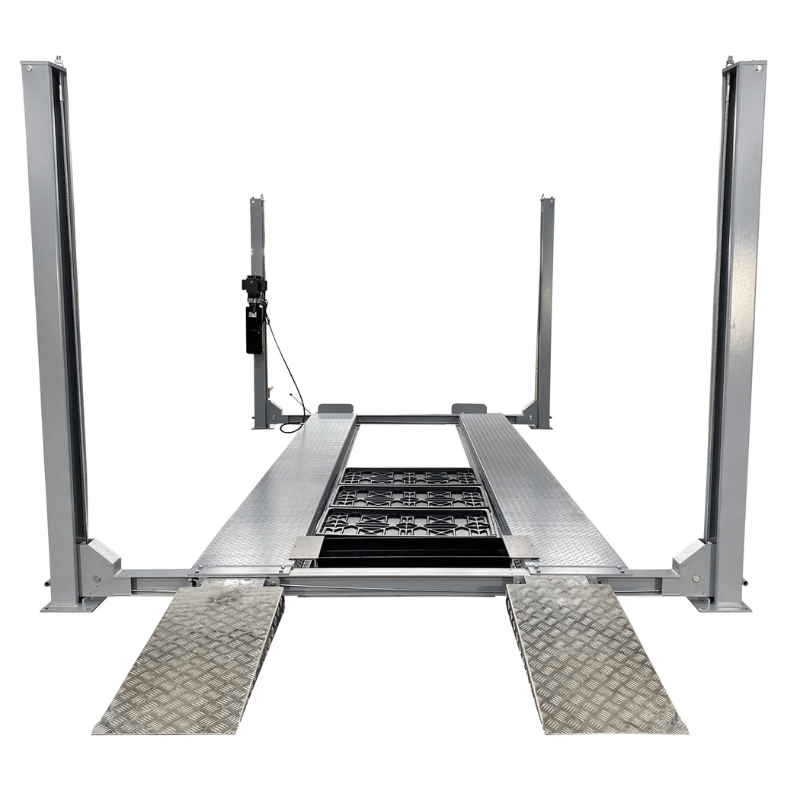

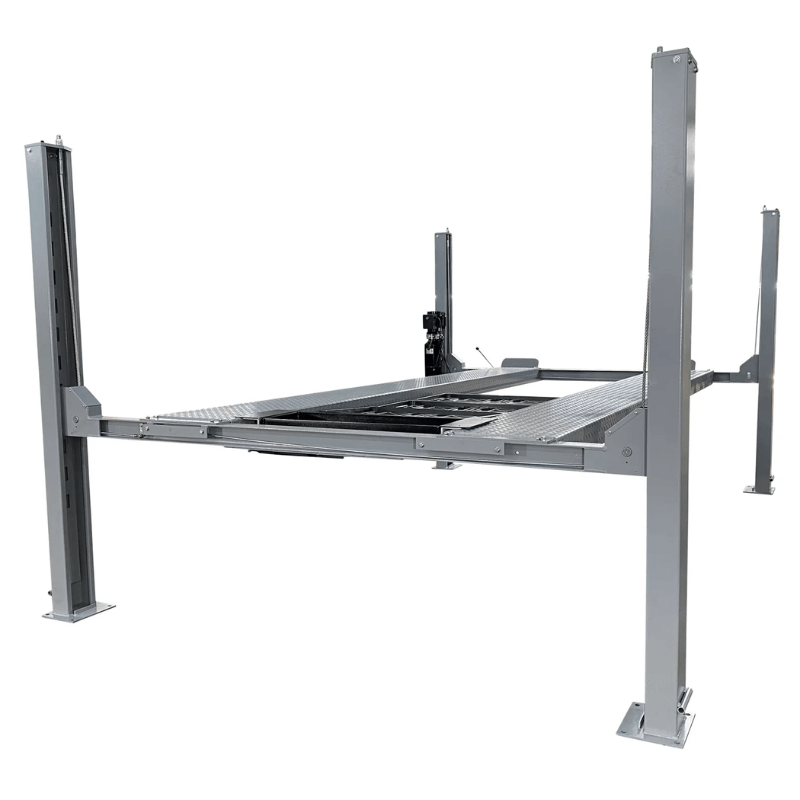

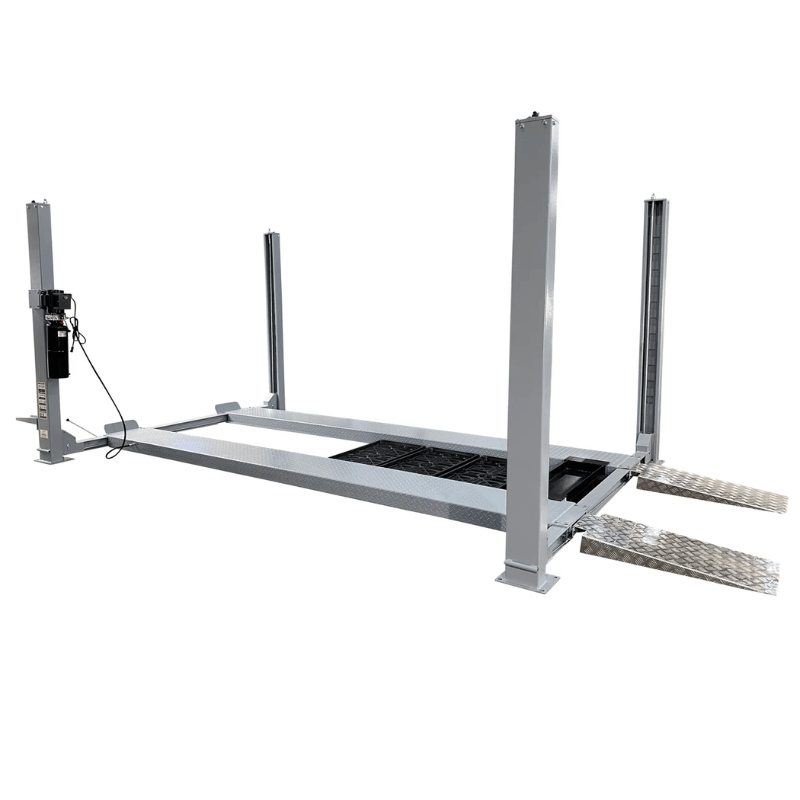

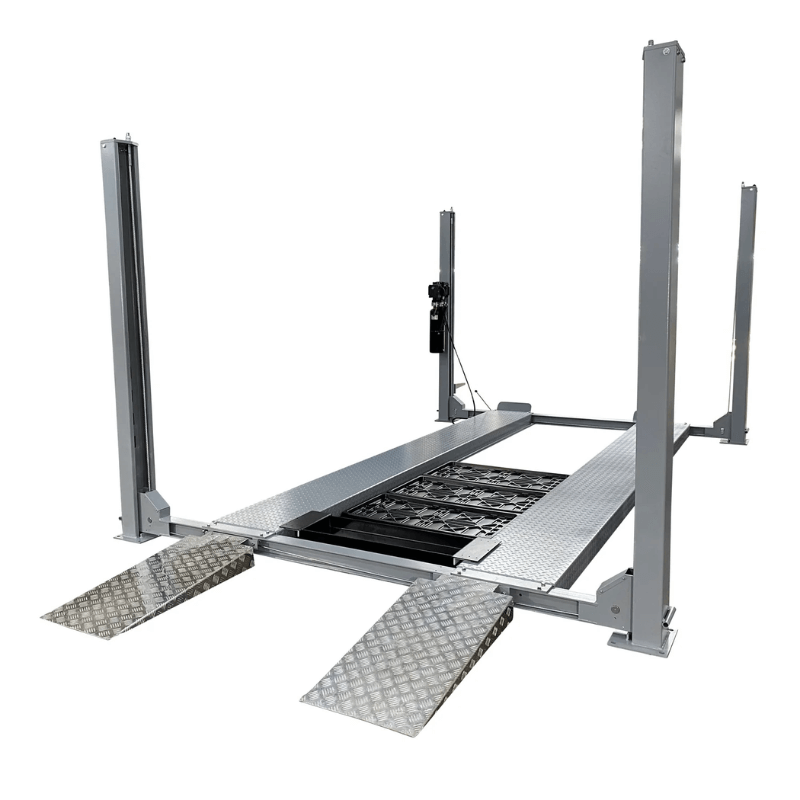

NSS11000 11,000 lb 4-Post Lift by Triumph
Introducing the Triumph NSS11000, a heavy-duty four-post lift designed to deliver reliable performance for both storage and service applications. With an upgraded 11,000 lb lifting capacity, this lift is built to handle a wide range of vehicles—from low-profile cars to full-size trucks—while maximizing vertical space with a lifting height of up to 86.5 inches. Its extended 196-inch runways provide ample support for longer vehicles, making it a versatile solution for residential garages and light commercial use.
Designed for ease of use, the NSS11000 features 11 locking positions, a quick 40-second lift time, and a single-point lock release system for safe and efficient operation. It runs on a standard 110V power supply, making installation simple without the need for specialized electrical upgrades. Additional features such as the included caster kit allow for easy repositioning, while the jack tray and drip trays help maintain a clean, functional workspace.
NSS-11 Specifications
-
Lifting Capacity: 11,000 lbs
-
Overall Height: 95.5"
-
Overall Length (without ramps): 216"
-
Overall Width: 130"
-
Maximum Lifting Height: 86.5"
-
Height Under Runway: 81"
-
Runway Length: 196"
-
Runway Width: 19.5"
-
Drive-Through Width: 118"
-
Width Between Runways: 39" or 44.5"
-
Lowered Height: 5"
-
Locking Positions: 11
-
Base Plate Size: 11.5" × 9.75"
-
Lock Release: Single-point
-
Lift Time: 40 seconds
-

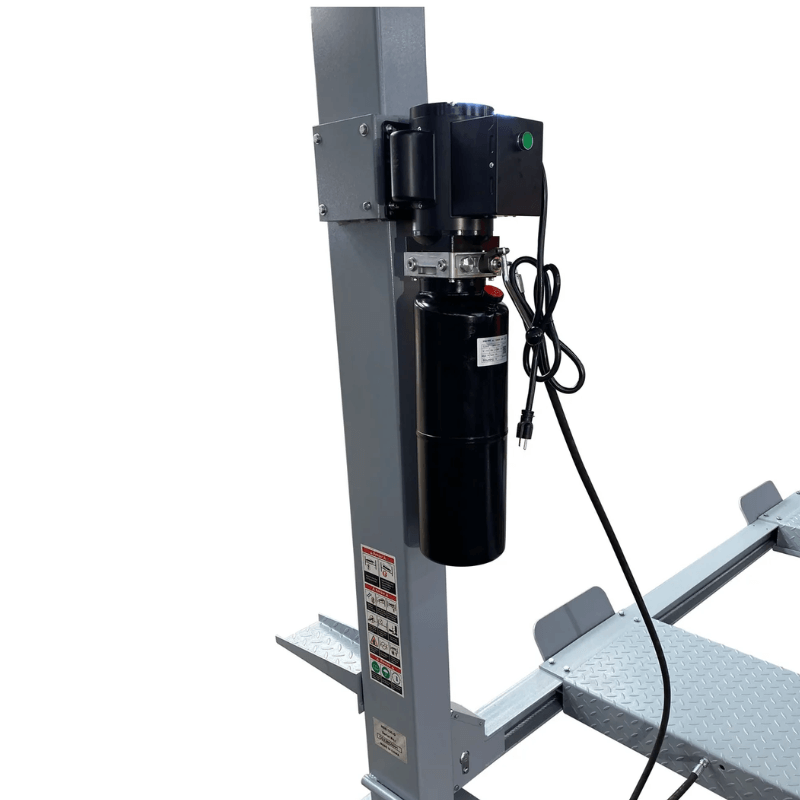

Power Requirement: 110V (30-amp breaker)
-
Motor: 3 HP
-
Shipping Weight: 2,400 lbs
-
Pallet Dimensions: 196" × 23" × 31"
Triumph NSS11000 Special Features
-
Upgraded from the previous NSS-10 / NSS10000 to an 11,000 lb capacity at the same price point
-
Suitable for both vehicle storage and light-duty service work
-
Includes caster kit for portability and flexible garage layout
-

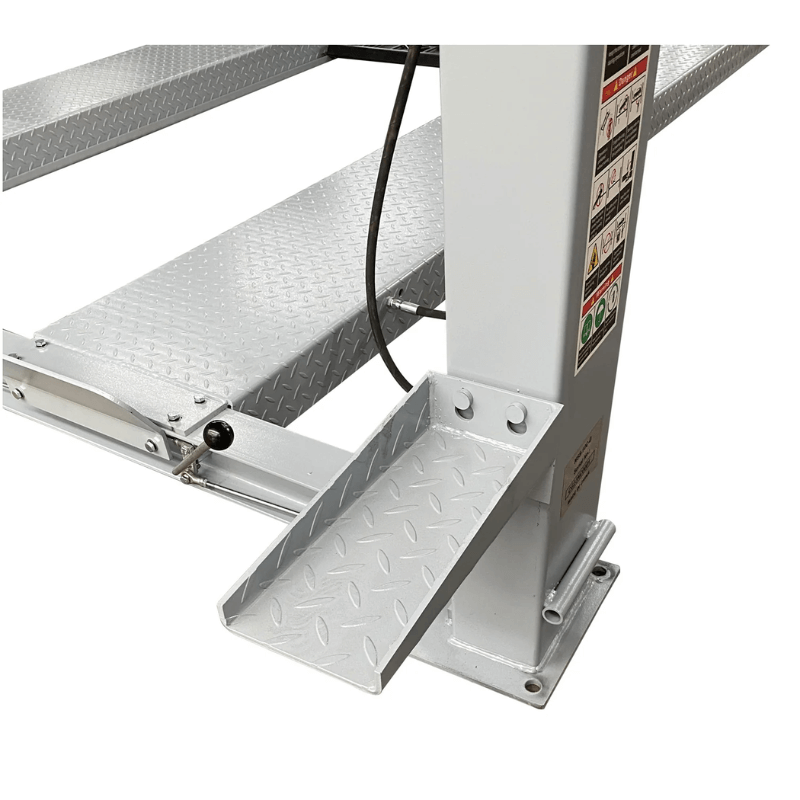

Includes jack tray for lifting one end of a vehicle
-

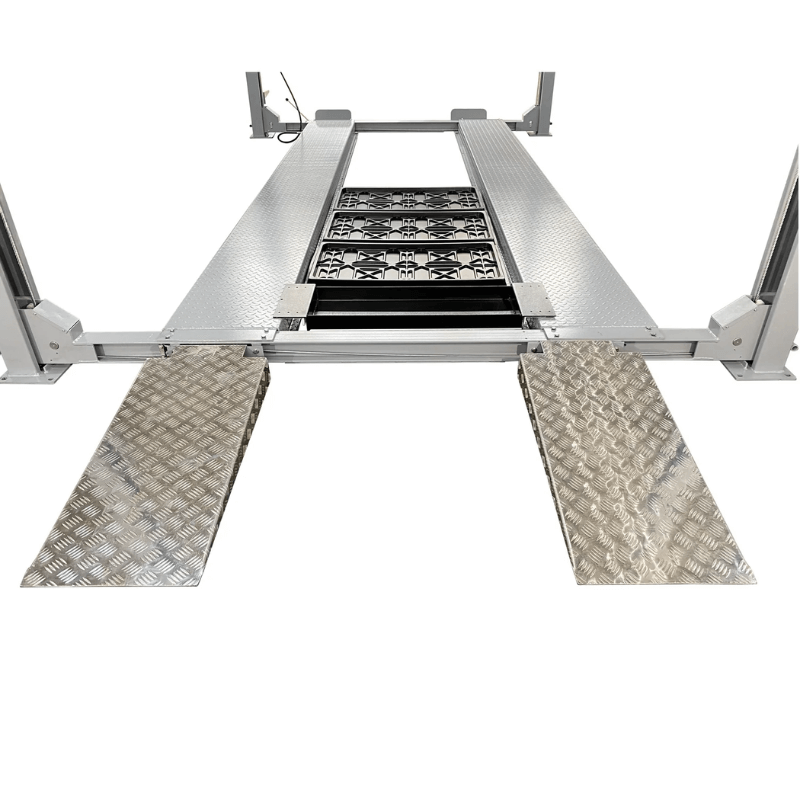

Includes drip trays to help prevent fluid transfer between vehicles
-
Aluminum ramps for lighter weight and easier handling compared to steel
-
Portable, space-efficient design
-
Proven platform with over 20 years of reliable performance
-
Automatic locking system with 11 positions for enhanced safety
-
Standard color: Grey
Optional Item (Sold Separately)
-
RJ-5000 – 5,000 lb Rolling Jack (ideal pairing for the NSS11000 4-post lift)
NSS11000 Manual
Warehouse Pickup Locations:
-
Columbus, OH
-
Fort Worth, TX
-
North Las Vegas, NV
Please note: An additional $200 freight surcharge applies to deliveries in Northern CA, SD, ND, MT, and WY. After your initial purchase, a separate payment link will be provided to complete the transaction.
