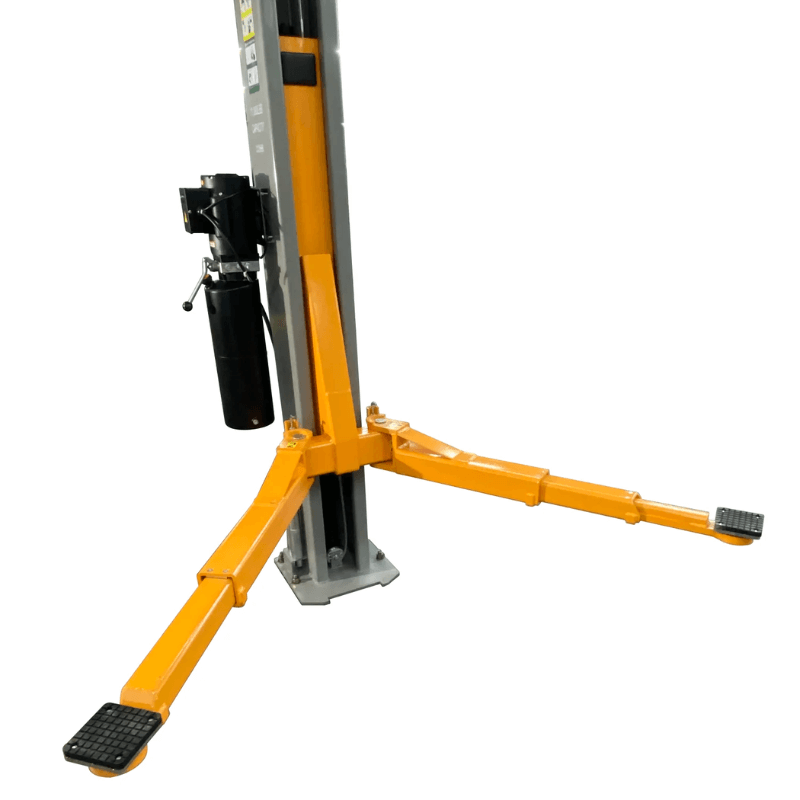

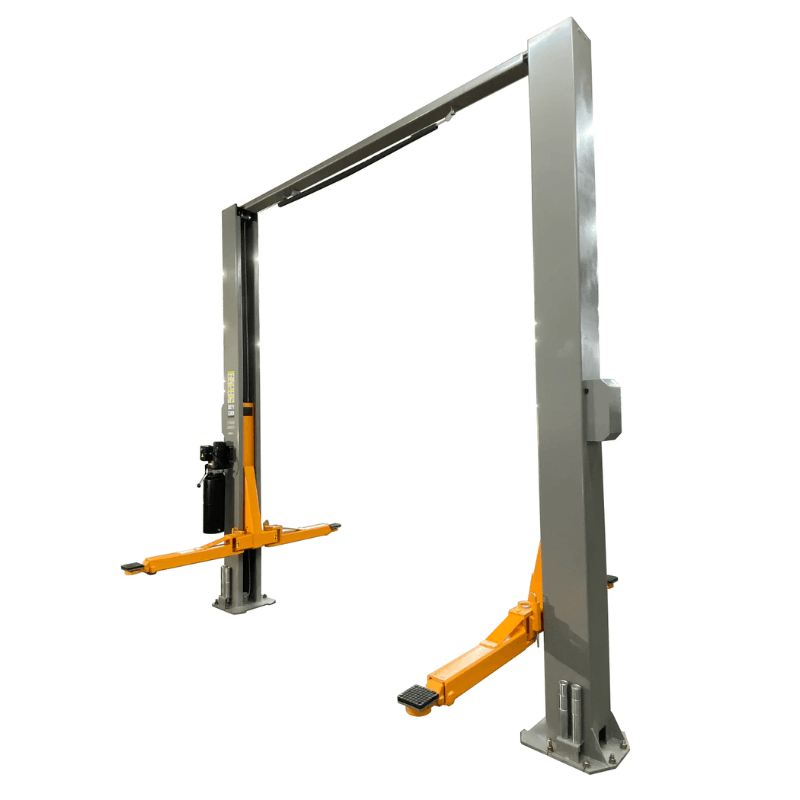

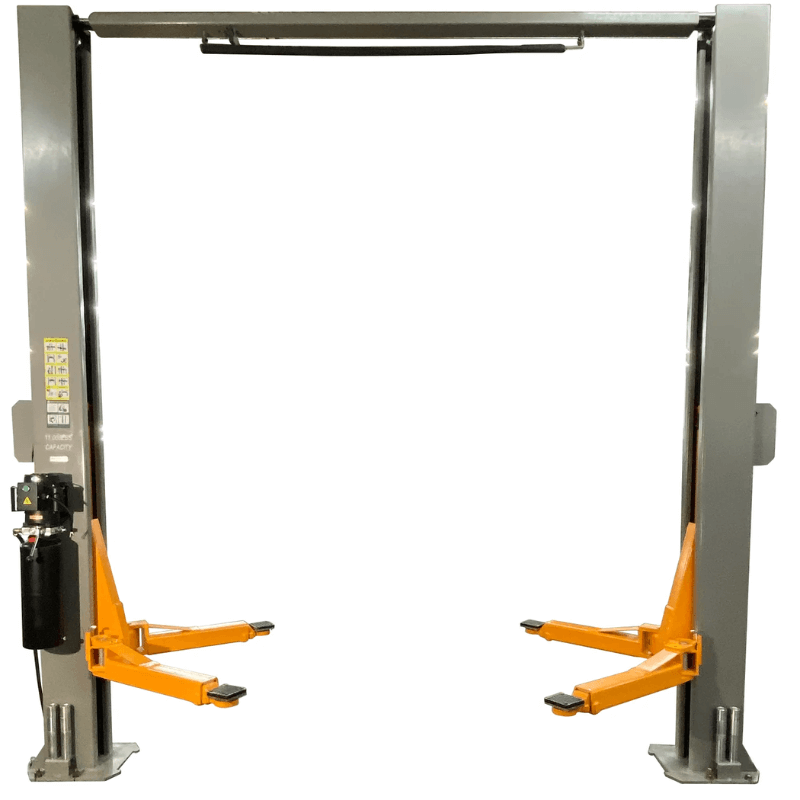

Triumph NTO-11A, 11,000 lb 2 Post Lift
Triumph NTO-11A, 11,000 lb 2 Post Lift
Triumph NTO-11A, 11,000 lb 2 Post Lift
Triumph NTO-11A, 11,000 lb 2 Post Lift
Roll over image to zoom in Click on image to zoom
Triumph NTO-11A, 11,000 lb 2 Post LiftTriumph NTO-11A, 11,000 lb 2 Post LiftTriumph NTO-11A, 11,000 lb 2 Post LiftTriumph NTO-11A, 11,000 lb 2 Post Lift

Triumph NTO-11A, 11,000 lb 2 Post Lift

TriumphSKU: NTO-11A
Price:
$4,150.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

Triumph NTO-11A 11,000 lb 2 Post Lift

The Triumph NTO-11A 11,000 lb Two Post Lift is designed to provide dependable lifting performance for automotive service shops and garage environments that require additional lifting capacity. With an 11,000 lb lifting capacity, this lift is capable of servicing a wide range of vehicles including cars, SUVs, trucks, and larger vehicles.

Its overhead design helps keep cables and hydraulic lines routed above the workspace, reducing clutter on the shop floor and allowing technicians to move more freely around the lift. The single-point safety lock release system simplifies operation by allowing safety locks to be disengaged from a single control point.

The NTO-11A also features direct-drive hydraulic cylinders, which provide smooth and consistent lifting performance. With a 40-second lift time powered by a 3 HP motor, this lift is designed to help technicians perform maintenance and repair work efficiently.

Heavy-duty truck adapters and synchronization cables are included to support a variety of vehicle types while helping maintain balanced lifting operation. Built for durability and manufactured in ISO9001-certified facilities with CE certification, the NTO-11A is designed for reliable performance in both professional and home garage environments.

Triumph NTO-11A Specifications

Lifting Capacity: 11,000 lbs
Overall Height: 145"
Overall Width: 145"
Maximum Lifting Height: 72"
Distance Between Posts: 118"
Drive-Thru Width: 108"
Lowered Height: 4.5"
Base Plate Size: 18" × 20"
Arm Style: Asymmetric
Truck Adapters: Included
Lock Release: Single-point
Electric Safety Cutoff: Yes
Lift Time: 40 seconds
Power Requirement: 220V
Motor: 3 HP
Concrete Requirement: 4" slab, 3,000 PSI
Style: Overhead
Unit Weight: 1,590 lbs

Triumph NTO-11A 11,000 lb 2 Post Lift Features

  • Overhead design routes cables and hoses above the workspace

  • Single-point safety lock release for simplified operation

  • Direct-drive cylinders for smooth lifting performance

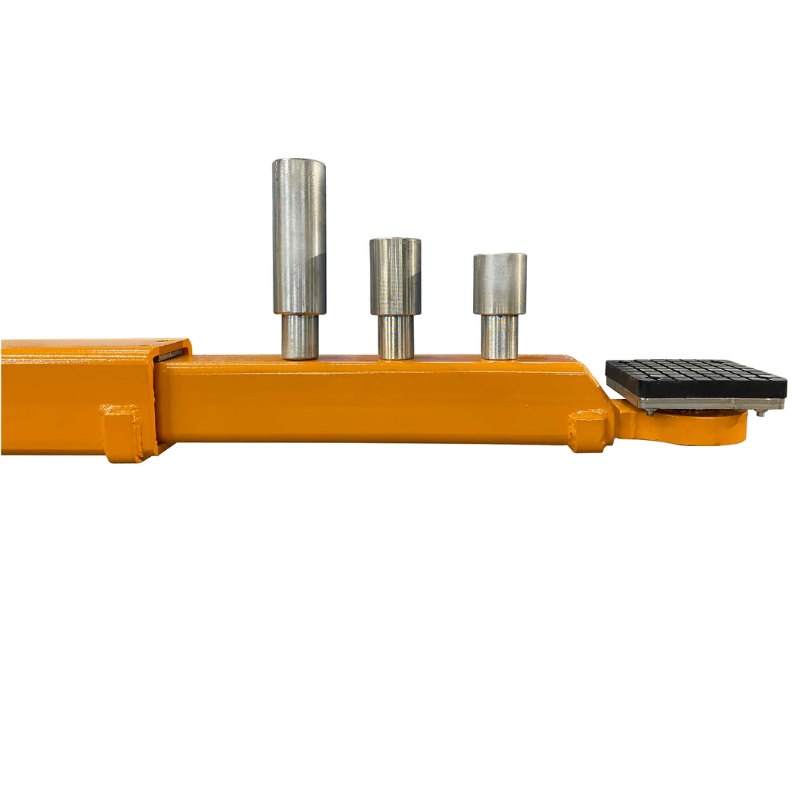

  • Heavy-duty truck adapters for servicing multiple vehicle types

  • 3/8" aircraft-grade synchronization cables for balanced lifting

  • Certification: CE Certified, manufactured in ISO9001-certified facilities

  • Warranty: 1-year parts-only warranty

NTO-11A Manual



Warehouse Pickup Locations (No Shipping Fee):

  • Columbus, OH

  • Fort Worth, TX

  • North Las Vegas, NV

*A $200 additional freight surcharge applies for deliveries to Northern California, South Dakota, North Dakota, Montana, and Wyoming. If applicable, a separate payment link will be sent after your order to complete the freight charge.


NTO-11A 11,000 lb Two Post Auto Lift Diagram
