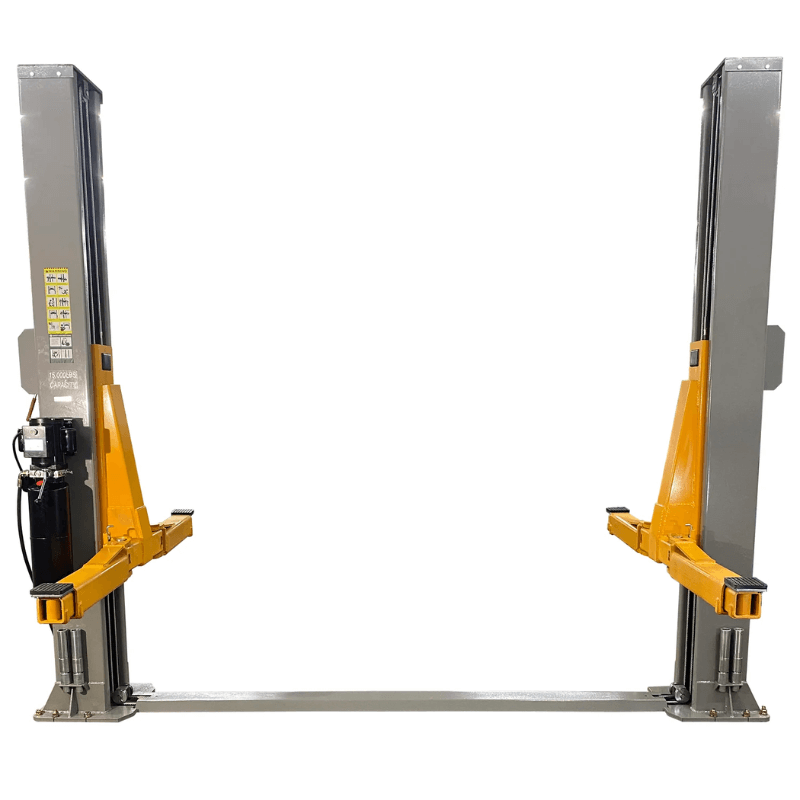

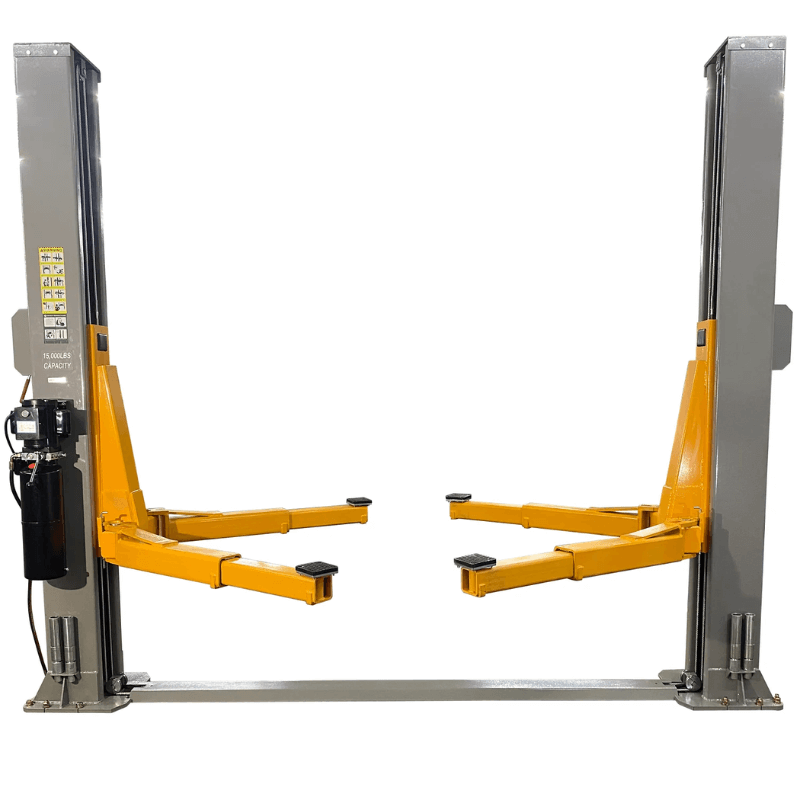

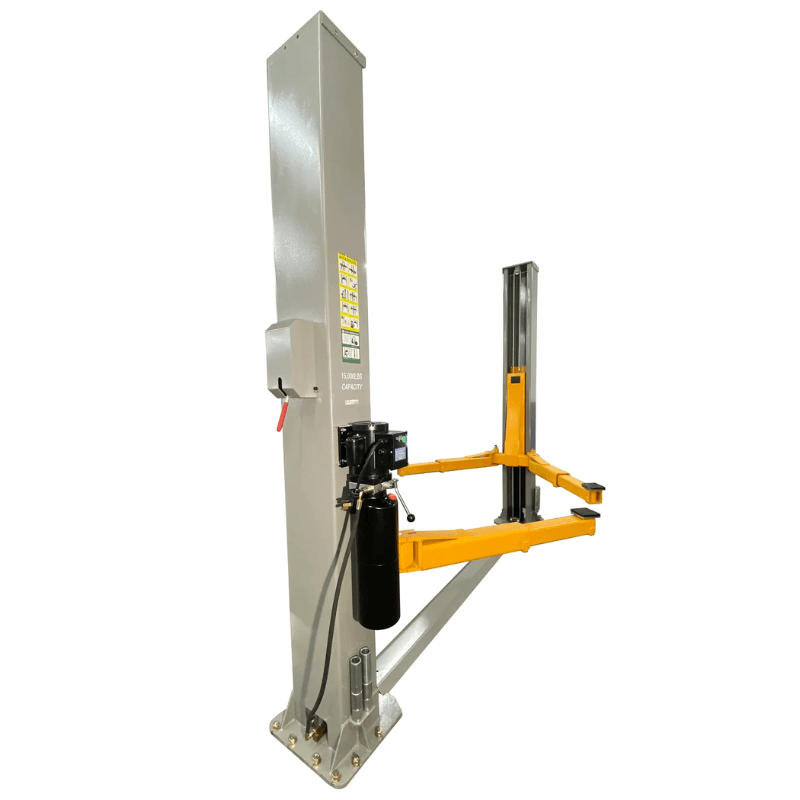

Triumph NT-16 16,000 lb 2 Post Lift

The Triumph NT-16 Two Post Auto Lift is designed to provide the lifting power required for servicing larger vehicles in automotive shops and heavy-duty service environments. With a 16,000 lb lifting capacity, this lift can accommodate a wide range of vehicles, including trucks, commercial vehicles, and larger SUVs.

The NT-16 features a 72-inch maximum lifting height, providing technicians with comfortable access for inspections, maintenance, and repair work. Its 142-inch overall width and 114-inch spacing between posts allow for easier positioning of larger vehicles, while the 100-inch drive-through width helps improve accessibility during vehicle loading.

Powered by a 3 HP motor, the lift raises vehicles in approximately 40 seconds, helping maintain efficient workflow in busy service areas. The lift is manufactured in ISO 9001-certified facilities and CE certified, reflecting its focus on safety, durability, and consistent performance.

Additional features such as the electrical override automatic safety shut-off, truck adapters, and included mounting hardware provide added convenience during installation and operation.

---

Triumph NT-16 Specifications

Lifting Capacity: 16,000 lbs
Overall Height: 120"
Overall Width: 142"
Arm Style: Symmetric
Maximum Lifting Height: 72"
Distance Between Posts: 114"
Drive-Thru Width: 100"
Lowered Height: 7"
Base Plate Size: 20" × 20"
Lift Time: 40 seconds
Power Supply: 220V AC, 3 HP
Concrete Requirement: 3,000 PSI
Shipping Weight: 2,000 lbs
Pallet Dimensions: 120" × 33" × 22"

---

Triumph NT-16 16,000 lb 2 Post Lift Features

• 16,000 lb lifting capacity designed for heavy-duty service applications

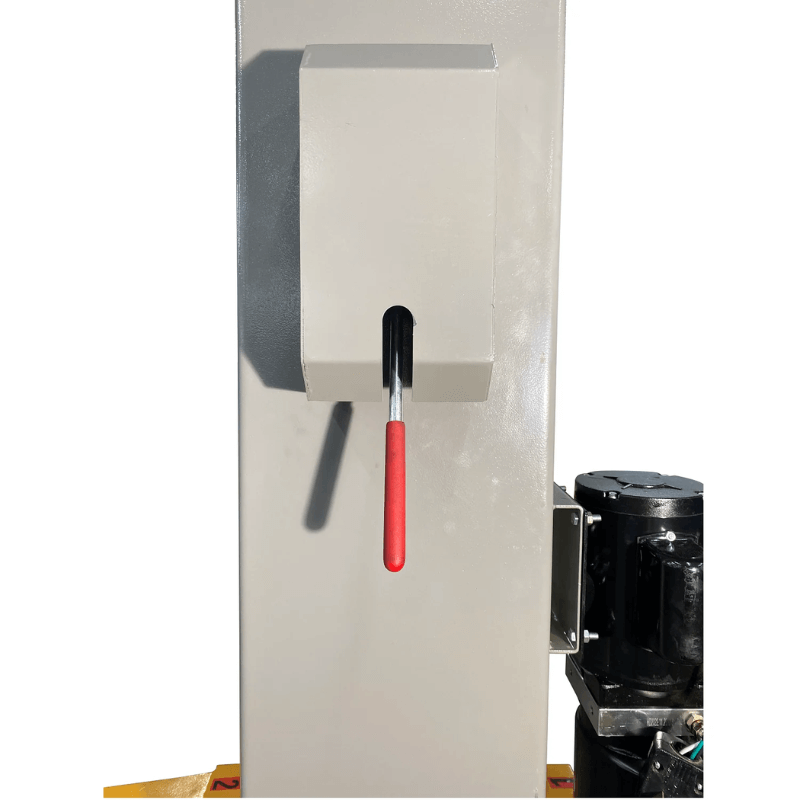

• Electrical override with automatic safety shut-off for added operational safety

• 40-second lifting time helps maintain efficient workflow

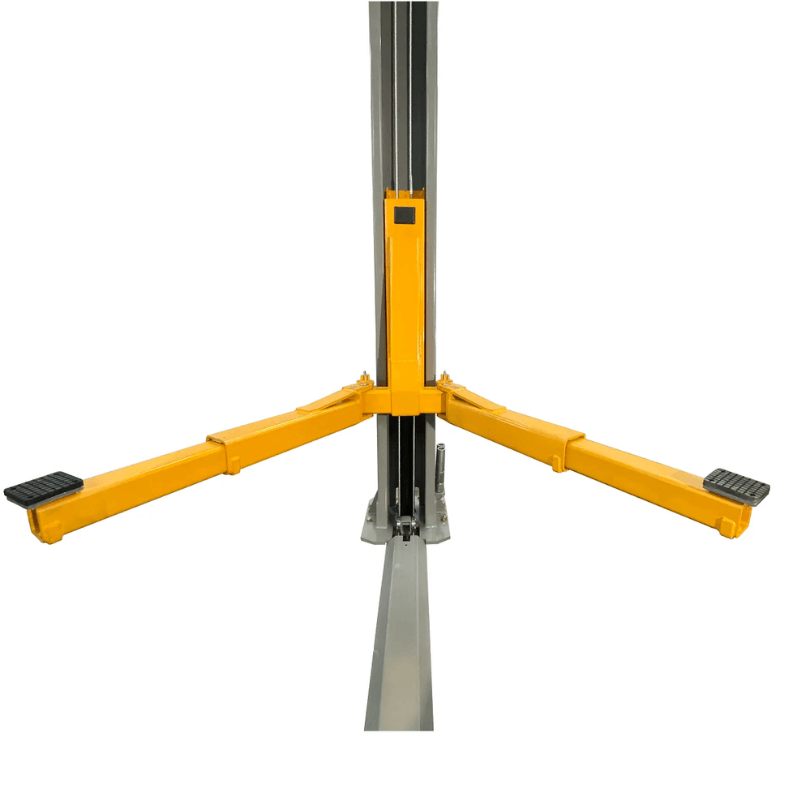

• Symmetric arm configuration for stable vehicle lifting

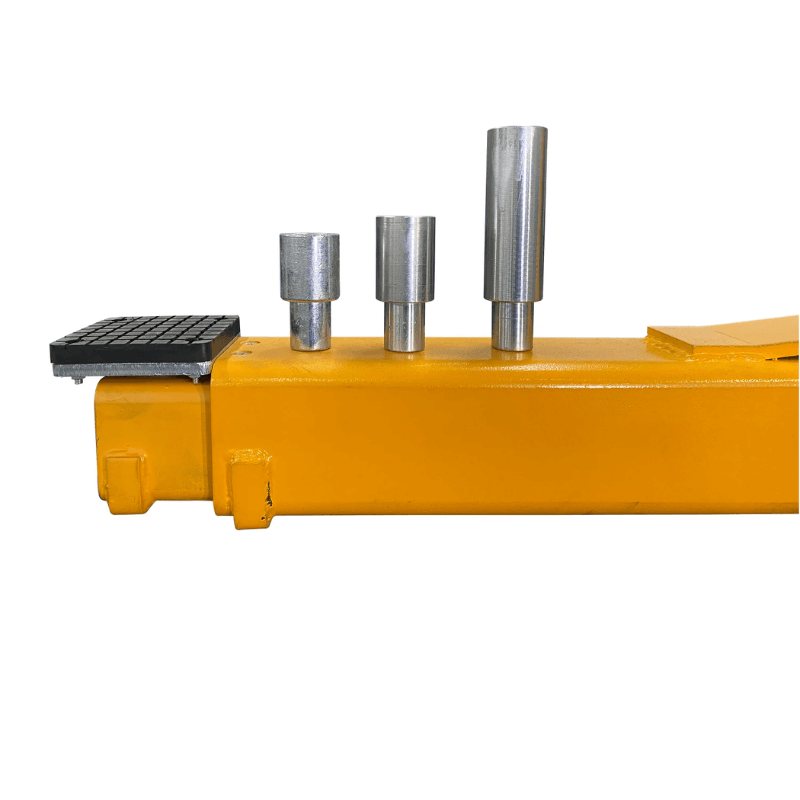

• Includes mounting hardware and truck adapters

• Designed for installation on 3,000 PSI concrete floors

The NT-16 replaces earlier versions of the model with updates to the lift structure and components.

---

Warranty

1-year parts-only warranty
