Triumph NT-9, 9,000 lb 2 Post Lift - Low Ceiling

Save $495.00
TriumphSKU: NT-9
Price:
$1,900.00 $2,395.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

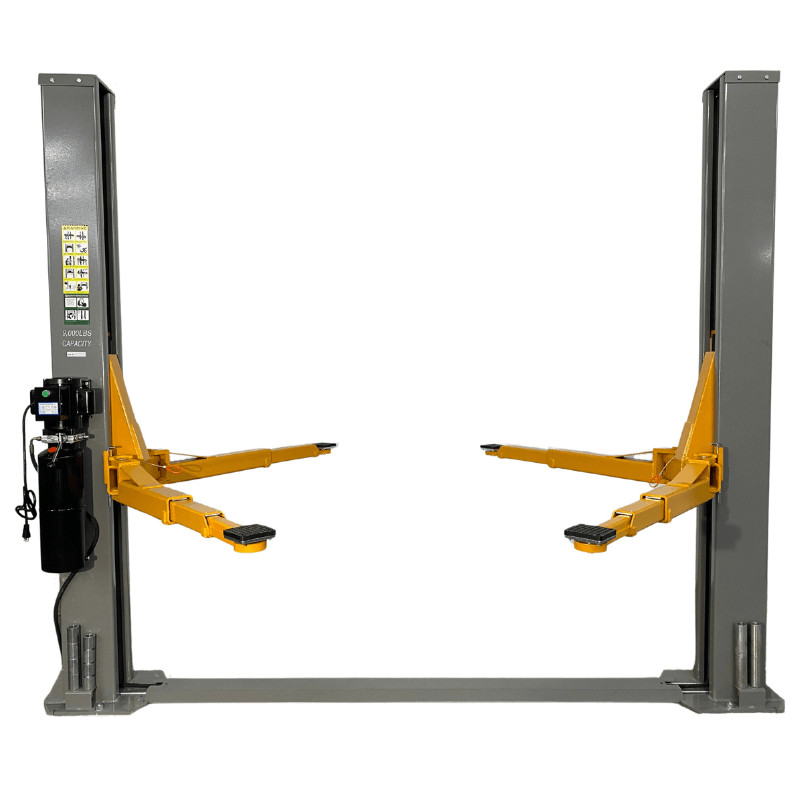

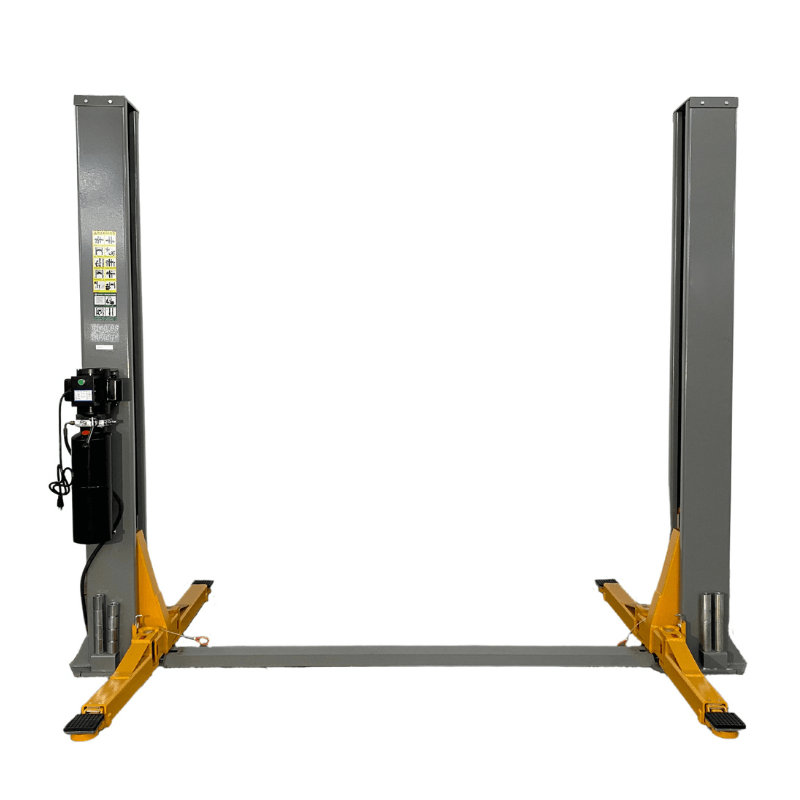

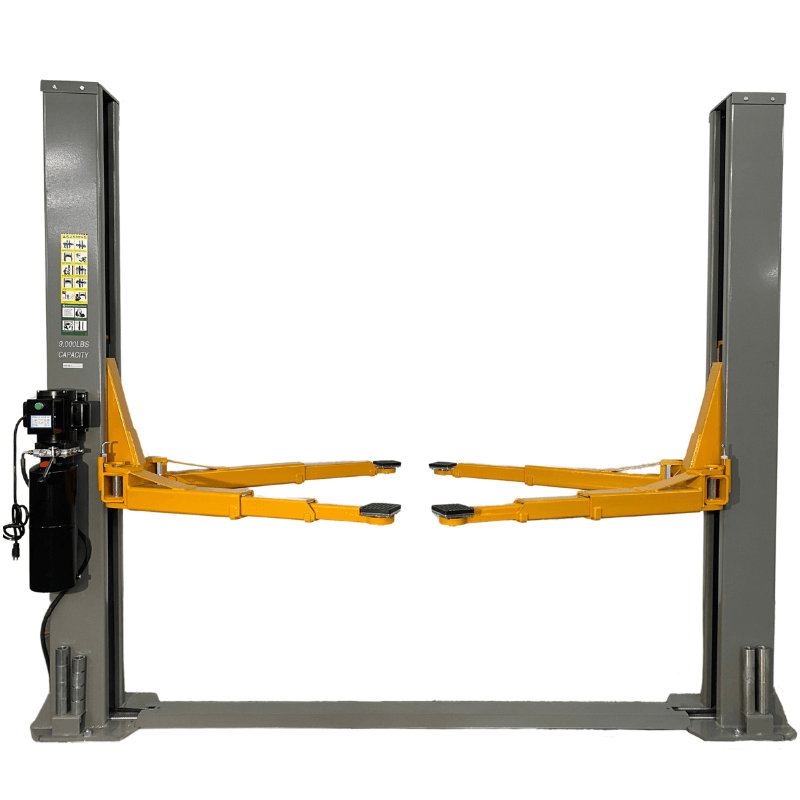

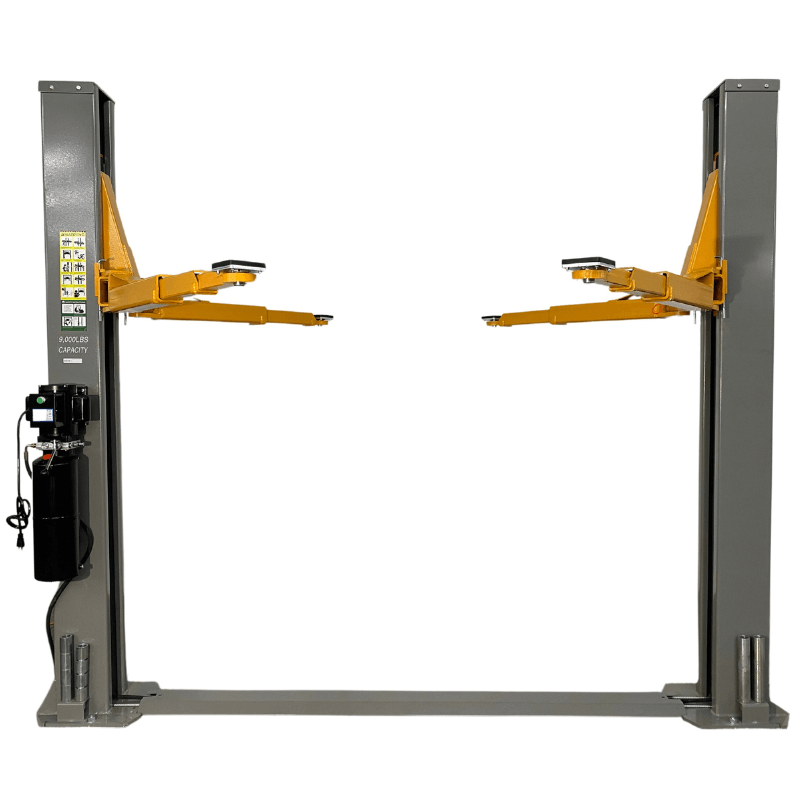

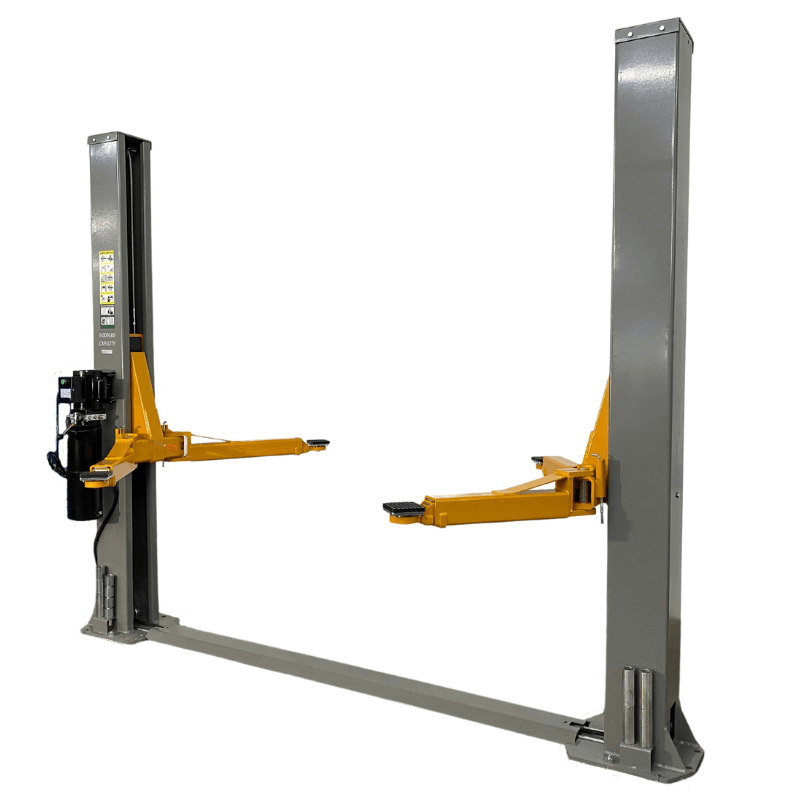

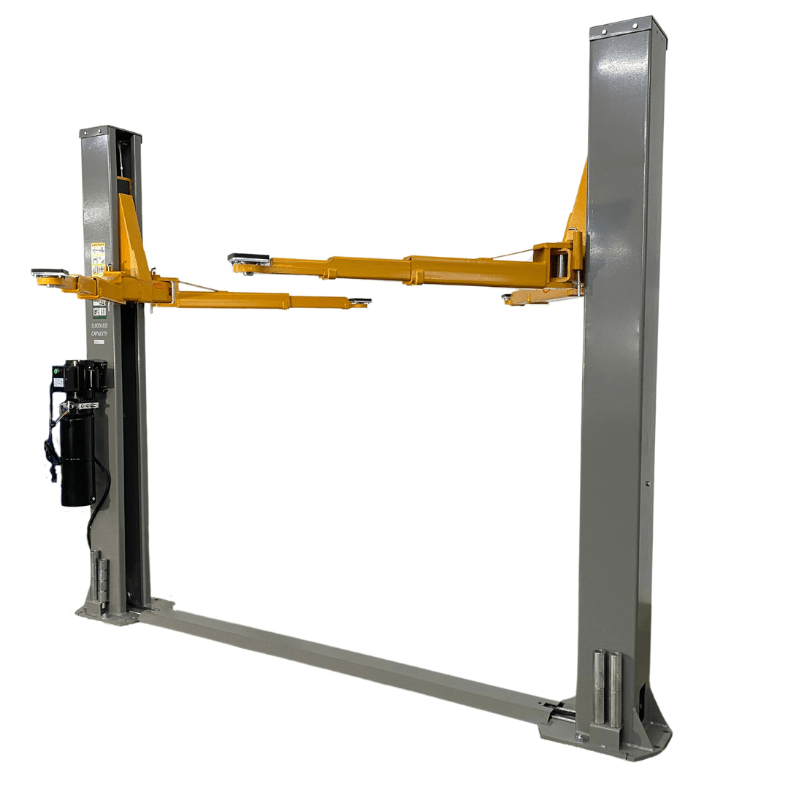

Triumph NT-9 9,000 lb 2 Post Lift

Working underneath vehicles with limited clearance can slow down repairs and make routine service work more difficult than it needs to be. The Triumph NT-9 Two Post Auto Lift provides a reliable lifting solution designed to improve efficiency and comfort in automotive repair shops and home garages.

With a 9,000 lb lifting capacity and a 40-second lifting time, the NT-9 helps technicians quickly raise vehicles for maintenance, inspections, and repairs. The 72-inch lifting height allows for comfortable under-vehicle access, while the 106-inch width between posts provides adequate space to service a wide range of vehicles including cars, SUVs, and light-duty trucks.

Designed with durability and practical shop use in mind, the NT-9 features a floor plate design that helps keep cables and hydraulic lines organized and protected. The dual-point lock release system provides controlled operation, while the included power unit and mounting hardware allow for straightforward installation.

Manufactured in ISO 9001-certified facilities and CE certified, the Triumph NT-9 is designed to deliver dependable performance for daily vehicle service tasks.

NT-9 2 Post Lift Specifications

Lifting Capacity: 9,000 lbs
Overall Height: 111 inches
Overall Width: 132 inches
Width Between Posts: 106 inches
Drive-Through Width: 96 inches
Lifting Height: 72 inches
Lowered Height: 4.5 inches
Base Plate Size: 19" x 17"
Arm Style: Symmetric
Motor: 3 HP
Voltage: 220V
Lifting Time: 40 seconds
Shipping Weight: 1,303 lbs
Concrete Requirement: 3,000 PSI
Pallet Dimensions: 112" x 18" x 36"

Triumph NT-9 2 Post Lift Features

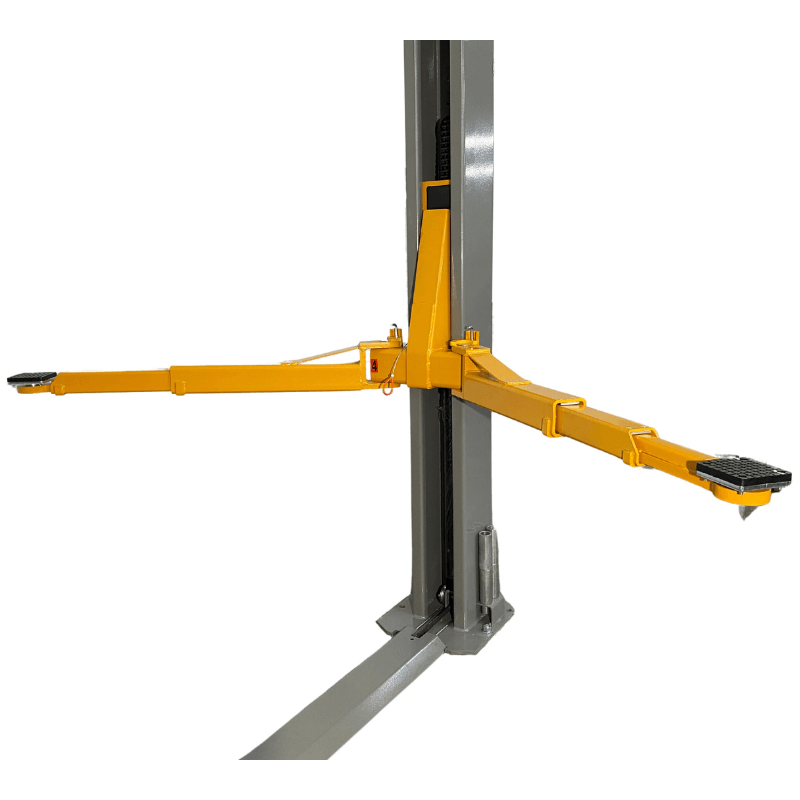

  • Three-stage front arms for flexible vehicle positioning

  • Floor plate design helps organize cables and hydraulic lines

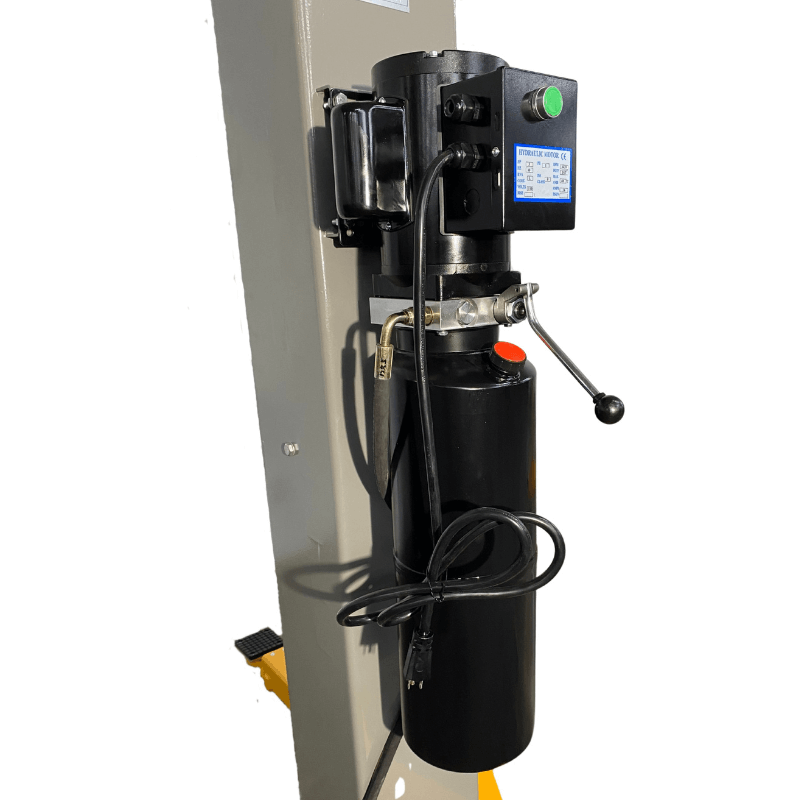

  • Includes power unit/motor and floor mounting hardware

  • Dual-point lock release system for controlled operation

  • Suitable for lower ceiling installations

  • Includes truck adapters for additional vehicle compatibility

  • Certification: CE Certified, manufactured in ISO9001-certified factories

  • Warranty: 1-year parts-only warranty

NT-9 Manual




Warehouse Pickup Locations (No Shipping Fee):

  • Columbus, OH

  • Fort Worth, TX

  • North Las Vegas, NV

*A $200 additional freight surcharge applies for deliveries to Northern California, South Dakota, North Dakota, Montana, and Wyoming. If applicable, a separate payment link will be sent after your order to complete the freight charge.
