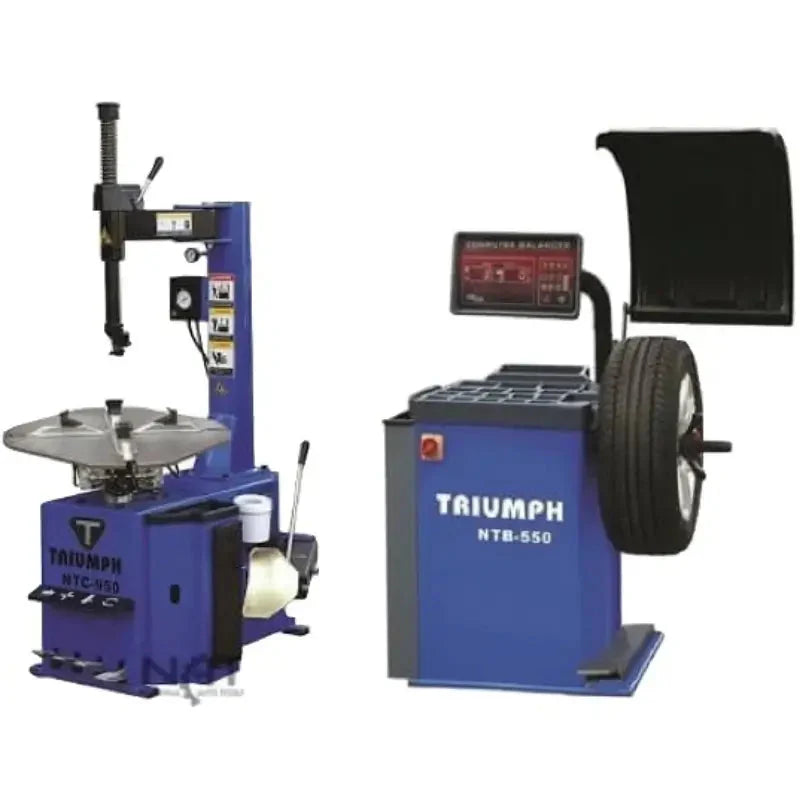

NTC-950 Tire Changer with NTB-550 Wheel Balancer Combo
The Triumph NTC-950 Tire Changer and NTB-550 Wheel Balancer Combo is a versatile tire service package designed for automotive shops that need reliable performance, flexible capability, and room to grow. Built to handle a wide range of wheel and tire combinations, this combo helps improve workflow efficiency while delivering dependable results for everyday tire service operations.
The NTC-950 Tire Changer is engineered to handle everything from standard passenger tires to light truck applications with ease. Its heavy-duty bead breaker delivers 5,500 lbs of force, allowing technicians to quickly loosen stubborn tire beads, while the integrated bead blast system helps seat tire beads securely onto the rim. With a clamping range that supports wheels from 14" to 28" and the ability to handle tires up to 43" in diameter, the NTC-950 is designed for versatility across a wide range of vehicle applications.
Built with future expansion in mind, the NTC-950 features an upgradeable design that allows shops to add optional helper arms as business demands increase. Powered by a reliable 1.5 HP motor and operating on standard 110V power, it provides professional-grade capability while remaining easy to install in most shop environments.
Paired with the NTB-550 Wheel Balancer, this combo delivers fast and accurate balancing performance with ±1 gram accuracy and balancing cycles as fast as 6–9 seconds. The NTB-550 features static and dynamic balancing modes, alloy wheel capability, self-calibration functionality, and a foot pedal wheel brake for secure wheel positioning during weight placement. Operators manually input all three wheel parameters, giving technicians complete control during setup.
Together, the NTC-950 and NTB-550 provide a dependable and scalable tire service solution for growing automotive shops.
Tire Changer NTC-950 and Wheel Balancer NTB-550 Specifications

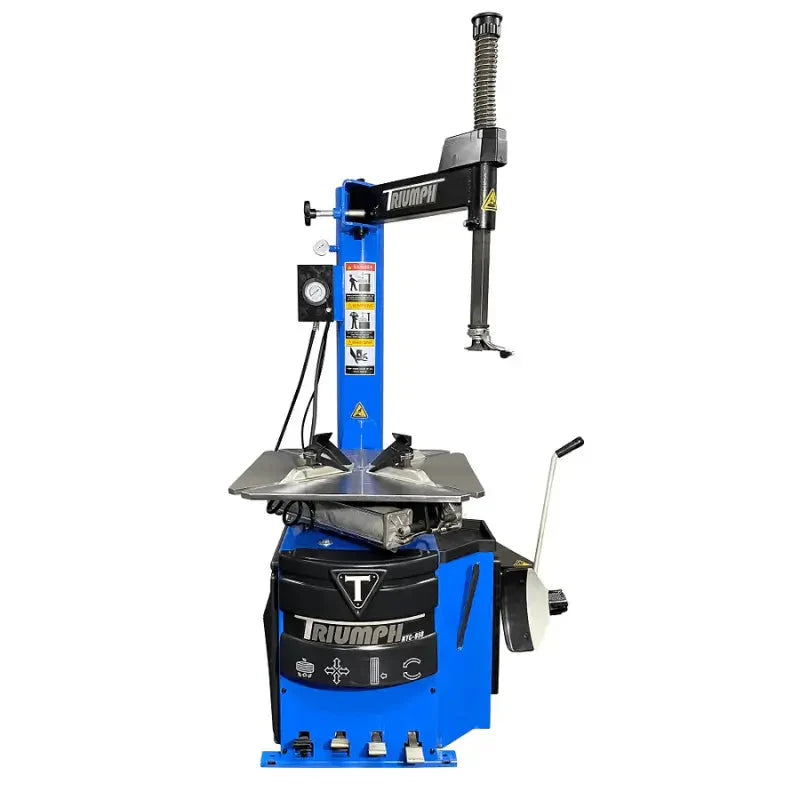

NTC-950 Tire Changer
Inside Clamping: 16" – 28"
Outside Clamping: 14" – 26"
Maximum Wheel Width: 15"
Maximum Tire Diameter: 43"
Bead Breaker Force: 5,500 lbs
Maximum PSI: 120 PSI
Motor: 1.5 HP
Voltage: 110V
Assembled Dimensions: 56" x 40" x 80"
Shipping Dimensions: 51" x 38" x 51"
Shipping Weight: 700 lbs

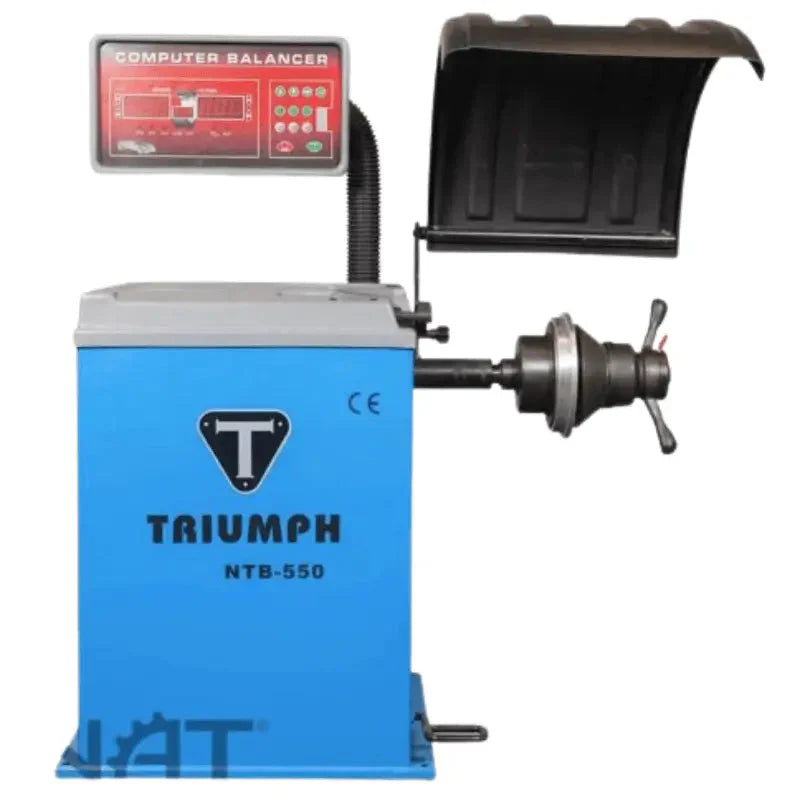

NTB-550 Wheel Balancer
Wheel Size Range: 10" – 28"
Maximum Tire Diameter: 44"
Rim Width Capacity: 1.5" – 20"
Maximum Wheel Weight: 150 lbs
Shaft Size: 36 mm
Automatic Data Entry: No
Display Units: Standard or Metric
Accuracy: ±1 Gram
Cycle Time: 6–9 Seconds
Motor: 1/4 HP
Voltage: 110V
Assembled Dimensions: 28" x 47" x 56"
Shipping Dimensions: 36" x 28" x 46"
Shipping Weight: 325 lbs
NTC-950 Tire Changer Key Features
Expandable Design — Add one or two optional helper arms as service demands grow.
Wide Clamping Capacity — Accommodates a variety of passenger and light truck tire sizes.
Heavy-Duty Bead Breaker — Produces 5,500 lbs of force for stubborn tire beads.
Integrated Bead Blast System — Helps quickly and securely seat tire beads onto the rim.
Large Tire Capacity — Supports wheels up to 15" wide and tires up to 43" in diameter.
1.5 HP Motor — Delivers dependable performance for daily shop operation.
110V Compatibility — Operates using standard shop electrical outlets.
Compact and Manageable Design — Easy to transport, install, and position within a workspace.
NTB-550 Wheel Balancer Key Features
Foot Pedal Wheel Brake — Secures the wheel for precise weight placement.
Static and Dynamic Balancing Modes — Provides flexibility for different balancing applications.
Alloy Wheel Capability — Designed to handle a variety of wheel styles and sizes.
Speed Nut and Self-Calibration System — Enhances balancing accuracy and ease of operation.
Selectable Display Units — Displays measurements in grams or ounces, and millimeters or inches.
Fast Cycle Time — Completes balancing cycles in as little as 6–9 seconds.
Manual Data Entry — Operator manually inputs all three wheel parameters during setup.
