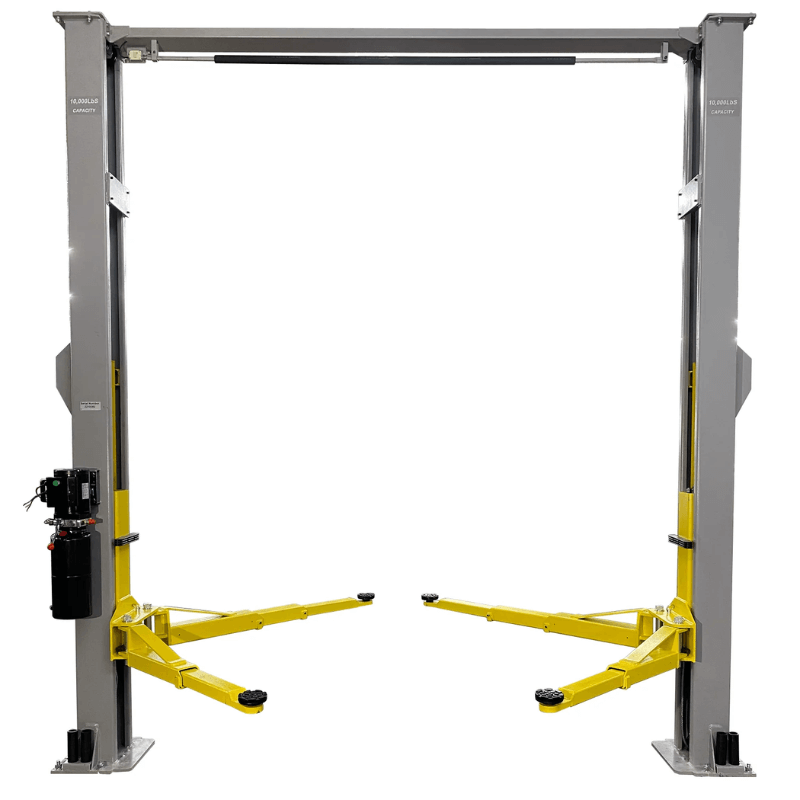

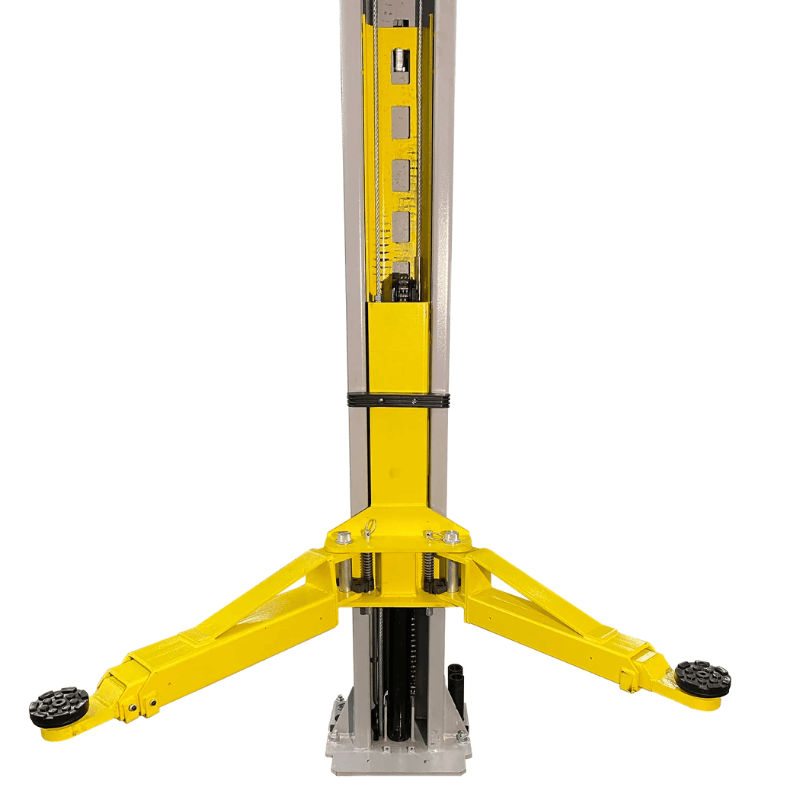

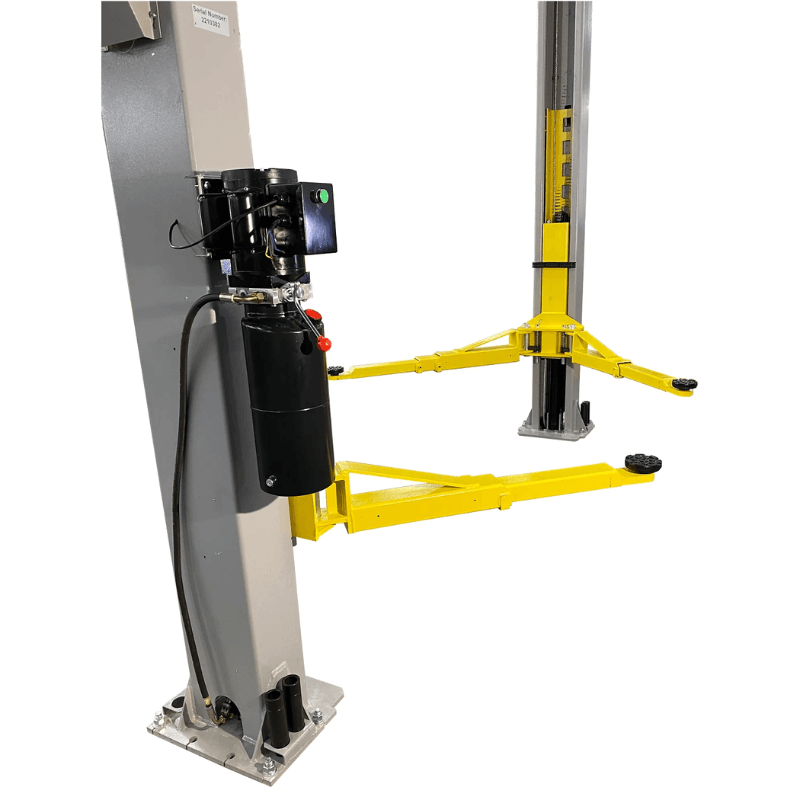

Triumph NTO-10A 10,000 lb 2 Post Lift

If you're looking for a dependable, high-capacity vehicle lift for your shop or garage, the Triumph NTO-10A 10,000 lb Two Post Lift offers a practical solution designed for both professional and personal use. With a 10,000 lb lifting capacity, this lift is capable of servicing a wide range of vehicles including passenger cars, SUVs, light trucks, and other similar vehicles.

The three-stage front arms provide extended reach and flexible vehicle positioning, making it easier to accommodate different vehicle sizes and wheelbases. A single-point lock release system helps streamline operation by allowing technicians to disengage the safety locks more efficiently during lifting and lowering.

Designed with both efficiency and safety in mind, the NTO-10A features an overhead design that routes cables and hydraulic lines above the workspace, helping keep the floor area clear and organized. Powered by a 3 HP motor, the lift raises vehicles in approximately 40 seconds, helping technicians move through service tasks efficiently.

With its compact base plate footprint and overhead configuration, the NTO-10A is designed to fit into many garage layouts while providing the lifting power and functionality needed for everyday vehicle maintenance and repair work.

---

NTO-10A Specifications

Capacity: 10,000 lbs
Overall Height: 145"
Overall Width: 133"
Lifting Height: 72"
Distance Between Posts: 107"
Drive-Thru Width: 96"
Lowered Height: 4.5"
Base Plate Size: 18" x 17"
Truck Adapters: Yes
Lock Release: Single Point
Electric Safety Cutoff: Yes
Lift Time: 40 seconds
Voltage: 220 Volt (30 amp breaker)
Horsepower: 3 HP
Concrete Requirement: 4" slab, 3,000 PSI
Style: Overhead
Pallet Dimensions: 149" x 19" x 38"

---

Triumph NTO-10A 10,000 lb 2 Post Lift Features

• Single-point lock release simplifies lift operation

• Three-stage arms provide improved reach for different vehicle types

• Overhead bar design keeps cables and hydraulic lines off the floor

• Includes power unit/motor and mounting hardware for installation

• Electric safety cutoff provides an additional safety feature during operation

• Certification: CE Certified, manufactured in ISO9001-certified factories

• Warranty: 1-year parts-only warranty

NTO-10A Manual



Warehouse Pickup Locations (No Shipping Fee):

• Columbus, OH

• Fort Worth, TX

• North Las Vegas, NV

*A $200 additional freight surcharge applies for deliveries to Northern California, South Dakota, North Dakota, Montana, and Wyoming. If applicable, a separate payment link will be sent after your order to complete the freight charge.
