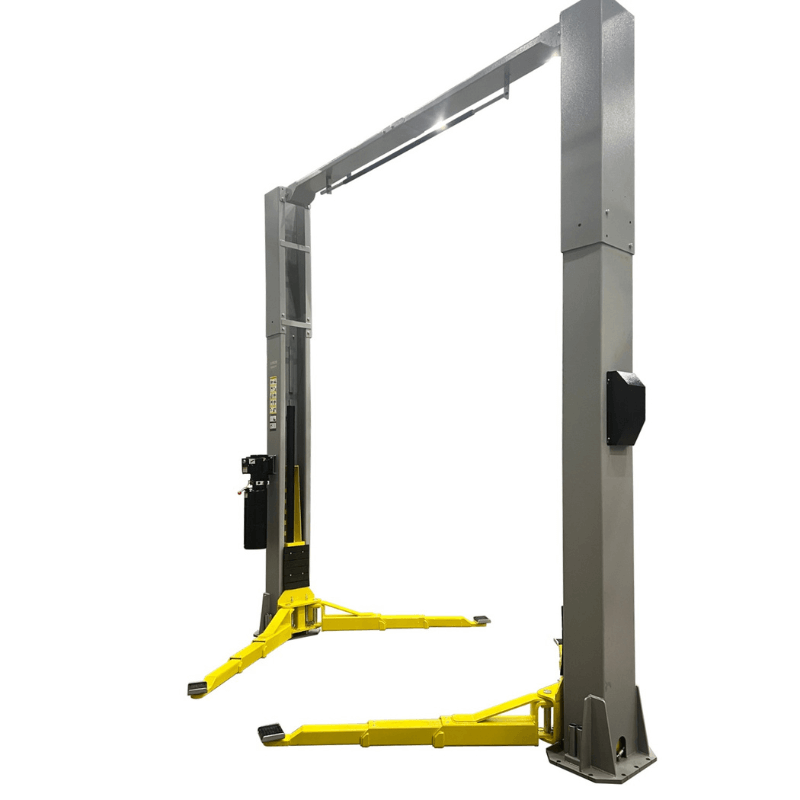

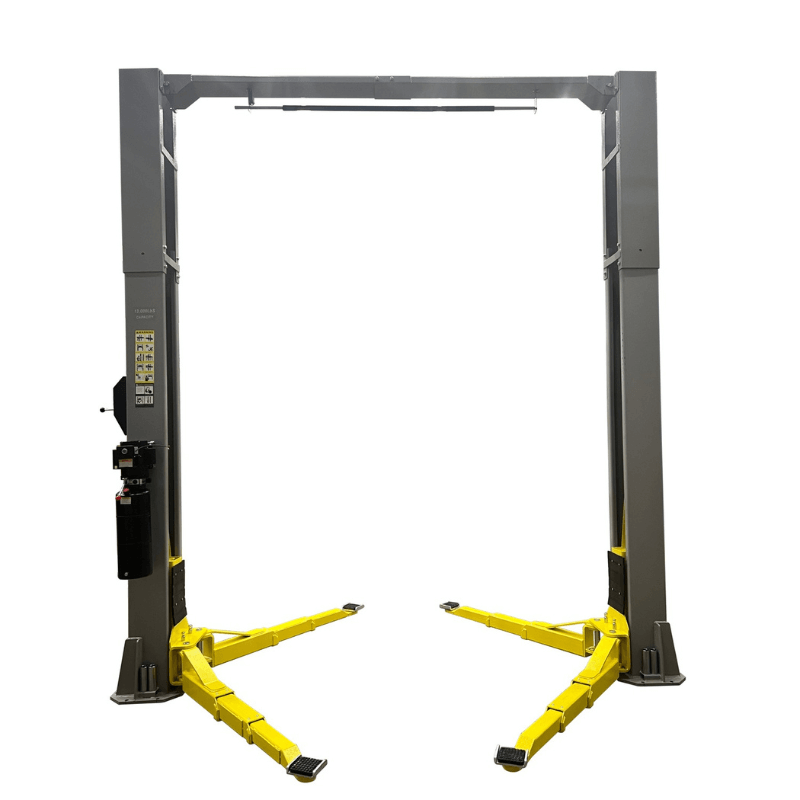

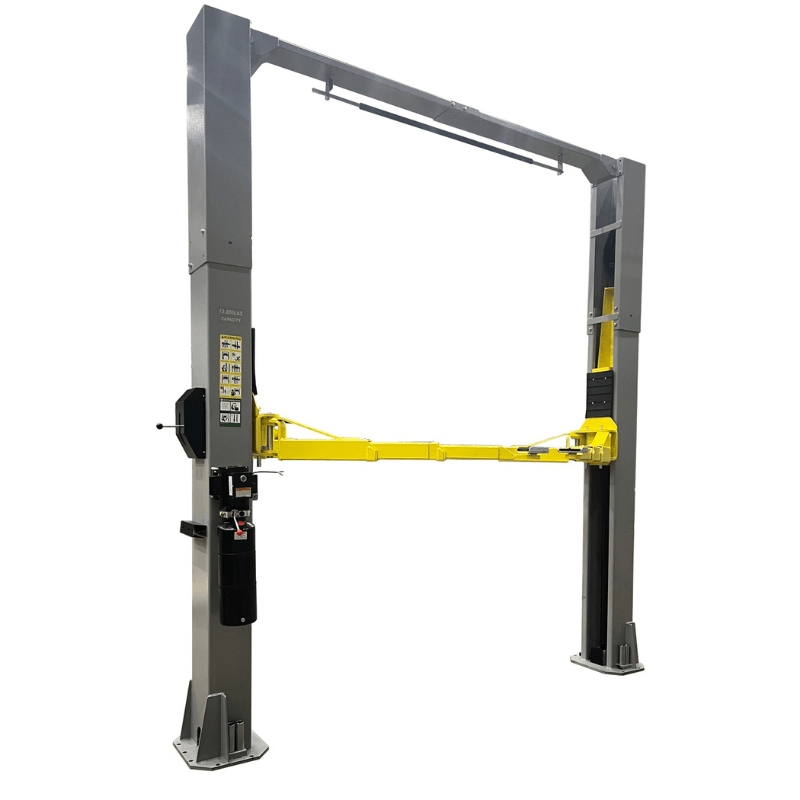

Triumph NTO-13A Two-Post Lift

The Triumph NTO-13A Two-Post Automotive Lift is designed for professional service environments that require higher lifting capacity and dependable performance. With a 13,000 lb lifting capacity, this lift can accommodate a wide range of vehicles including passenger cars, SUVs, light-duty trucks, and certain commercial vehicles.

The NTO-13A utilizes direct-drive hydraulic cylinders and a four-arm lifting configuration to provide stable and controlled lifting during vehicle service. Its reinforced column design and durable components are intended to support consistent use in busy repair facilities.

For added flexibility, the lift features four three-stage adjustable arms, allowing technicians to position vehicles of varying sizes more easily and maintain proper lifting balance. The lift also includes three sets of height adapters and is powered by a 220V electric motor, providing reliable lifting performance during daily service operations.

With its wide drive-through clearance, tall lifting height, and durable steel construction, the Triumph NTO-13A is well suited for automotive repair shops, fleet service facilities, and other professional environments that require dependable lifting equipment.

---

Triumph NTO-13A Specifications

Lifting Capacity: 13,000 lbs
Overall Height: 162"
Maximum Lifting Height: 74"
Minimum Pad Height: 5"
Drive-Thru Width: 109"
Width Inside Columns: 122"
Overall Width: 150"
Arm Length Range: 32" – 59"
Power Requirement: 220V Electric Motor
Arm Style: Asymmetric

---

Triumph NTO-13A 13,000 lb Two-Post Lift Features

• 13,000 lb lifting capacity designed for servicing cars, SUVs, and light-duty trucks

• Four three-stage adjustable arms for flexible vehicle positioning

• Direct-drive hydraulic cylinders for smooth and consistent lifting performance

• Includes three sets of height adapters for additional lifting versatility

• Commercial-grade 220V motor for dependable operation

• Wide drive-through clearance for easier vehicle positioning

• Low-profile 5" pad height allows lifting of many lower-clearance vehicles

• Reinforced steel column construction for long-term durability

• Suitable for professional repair shops, fleet service facilities, and dealerships

NTO-13A Manual

Coming Soon
