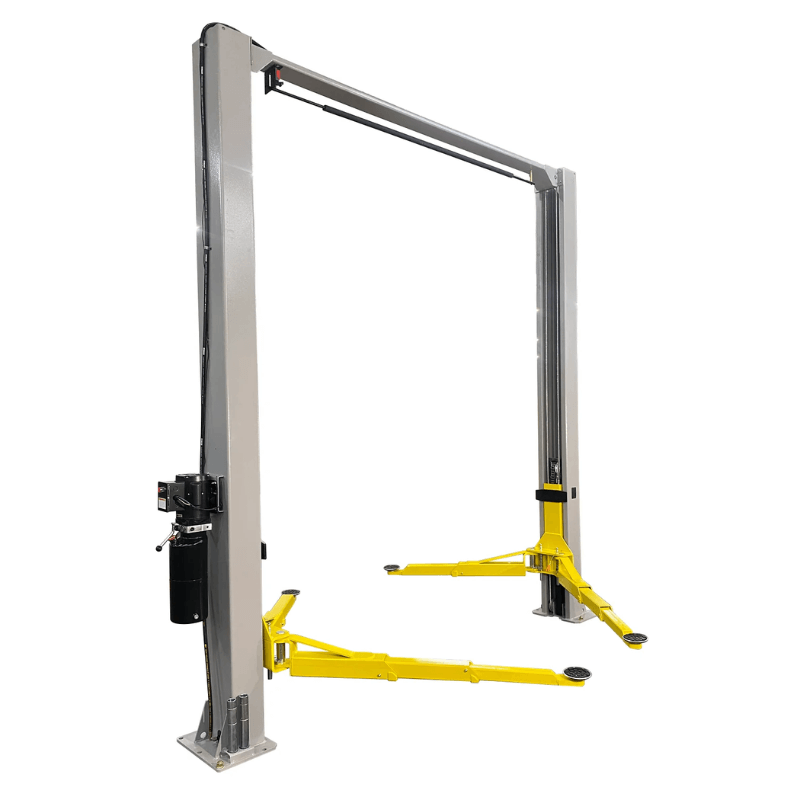

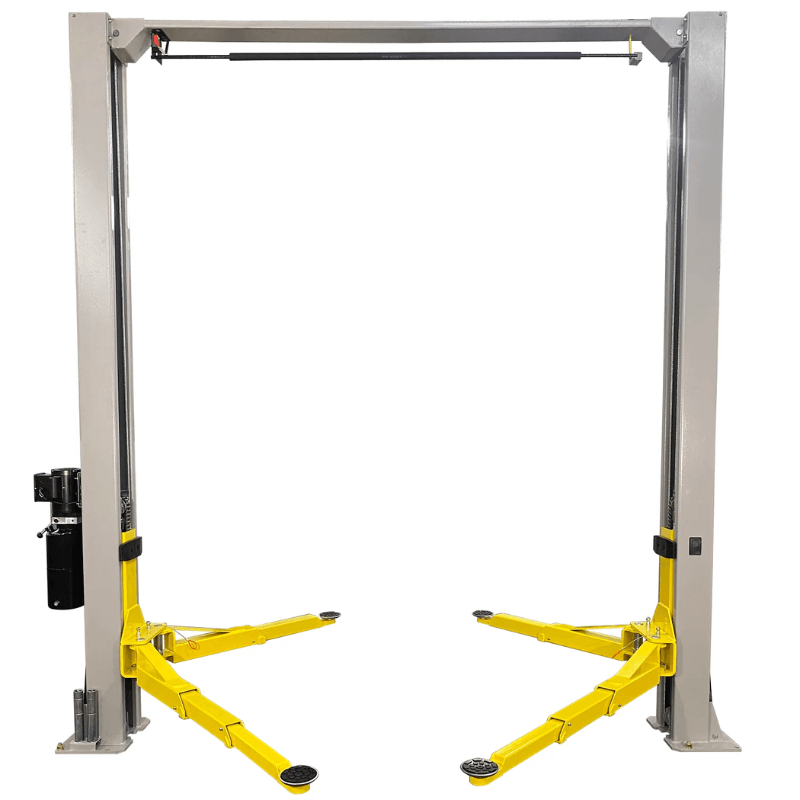

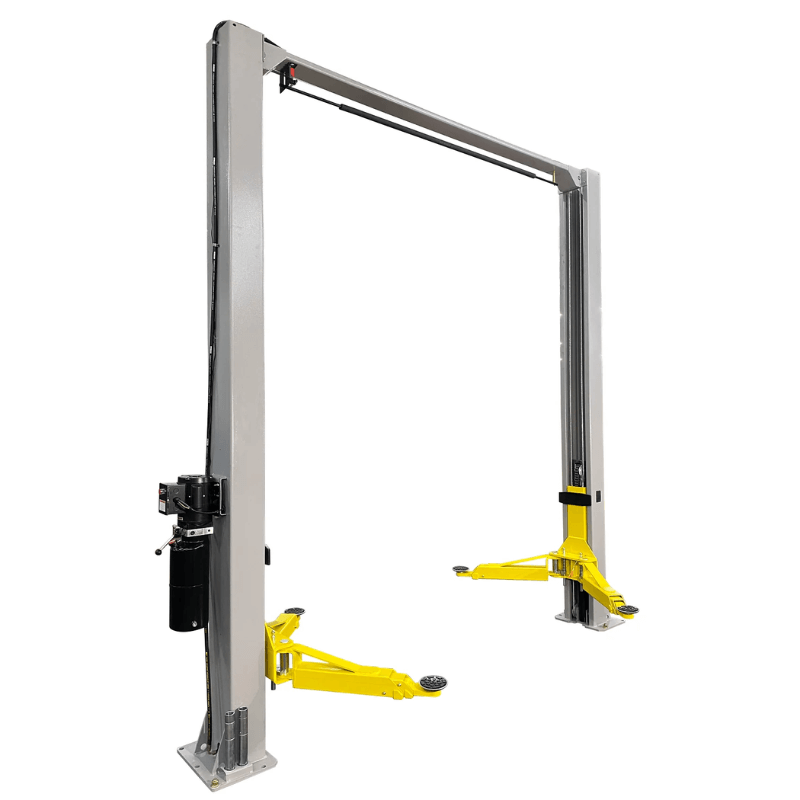

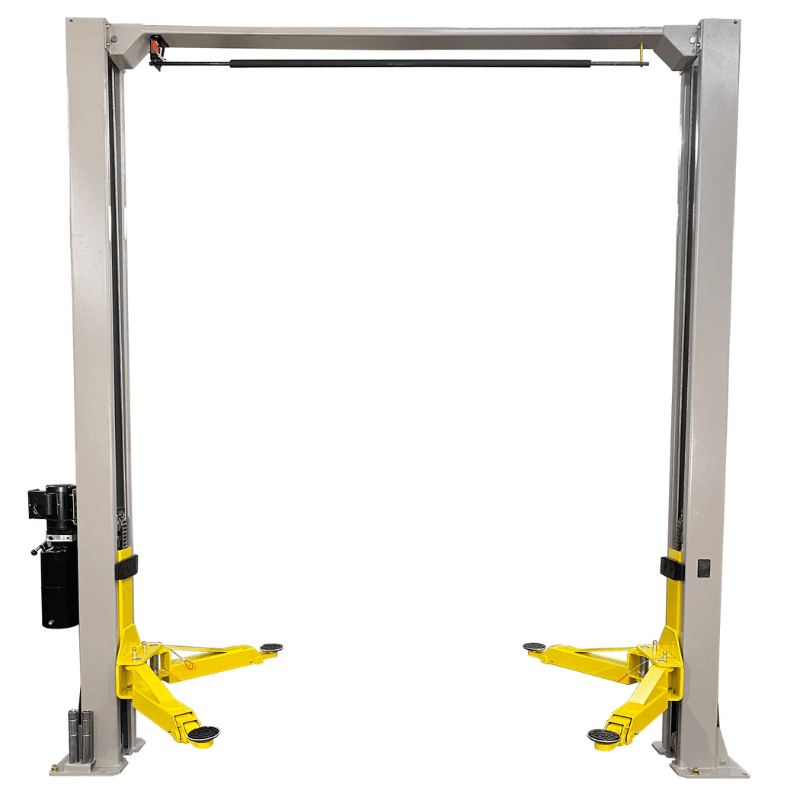

Triumph NTO-9AE 2 Post Lift Specifications

Capacity: 9,000 lbs
Overall Height: 145.5 inches
Overall Width: 134.5 inches
Lifting Height: 72 inches
Distance Between Posts: 109 inches
Drive-Through Width: 92 inches
Lowered Height: 4.5 inches
Base Plate Size: 18" × 14"

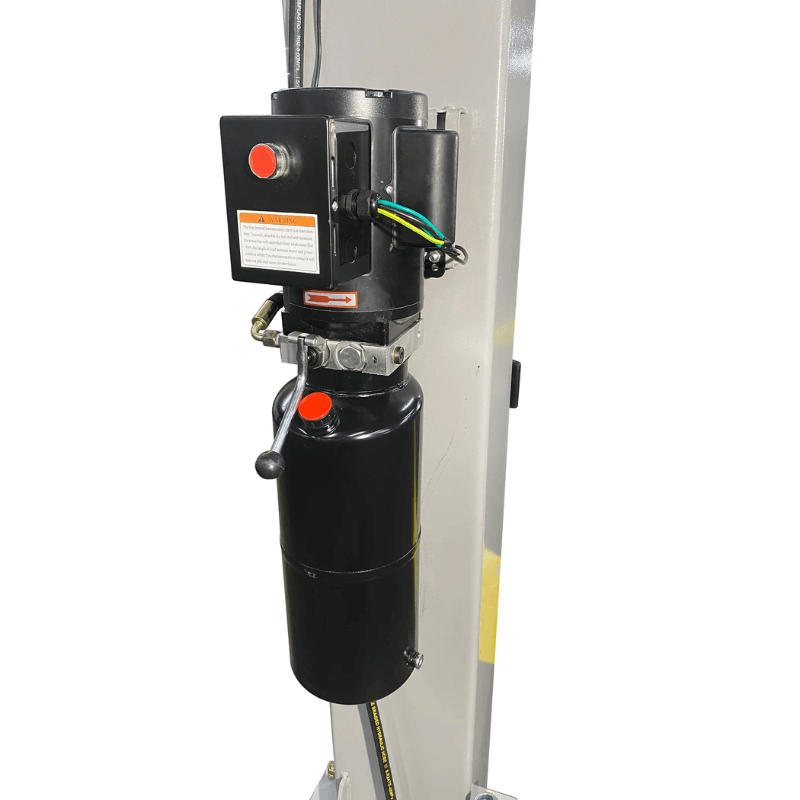

Motor: 3 HP
Voltage: 110V (30 amp breaker)
Lifting Time: 50 seconds
Concrete Requirement: 4" slab, minimum 3,000 PSI
Shipping Weight: 1,407 lbs
Pallet Dimensions: 121" × 20" × 36"

---

Triumph NTO-9AE 9,000 lb 2 Post Lift Features

• Dual-point safety lock releases for controlled operation

• Electric safety cutoff for added protection

• Overhead design routes cables and hoses above the workspace

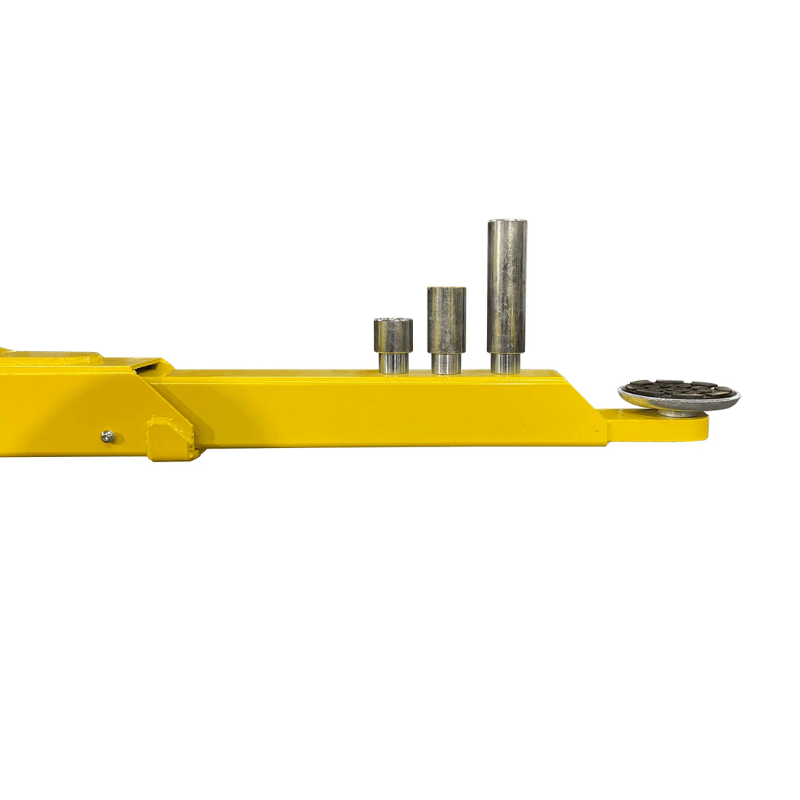

• Includes truck adapters and floor mounting anchor bolts

• Designed to service cars, SUVs, and light-duty trucks

• Certification: CE Certified, manufactured in ISO9001-certified facilities

• Warranty: 1-year parts-only warranty

NTO-9AE Manual



Warehouse Pickup Locations (No Shipping Fee):

• Columbus, OH

• Fort Worth, TX

• North Las Vegas, NV

*A $200 additional freight surcharge applies for deliveries to Northern California, South Dakota, North Dakota, Montana, and Wyoming. If applicable, a separate payment link will be sent after your order to complete the freight charge.
