Triumph NTR-16 16,000 lb 4 Post Car Lift

TriumphSKU: NTR-16

At a Glance

  • Overall Length (without ramps): 235"
  • Max Lifting Height: 74"
  • Drive-Thru Clearance: 114"
Price:
$7,895.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

NTR-16 16,000 lb 4-Post Car Lift by Triumph

The Triumph NTR-16 4-Post Lift is built to handle demanding workloads with confidence. With a 16,000 lb lifting capacity, it’s well-suited for everything from pickup trucks to fully loaded commercial vans. Designed for performance and reliability, this lift delivers the strength and stability needed for both professional shops and serious garage setups.

Featuring a maximum lifting height of 74.4 inches and 12 locking positions, the NTR-16 provides flexibility and secure positioning for a wide range of service applications. Adjustable runway spacing allows it to accommodate various vehicle sizes, while its heavy-duty construction ensures long-term durability in high-use environments.

Beyond its strength, the NTR-16 is designed for ease of use and efficiency. A 220V single-phase power system delivers smooth, consistent operation, while the 7.5-inch minimum runway height makes loading low-clearance vehicles easier. With an overall width of 161 inches and extended 224.5-inch runways, it offers ample working space for larger vehicles without compromising accessibility.

Whether you’re operating a busy commercial shop or working on larger vehicles in your own garage, the NTR-16 provides a dependable and versatile lifting solution.

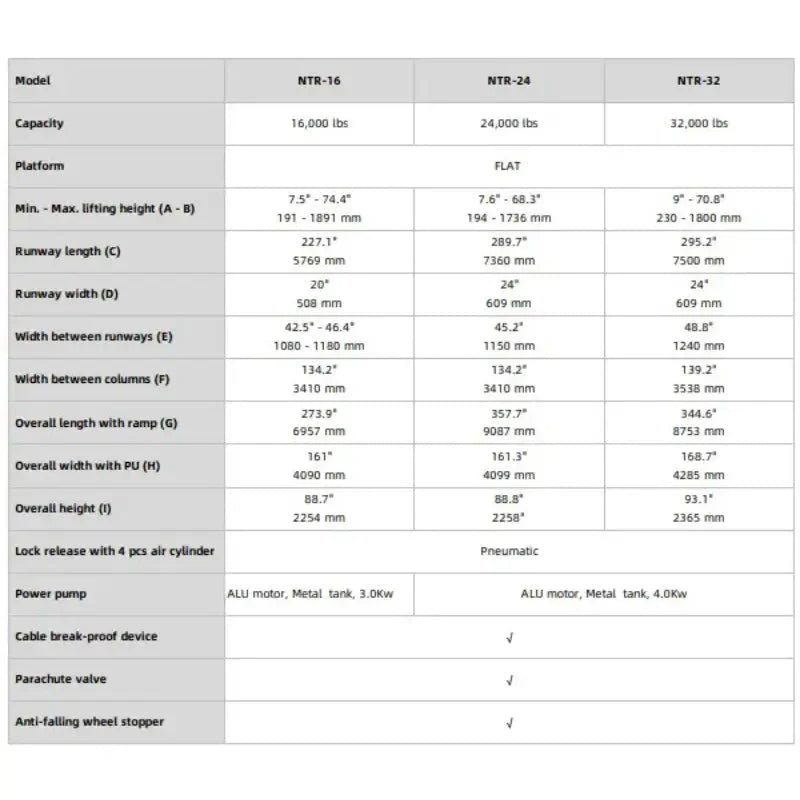

NTR-16 Specifications

  • Lifting Capacity: 16,000 lbs

  • Overall Height: 88.7"

  • Overall Length (without ramps): 235"

  • Overall Length (with ramps): 273.9"

  • Overall Width: 161" (base plate to base plate)

  • Minimum Runway Height: 7.5"

  • Maximum Lift Height: 74.4"

  • Runway Length: 224.5"

  • Runway Width: 20"

  • Width Between Runways: 42.5" – 46.4"

  • Width Between Columns: 134.2"

  • Drive-Thru Clearance: 114"

  • Lock Positions: 12

  • Power Requirement: 220V, Single Phase

  • Shipping Weight: 3,112 lbs

Special Features

  • Heavy-duty steel construction for long-term durability

  • 12 locking positions for secure and adjustable lifting heights

  • Wide runways to accommodate a variety of vehicle sizes

  • Adjustable runway spacing for flexible positioning

  • 220V single-phase system for smooth and efficient operation

  • Spacious design to handle larger vehicles comfortably

  • Precision-engineered for stable and reliable lifting

  • User-friendly controls for ease of operation

  • Ideal for commercial vehicles, light trucks, and general service use

Optional Upgrade (Sold Separately)

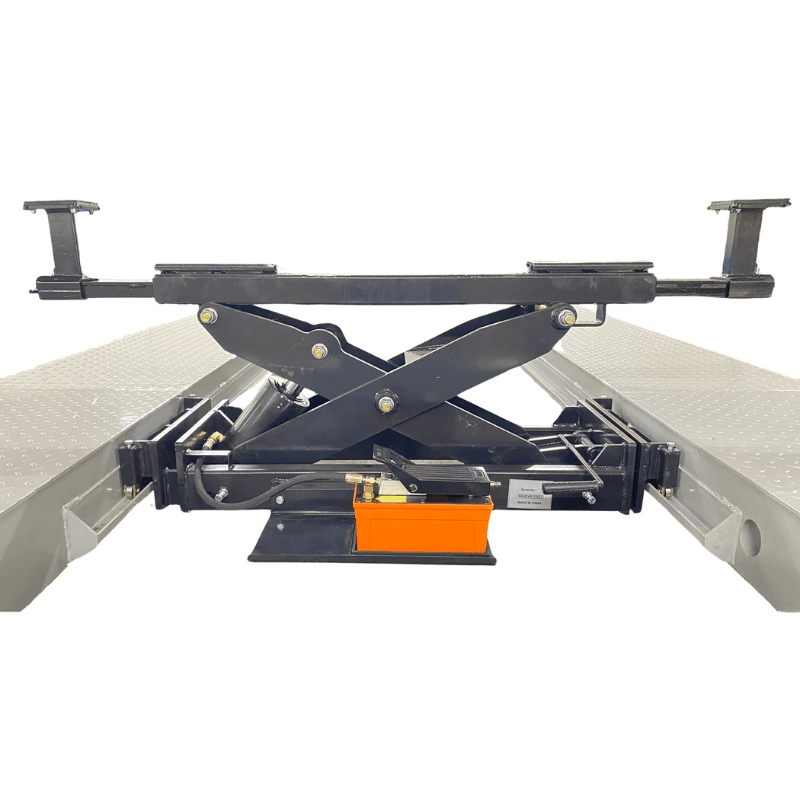

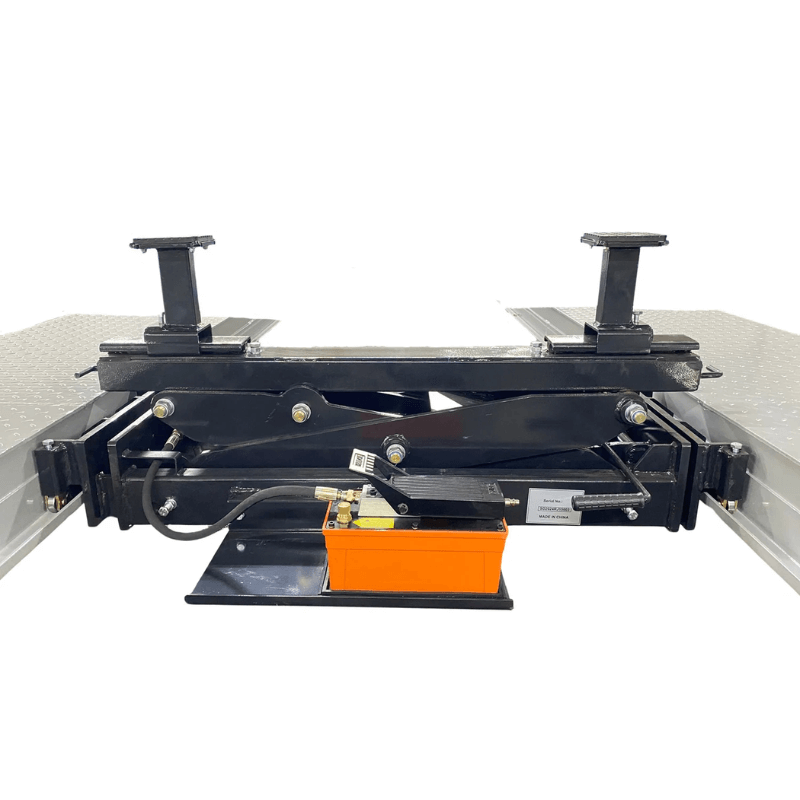

  • RJ-9000 Rolling Bridge Jack – Expands service capability for wheel, brake, and suspension work

Available Combo Option

  • NTR-16 + (2) RJ-9000 Rolling Bridge Jacks – Complete lifting solution for added versatility

Final Takeaway

The NTR-16 offers the perfect balance of strength, space, and flexibility. It’s a reliable choice for shops and enthusiasts who need a lift capable of handling larger vehicles while maintaining smooth operation and long-term durability.

Warehouse Pickup Locations:

  • Columbus, OH

  • Fort Worth, TX

  • North Las Vegas, NV

Please note: An additional $200 freight surcharge applies to deliveries in Northern CA, SD, ND, MT, and WY. After your initial purchase, a separate payment link will be provided to complete the transaction.

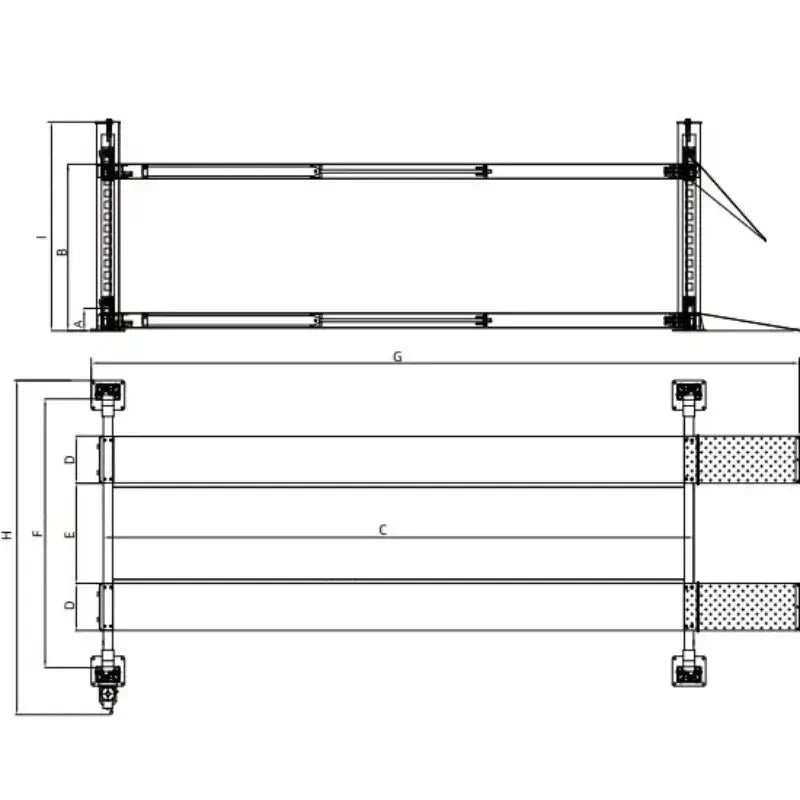

Triumph NTR-16 16,000 lb Four Post Auto Lift Diagram


Triumph NTR-16 16,000 lb Four Post Auto Lift Diagram-1
