Description

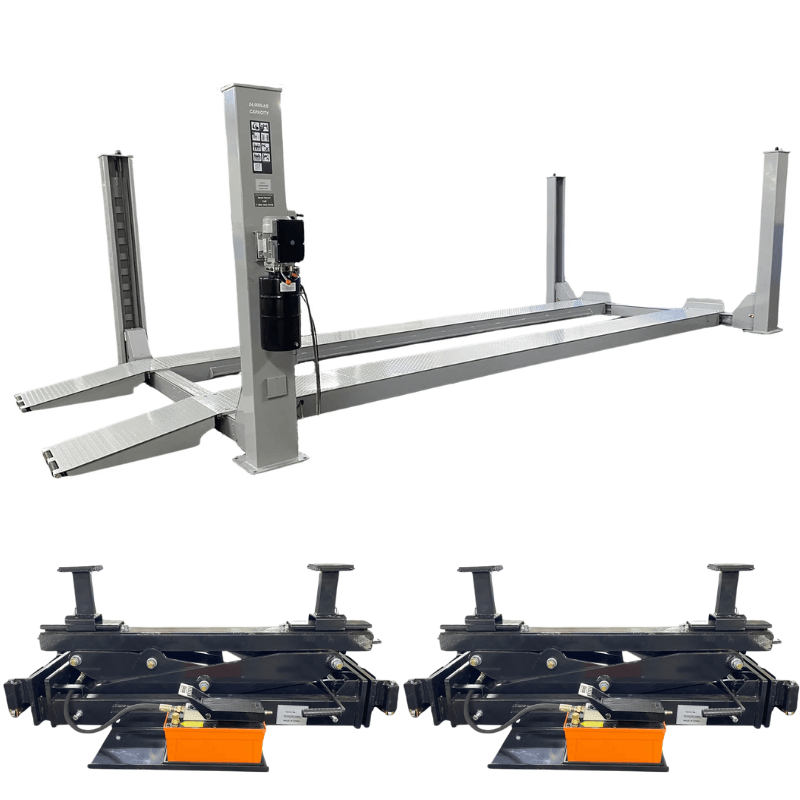

NTR-24 24,000 lb 4-Post Auto Lift with (2) RJ-15000 Rolling Bridge Jack Combo by Triumph
The Triumph NTR-24 4-Post Lift paired with dual RJ-15000 Rolling Bridge Jacks delivers a powerful, high-capacity solution built for heavy-duty automotive service. With an impressive 24,000 lb lifting capacity, the NTR-24 is engineered to handle commercial trucks, buses, and fleet vehicles with confidence. Its rugged steel construction, adjustable runway spacing, and expansive design provide the stability and durability required for demanding shop environments.
Designed for professional performance, the NTR-24 features a maximum lifting height of 70.8", nine locking positions for secure operation, and a 220V single-phase electrical system for smooth, reliable lifting. The adjustable runway width (45.3" to 49.2") allows the lift to accommodate a wide range of large vehicles, making it an essential piece of equipment for commercial garages and industrial service facilities.
Enhancing the system’s functionality, the included RJ-15000 Rolling Bridge Jacks add an additional 15,000 lb lifting capacity each, allowing technicians to lift axles off the runways for wheel, brake, and suspension work. Adjustable lifting pads, along with included height adapters (5" and 6.75"), ensure compatibility across various vehicle types. Designed to fit runway widths from 48.7" to 55", these heavy-duty jacks integrate seamlessly with the NTR-24 for maximum versatility.
Together, the NTR-24 and RJ-15000 bridge jacks provide a complete lifting solution that combines strength, precision, and flexibility—ideal for tackling the most demanding heavy-duty service applications.
Combo Specifications

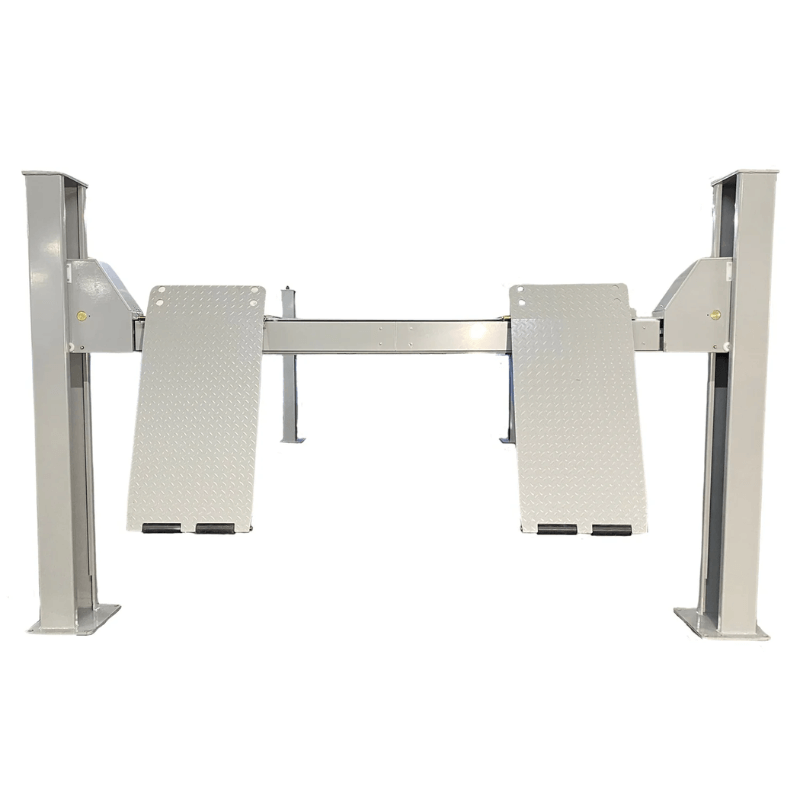

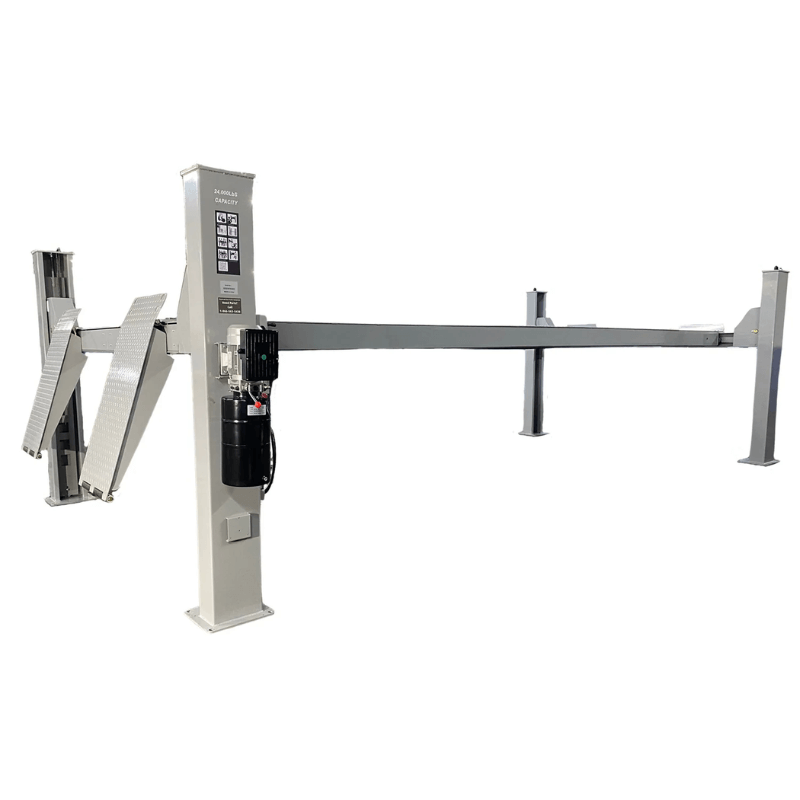

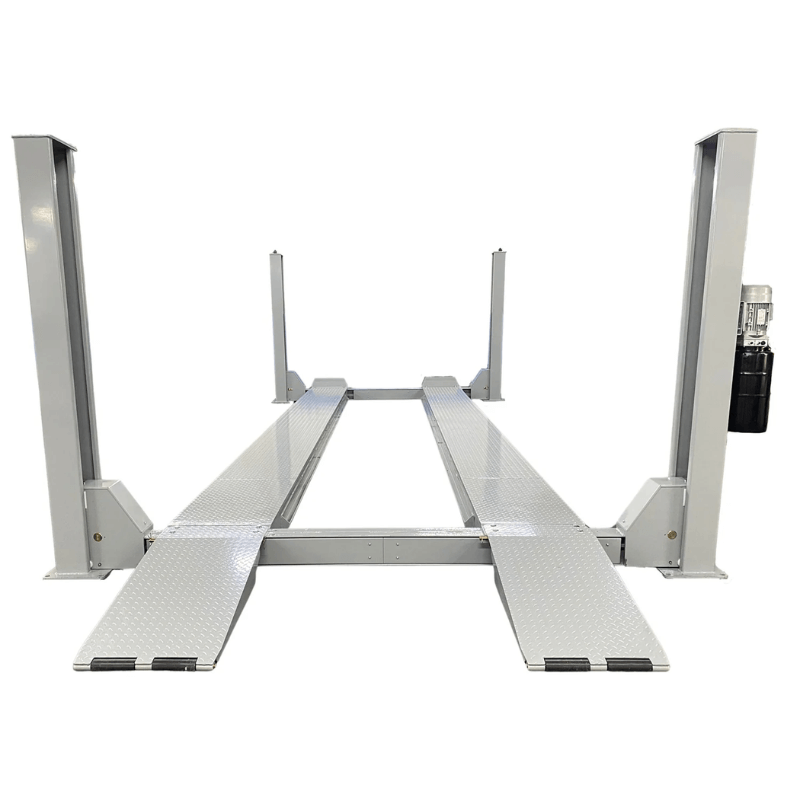

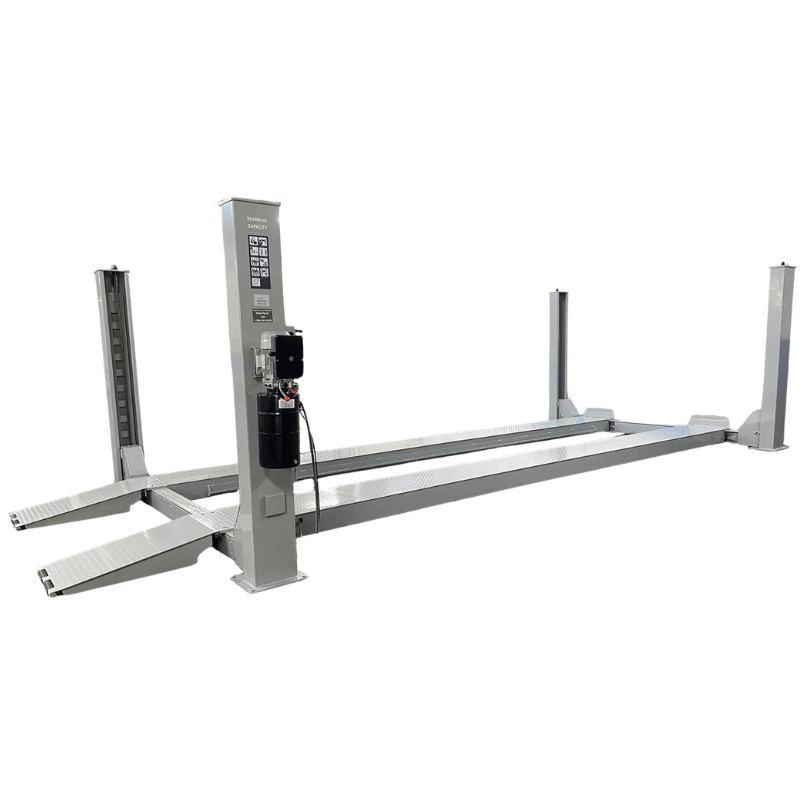

NTR-24
-
Lifting Capacity: 24,000 lbs
-
Overall Height: 93.1"
-
Overall Length (without ramps): 300"
-
Overall Length (with ramps): 338.9"
-
Overall Width: 150.1" (base plate to base plate)
-
Minimum Runway Height: 9"
-
Maximum Lift Height: 70.8"
-
Runway Length: 289.9"
-
Runway Width: 24"
-
Width Between Runways: 45.3" – 49.2"
-
Width Between Columns: 131.8"
-
Lock Positions: 9
-
Power Requirement: 220V Single Phase
-
Shipping Weight: 6,614 lbs
-
Shipping Dimensions: 295" x 30" x 43"

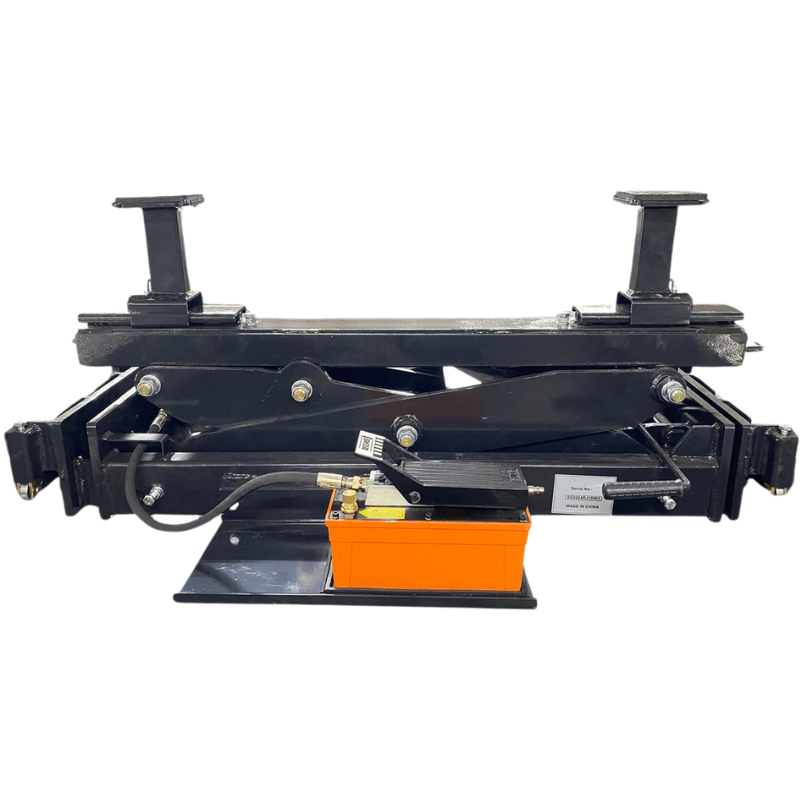

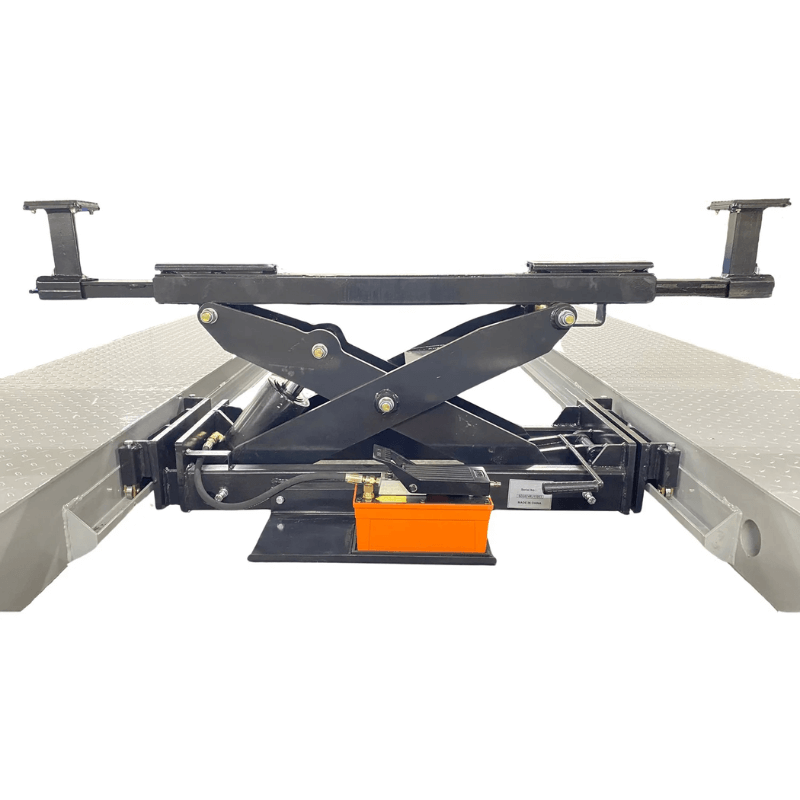

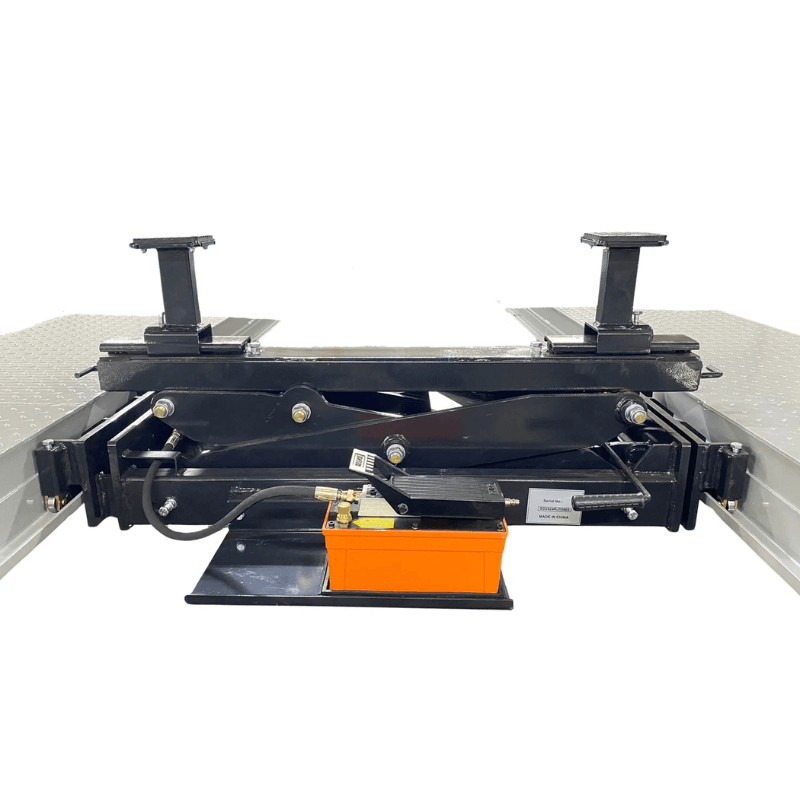

RJ-15000 Rolling Bridge Jack (Each – Qty: 2)
-
Lifting Capacity: 15,000 lbs
-
Lowered Height: 15.3"
-
Maximum Lift Height: 28.3"
-
Min Pad Width: 42.6"
-
Max Pad Width: 68.7"
-
Compatible Runway Width: 48.7" – 55"
-
Shipping Weight: 661 lbs
-
Shipping Dimensions: 51" x 33" x 17"
Special Features
NTR-24
-
Heavy-duty steel construction for large commercial vehicles
-
9 locking positions for secure and adjustable lifting heights
-
Wide 24" runways to support a variety of oversized vehicles
-
Adjustable runway spacing for added flexibility
-
High-capacity design ideal for trucks, buses, and fleet maintenance
-
220V single-phase system for consistent performance
-
Spacious layout for efficient service access
-
CE Certified and manufactured in ISO9001-certified facilities
-
Precision-engineered for smooth, stable, and safe operation
RJ-15000 Rolling Bridge Jacks
-
15,000 lb lifting capacity for heavy-duty axle work
-
Adjustable lifting pads to fit a wide range of vehicles
-
Includes height adapters (5" and 6.75") for precise positioning
-
Compatible with multiple 4-post lift runway widths
-
Durable steel construction for long-term reliability
-
Compact, ergonomic design for easy positioning
-
Wide lifting range (15.3" – 28.3") for versatile service applications
-
Ideal for trucks, SUVs, and fleet vehicles
-
Designed for safe, smooth, and efficient operation
Optional Items (Sold Separately)
-
NTR-24 24,000 lb 4-Post Auto Lift
-
RJ-15000 Rolling Bridge Jack
Final Takeaway
The NTR-24 with dual RJ-15000 bridge jacks is a complete heavy-duty lifting system, combining the strength of a commercial-grade 4-post lift with the flexibility of axle lifting. This setup allows you to handle everything from large vehicle storage to full mechanical service—all in one powerful, efficient solution.
