Triumph NTR-32 32,000lb 4 Post Car Lift

TriumphSKU: NTR-32

At a Glance

  • Overall Length (without ramps): 305.5"
  • Max Lifting Height: 70.8"
  • Drive-Thru Clearance: 139.2"
Price:
$20,695.00

Please complete and submit the shipping form above to enable Add to Cart.

Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

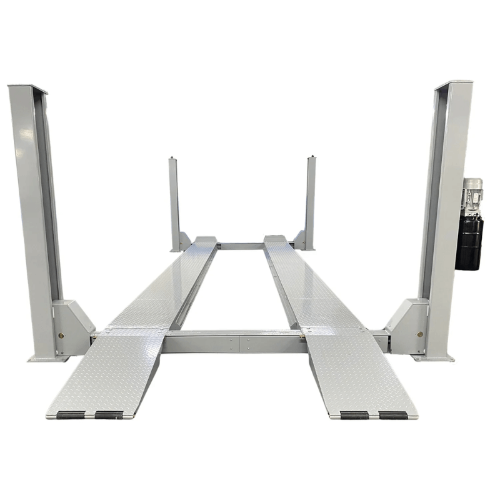

NTR-32 32,000 lb 4-Post Car Lift by Triumph

When it comes to lifting the heaviest vehicles on the road, the Triumph NTR-32 is built to perform. Designed for extreme-duty applications, this powerhouse 4-post lift delivers an industry-leading 32,000 lb lifting capacity—making it ideal for buses, commercial trucks, and large fleet vehicles.

With a maximum lifting height of 70.8 inches and nine locking positions, the NTR-32 provides both flexibility and safety for servicing a wide range of oversized vehicles. Its wide, adjustable runways (48.75" to 52.7") ensure proper positioning and support, giving technicians the space and confidence needed to work efficiently.

Built with durability in mind, the NTR-32 features a heavy-duty steel frame and precision-engineered components for long-term reliability under demanding conditions. The 220V single-phase power system ensures smooth, consistent lifting performance, while the extended 295.2" runways easily accommodate longer wheelbases. For shops that handle heavy-duty equipment daily, the NTR-32 delivers the strength, stability, and capacity required to get the job done.

NTR-32 Specifications

  • Lifting Capacity: 32,000 lbs

  • Overall Height: 93.1"

  • Overall Length (without ramps): 305.5"

  • Overall Length (with ramps): 344.6"

  • Overall Width: 168.7" (base plate to base plate)

  • Minimum Height: 9"

  • Maximum Lift Height: 70.8"

  • Runway Length: 295.2"

  • Runway Width: 24"

  • Width Between Runways: 48.75" – 52.7"

  • Width Between Columns: 139.2"

  • Lock Positions: 9

  • Power Requirement: 220V, Single Phase

  • Shipping Weight: 9,037 lbs

  • Shipping Dimensions: 301" × 30" × 43"

Special Features

  • Industry-leading 32,000 lb lifting capacity for heavy-duty vehicles

  • 9 locking positions for secure and adjustable lifting heights

  • Wide 24" runways to support large and oversized vehicles

  • Adjustable runway spacing for flexible positioning

  • High-strength steel construction for durability and long service life

  • Ideal for buses, commercial trucks, and fleet service applications

  • 220V single-phase power system for reliable performance

  • Spacious design for improved technician access and workflow

  • Precision-engineered for smooth, stable lifting operation

Optional Upgrades (Sold Separately)

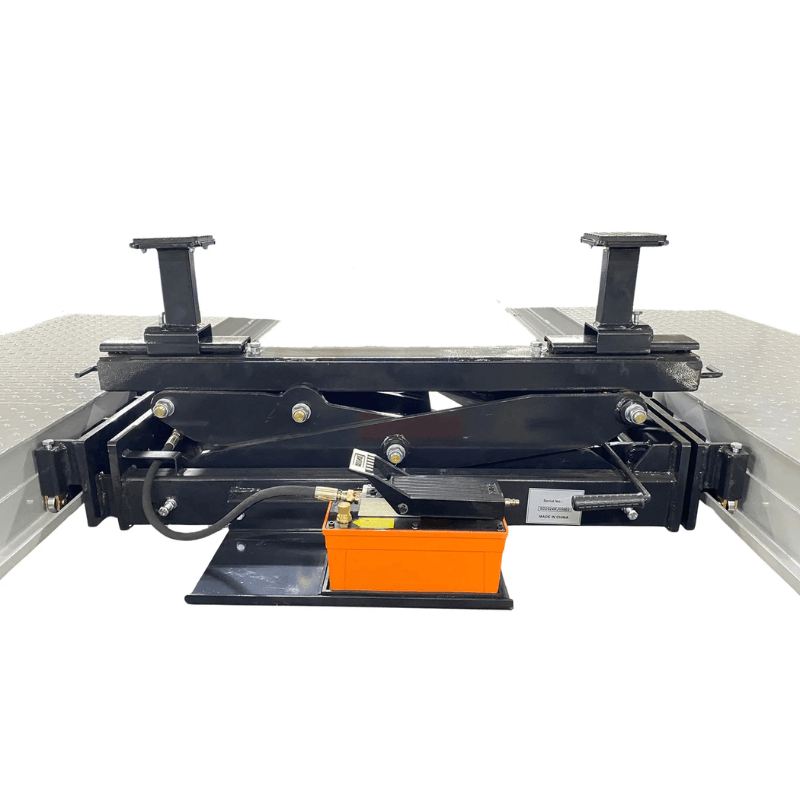

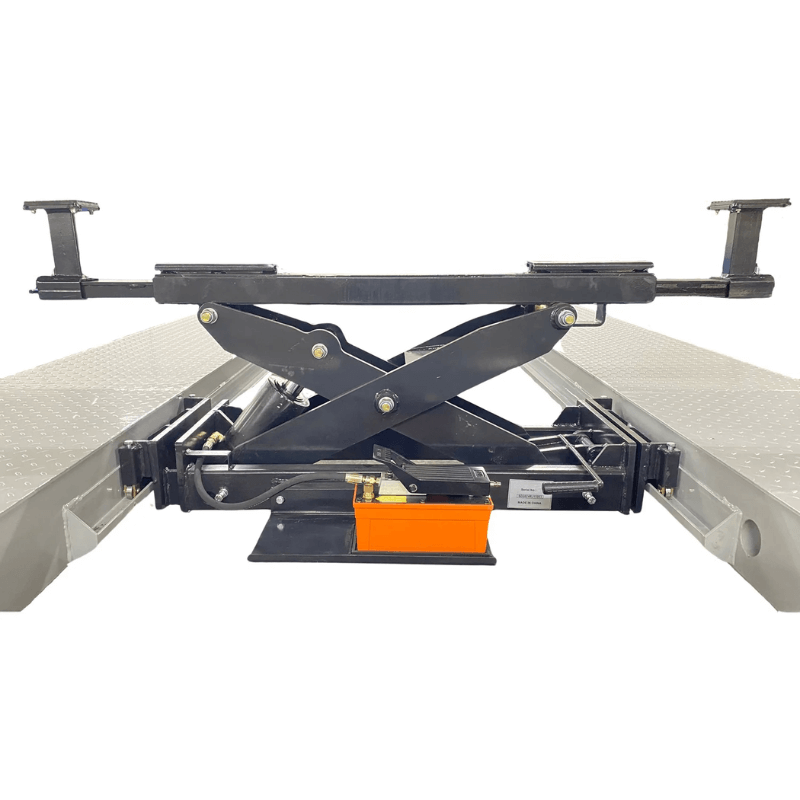

  • RJ-15000 Rolling Bridge Jack – Ideal for axle, brake, and suspension work

  • NTR-32 + RJ-15000 Combo Package – Complete lifting solution for full-service capability

Final Takeaway

The NTR-32 is built for shops that don’t compromise. If you’re working with large commercial vehicles or fleet equipment, this lift provides the capacity, durability, and stability needed to handle the toughest jobs with confidence.

Warehouse Pickup Locations:

  • Columbus, OH

  • Fort Worth, TX

  • North Las Vegas, NV

Please note: An additional $200 freight surcharge applies to deliveries in Northern CA, SD, ND, MT, and WY. After your initial purchase, a separate payment link will be provided to complete the transaction.

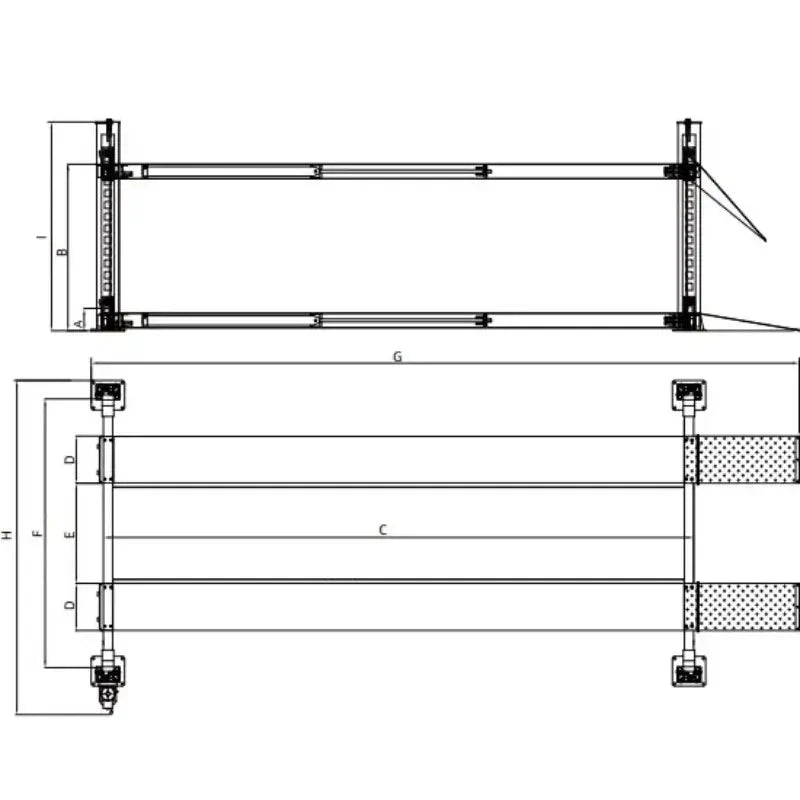

Triumph NTR-32 32,000 lb Four Post Auto Lift Diagram

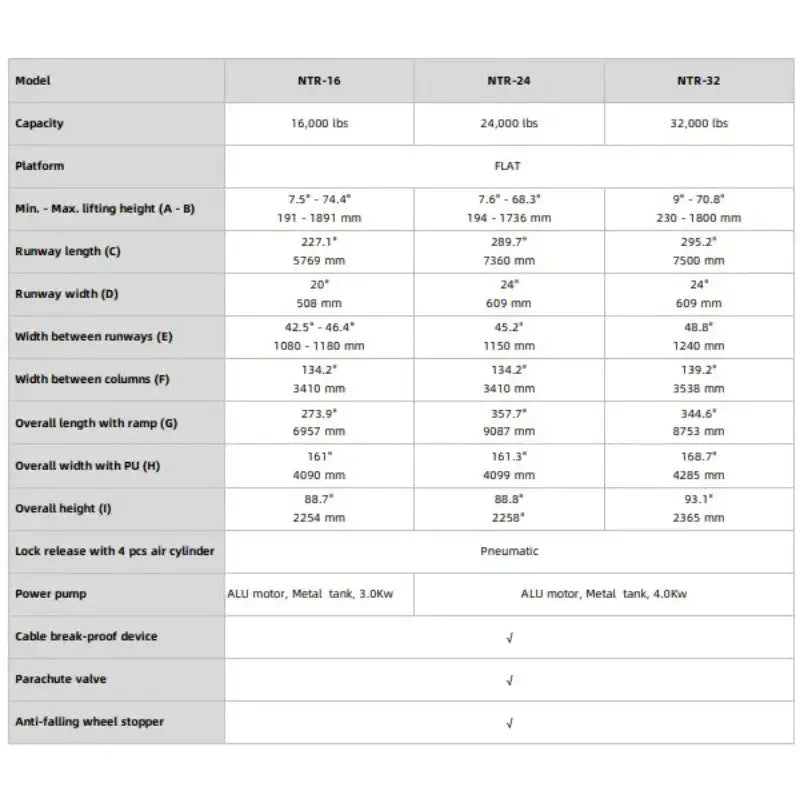

Triumph NTR-32 32,000 lb Four Post Auto Lift Diagram-1
