TriumphSKU: NSS-8SQ

At a Glance

  • Runway Length: 132"; Overall Height: 84"
  • Max Lifting Height: 72"
  • Drive-Thru Clearance: 93"
Price:
$3,195.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

NSS-8SQ Vehicle Storage Lift by Triumph

There are standard parking lifts—and then there’s the Triumph NSS-8SQ Classic Lift. With an 8,000 lb lifting capacity, this unit is designed to transform any garage into a highly efficient storage and service space. Featuring an extended 165" runway and a generous 94" width between posts, it easily accommodates everything from compact sports cars to larger trucks and SUVs.

Despite its heavy-duty capability, the NSS-8SQ offers impressive versatility. Its portable design, paired with an included caster kit, allows you to reposition the lift with ease and optimize your garage layout as needed. A built-in jack tray enables more precise service work, while three drip trays help maintain a clean, organized workspace. With 10 locking positions for flexible height adjustments and a maximum lifting height that maximizes vertical storage, the Classic Lift is designed to elevate both convenience and performance in your garage.

Triumph Classic Lift Specifications

  • Lifting Capacity: 8,000 lbs

  • Overall Height: 84"

  • Runway Length: 132" (without ramps)

  • Overall Length: 141" (2.5 ft shorter than NSS-8)

  • Overall Width: 106" (base plate to base plate)

  • Maximum Lifting Height: 72"

  • Height Under Runway: 69"

  • Drive-Through Width: 93"

  • Runway Width: 18"

  • Width Between Runways: 37"

  • Locking Positions: 10 (every 4.5")

  • Lowest Lock Position: 26"

  • Highest Lock Position: 69.5"

  • Lock Release: Single-point

  • Lifting Time: 40 seconds

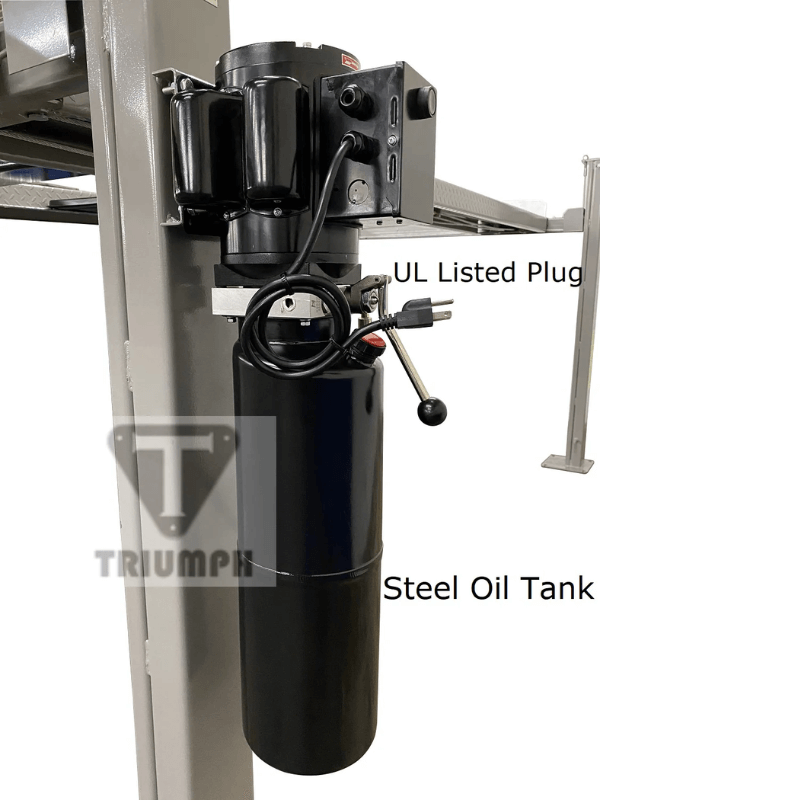

  • Motor: 110V / 30 Amp / 3 HP

  • Shipping Weight: 1,600 lbs

  • Pallet Dimensions: 136" x 21" x 29"

NSS-8SQ 8,000 lb Vehicle Storage Lift Special Features

  • Commonly known as “The Classic”

  • Four-post design provides superior stability for storage and service

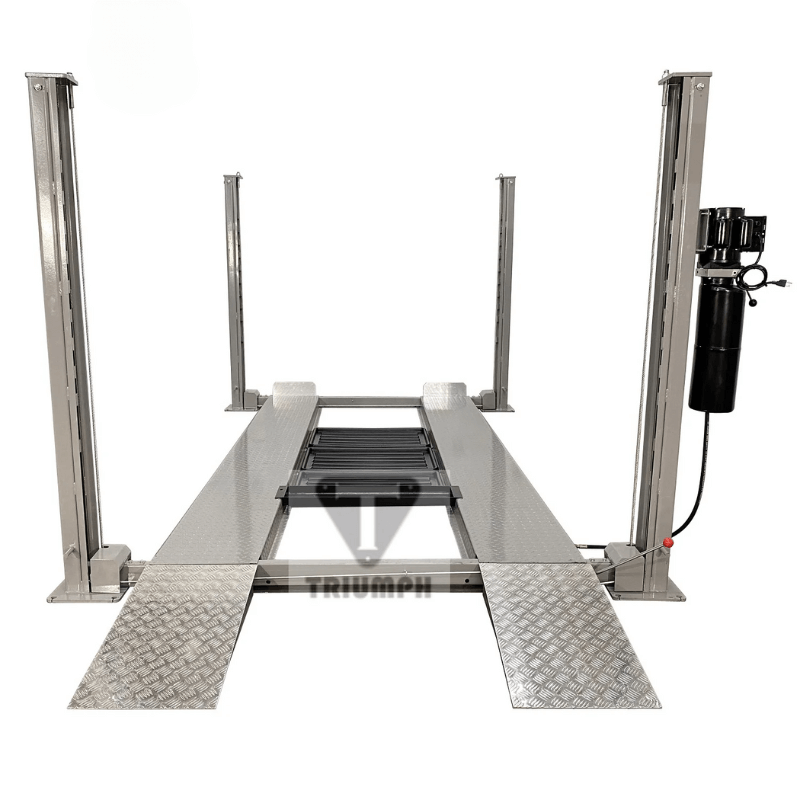

  • Drive-on ramps allow for quick and easy vehicle loading

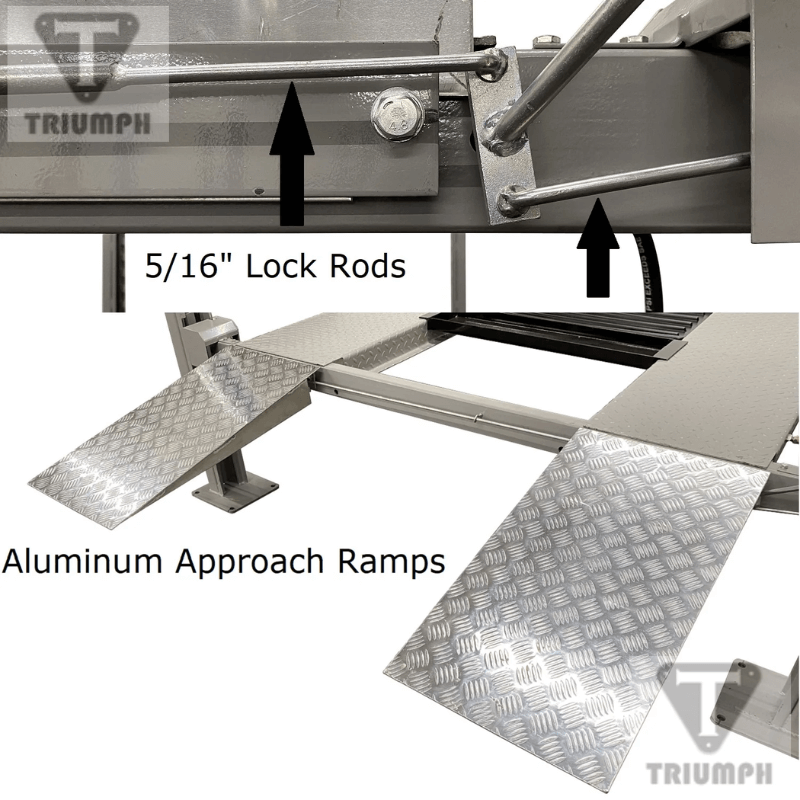

  • Lightweight aluminum ramps for durability and ease of handling

  • Automatic safety locks for secure lifting and peace of mind

Included Accessories:

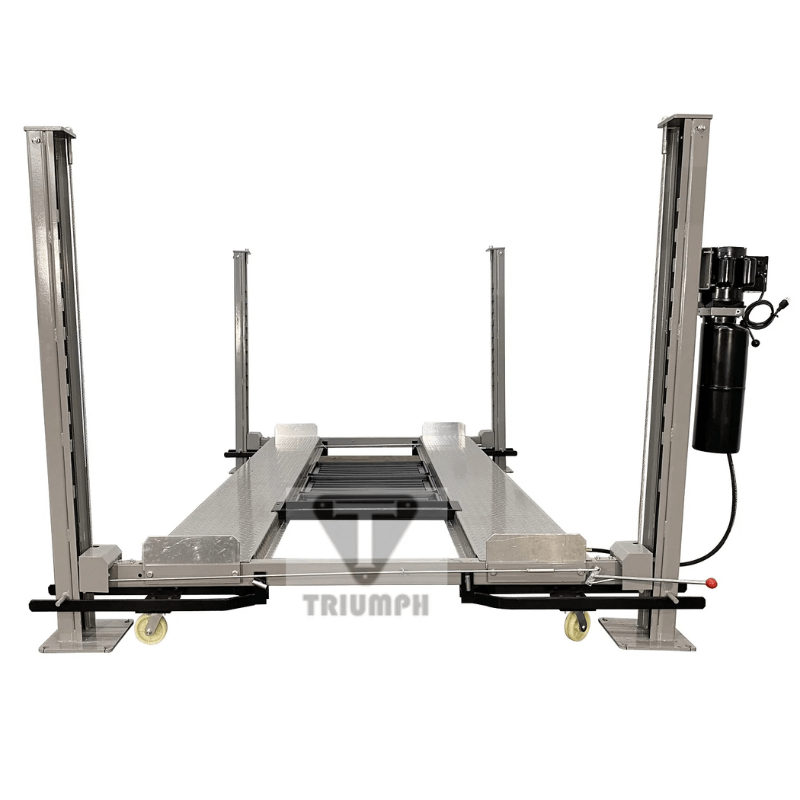

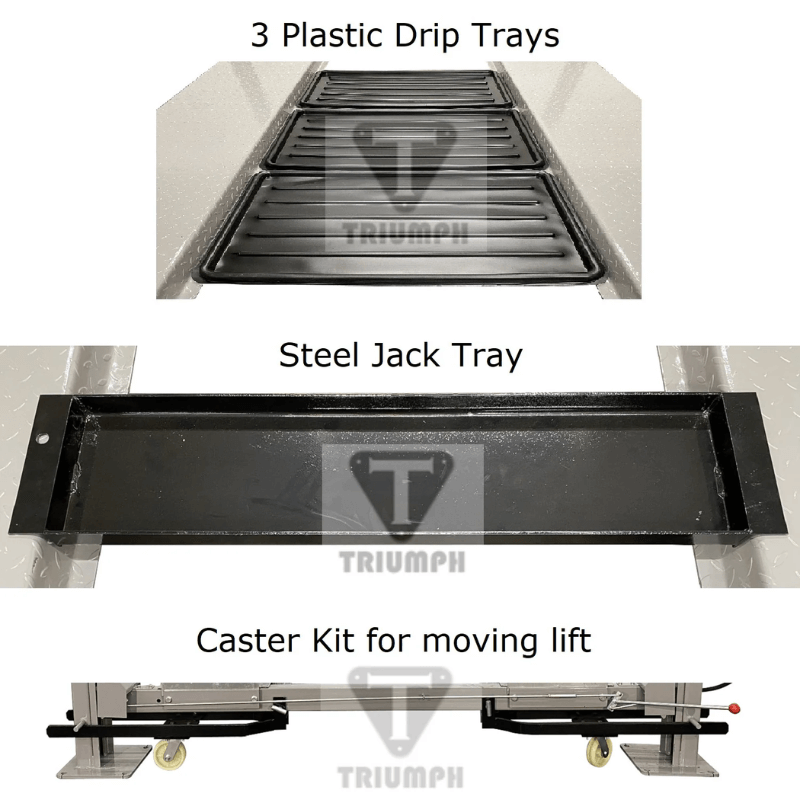

  • Caster kit for convenient mobility and repositioning

  • Drip trays to help keep your workspace clean

  • Jack tray for added service versatility

  • Warranty: 1-year parts-only

  • Certification: CE Certified and manufactured in ISO9001-certified facilities

Optional Item (Sold Separately)

  • Triumph NSS-8 Storage Lift Bridge Jack (SJ35)

NSS-8SQ Manual





Warehouse Pickup Locations:

  • Columbus, OH

  • Fort Worth, TX

  • North Las Vegas, NV

Please note: An additional $200 freight surcharge applies to deliveries in Northern CA, SD, ND, MT, and WY. After your initial purchase, a separate payment link will be provided to complete the transaction.
