Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven

Save $2,050.00
TuxedoSKU: FP12K-K
Price:
$5,650.00 $7,700.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

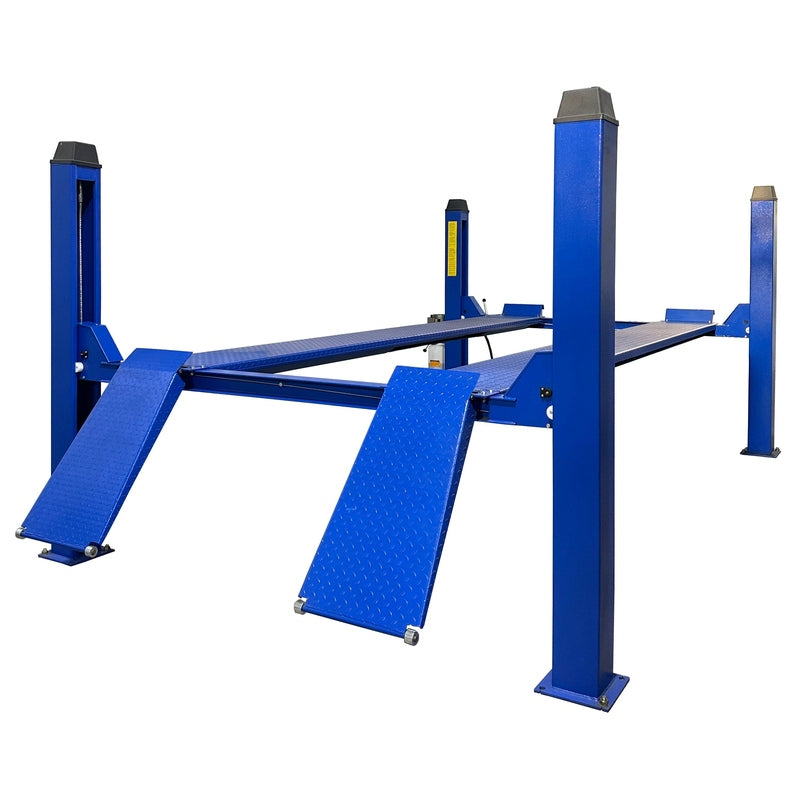

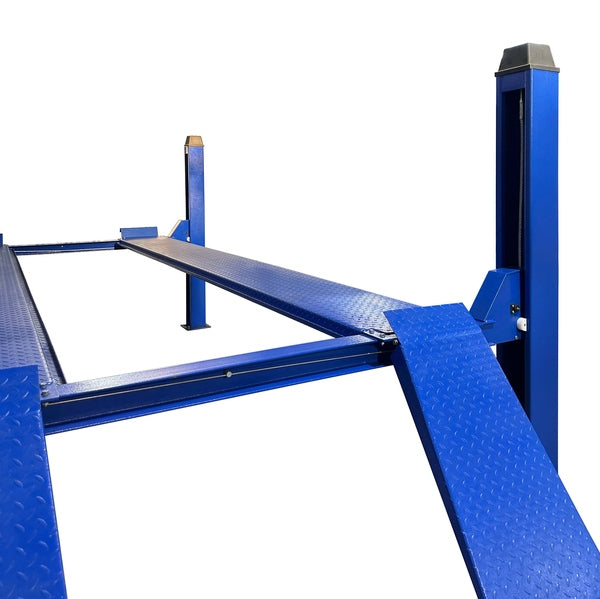

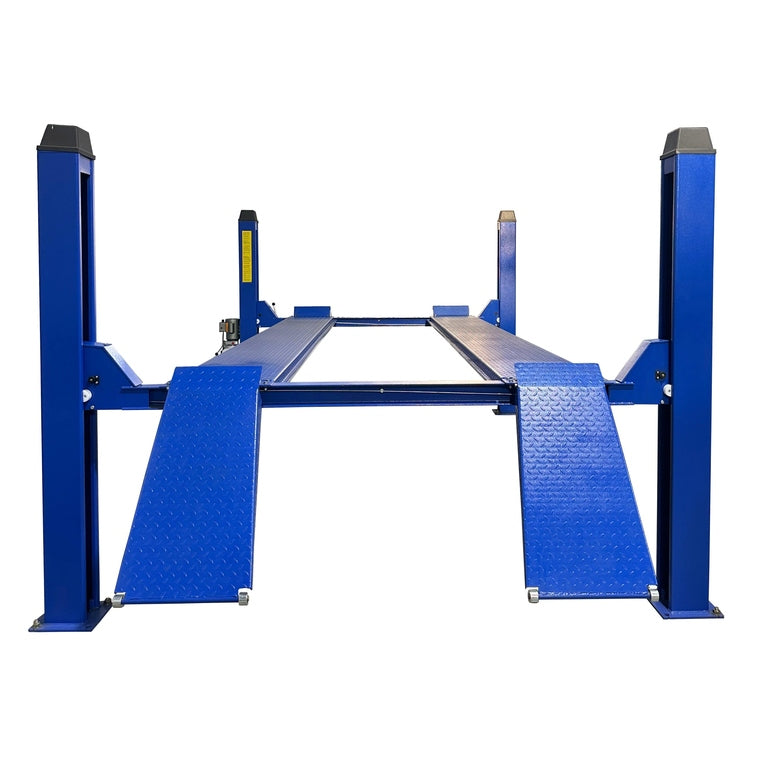

The Tuxedo FP12K-K Four-Post Lift is a heavy-duty, cable-driven lifting system engineered for professional automotive service and vehicle storage. With a 12,000 lb lifting capacity, it’s capable of handling full-size trucks, SUVs, and commercial vehicles with ease.

This lift features a clean, open-top design with no overhead obstructions, making it suitable for shops or garages with limited ceiling height. The hydraulic cylinder is securely housed beneath the diamond-plate runways, ensuring protection and a streamlined appearance.

Equipped with a single-point manual lock release, adjustable locking positions, and redundant safety locks, the FP12K-K combines simplicity, safety, and reliability. Finished in a durable powder coat, this model is built for long-lasting performance in demanding environments.
(Rolling jack sold separately.)

Features

  • 12,000 lb Lifting Capacity — Ideal for trucks, SUVs, and commercial vehicles.

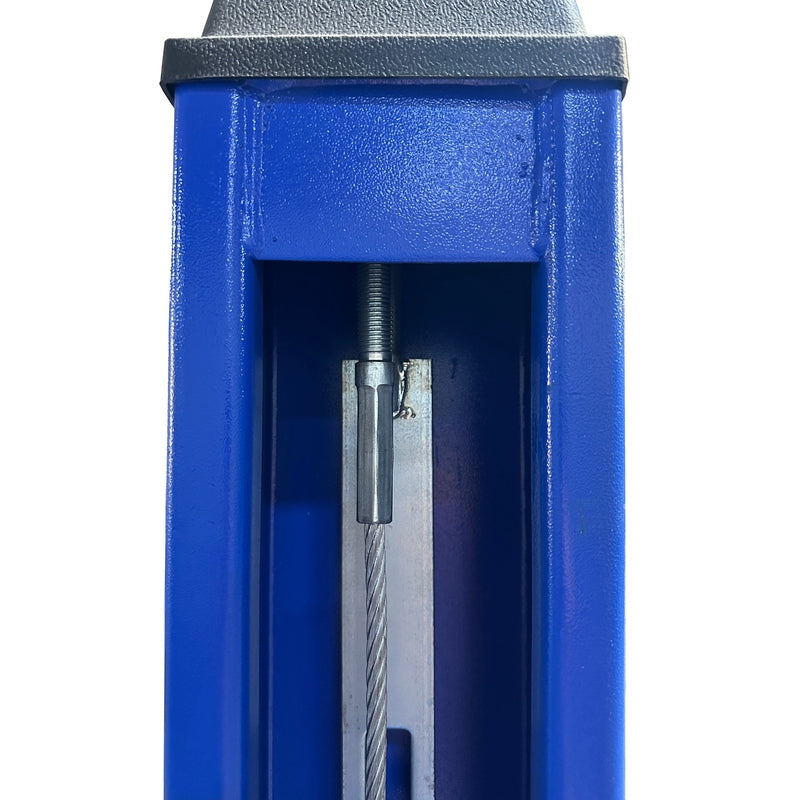

  • Cable-Driven Design — Provides smooth, stable, and reliable lifting.

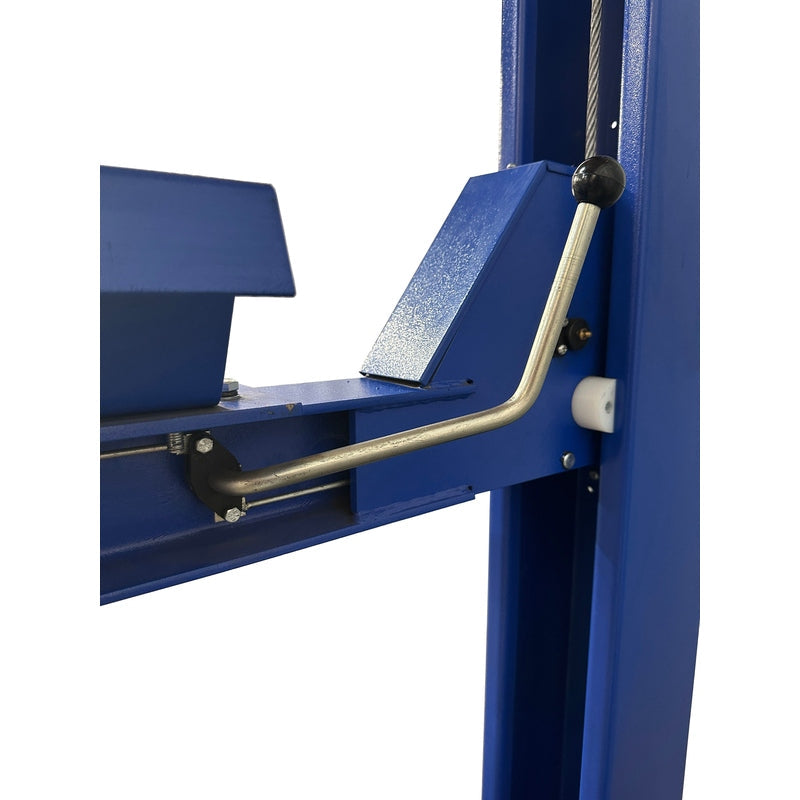

  • Single-Point Manual Lock Release — Simplifies safety lock control.

  • Adjustable Locking Positions — Allows multiple working heights.

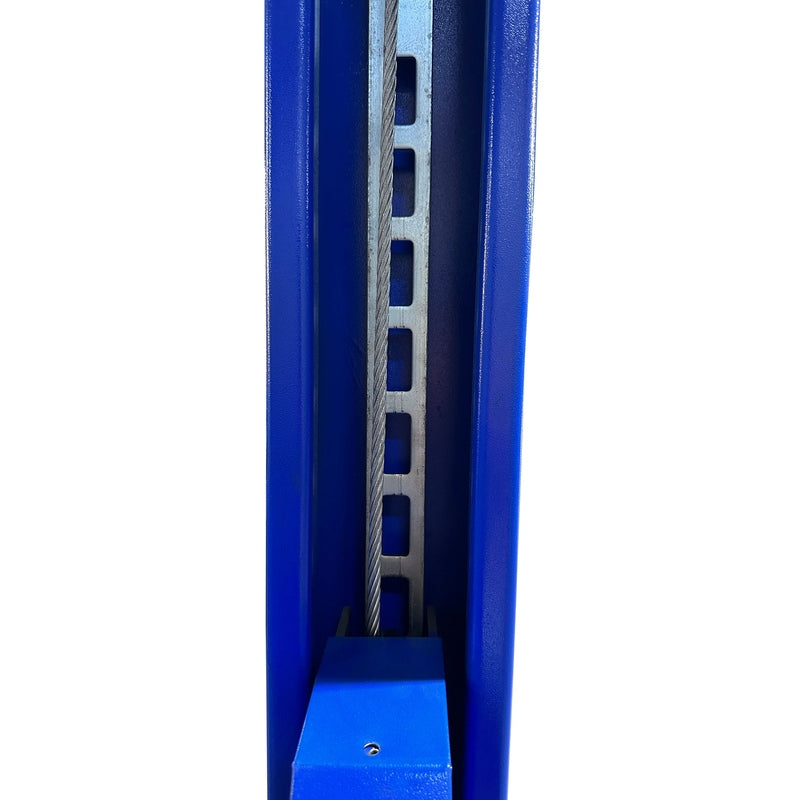

  • Slack Cable Safety System — Enhances operational safety.

  • Under-Runway Cylinder Design — Keeps components protected and unobstructed.

  • No Overhead Beam — Perfect for low-ceiling workshops.

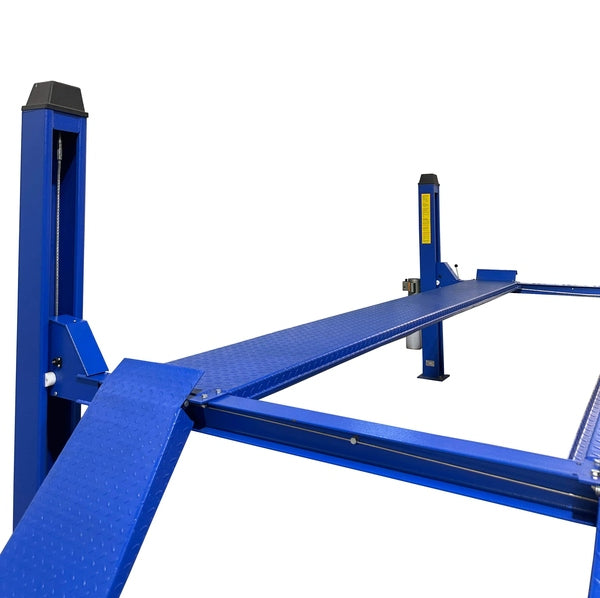

  • Durable Powder-Coat Finish — Resists corrosion and wear.

Specifications

Specification Details
Model FP12K-K
Capacity 12,000 lbs
Overall Length (with Ramp) 232-1/2"
Overall Width (Without Power Unit) 123"
Overall Width (With Power Unit) 134"
Overall Height 84"
Maximum Rise Height 67-1/2"
Minimum Height 7"
Width Between Posts 105"
Length Between Posts 177"
Width Between Runways 36-1/2"
Width of Runways 19"
Maximum Wheelbase 167"

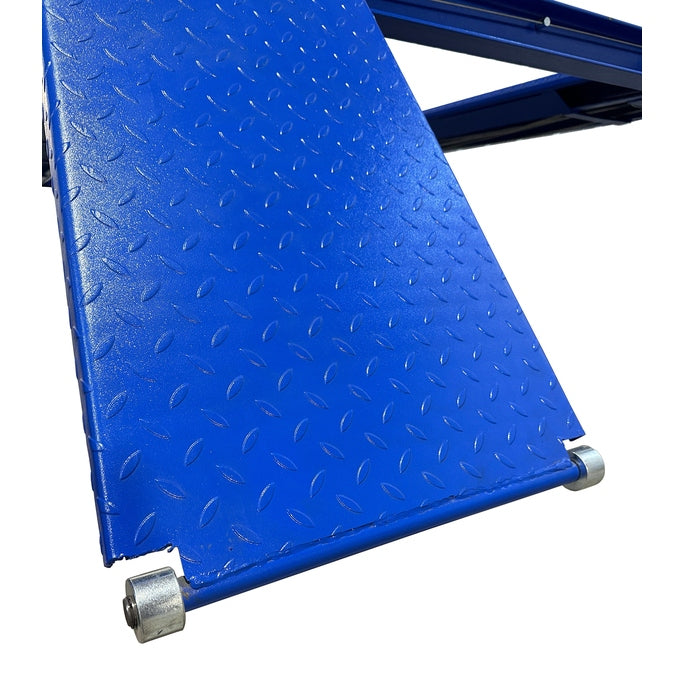

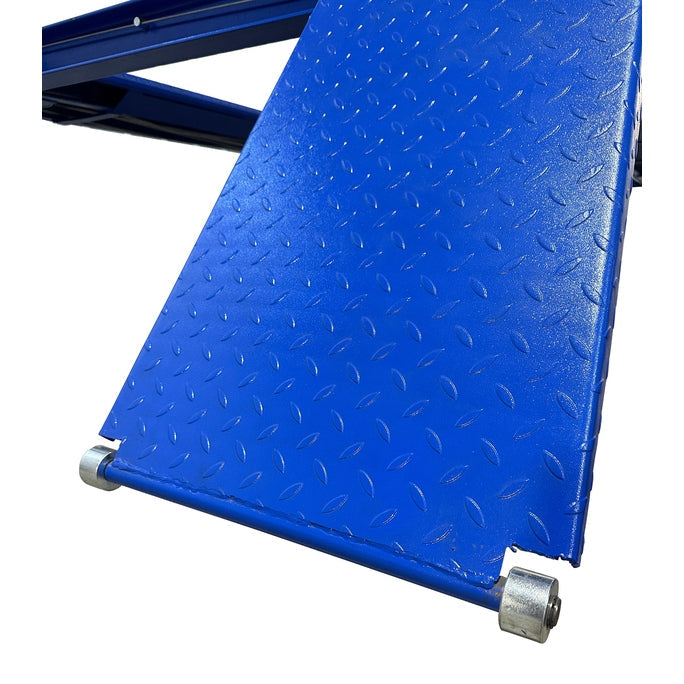

Ramp Length 35"
Maximum Clearance Under Runway 63-1/4"
Drive-Thru Clearance 87-1/2"
Base Plate 11" × 11"
Power Requirement 220V / 20 Amp / 1PH
Shipping Weight 2,255 lbs
Minimum Bay Size 15' × 23'
