Description

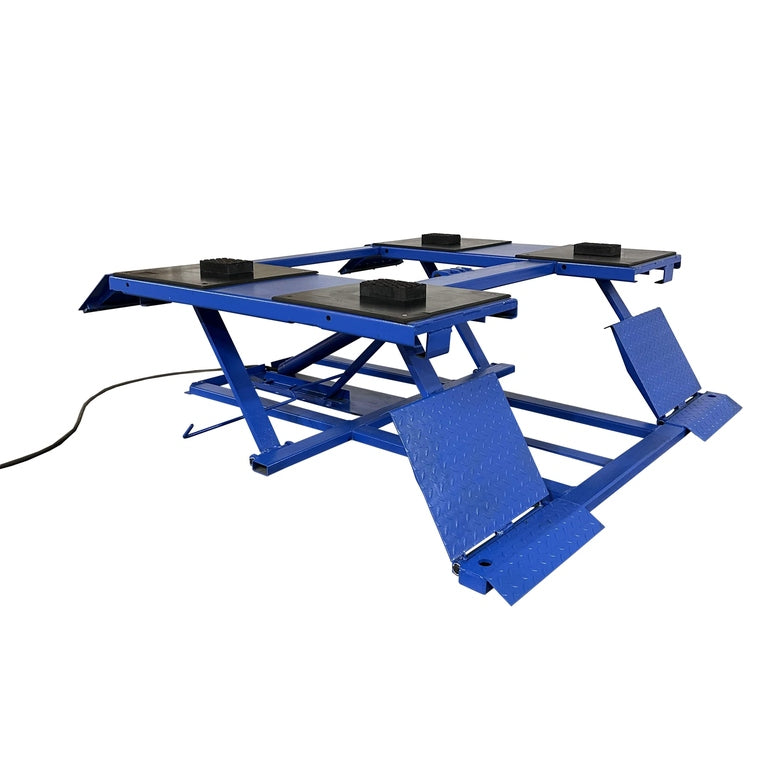

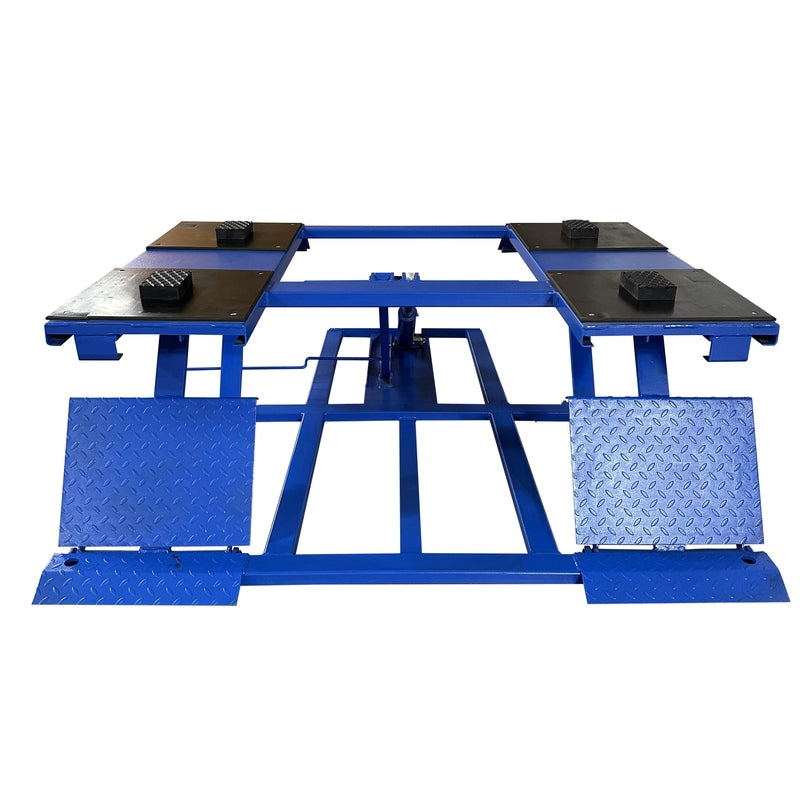

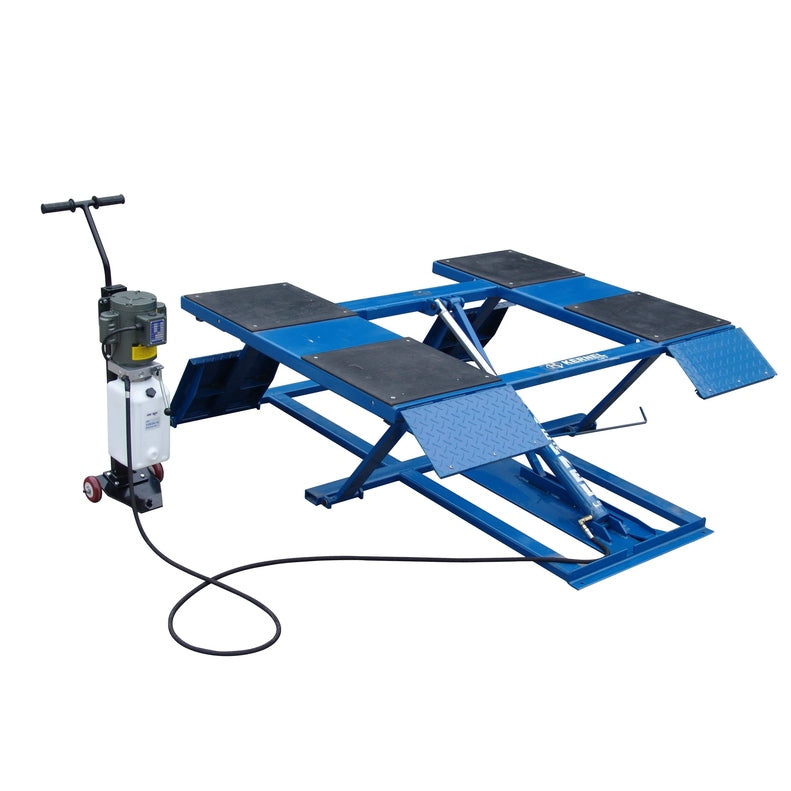

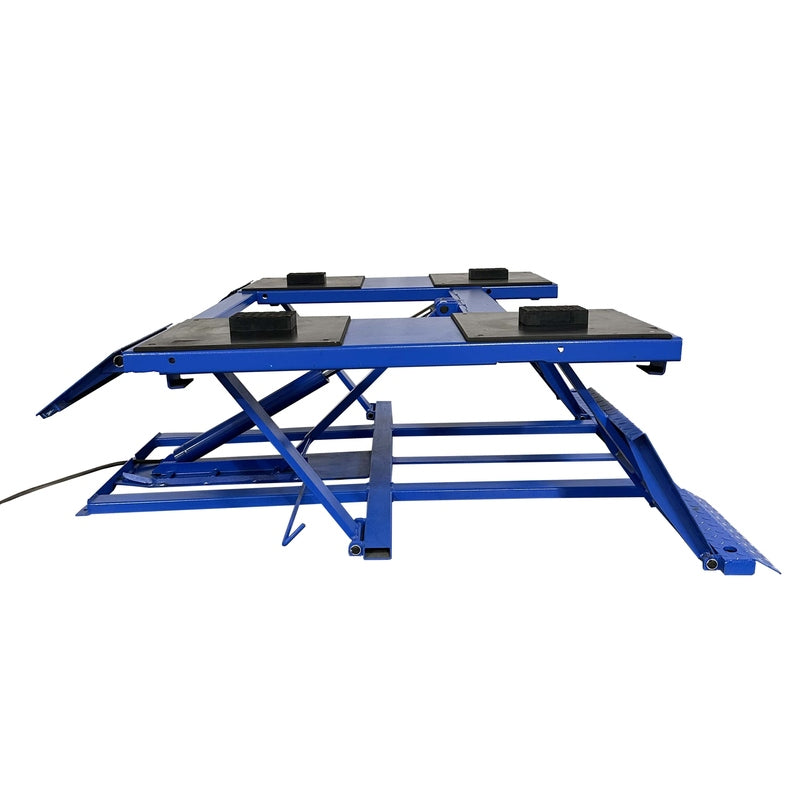

The Tuxedo LR-26-PAD Low-Rise Pad Lift provides efficient, stable lifting for a wide range of vehicles, making it ideal for wheel service, brake work, tire changes, and vehicle preparation. Designed with padded runways for secure frame contact, this lift offers quick setup and dependable operation for both professional shops and service centers.
With a 6,000 lb lifting capacity and a low drive-over height of just 3 inches, the LR-26-PAD accommodates most cars and light trucks while maintaining ease of access. A dolly-mounted power unit enhances mobility, and the automatic safety lock ensures safe operation during use. Optional MR6K-38-SUV adapters are available for additional frame-lifting capability.
Features
-
6,000 lb Capacity — Suitable for a wide range of passenger vehicles and light trucks.
-

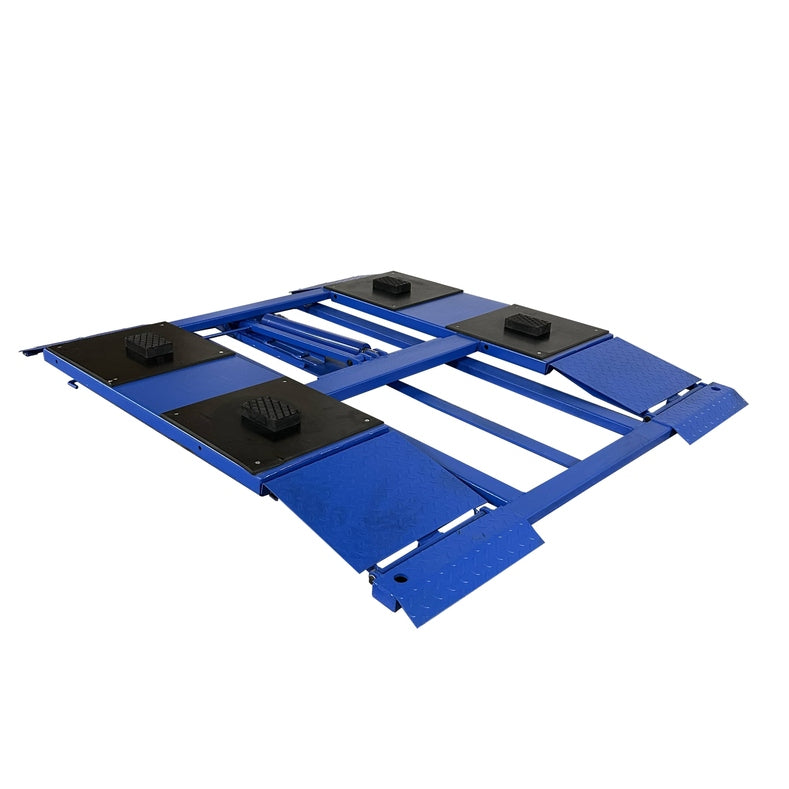

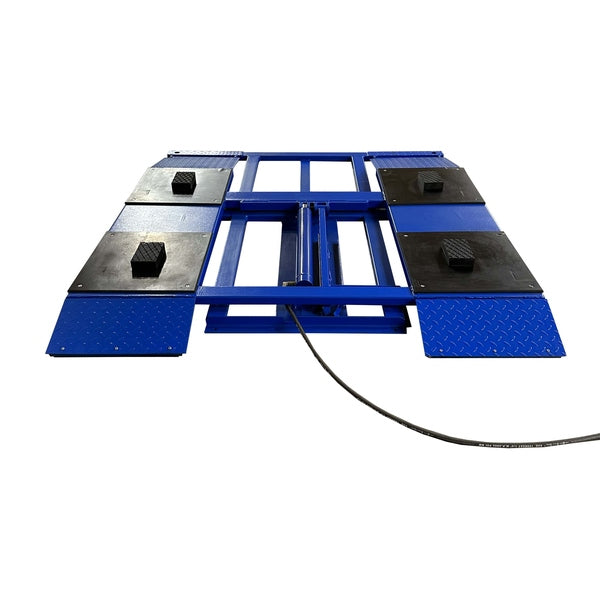

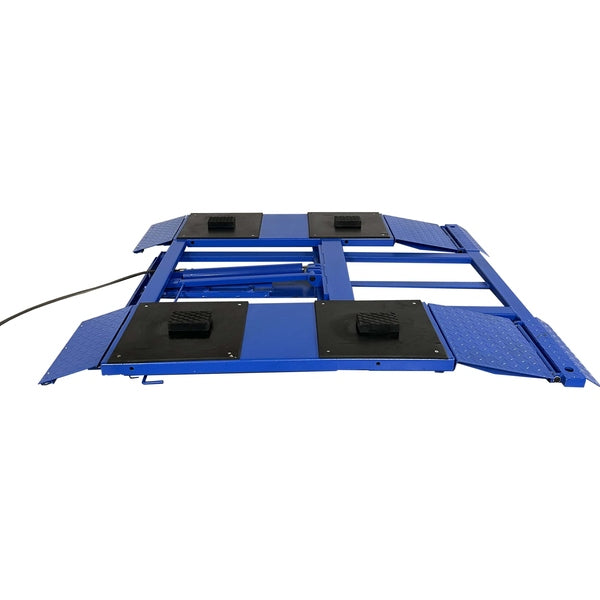

Low Drive-Over Height (3") — Simplifies vehicle positioning and access.
-
Padded Runways — Protect vehicle frames during lifting.
-

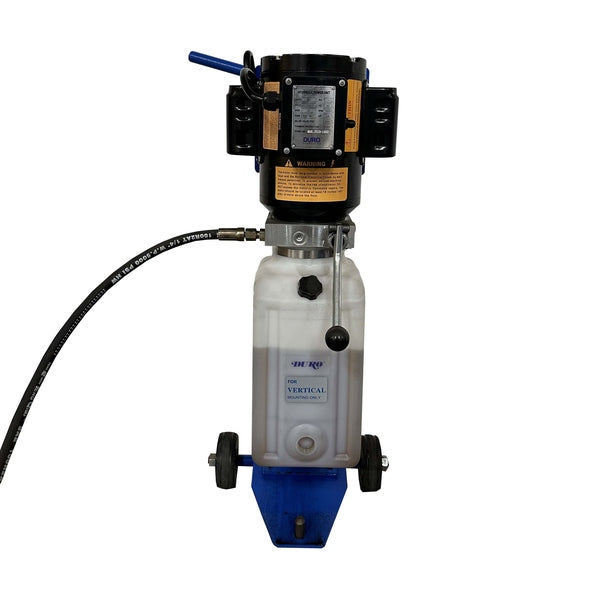

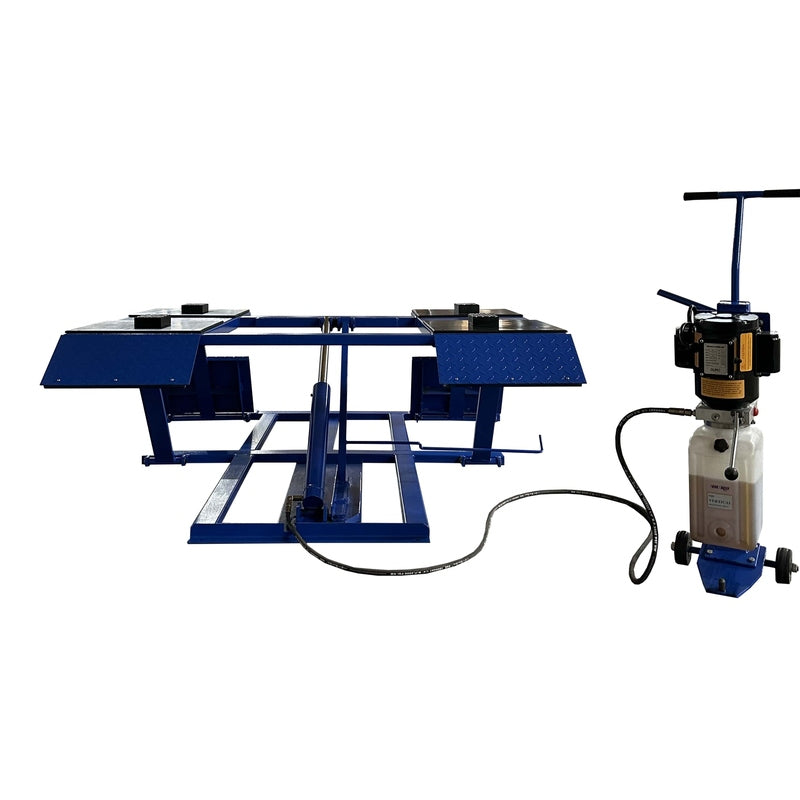

Dolly-Mounted Power Unit — Provides easy maneuverability around the shop.
-
Automatic Safety Lock — Ensures secure operation and user safety.
-

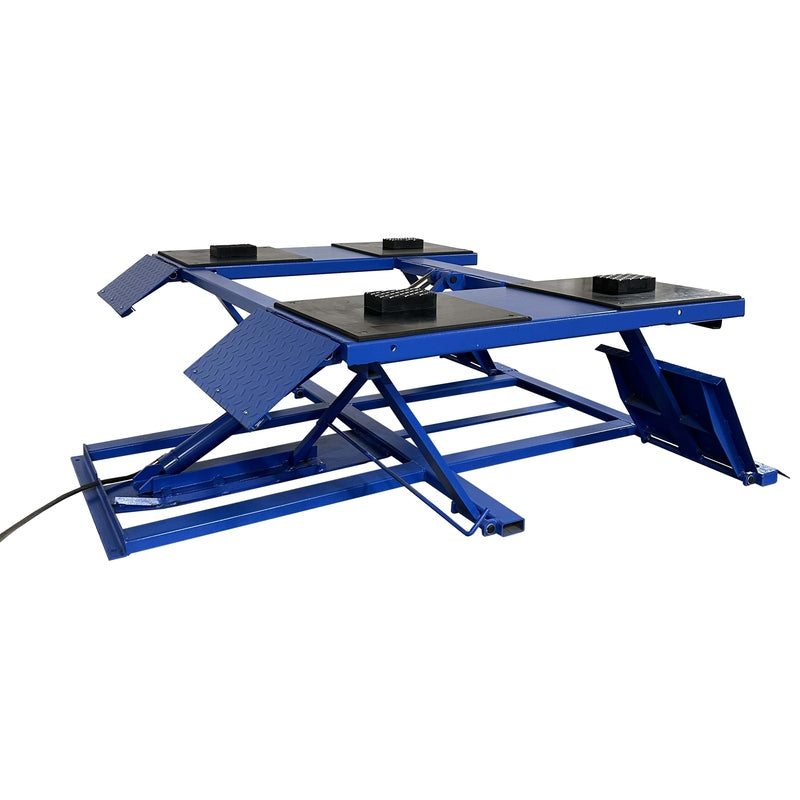

Rubber Spacer Blocks Included — Assist with proper lifting contact.
-
Optional SUV Adapter (MR6K-38-SUV) — Expands compatibility for larger vehicles.
-
Ideal for Tire, Wheel, and Brake Work — Perfect for everyday service and inspection tasks.

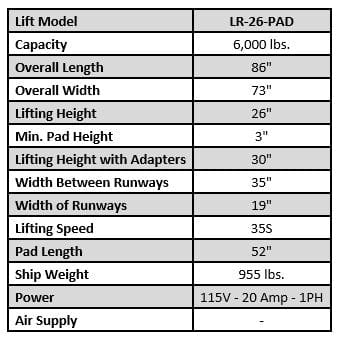

Specifications
| Specification | Details |
|---|---|
| Model | LR-26-PAD |
| Capacity | 6,000 lbs |

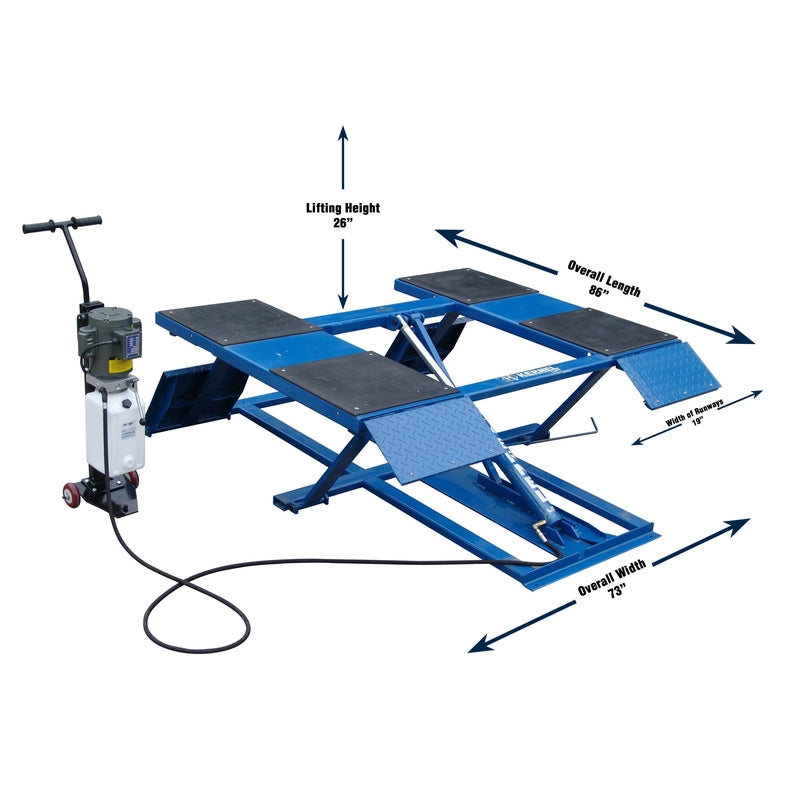

| Overall Length | 86" |
| Overall Width | 73" |
| Lifting Height | 26" |
| Minimum Pad Height | 3" |
| Lifting Height with Adapters | 30" |
| Width Between Runways | 35" |
| Width of Runways | 19" |
| Lifting Speed | 35 seconds |
| Pad Length | 52" |
| Shipping Weight | 955 lbs |
| Power | 115V / 15 Amp / 1PH |
