Description

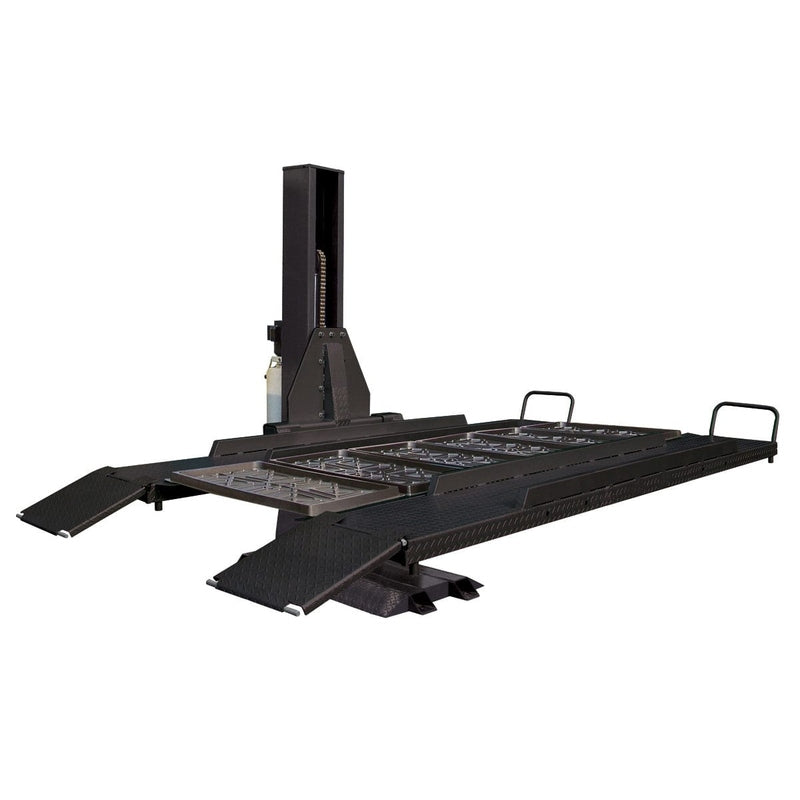

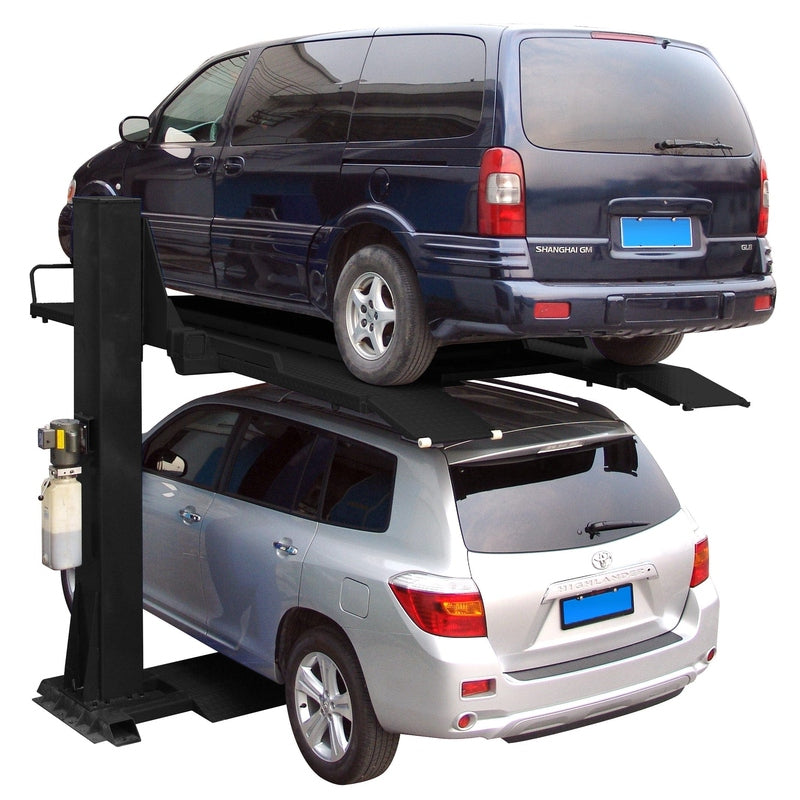

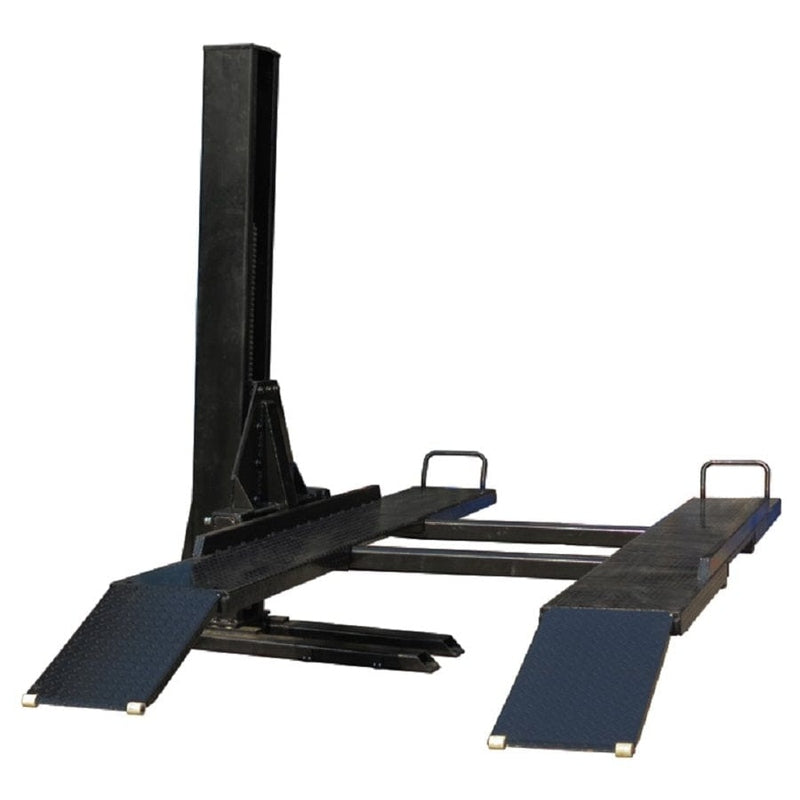

Maximize your available space with the Tuxedo SP-6K-SS Parking Lift, a reliable solution for doubling your vehicle storage capacity. Designed for convenience and safety, this 6,000 lb capacity parking lift is perfect for residential garages, commercial facilities, and light-duty service applications. The compact, low-post design makes it suitable for areas with limited ceiling height, while the durable construction ensures long-lasting performance.
Offering flexible installation from either the right or left side, the SP-6K-SS provides an efficient and space-saving way to expand your parking capabilities without costly structural changes.
Features
-
6,000 lb Lifting Capacity — Accommodates most cars and light trucks.
-
Space-Saving Design — Doubles vehicle storage or parking space in the same footprint.
-
Low Post Height — Ideal for garages or shops with lower ceiling clearances.
-

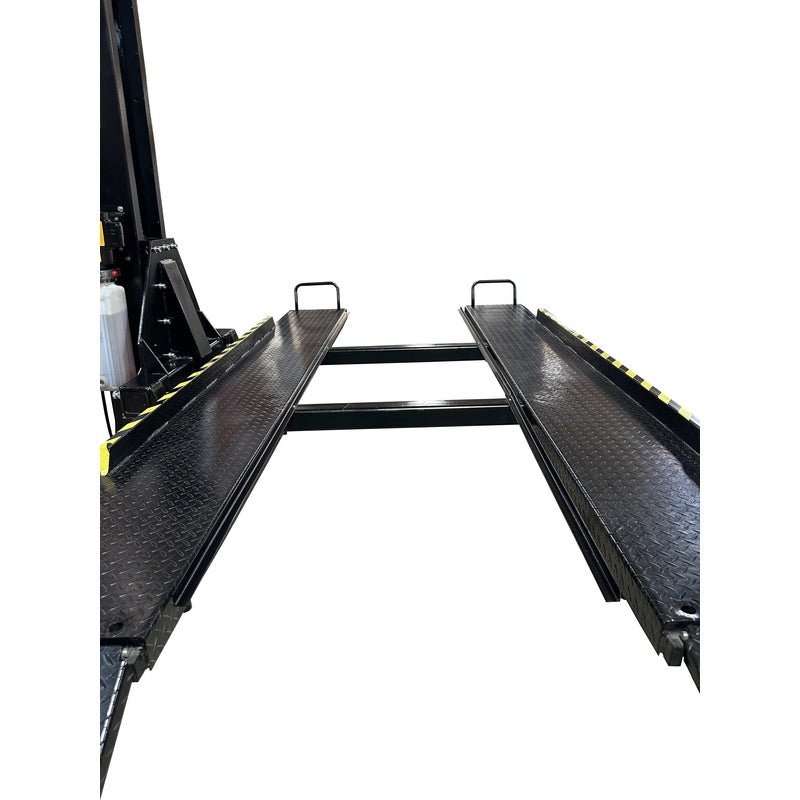

Updated Runway Width — Expanded by 3" for improved drive-on clearance (80.8").
-

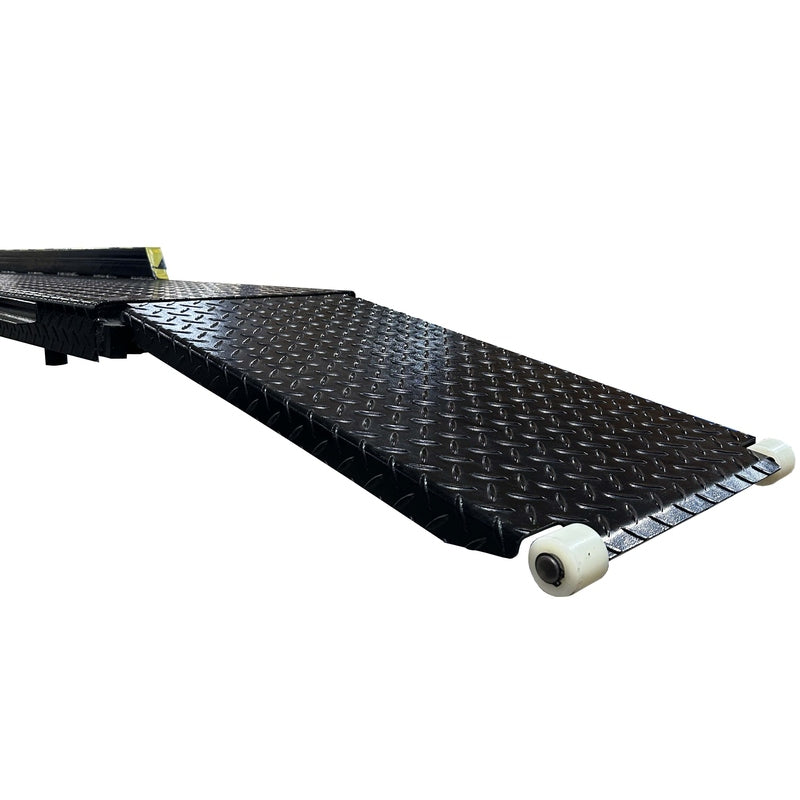

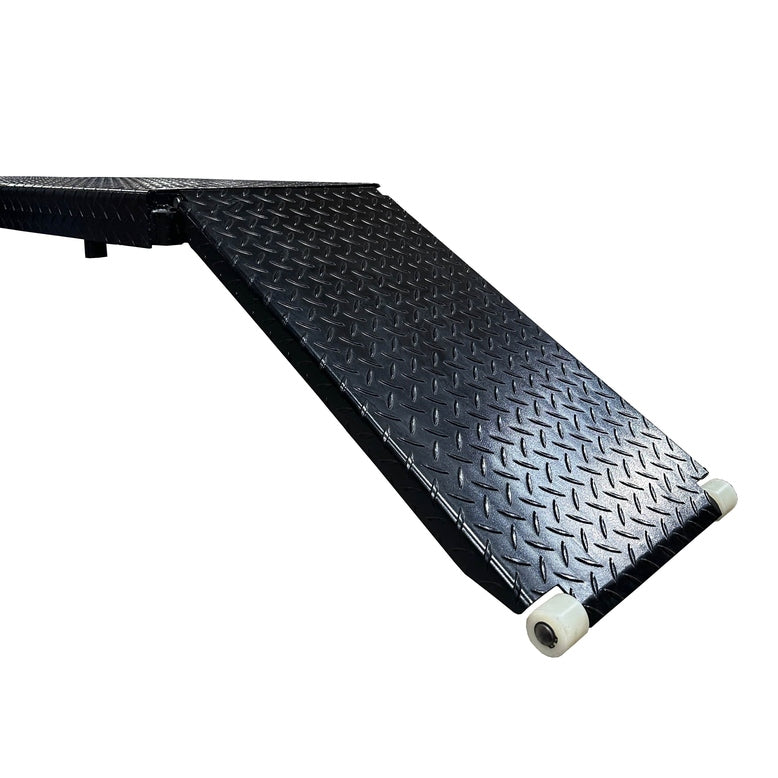

Long 31" Ramps — Designed for low-profile vehicles.
-
Flexible Mounting Options — Install to lift from either the right or left side.
-

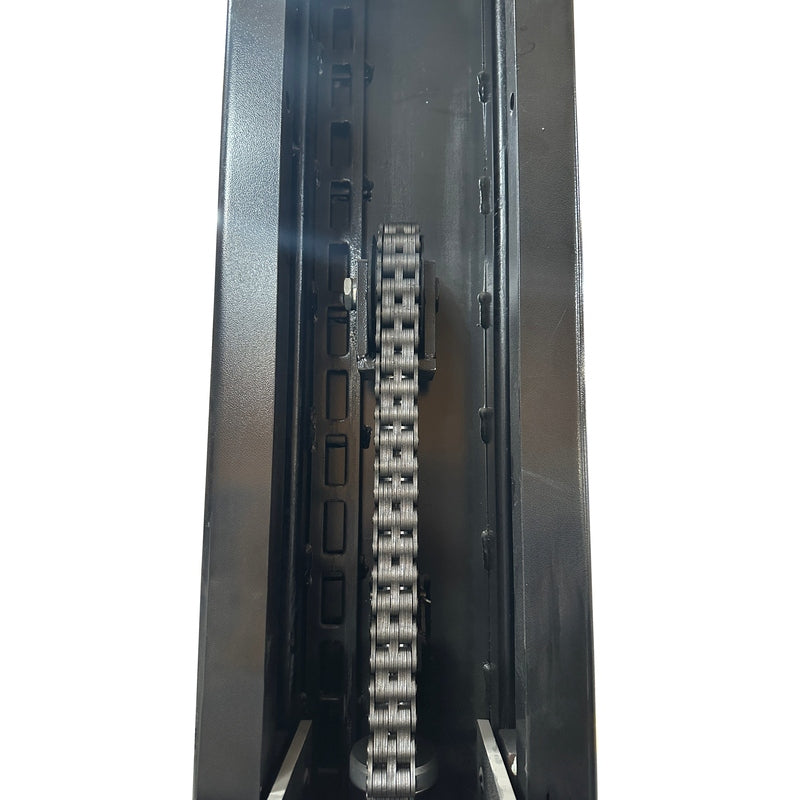

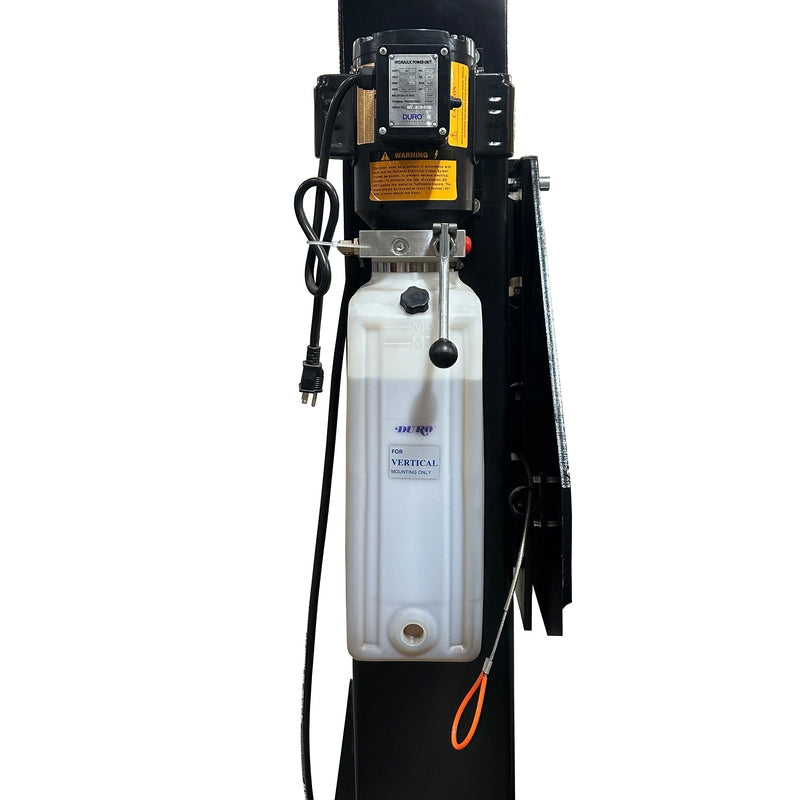

Durable Construction — Features a commercial-grade hydraulic cylinder and heavy-duty chain system.
-
Single-Point Manual Lock Release — Simplifies operation and enhances safety.
-
Powder-Coated Finish — Provides lasting durability and corrosion resistance.
-
Versatile Use — Ideal for vehicle storage, inspections, and light maintenance.

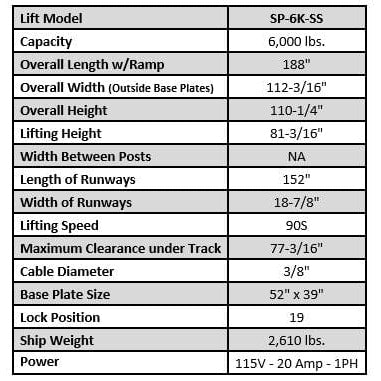

Specifications
| Specification | Details |
|---|---|
| Model | SP-6K-SS |
| Capacity | 6,000 lbs |
| Overall Length (with Ramp) | 188" |
| Overall Width (Outside Base Plates) | 113-1/2" |
| Overall Height | 110-1/4" |
| Lifting Height | 81-3/16" |
| Length of Runways | 152" |
| Width of Runways | 18-7/8" |
| Maximum Clearance Under Track | 77-3/16" |
| Lifting Speed | 90 seconds |

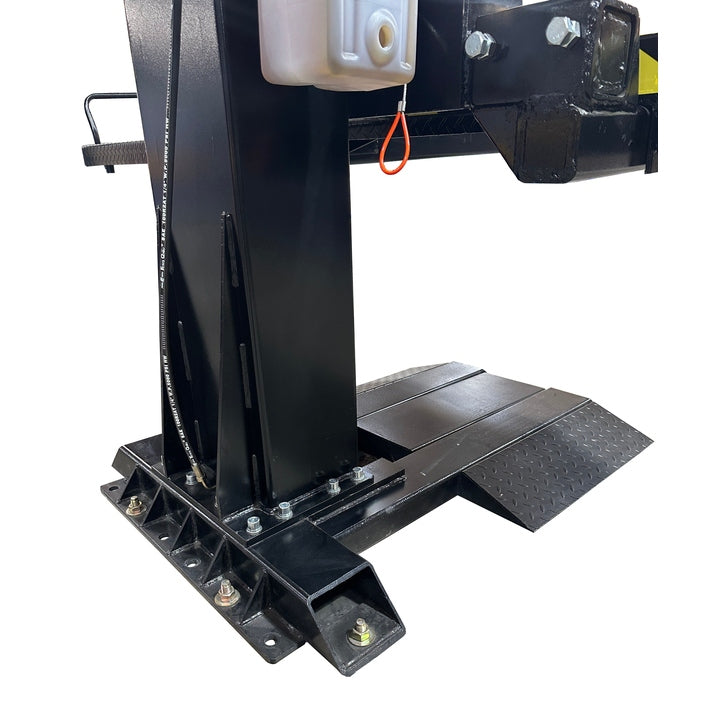

| Base Plate Size | 52" x 39" |
| Cable Diameter | 3/8" |
| Lock Positions | 19 |
| Power | 115V / 20 Amp / 1PH |
| Shipping Weight | 2,610 lbs |

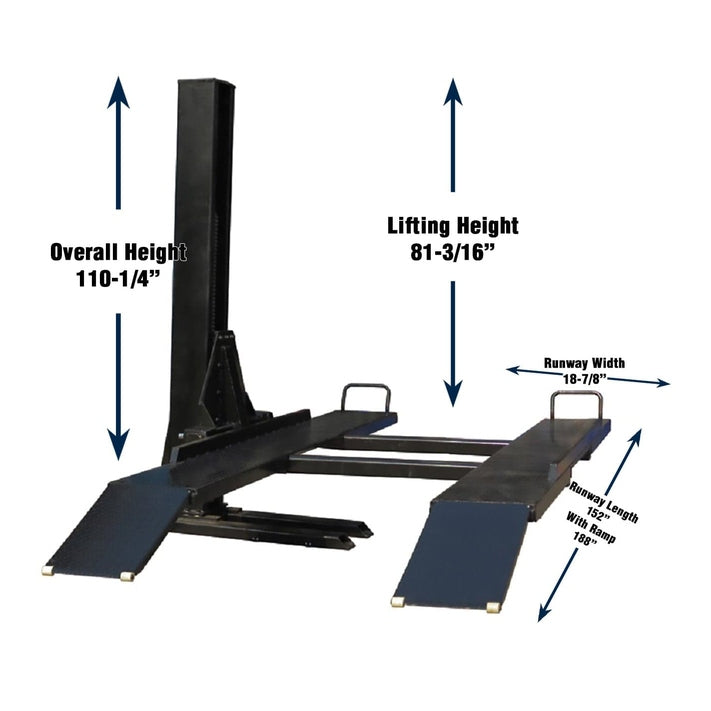

Dimensions
Manual
