Description

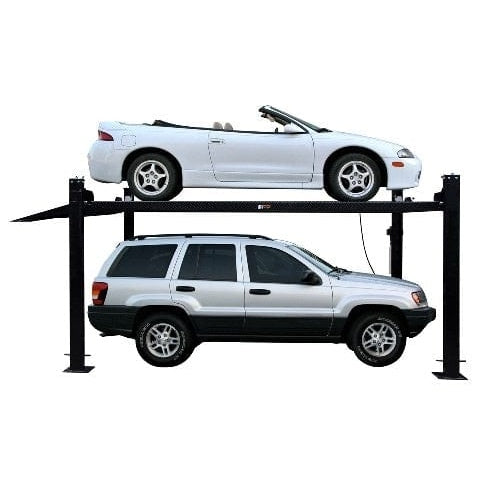

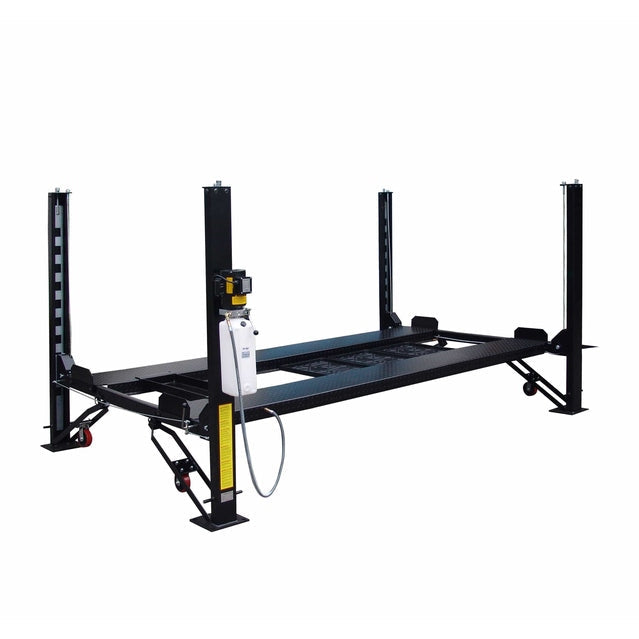

The Tuxedo FP8K-DX 4-Post Lift is a deluxe storage and service solution designed to combine performance, convenience, and value. With an 8,000 lb lifting capacity, this cable-driven system provides reliable operation for a wide range of vehicles, from compact cars to light trucks.
Perfect for both residential and light commercial applications, the FP8K-DX includes poly caster wheels, drip trays, and a jack/tool tray as standard equipment—enhancing mobility, cleanliness, and usability. Its single-point manual lock release and adjustable locking positions allow for smooth, secure operation, while steel approach ramps ensure easy drive-on access.
Compact enough to fit in most residential garages, the FP8K-DX is a dependable and versatile lift solution for both storage and maintenance tasks.

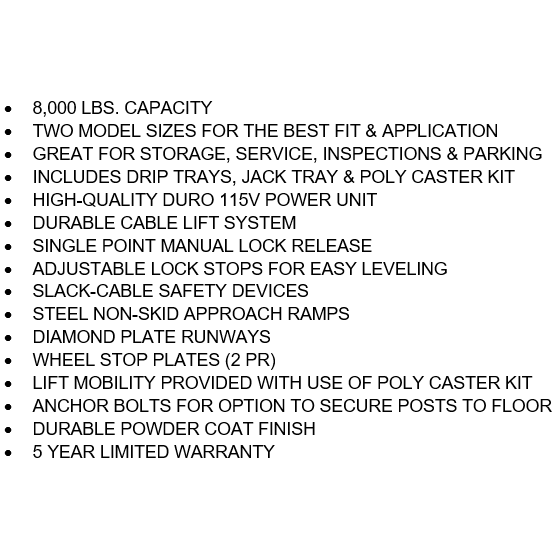

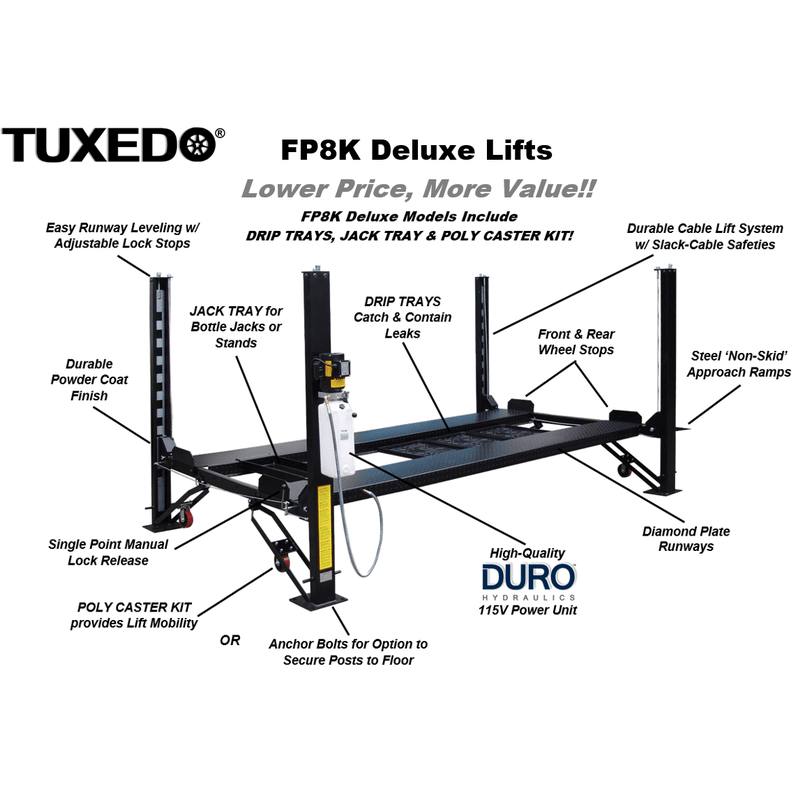

Features
-
8,000 lb Lifting Capacity — Ideal for passenger vehicles and light trucks.
-
Cable-Driven System — Ensures smooth and balanced lifting performance.
-
Single-Point Manual Lock Release — Simplifies operation and enhances safety.
-
Adjustable Locking Positions — Provides flexibility for multiple height settings.
-
Slack Cable Safety System — Prevents accidental cable slack for added protection.
-
Steel Approach Ramps — Durable and easy to position vehicles on the lift.
-

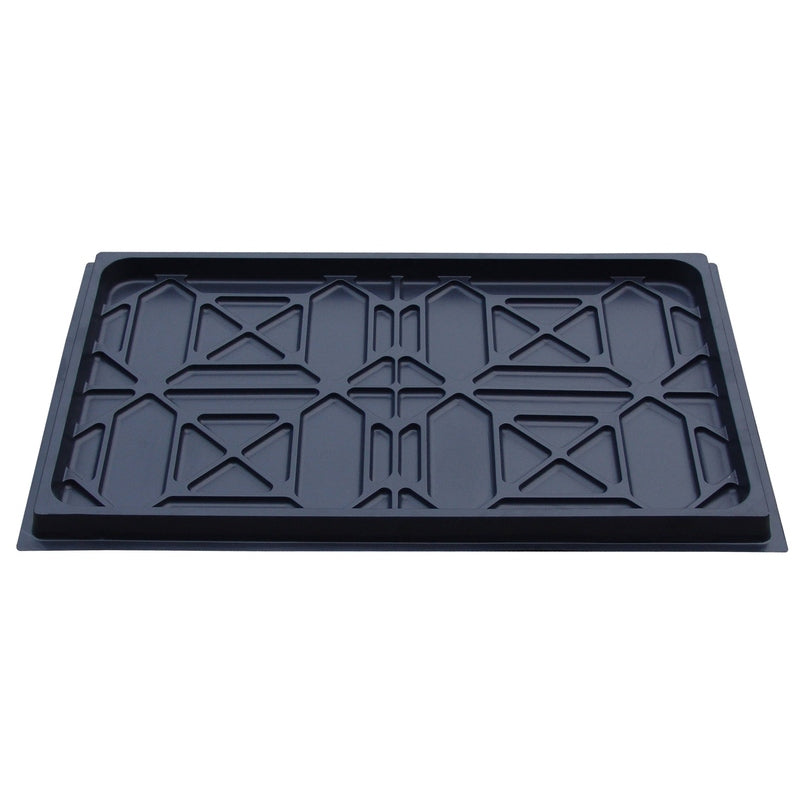

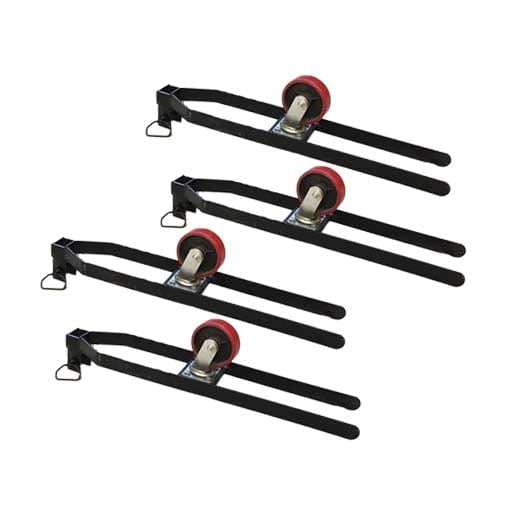

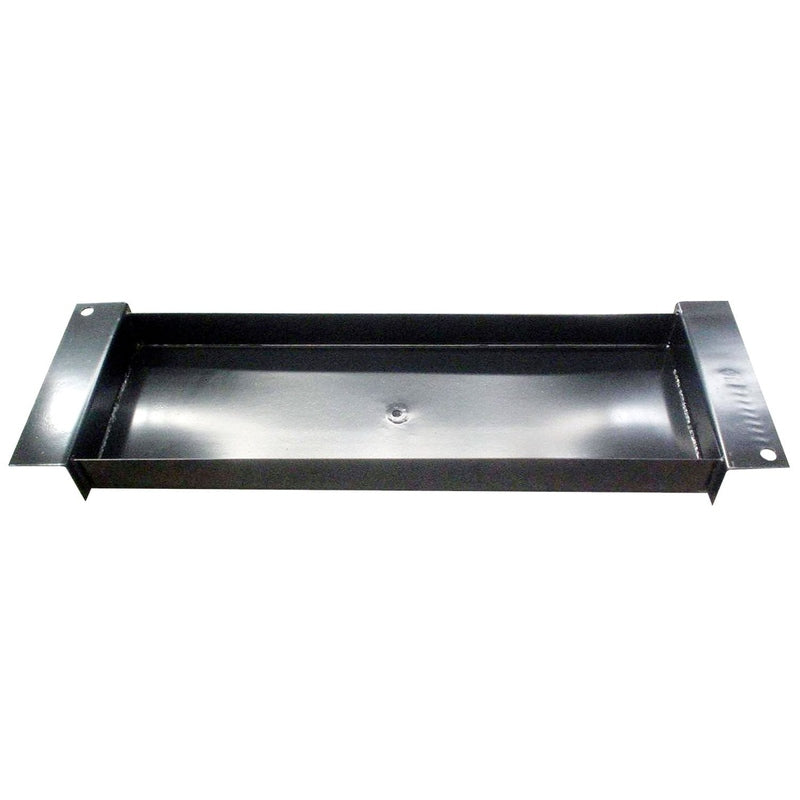

Includes Deluxe Accessories — Comes standard with drip trays, jack/tool tray, and poly caster kit.
-
Residential Fit — Compact design accommodates most home garages.

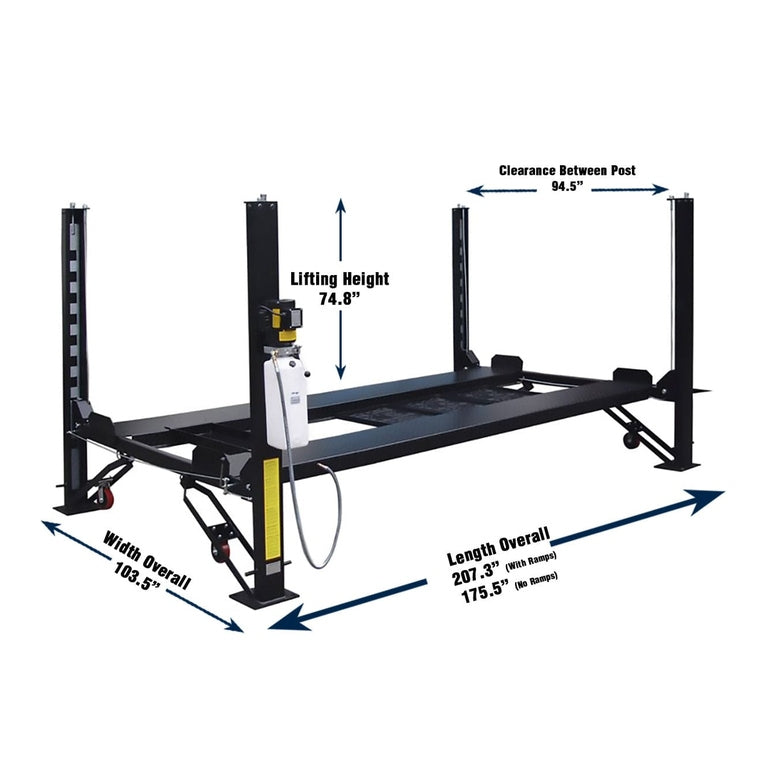

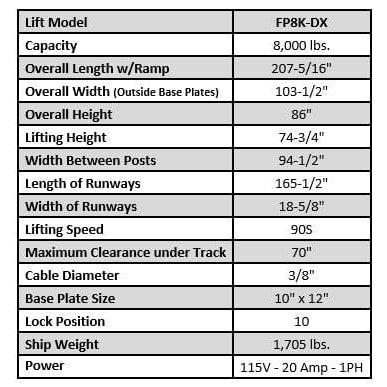

Specifications
| Specification | Details |
|---|---|
| Model | FP8K-DX |
| Capacity | 8,000 lbs |
| Overall Length (with Ramp) | 207-5/16" |
| Overall Width (Outside Base Plates) | 103-1/2" |
| Overall Height | 86" |
| Lifting Height | 74-3/4" |
| Width Between Posts | 94-1/2" |
| Length of Runways | 165-1/2" |
| Width of Runways | 18-5/8" |
| Maximum Clearance Under Track | 70" |
| Cable Diameter | 3/8" |
| Base Plate Size | 10" × 12" |
| Lock Positions | 10 |
| Lifting Speed | 90 seconds |
| Shipping Weight | 1,705 lbs |
| Power | 115V / 20 Amp / 1PH |
