Description

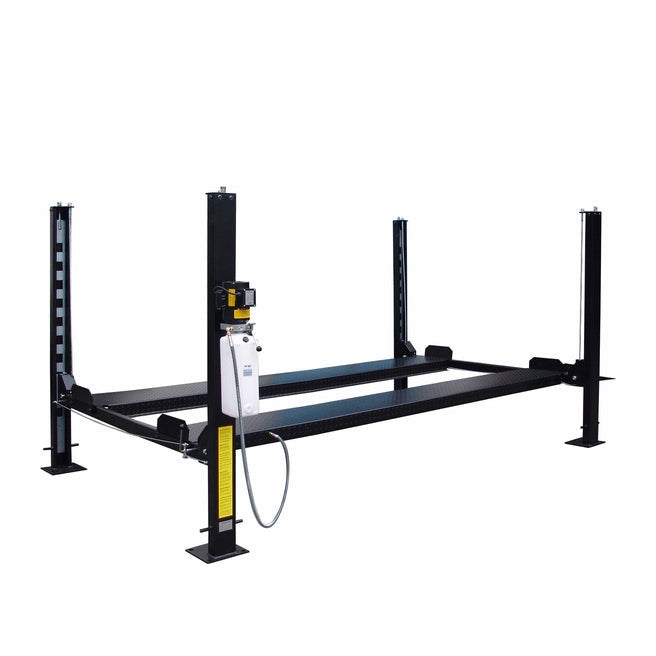

The Tuxedo FP8K-B 4-Post Lift is a reliable and versatile lifting solution designed for both vehicle storage and light service applications. With a capacity of 8,000 lbs, this durable, cable-driven lift provides consistent performance and stability for a wide range of cars and light trucks.
Equipped with steel approach ramps for easy vehicle positioning, the FP8K-B ensures smooth operation and long-term durability. Its single-point manual lock release and adjustable locking positions allow for safe, convenient height adjustments, making it suitable for home garages or light commercial use.
This basic model offers exceptional functionality at a value-focused price point. It is designed to fit comfortably in most residential garages and does not include the caster kit, drip trays, or jack tray found in deluxe versions.
Features
-
8,000 lb Capacity — Handles a wide variety of passenger vehicles and light trucks.
-
Cable-Driven Lift System — Ensures smooth and reliable lifting performance.
-
Single-Point Manual Lock Release — Simplifies locking and unlocking operations.
-
Adjustable Locking Positions — Provides flexibility for various working heights.
-
Slack Cable Safety System — Enhances safety during lift operation.
-
Steel Approach Ramps — Durable and easy to drive onto.
-
Residential Compatibility — Fits in most home garages.
-
Basic Configuration — Does not include caster kit, drip trays, or jack tray.

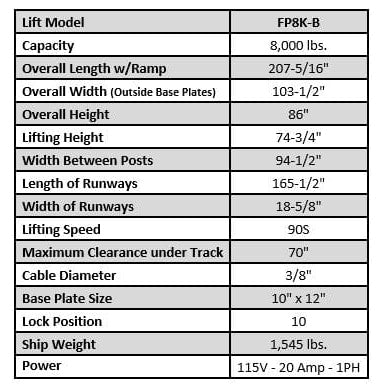

Specifications
| Specification | Details |
|---|---|
| Model | FP8K-B |
| Capacity | 8,000 lbs |
| Overall Length (with Ramp) | 207-5/16" |
| Overall Width (Outside Base Plates) | 103-1/2" |
| Overall Height | 86" |
| Lifting Height | 74-3/4" |
| Width Between Posts | 94-1/2" |
| Length of Runways | 165-1/2" |
| Width of Runways | 18-5/8" |
| Maximum Clearance Under Track | 70" |
| Cable Diameter | 3/8" |
| Base Plate Size | 10" × 12" |
| Lock Positions | 10 |
| Lifting Speed | 90 seconds |
| Shipping Weight | 1,545 lbs |
| Power | 115V / 20 Amp / 1PH |
