Description

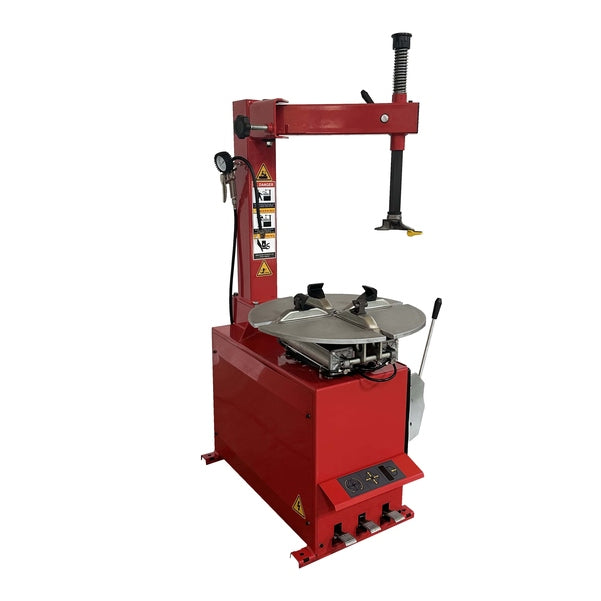

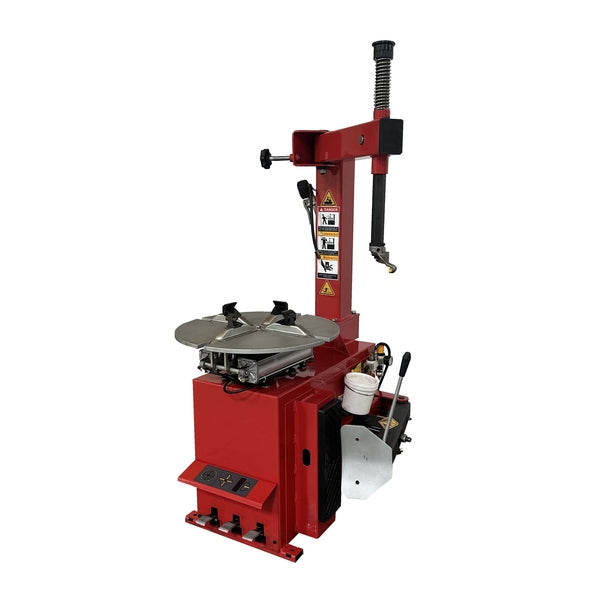

The Tuxedo TC-430 Tire Changer offers a dependable and cost-effective solution for tire service shops and garages. Featuring a swing arm design and manual mount/demount operation, this model provides reliable performance for standard tire applications. Equipped with pneumatic clamps, double-acting cylinders, and a side-mounted bead breaker, the TC-430 ensures efficient and accurate tire changing while maintaining ease of use.
Designed for long-term durability, it also includes an integrated air management system with a water separator, lubricator, and pressure regulator—helping maintain consistent performance and extending equipment life.
Features
-

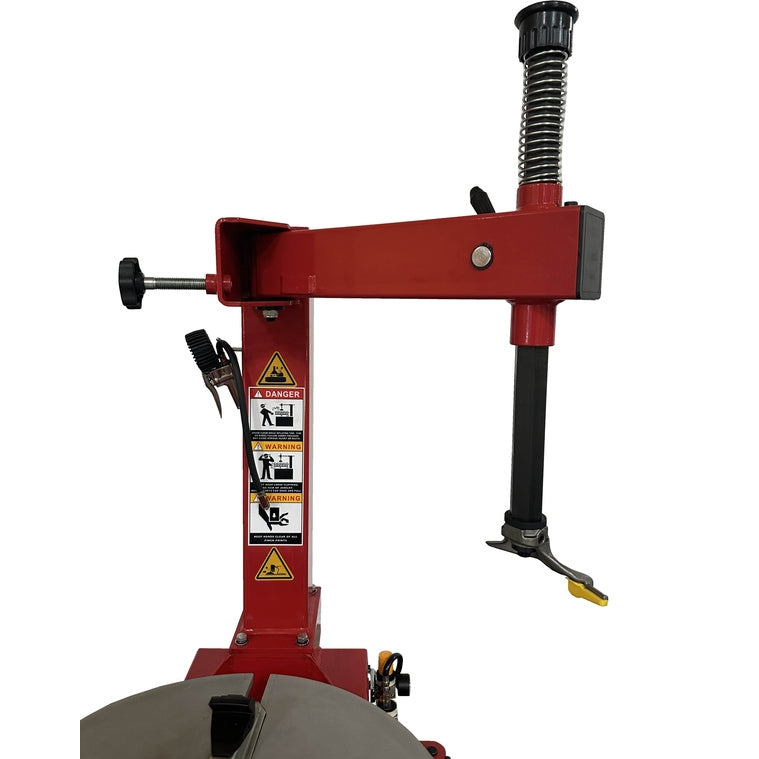

Swing Arm Design: Simplifies setup and provides stable, repeatable positioning.
-
Manual Mount/Demount Tool: Offers direct control for precise tire handling.
-

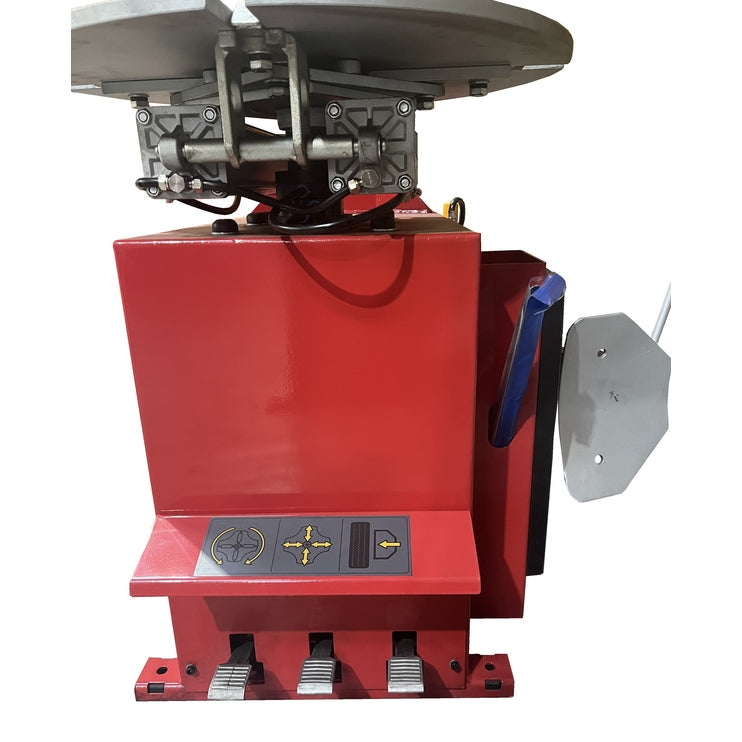

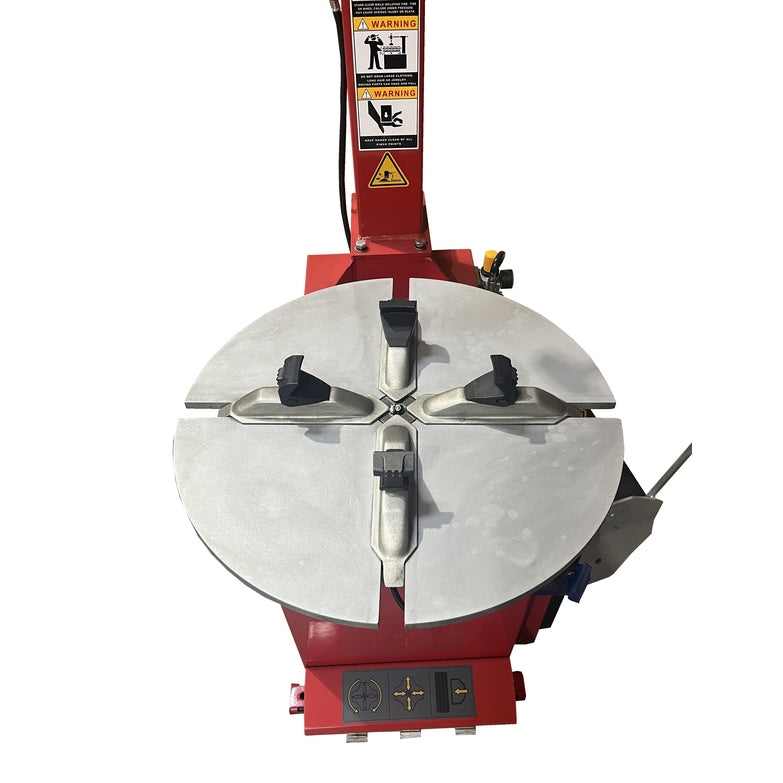

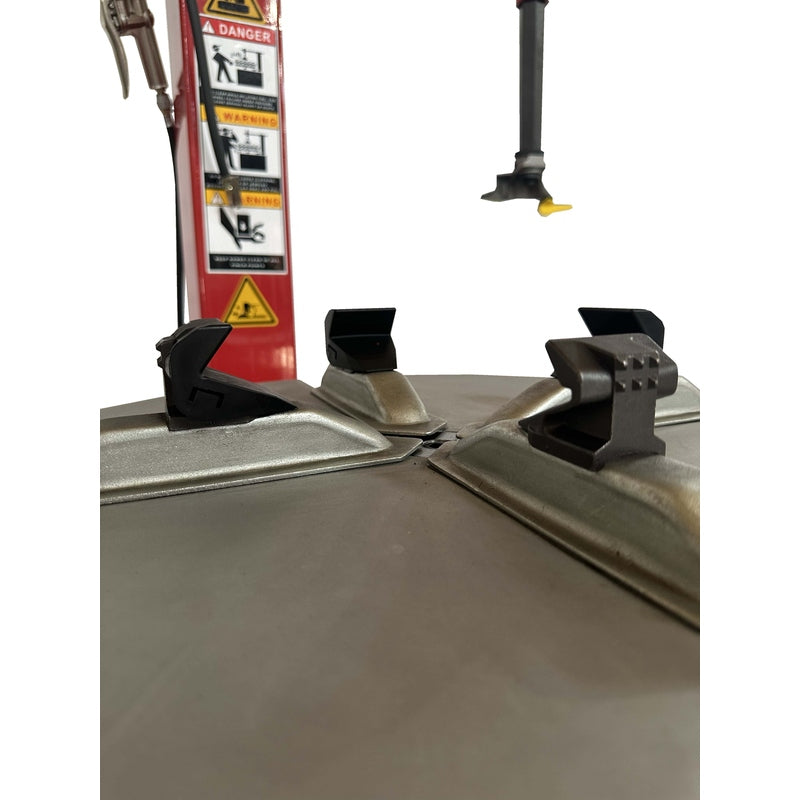

Pneumatic Clamps with Double-Acting Cylinders: Deliver secure and consistent wheel clamping.
-

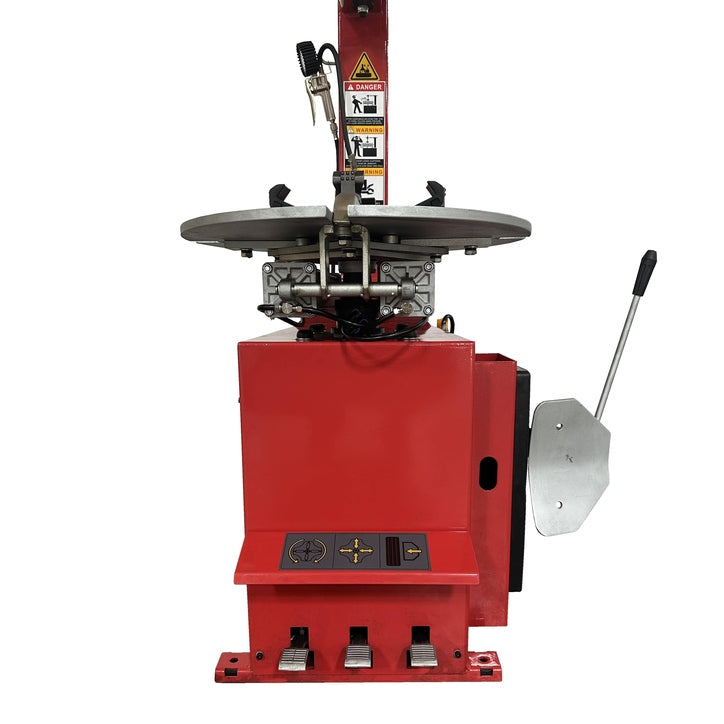

Side-Mounted Bead Breaker: Quickly separates tire beads from rims.
-

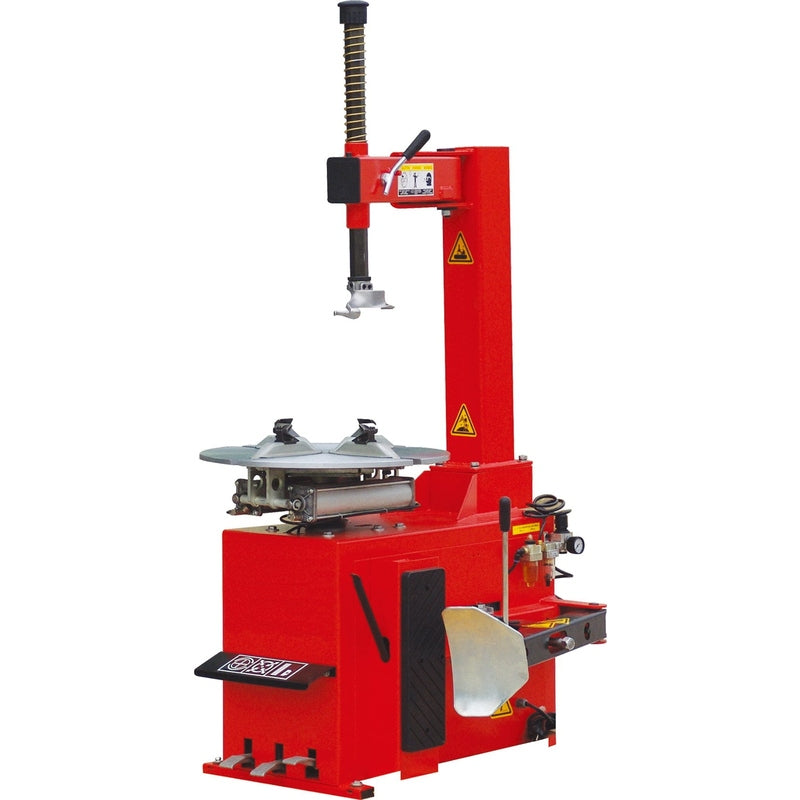

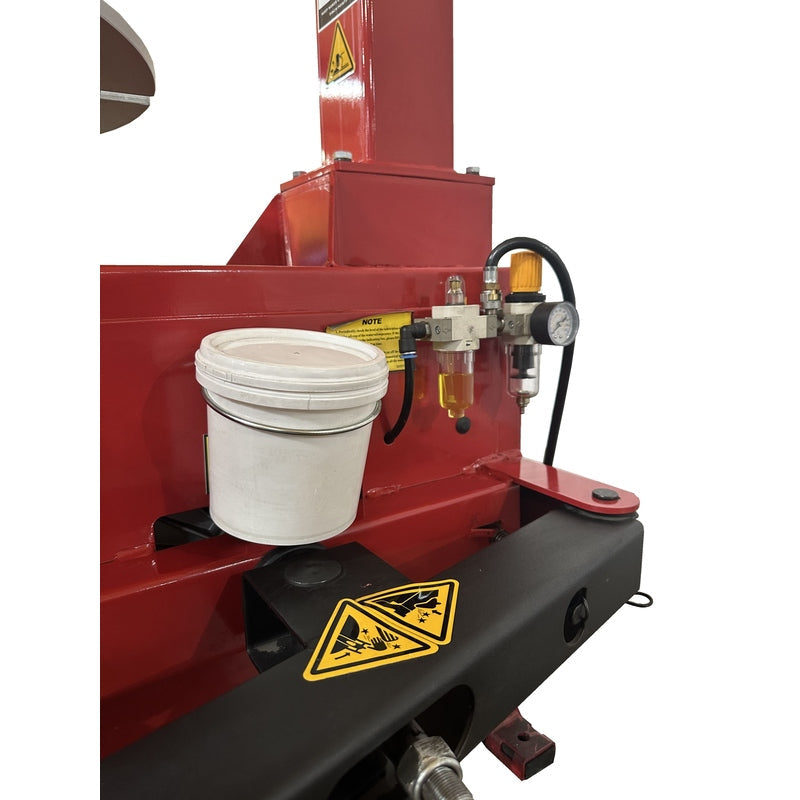

Integrated Air System: Includes water separator, lubricator, and air pressure regulator for smooth, reliable operation.
Specifications
| Specification | Details |
|---|---|
| Model | TC-430 |
| Max Wheel Diameter | 38" |
| Wheel Width | 3" – 11" |
| Inside Rim Clamp Range | 12" – 21" |
| Outside Rim Clamp Range | 10" – 18" |
| Power | 110V / 15 Amp / 1PH |
| Working Pressure | 125 PSI |
| Shipping Weight | 460 lbs |
