Description

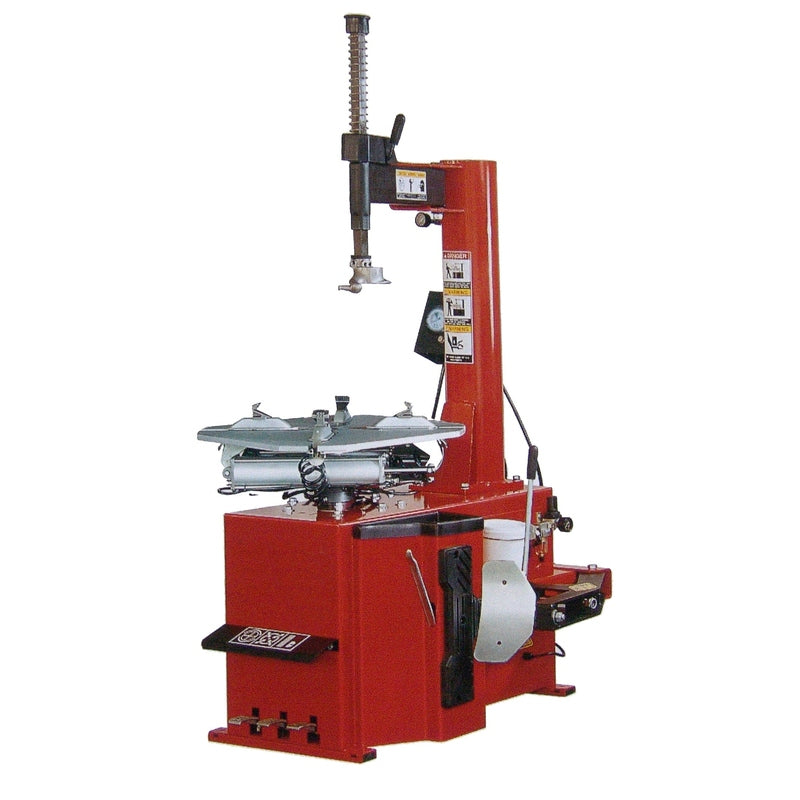

The Tuxedo TC-530 Tire Changer delivers reliable performance and value, making it an excellent choice for small shops and garages seeking professional functionality at an affordable price. Featuring a durable swing arm design and a large working capacity, it easily handles tires up to 38" in diameter and rim widths up to 12".
This model combines power and precision with features such as twin clamping cylinders, integrated bead-seating inflation jets, and a side-mounted bead breaker for efficient tire service. Designed to protect wheels during operation, the TC-530 eliminates metal-to-rim contact while maintaining durability and accuracy over time.
Features
-

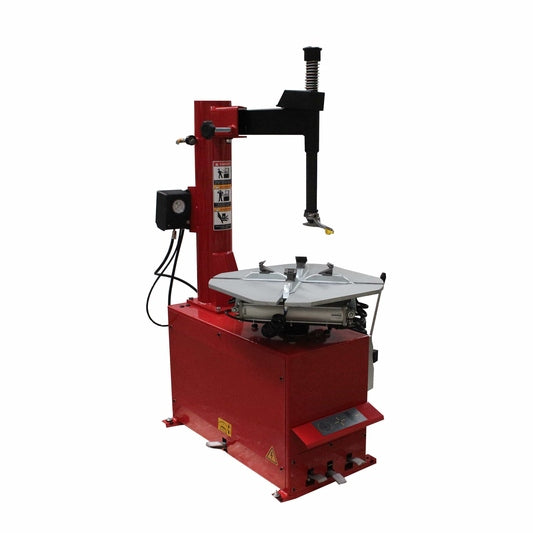

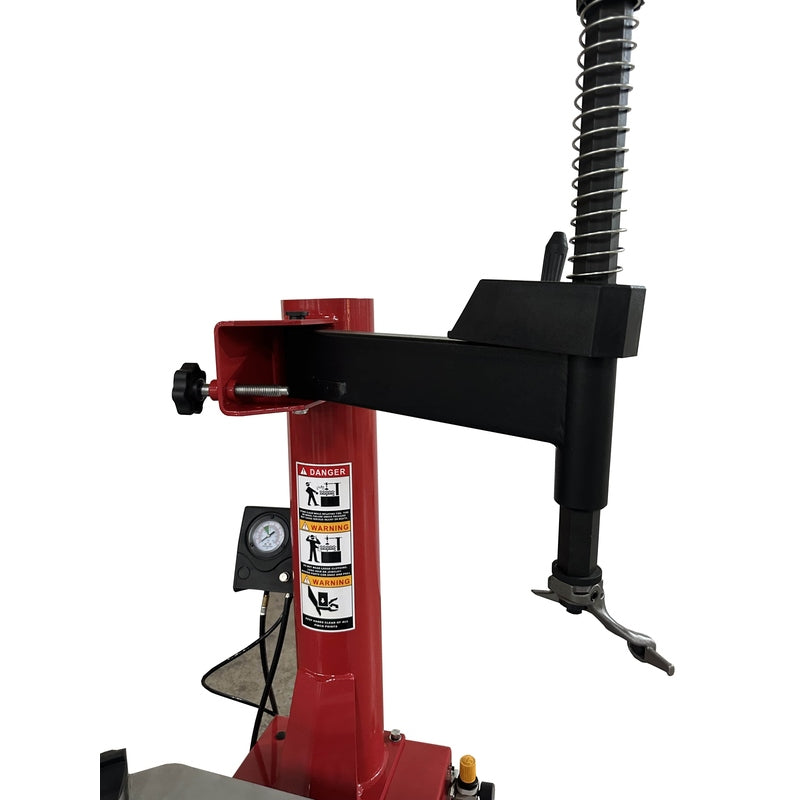

Swing Arm Design: Simplifies setup and ensures consistent alignment.
-
Wide Capacity: Handles tires up to 38" in diameter and rim widths up to 12".
-

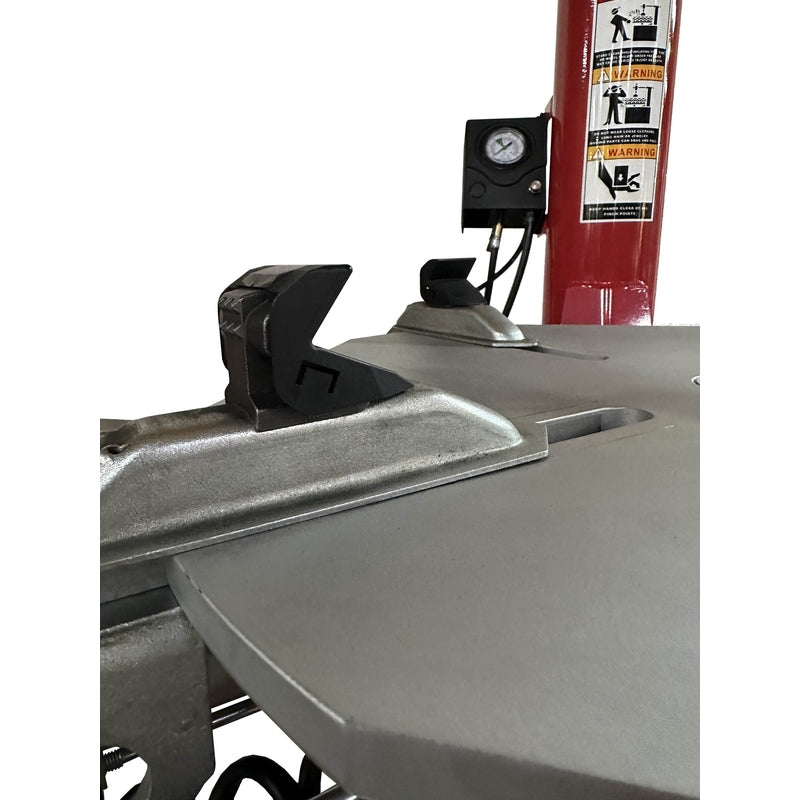

Integrated Bead-Seating Jets: Located in the clamping jaws for fast and safe tire inflation.
-
Twin Clamping Cylinders: Provide strong, stable holding power for challenging rims.
-

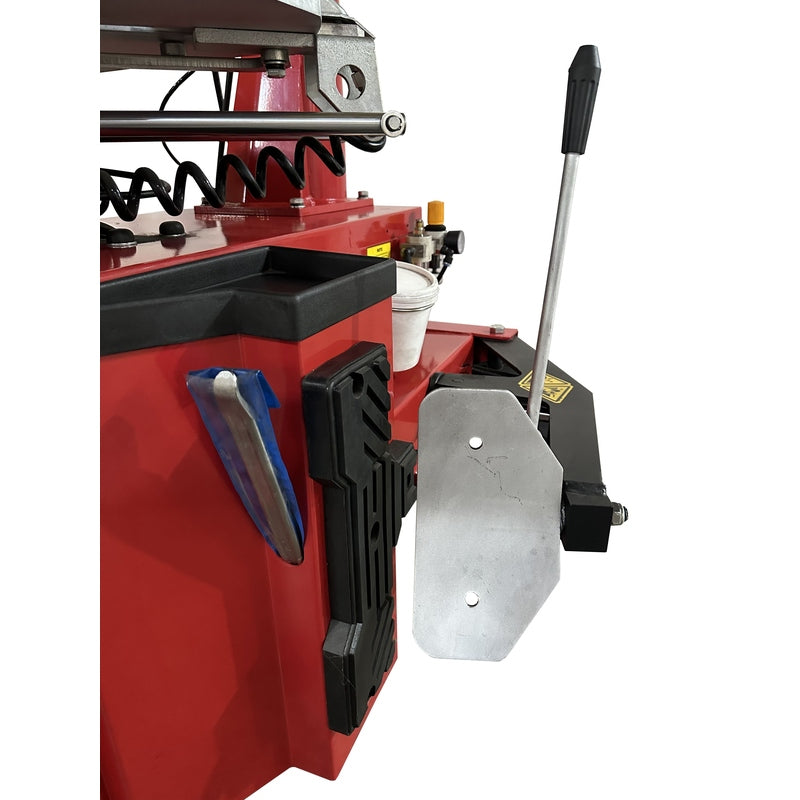

Side-Mounted Bead Breaker: Offers convenient and effective tire separation.
-
Rim Protection: Non-contact design prevents scratching and accidental damage.
-

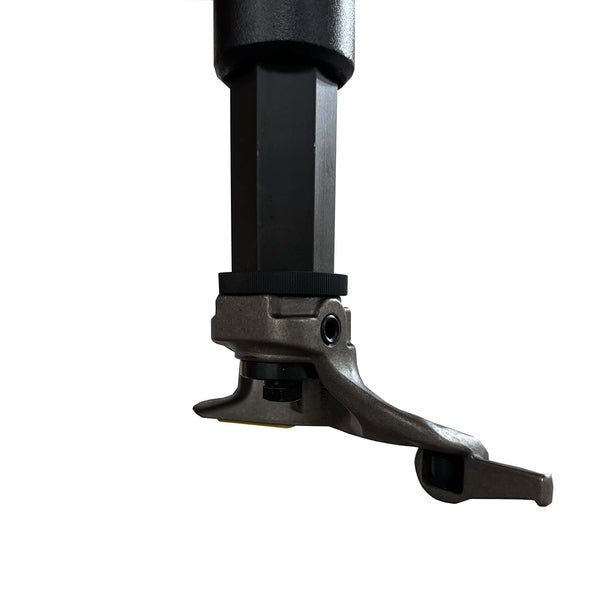

Heavy-Duty Hex Shaft: Large-diameter mount/demount shaft adds rigidity and stability.
-

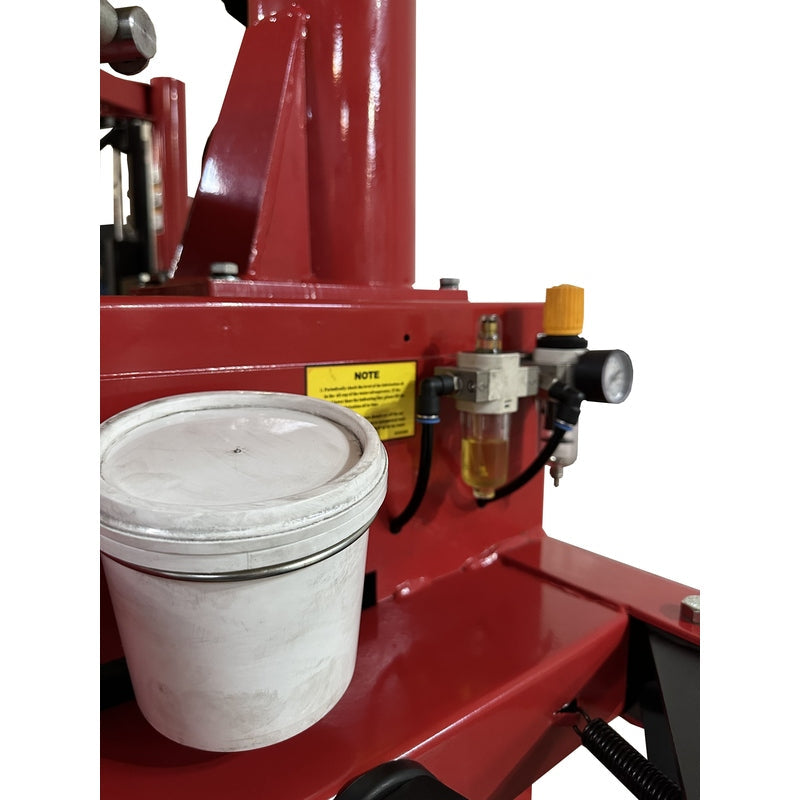

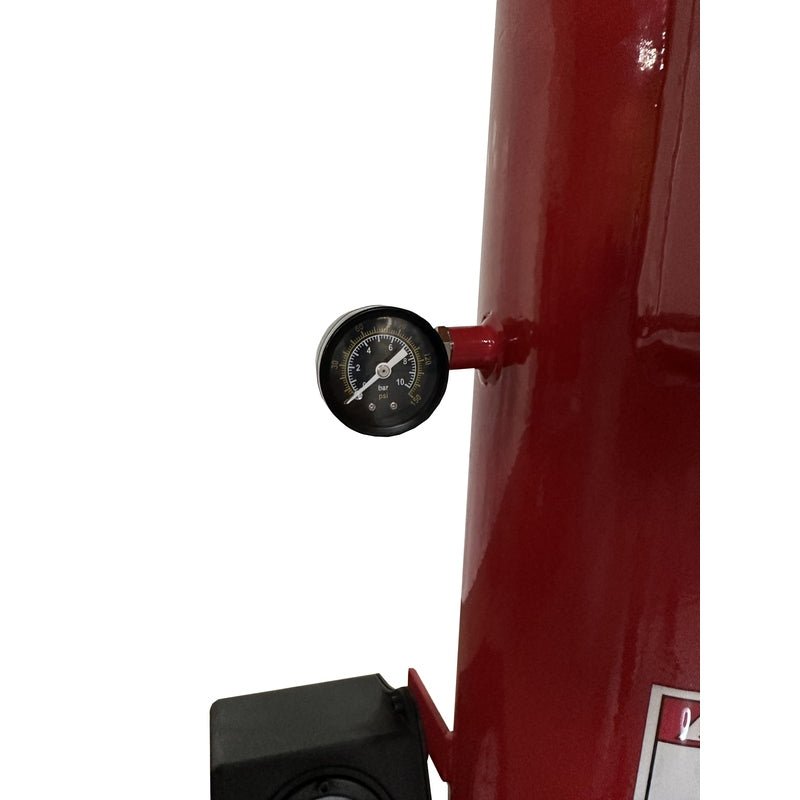

Built-In Air System: Includes a pressure limiter, water separator, and oiler for dependable performance and long service life.

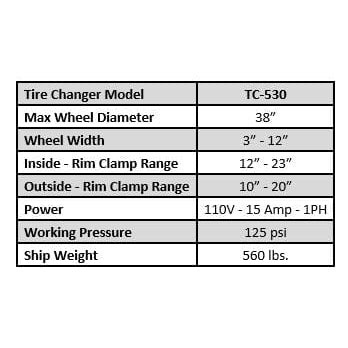

Specifications
| Specification | Details |
|---|---|
| Model | TC-530 |

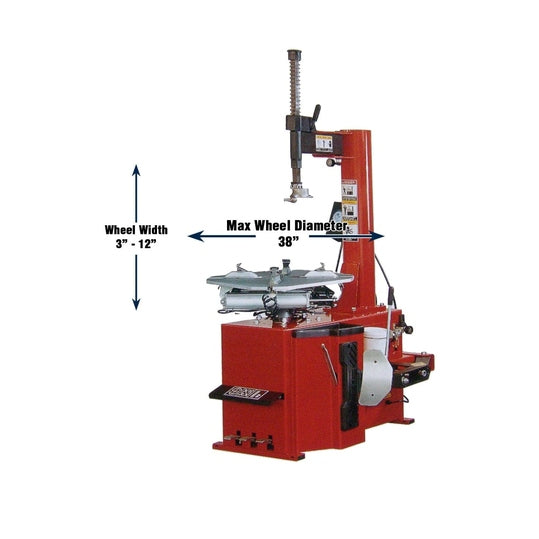

| Max Wheel Diameter | 38" |
| Wheel Width | 3" – 12" |
| Inside Rim Clamp Range | 12" – 23" |
| Outside Rim Clamp Range | 10" – 20" |
| Power | 110V / 15 Amp / 1PH |
| Working Pressure | 125 PSI |
| Shipping Weight | 560 lbs |
