iDEAL TP10KAC-DX 10,000 lb Two Post Clear Floor --Direct Drive - Bi-Symmetric - 3 Stage - Single Point ALI Certified W/PU

Save $1,000.00
iDEALSKU: TP10KAC-DX
Price:
$4,800.00 $5,800.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

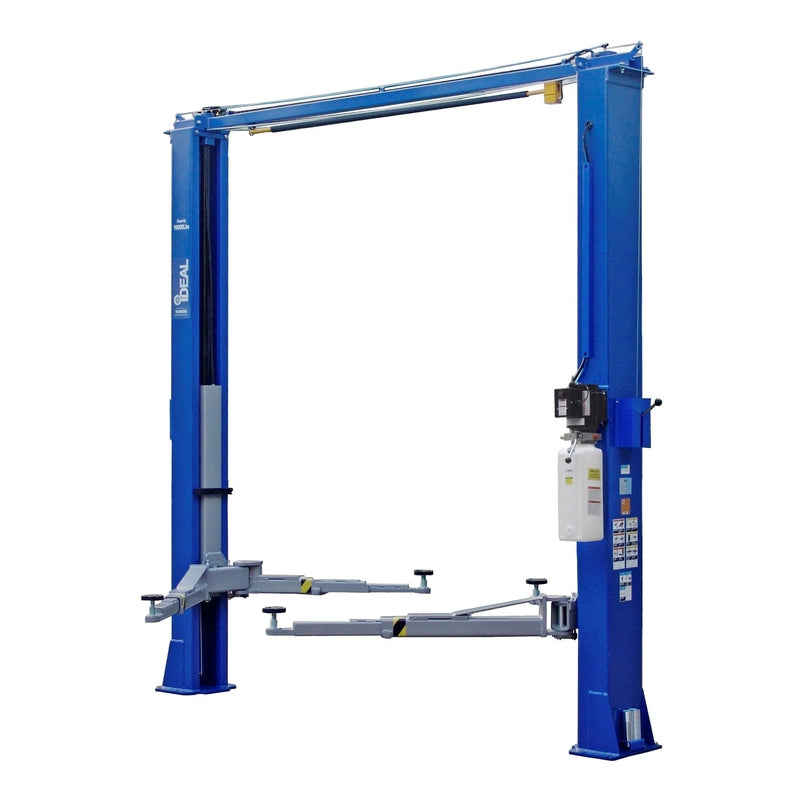

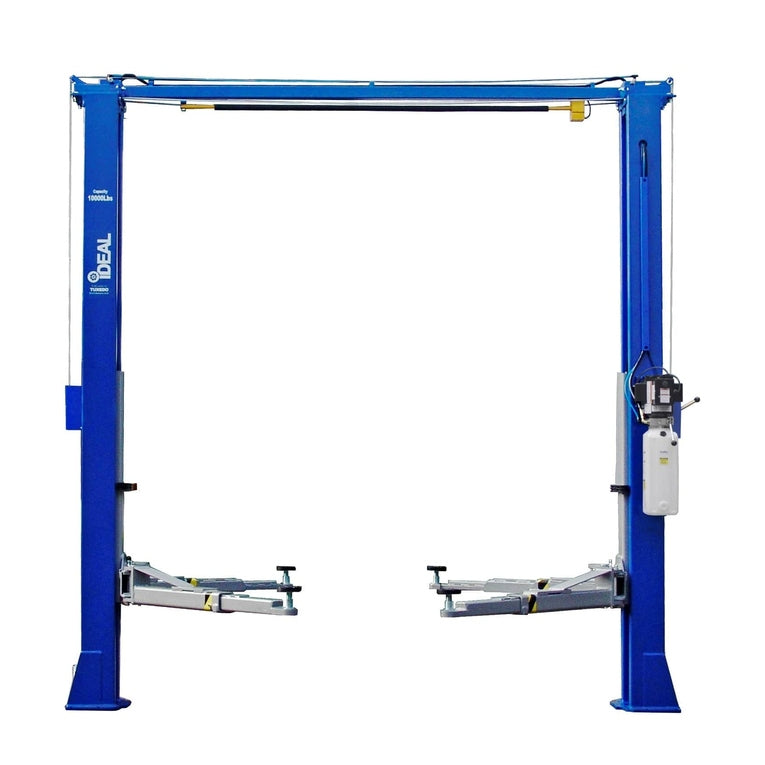

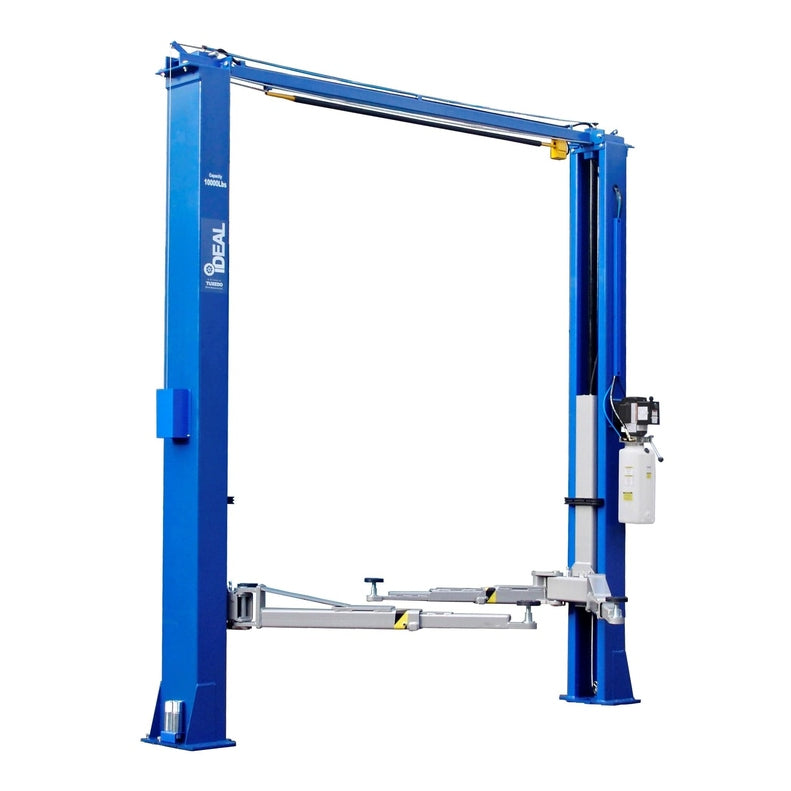

The iDEAL TP10KAC-DX 10,000 lb ALI Certified 2-Post Lift delivers premium performance, strength, and versatility for professional automotive service environments. Featuring a Bi-Symmetric clear-floor design, this lift offers maximum accessibility for a wide range of vehicles—from compact cars to light-duty trucks.

Equipped with offset three-stage short arms and a low pad height of just 4 inches, the TP10KAC-DX allows easy access to low-profile vehicles while maintaining exceptional lifting capability. Its rigid single-piece column and direct-pull hydraulic cylinder ensure reliable, stable operation, while the single-point lock release and clean overhead design simplify technician workflow.

Added features like rubber door guards, a padded overhead shutoff bar, and included truck adapters make this lift both safe and practical. Engineered for durability and efficiency, the iDEAL TP10KAC-DX is one of the most trusted and popular models in its class.

Key Features

  • ALI Certified Design — Meets industry standards for safety and performance.

  • 10,000 lb Lifting Capacity — Handles a wide range of vehicles with ease.

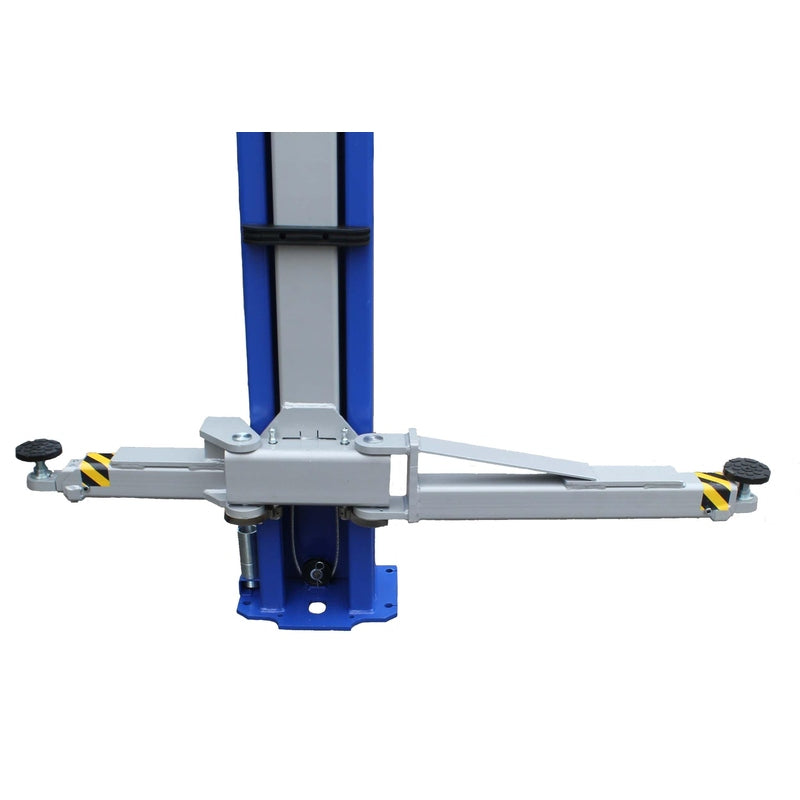

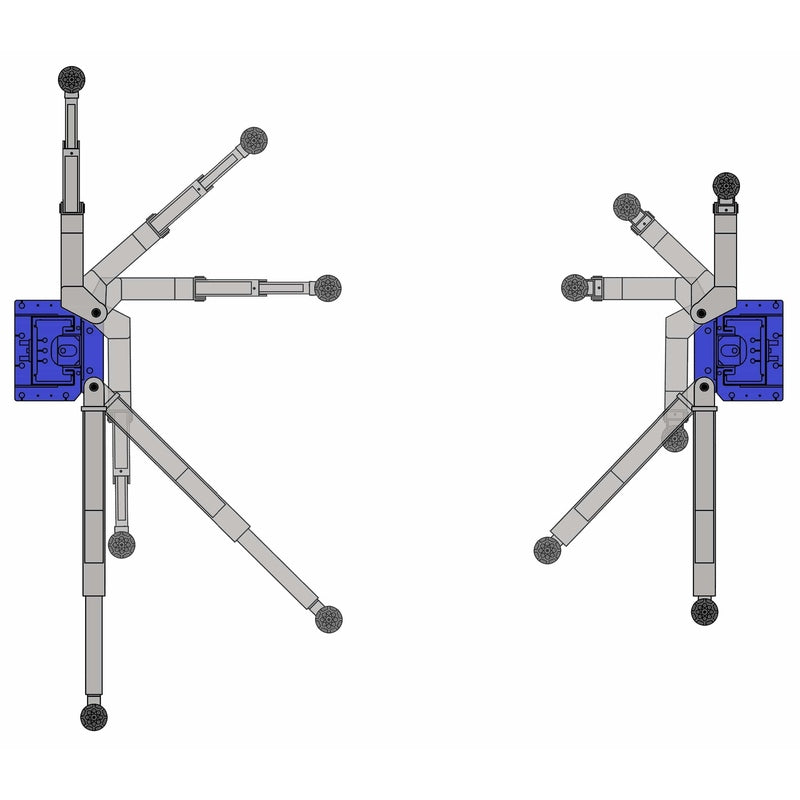

  • Bi-Symmetric Arm Configuration — Provides balanced lifting and flexible arm reach.

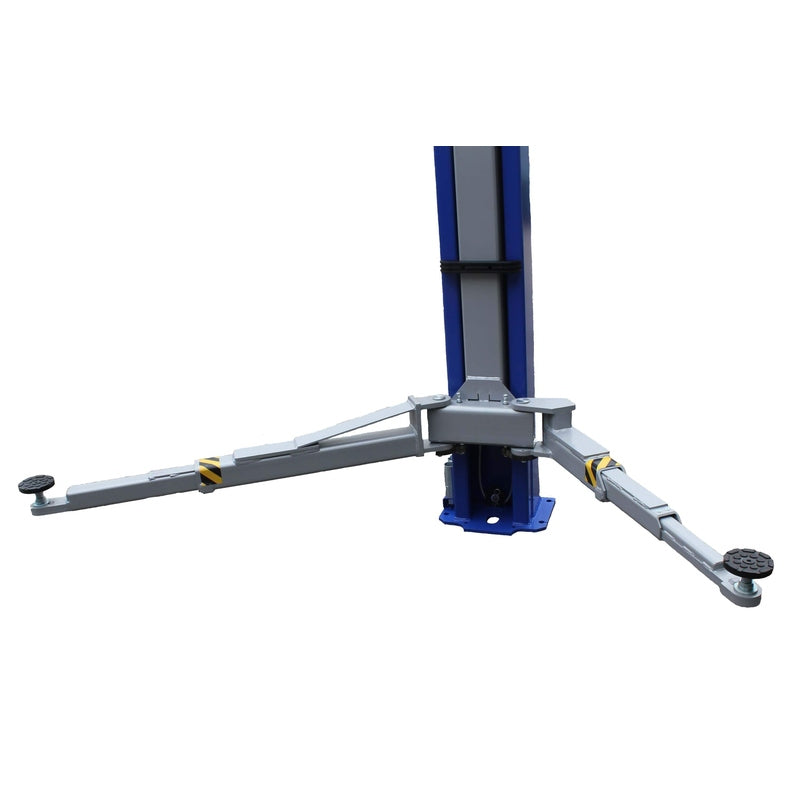

  • Offset Three-Stage Short Arms — Designed for easy access to varied vehicle lift points.

  • Low Pad Height (4") — Ideal for low-clearance vehicles.

  • Single-Piece Column Construction — Ensures structural integrity and long-term stability.

  • Direct-Pull Hydraulic Cylinder — Delivers smooth, efficient lifting performance.

  • Single-Point Lock Release — Simplifies operation and enhances safety.

  • Padded Overhead Shutoff Bar — Prevents accidental contact with vehicle roofs.

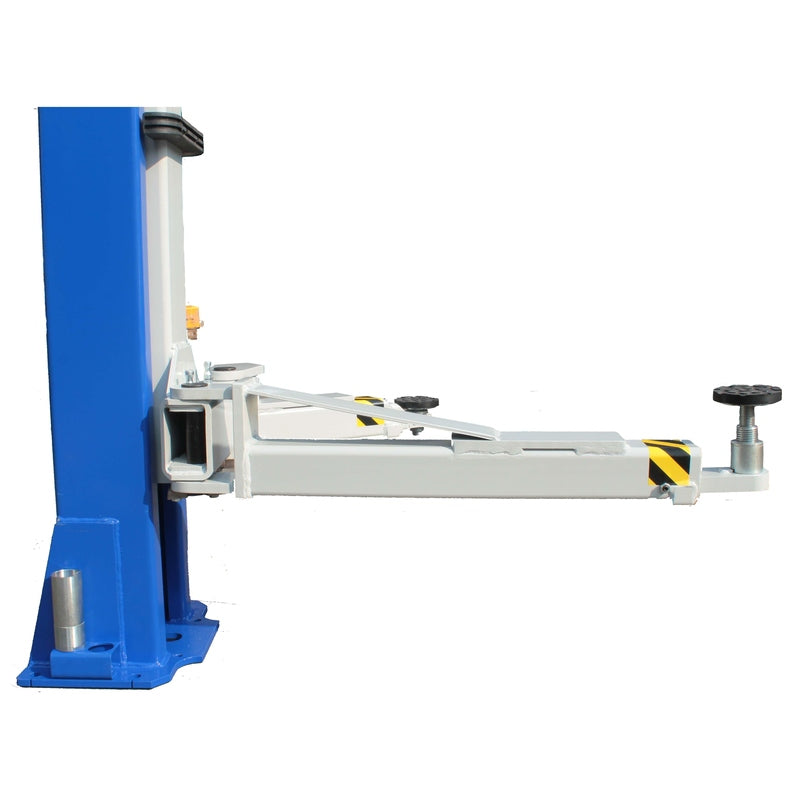

  • Rubber Door Guards — Protects vehicle panels from door damage.

  • Truck Adapters Included — Expands versatility for light-duty trucks and SUVs.

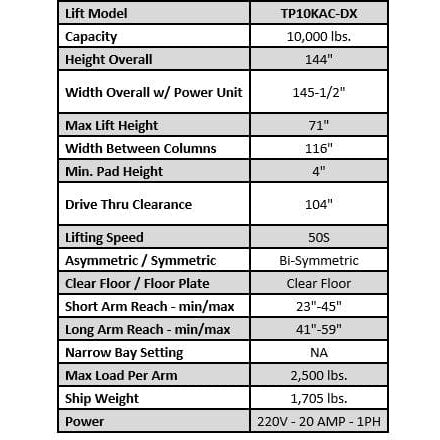

Specifications

Specification Details
Model TP10KAC-DX
Capacity 10,000 lbs

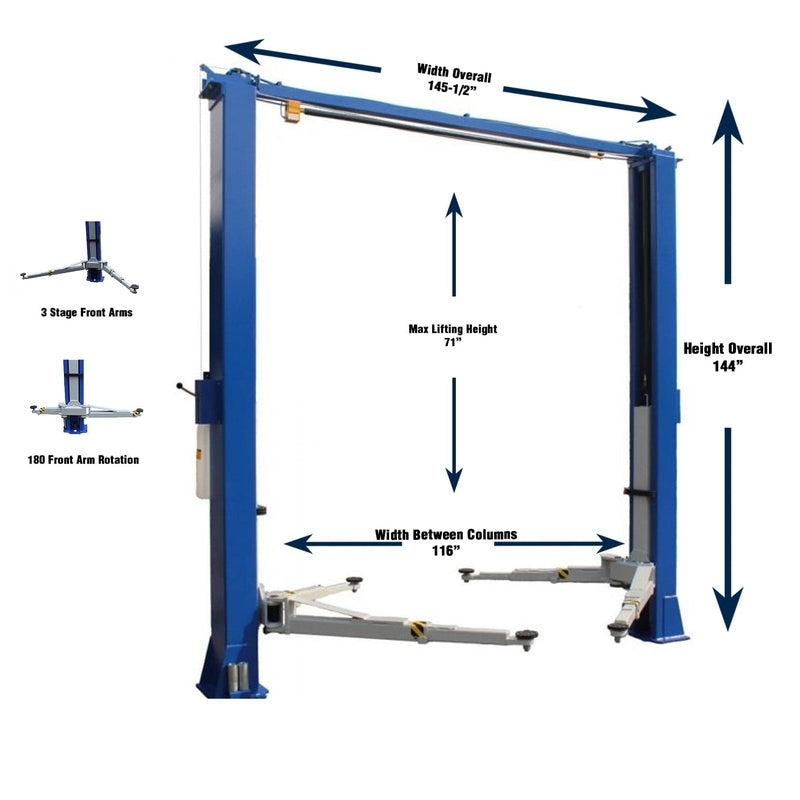

Overall Width 137-3/16″
Overall Width (with Power Unit) 145-1/2″
Overall Height 144″
Minimum Ceiling Height 12′
Low Pad Height 4″
Max Lift Height 71″
Max Lift Height (with Tallest Adapter) 76-1/2″
Width Between Columns 116″
Drive-Thru Width 104″
Floor to Overhead Shutoff 136″
Arm Reach (Front) 23″–45″
Arm Reach (Rear) 41″–57″
Max Load per Arm 2,500 lbs
Power Requirement 220V / 20 Amp / 1PH
Rise Speed 50 seconds
Minimum Concrete Requirement 4-1/4″ @ 3,000 PSI
Operating Pressure 3,050 PSI
Shipping Weight 1,705 lbs
Shipping Dimensions 140″ L × 19″ W × 40″ H

Manual

iDEAL TP10KAC-DX ALI Certified Two Post Overhead Automotive Lift Manual
