Tuxedo TP11KC-DX 11,000 lb Two Post Clear Floor --Direct Drive - Bi-Symmetric - 3 Stage - Single Point

Save $755.00
TuxedoSKU: TP11KC-DX
Price:
$3,565.00 $4,320.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

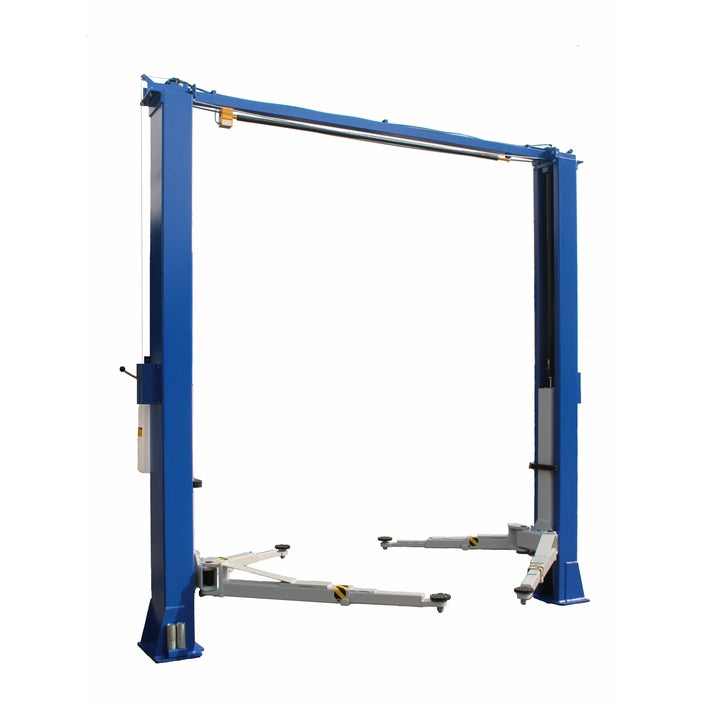

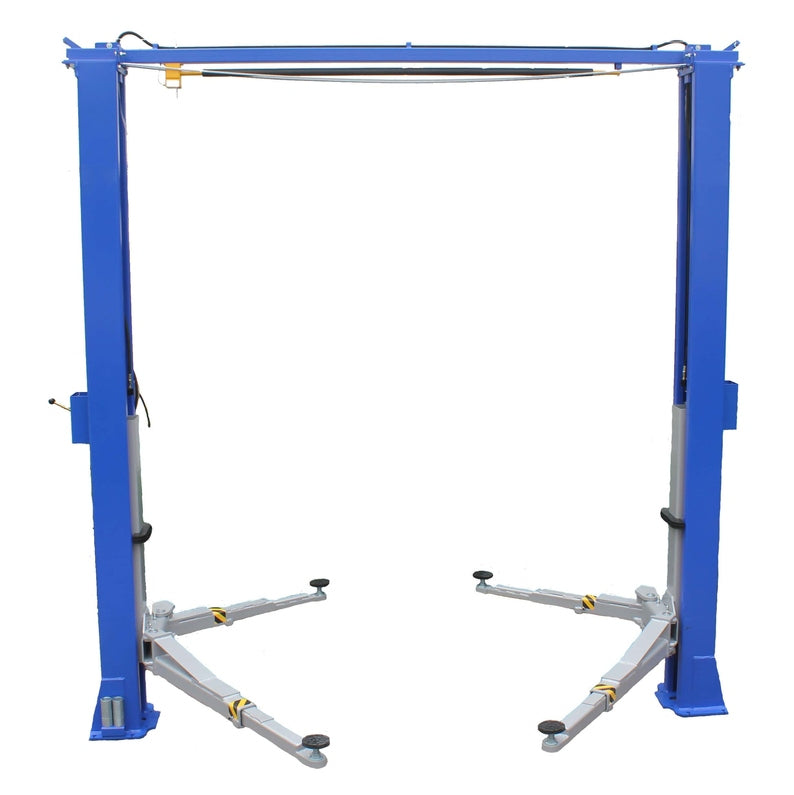

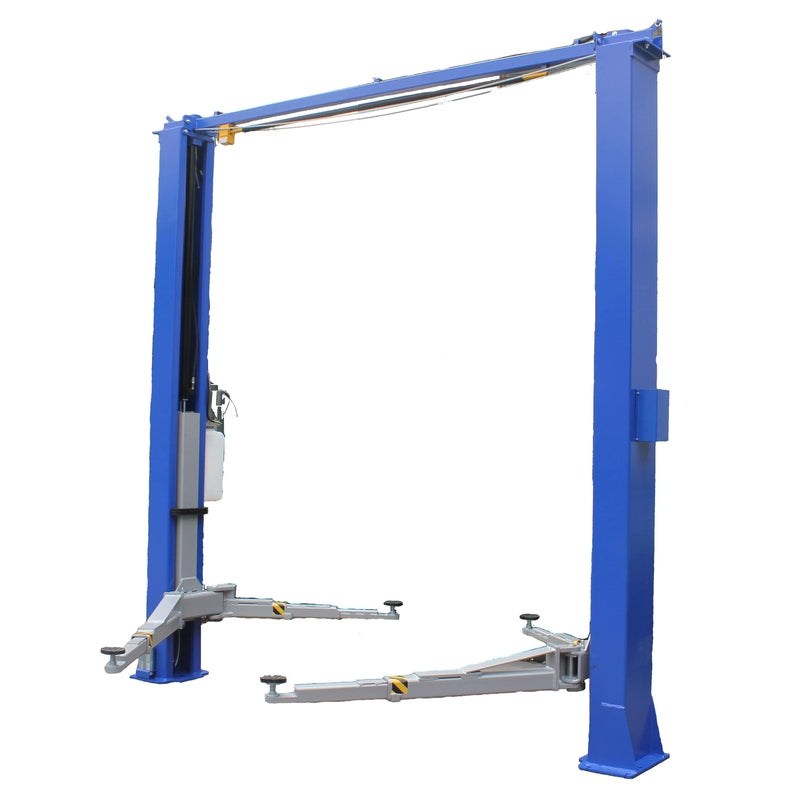

The Tuxedo TP11KC-DX 11,000 lb Two-Post Lift is engineered to deliver professional-grade performance at an economical price. Designed for versatility and ease of use, this lift features a bi-symmetric arm design with 3-stage front arms, allowing it to adapt seamlessly to a wide range of vehicles—from compact cars to full-size trucks.

Its symmetric column layout, combined with direct-drive hydraulic cylinders and a single-piece column structure, ensures maximum strength and stability. The single-point lock release simplifies operation, while low-profile spin-up pads and stackable adapters provide flexible lifting height options. For added safety and convenience, the lift includes rubber door guards, external hose protection, and a heavy-duty arm restraint system.

Reliable, durable, and user-friendly, the TP11KC-DX is designed to become one of the most frequently used tools in any professional or home garage.

Features

  • 11,000 lb Lifting Capacity — Perfect for passenger vehicles, SUVs, and light trucks.

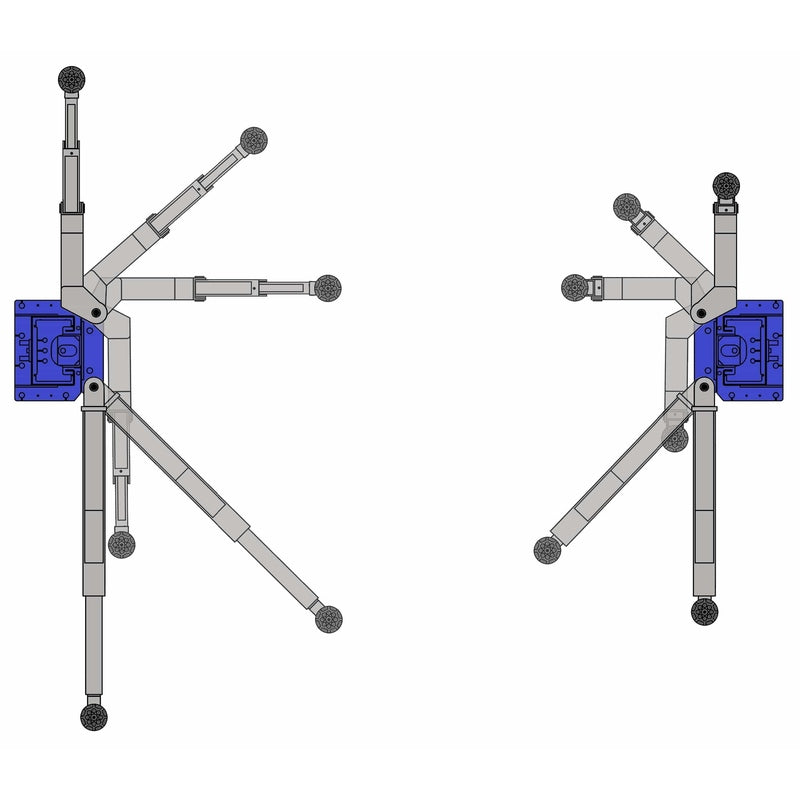

  • Bi-Symmetric Arm Design — Configurable for both asymmetric and symmetric lifting.

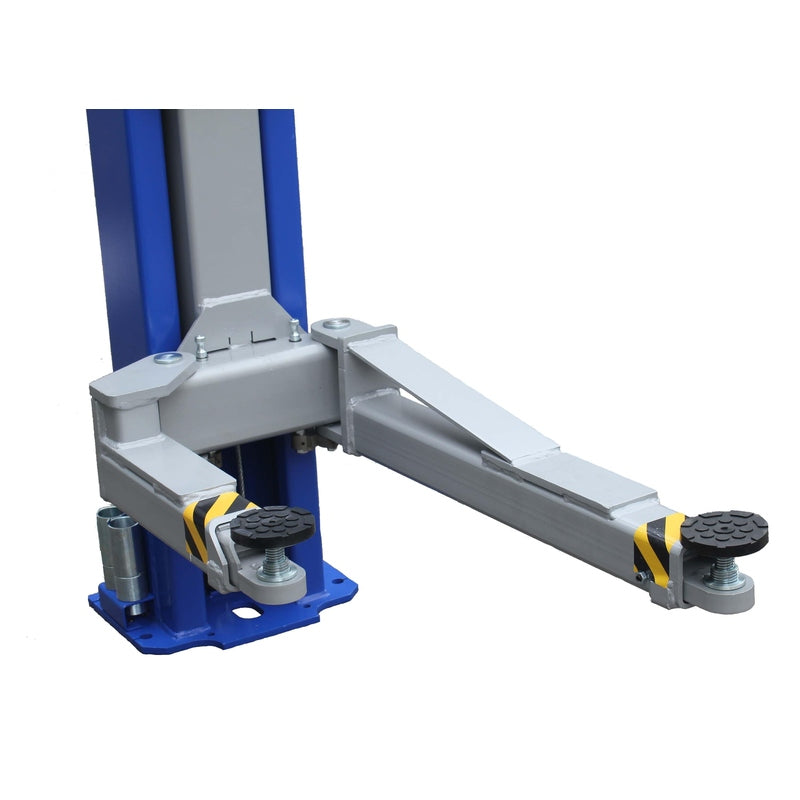

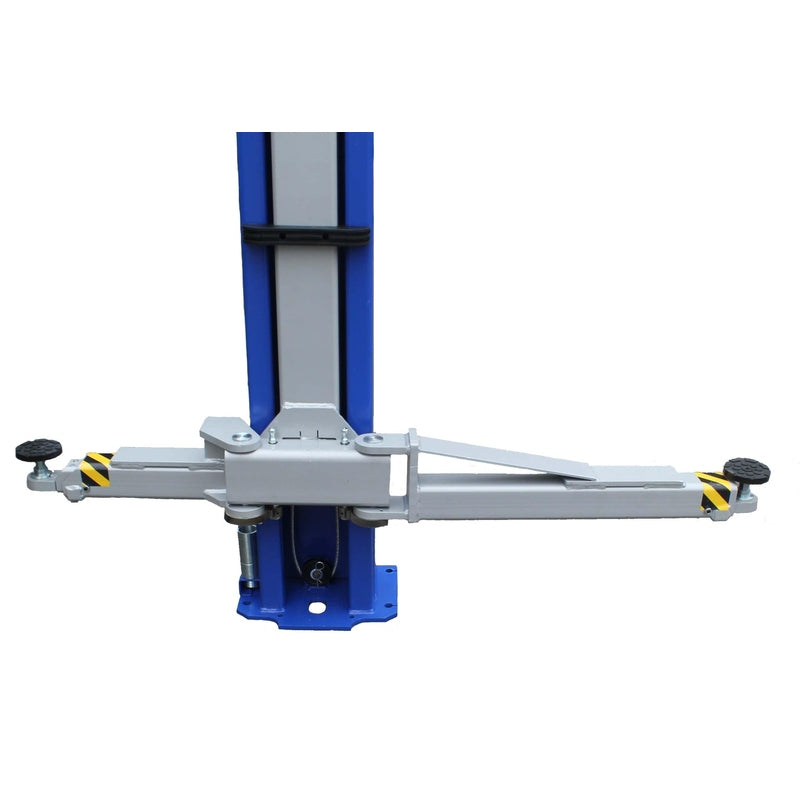

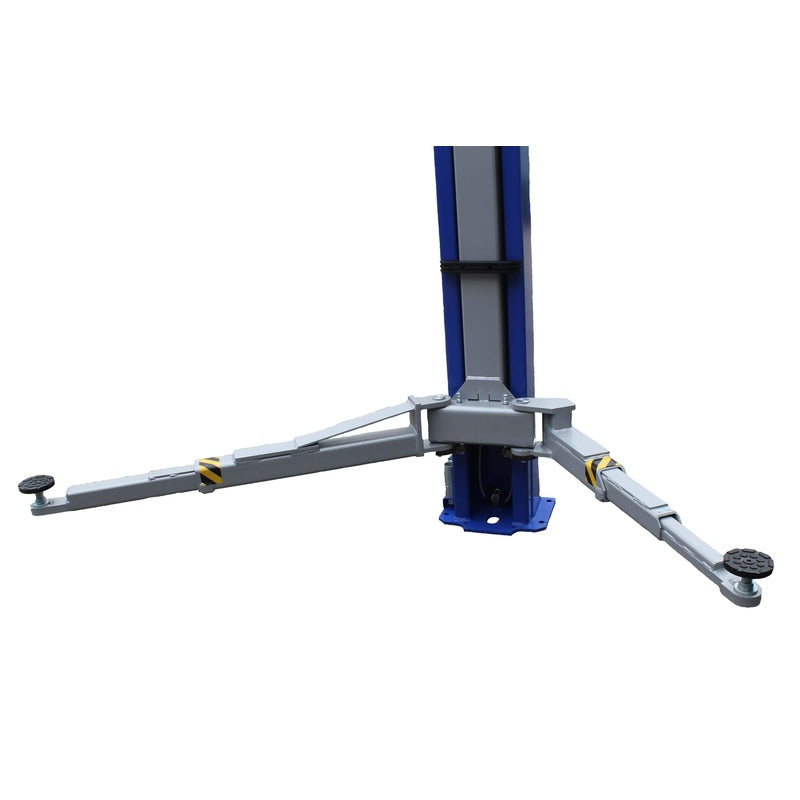

  • 3-Stage Front Arms — Provide extended reach and flexibility.

  • Single-Piece Columns — Enhance stability and simplify installation.

  • Direct-Drive Cylinders — Ensure smooth, consistent performance.

  • Single-Point Lock Release — Allows easy and secure lowering.

  • Heavy-Duty Arm Restraint System — Keeps arms locked safely in place.

  • Low-Profile Spin-Up Pads — Ideal for low-clearance vehicles.

  • Stackable Truck Adapters Included — Accommodate various lift points and vehicle heights.

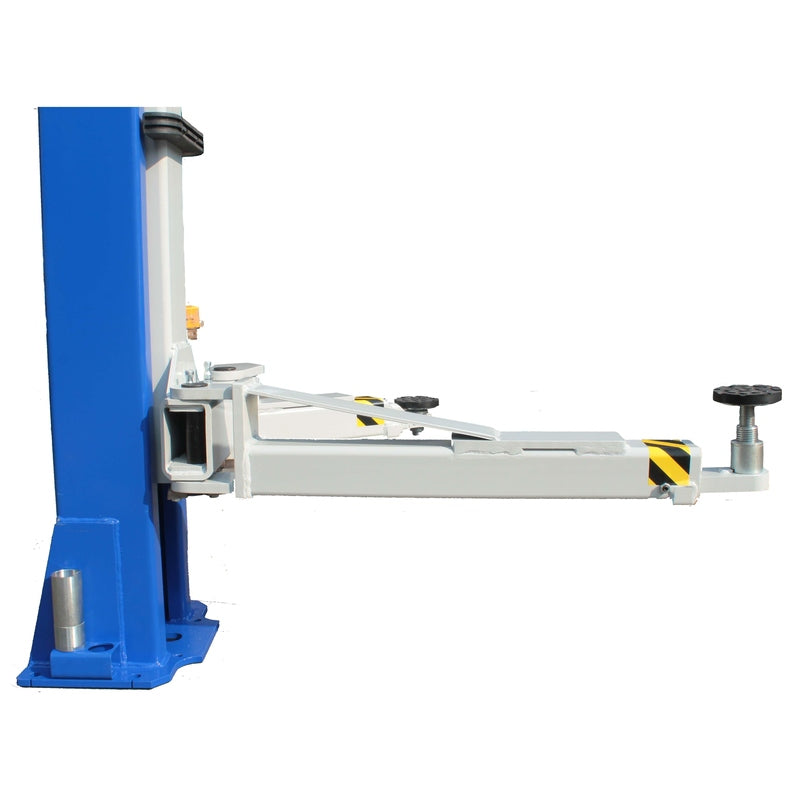

  • Rubber Door Guards & External Hose Guards — Protect vehicles and components during use.

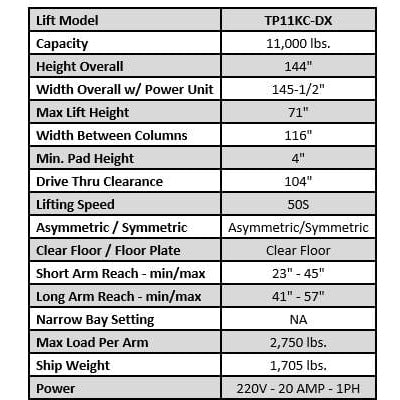

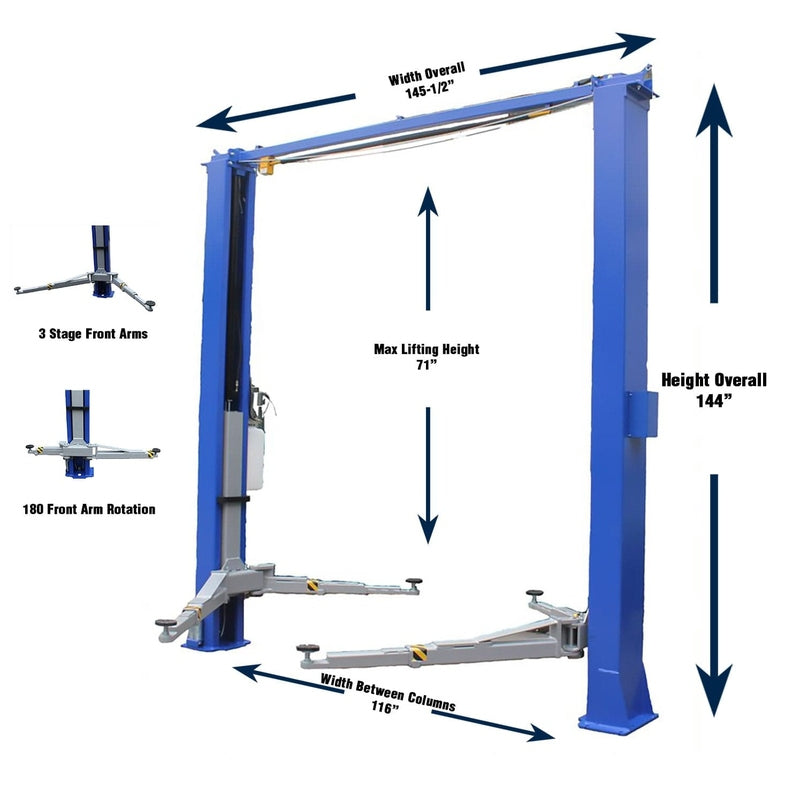

Specifications

Specification Details
Model TP11KC-DX
Capacity 11,000 lbs
Overall Height 144"
Overall Width (with Power Unit) 145-1/2"
Maximum Lift Height 71"
Width Between Columns 116"
Minimum Pad Height 4"
Drive-Thru Clearance 104"
Lifting Speed 50 seconds
Arm Type Bi-Symmetric (Asymmetric/Symmetric)
Design Clear Floor
Short Arm Reach (min/max) 23" – 45"
Long Arm Reach (min/max) 41" – 57"
Maximum Load per Arm 2,750 lbs
Shipping Weight 1,705 lbs
Power 220V / 20 Amp / 1PH

Manual

Tuxedo TP11KC-DX 11,000 lb 2 Post Lift Manual
