TuxedoSKU: TP9KAC-TUX

At a Glance

  • Max Lifting Height: 72"
  • Drive-Thru Clearance: 93.69"
Price:
$2,399.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

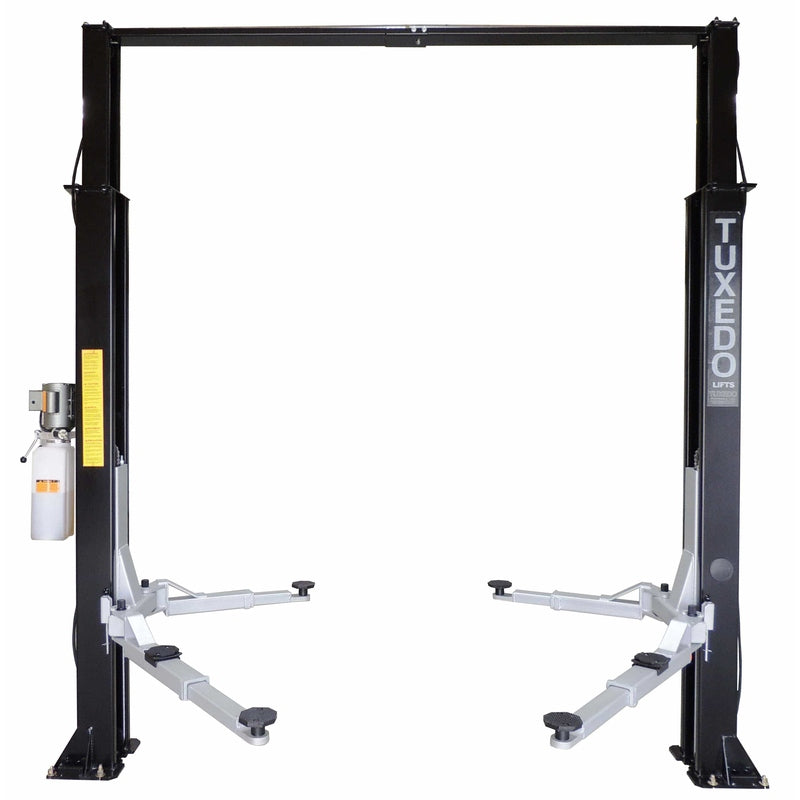

The Tuxedo TP9KAC-TUX 9,000 lb Two-Post Clear Floor Lift is a dependable, light-duty lifting solution designed to provide professional-grade performance at an economical price. Featuring asymmetric swing arms, chain-driven cylinders, and a dual-point carriage lock release, this lift offers smooth, reliable operation for servicing passenger cars, light trucks, and most SUVs.

Its one-piece column construction ensures stability and durability, while the automatic arm restraint system enhances safety during use. The low-profile lifting pads, saddle pad adapters, and stackable height adapters accommodate a wide range of vehicle lifting points. Finished with a durable black powder coat, the TP9KAC-TUX combines functionality, longevity, and exceptional value—making it an ideal choice for small shops and home garages alike.

Features

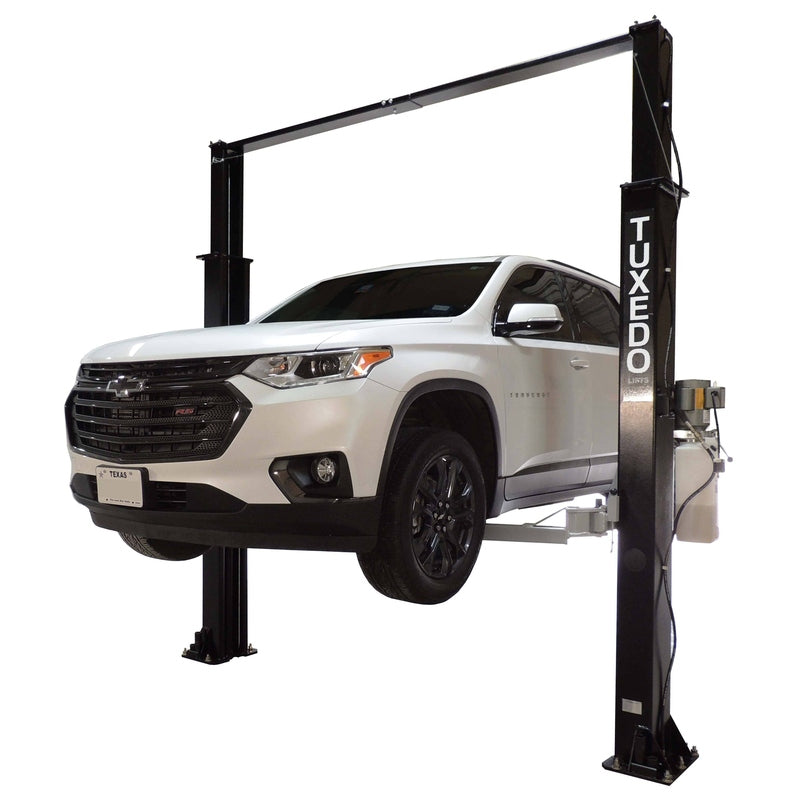

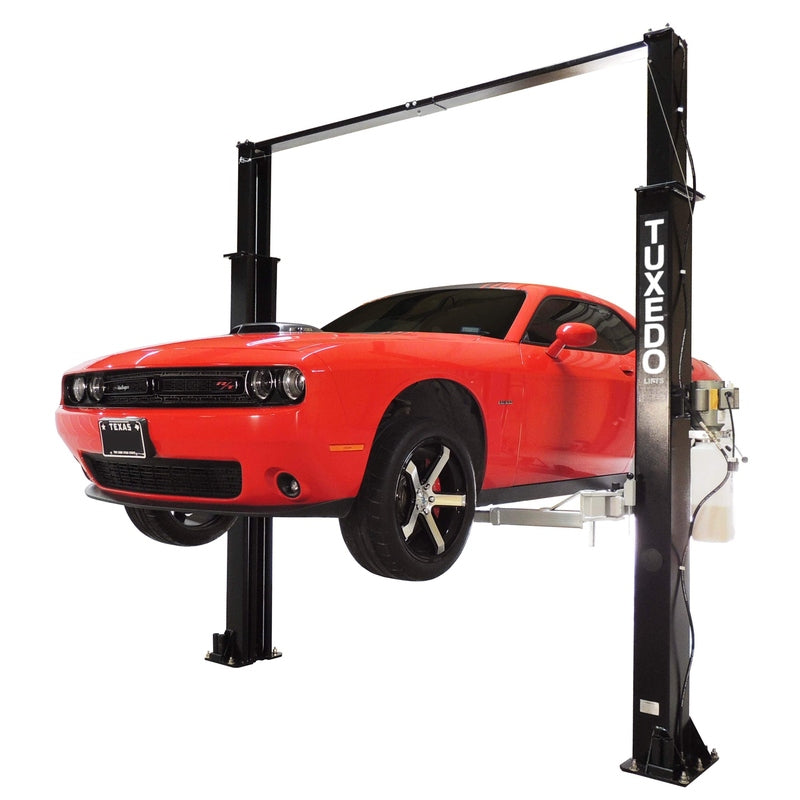

  • 9,000 lb Lifting Capacity — Suitable for cars, light trucks, and SUVs.

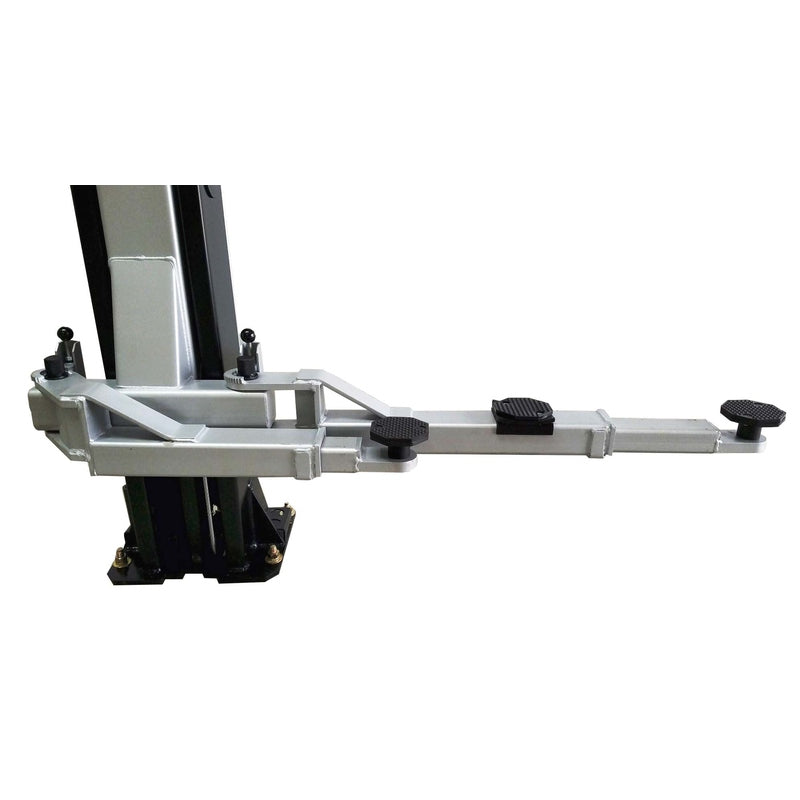

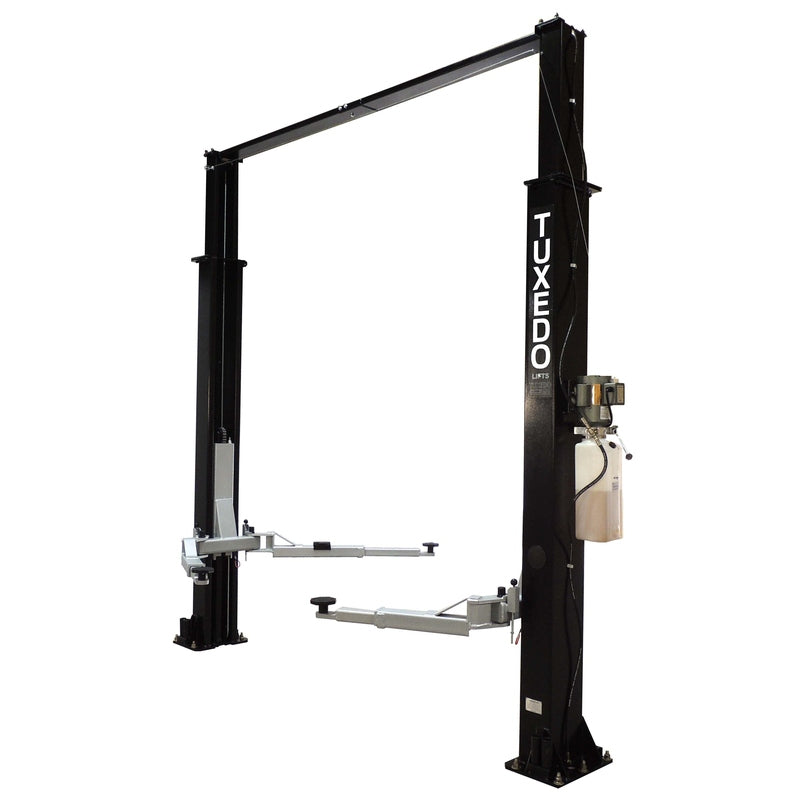

  • Asymmetric Arm Design — Provides improved door clearance and easy vehicle access.

  • Chain-Driven Cylinders — Deliver consistent, reliable lifting performance.

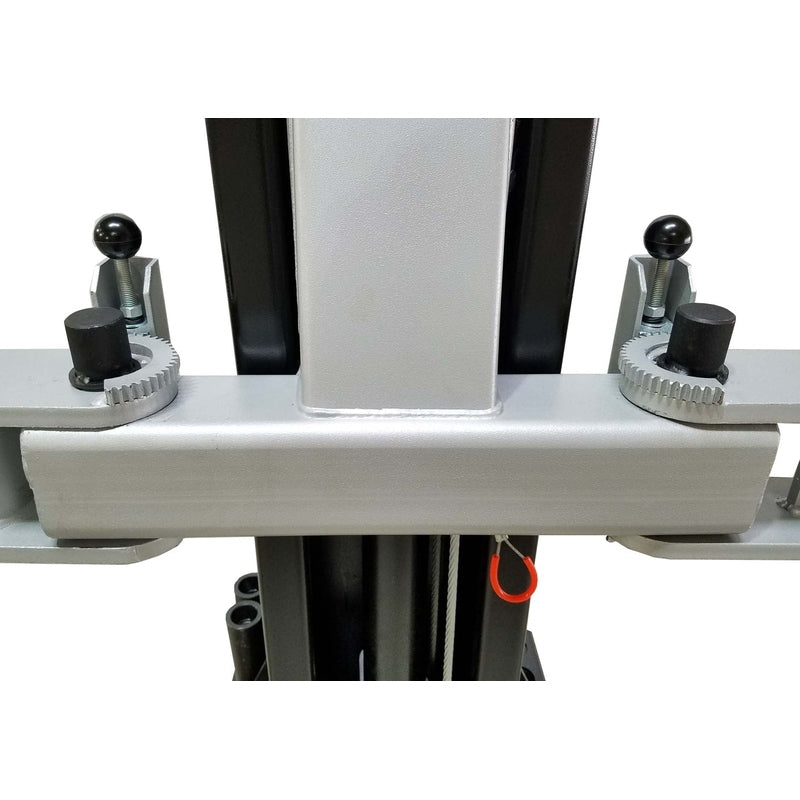

  • Dual-Point Lock Release — Allows safe, even lowering from both sides.

  • Automatic Arm Restraint System — Ensures arms remain securely locked in position.

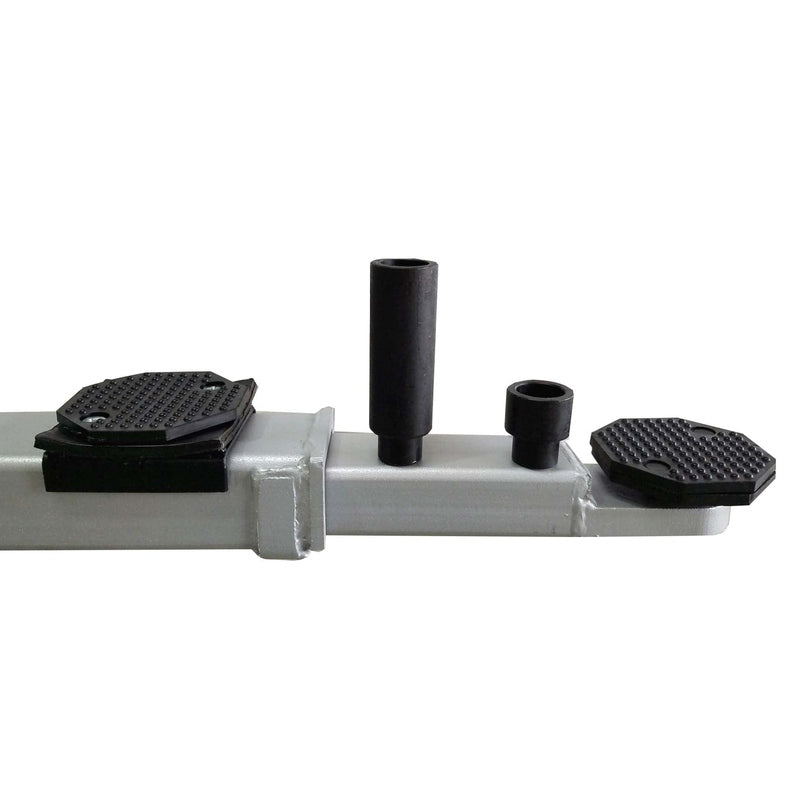

  • Low-Profile Drop-In Lift Pads — Designed for easy placement under low-clearance vehicles.

  • Saddle Pad Adapters (1 Pair) — Included for additional lifting flexibility.

  • Stackable Height Adapters Included — Accommodate various vehicle sizes.

  • Durable Powder-Coat Finish — Provides long-lasting protection and a sleek appearance.

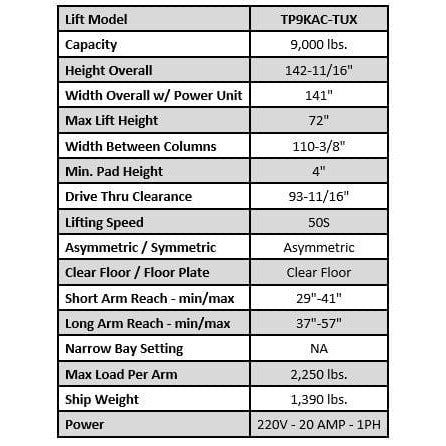

Specifications

Specification Details
Model TP9KAC-TUX
Capacity 9,000 lbs

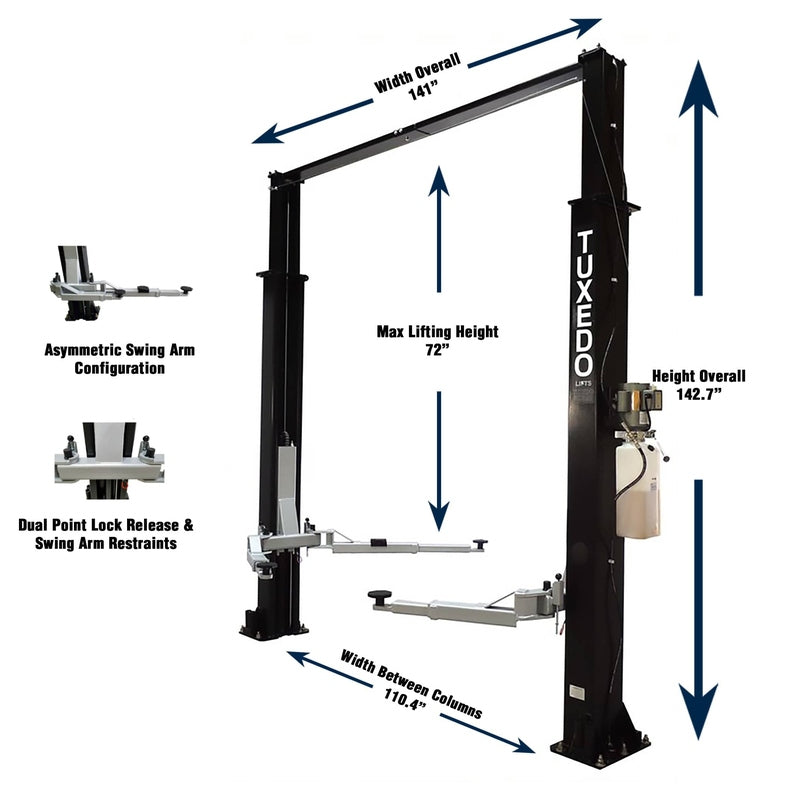

Overall Height 142-11/16"
Overall Width (with Power Unit) 141"
Maximum Lift Height 72"
Width Between Columns 110-3/8"
Minimum Pad Height 4"
Drive-Thru Clearance 93-11/16"
Lifting Speed 50 seconds
Arm Type Asymmetric
Design Clear Floor
Short Arm Reach (min/max) 29" – 41"
Long Arm Reach (min/max) 37" – 57"
Maximum Load per Arm 2,250 lbs
Shipping Weight 1,390 lbs
Power 220V / 20 Amp / 1PH

Manual

Tuxedo TP9KAC-TUX 9,000 lb Two Post Clear Floor Manual
