Tuxedo TP9KACX 9,000 lb Two Post Clear Floor Lift - Asymmetric

Save $310.00
TuxedoSKU: TP9KACX
Price:
$2,440.00 $2,750.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

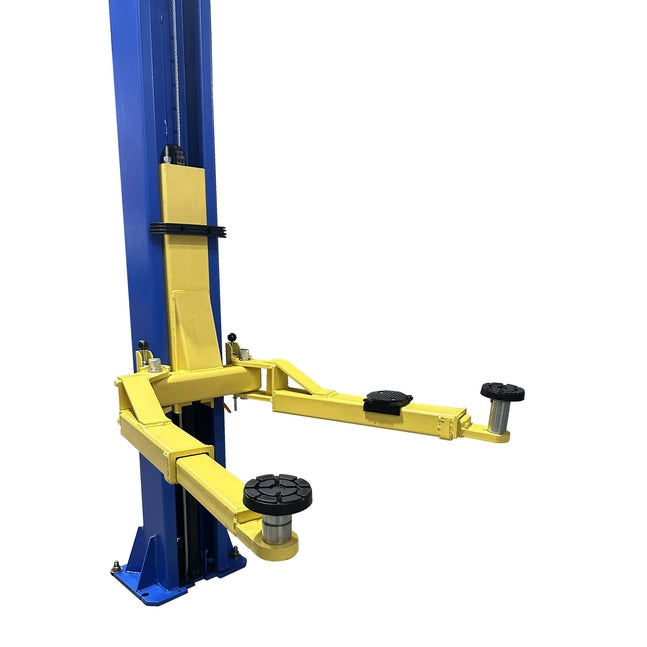

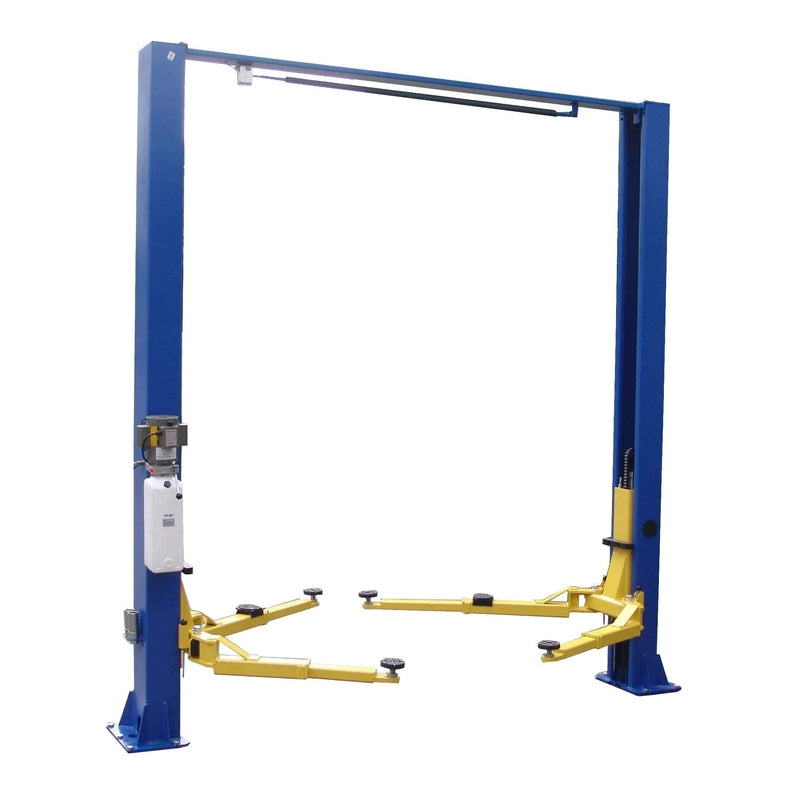

The Tuxedo TP9KACX Two-Post Lift delivers strength, efficiency, and convenience in a newly enhanced design. Engineered with a 9,000 lb lifting capacity, this model is available in both clear-floor and floor-plate configurations and includes a variety of upgraded standard features.

Its single-piece column construction and chain-driven cylinders ensure lasting durability and smooth operation. The internal hose routing maintains a clean, professional appearance, while the padded overhead shut-off bar with kill switch adds an extra layer of safety. Additional premium components—such as drop-in swivel pads with stackable adapters, rubber door guards, and an auto arm restraint system—make the TP9KACX one of the most versatile and dependable two-post lifts in its class.

Features

  • 9,000 lb Capacity — Suitable for a wide range of cars, SUVs, and light trucks.

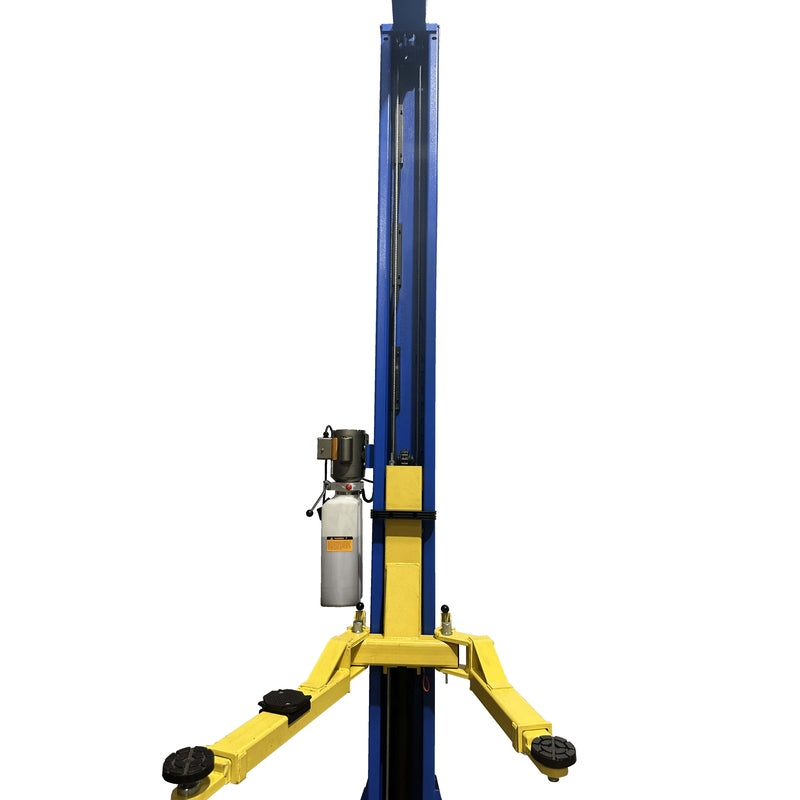

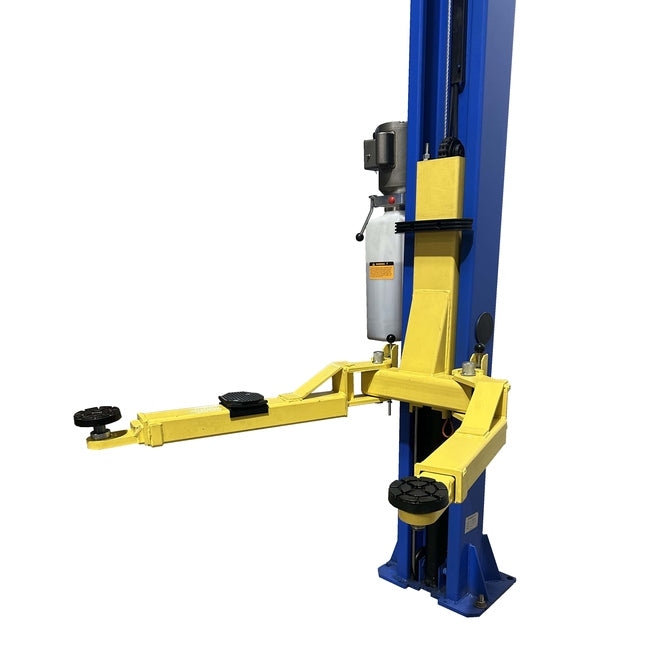

  • Asymmetric Arm Design — Provides superior door clearance and balanced lifting.

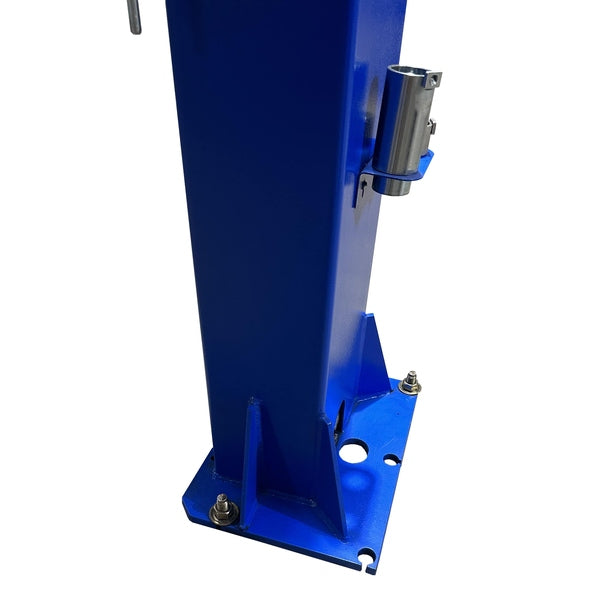

  • Single-Piece Columns — Increase rigidity and simplify installation.

  • Chain-Driven Cylinders — Offer reliable, smooth lift operation.

  • Dual-Point Lock Release — Ensures easy and secure lowering.

  • Internal Hose Routing — Protects hydraulic lines and enhances appearance.

  • Overhead Safety Shut-Off Bar — Automatically halts lift movement when contact is made.

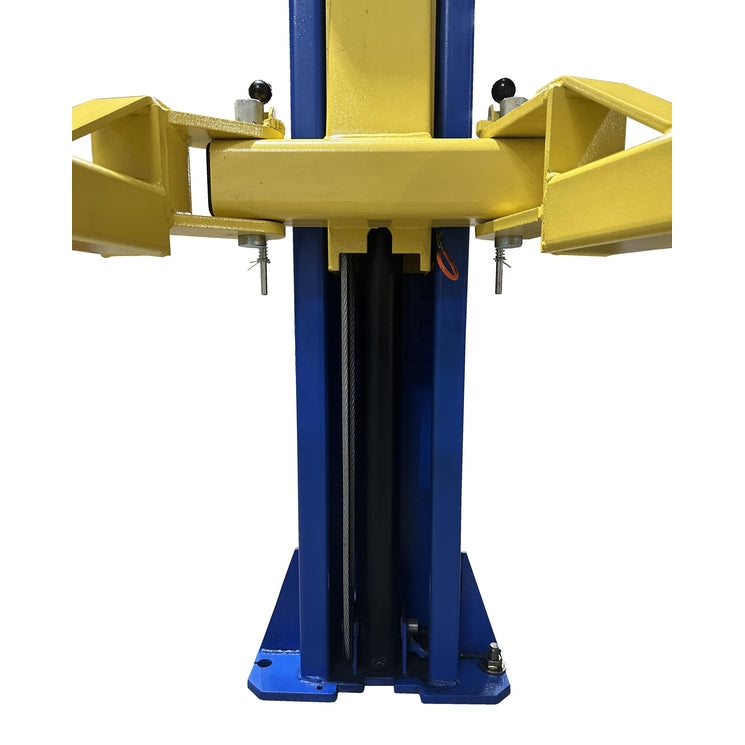

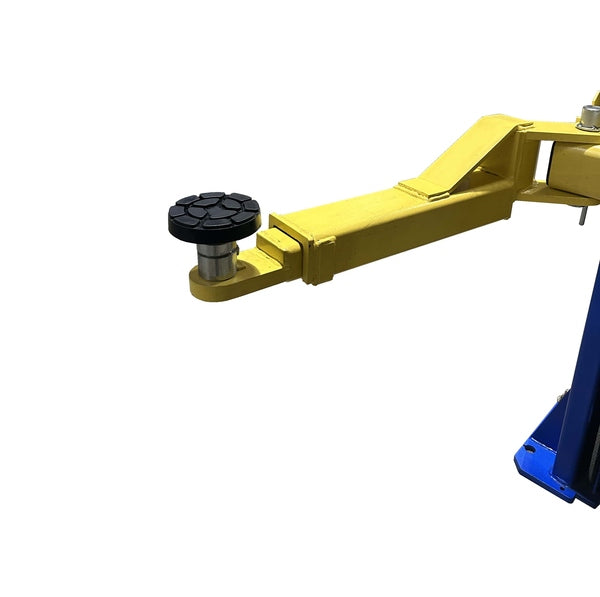

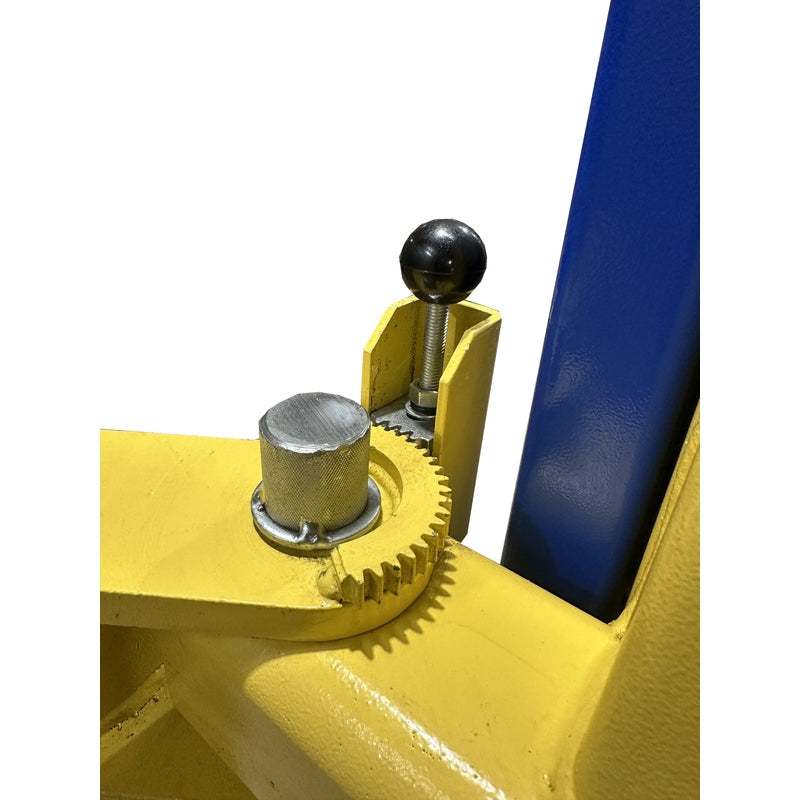

  • Auto Arm Restraint System — Locks arms in position for added safety.

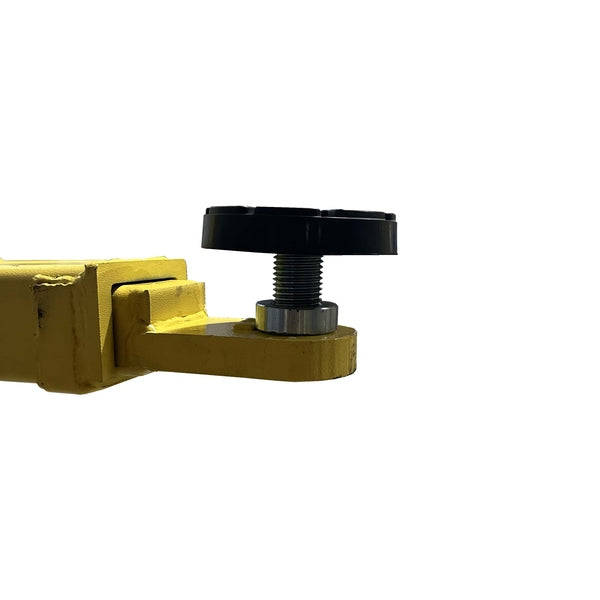

  • Low-Profile Spin-Up Pads — Allow easy access under low-clearance vehicles.

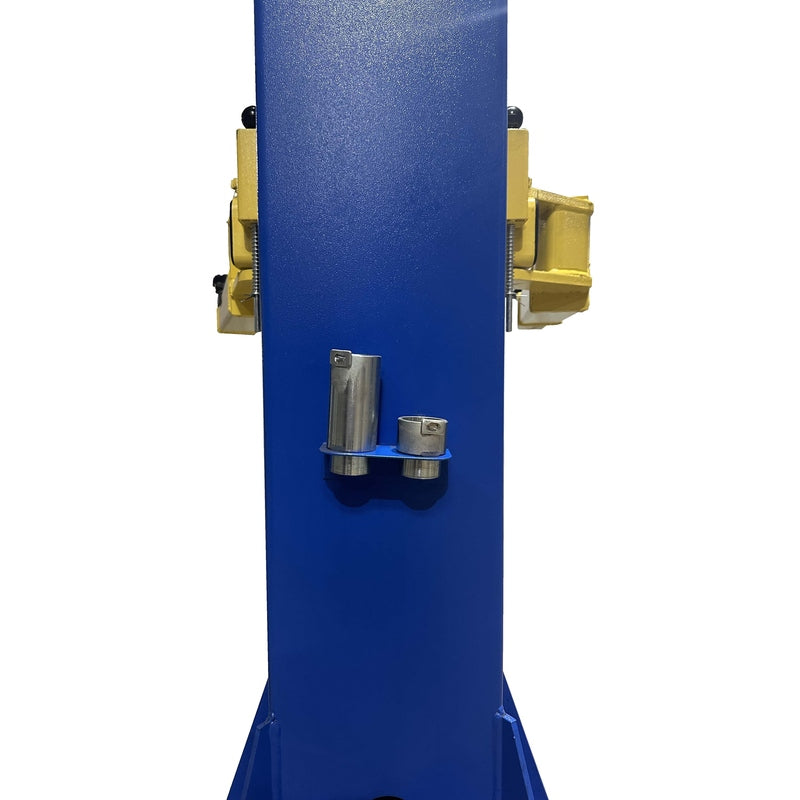

  • Stackable Height Adapters Included — Accommodate varying vehicle lift points.

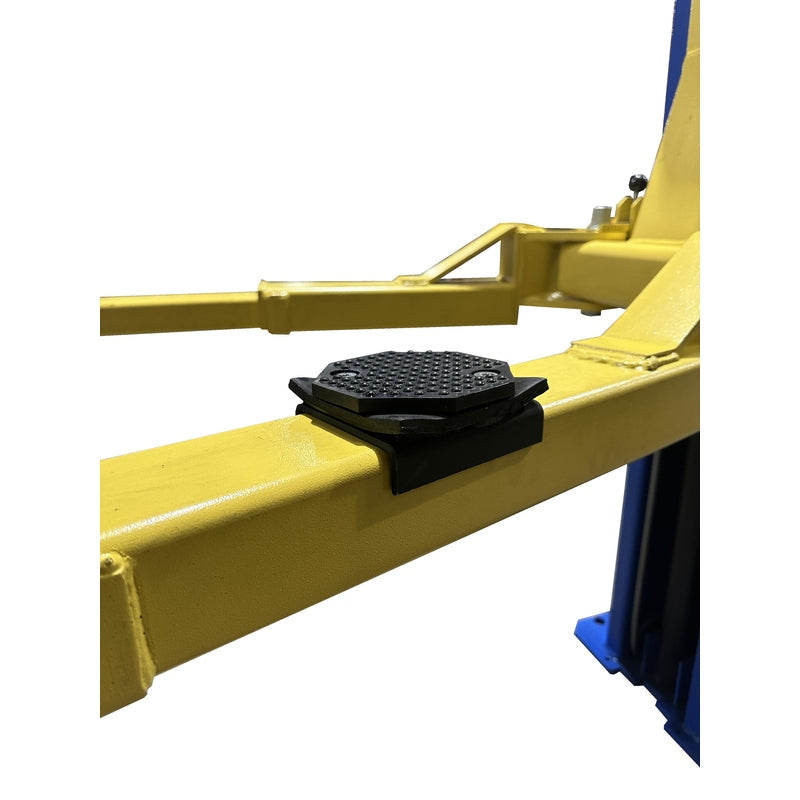

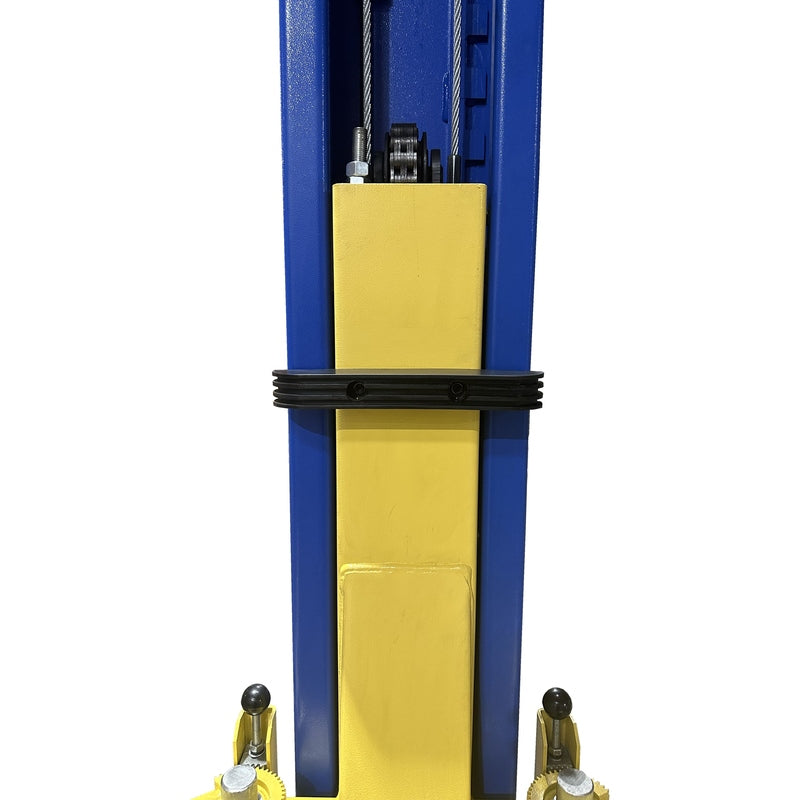

  • Rubber Door Guards — Prevent vehicle damage during operation.

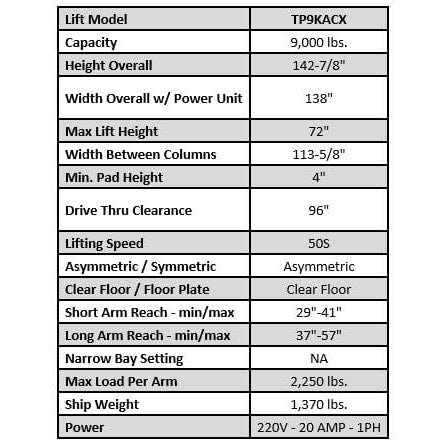

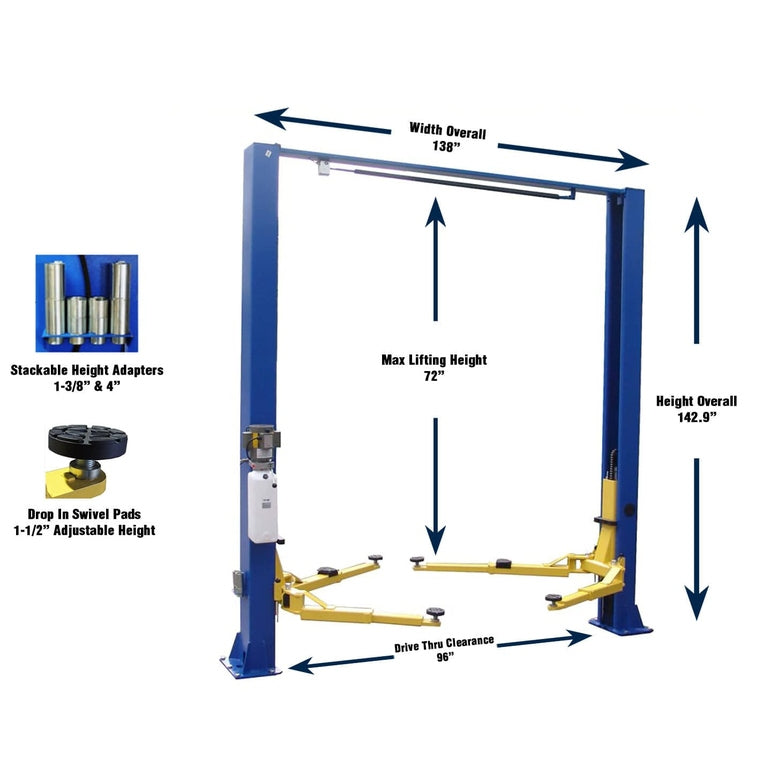

Specifications

Specification Details
Model TP9KACX
Capacity 9,000 lbs
Overall Height 142-7/8"
Overall Width (with Power Unit) 138"
Maximum Lift Height 72"
Width Between Columns 113-5/8"
Minimum Pad Height 4"
Drive-Thru Clearance 96"
Lifting Speed 50 seconds
Arm Type Asymmetric
Design Clear Floor
Short Arm Reach (min/max) 29" – 41"
Long Arm Reach (min/max) 37" – 57"
Max Load per Arm 2,250 lbs
Shipping Weight 1,370 lbs

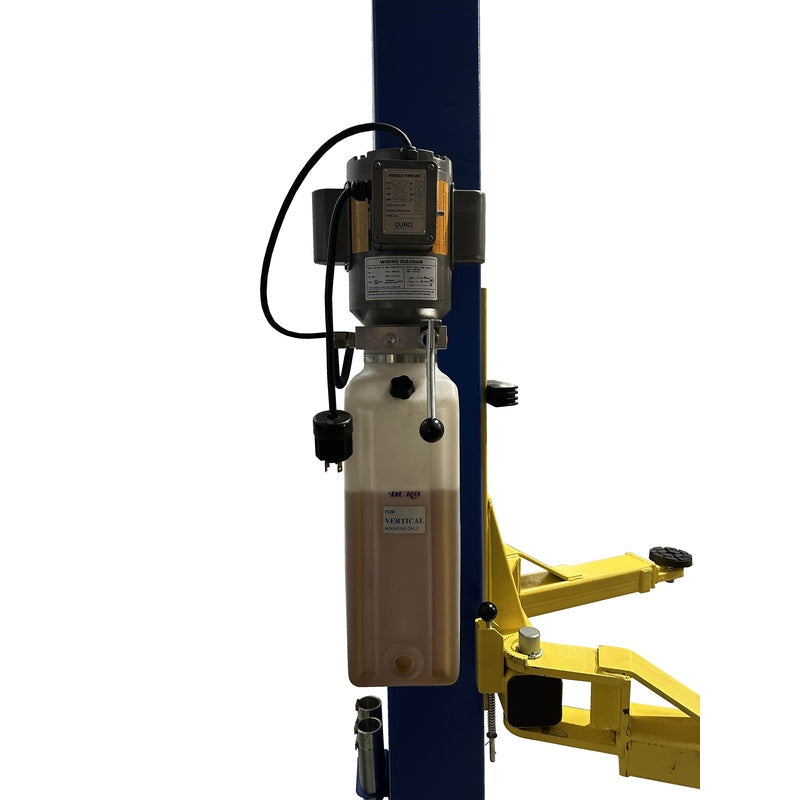

Power 220V / 20 Amp / 1PH

Manual

Tuxedo TP9KACX 9,000 lb 2 Post Lift Manual
