Tuxedo TP9KFX 9,000 lb Two Post Floor Plate - Symmetric

Save $1,030.00
TuxedoSKU: TP9KFX
Price:
$2,470.00 $3,500.00

Why Shop with Us?

  • Fast Shipping; We aim to have your order delivered within 6-12 days.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; Chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; Your information is secure.

Description

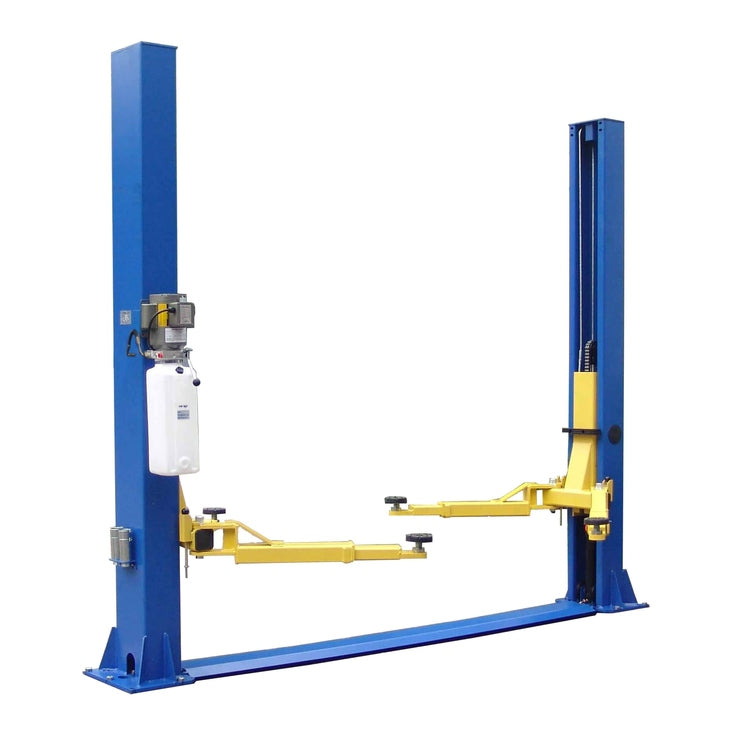

The Tuxedo TP9KFX 9,000 lb Two-Post Lift delivers exceptional performance, safety, and value in a redesigned, space-efficient package. Built for strength and reliability, this lift features single-piece column construction, chain-driven cylinders, and symmetric lifting arms, making it ideal for servicing a wide range of passenger vehicles, light trucks, and SUVs.

The updated design includes internal hose routing for a cleaner appearance, a padded overhead shut-off bar with kill switch for safety, and rubber door guards to protect vehicle panels during operation. Low-profile spin-up lift pads with stackable height adapters ensure easy access to various vehicle types, while the dual-point lock release and auto arm restraint system provide secure, efficient operation.

Durable, dependable, and built to last, the TP9KFX offers professional-grade performance at an outstanding value.

Features

  • 9,000 lb Lifting Capacity — Perfect for passenger cars, SUVs, and light trucks.

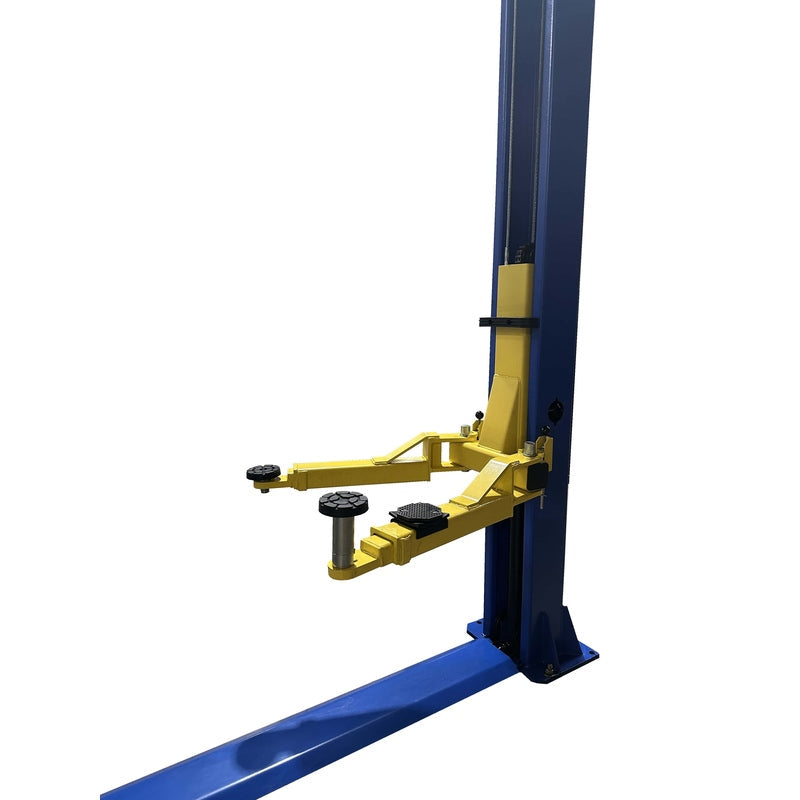

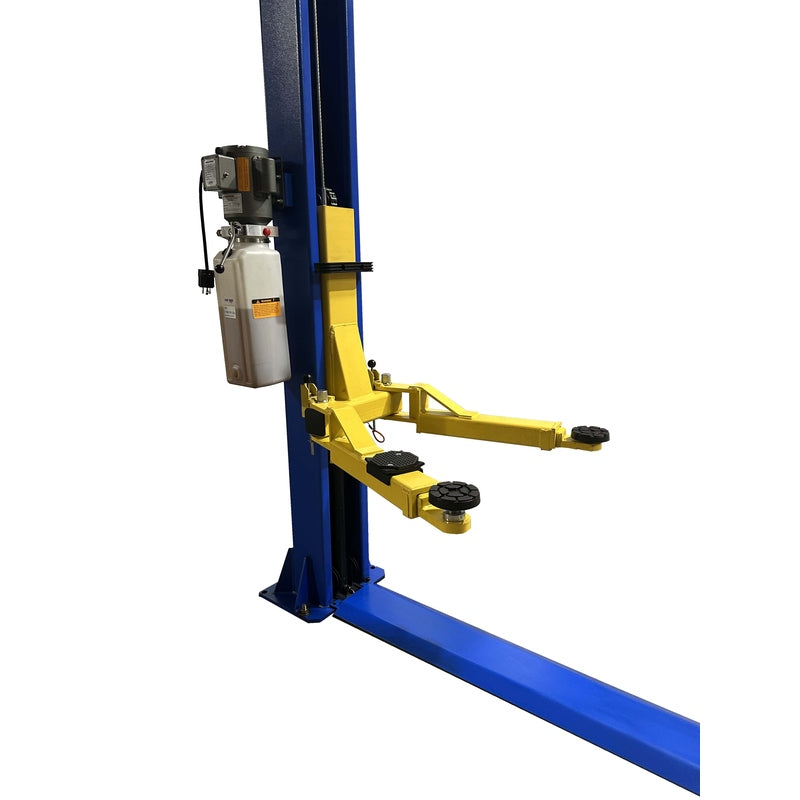

  • Symmetric Arm Design — Provides balanced lifting for stable vehicle support.

  • Single-Piece Columns — Enhance rigidity and long-term durability.

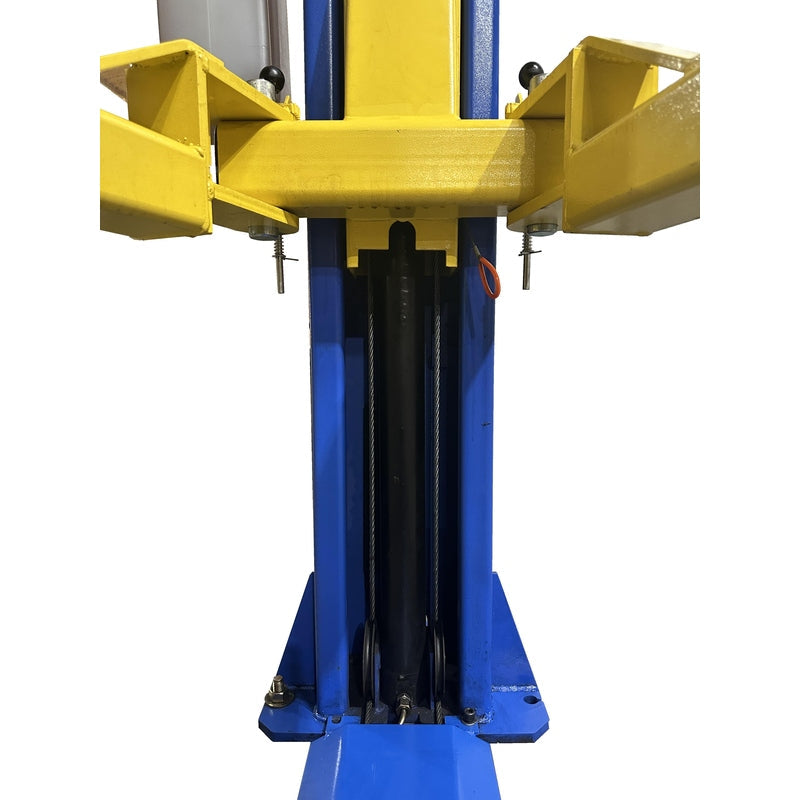

  • Chain-Driven Cylinders — Deliver smooth and consistent lift operation.

  • Dual-Point Lock Release — Ensures safe, controlled lowering.

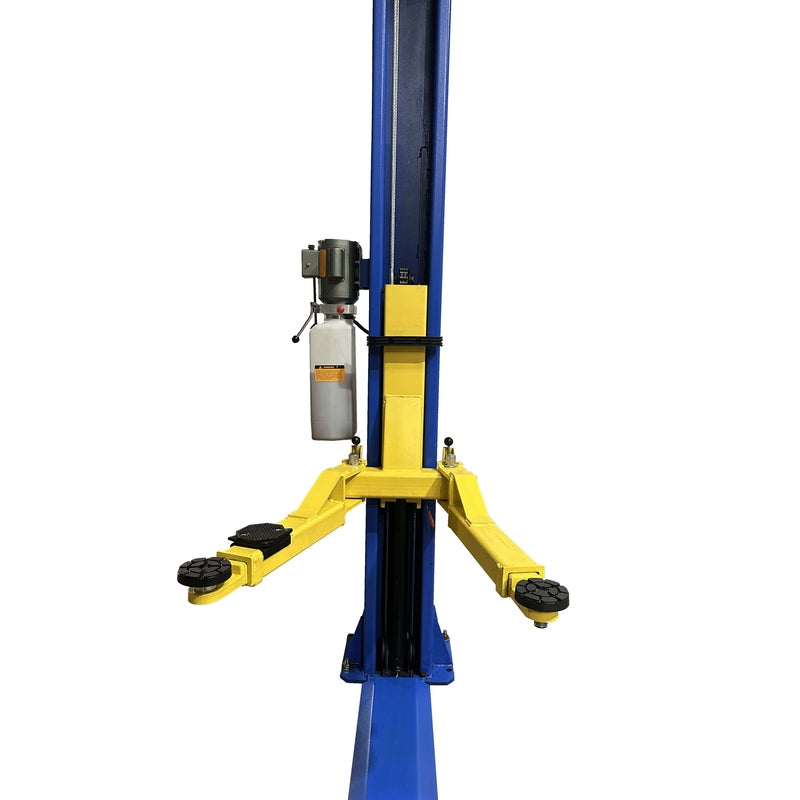

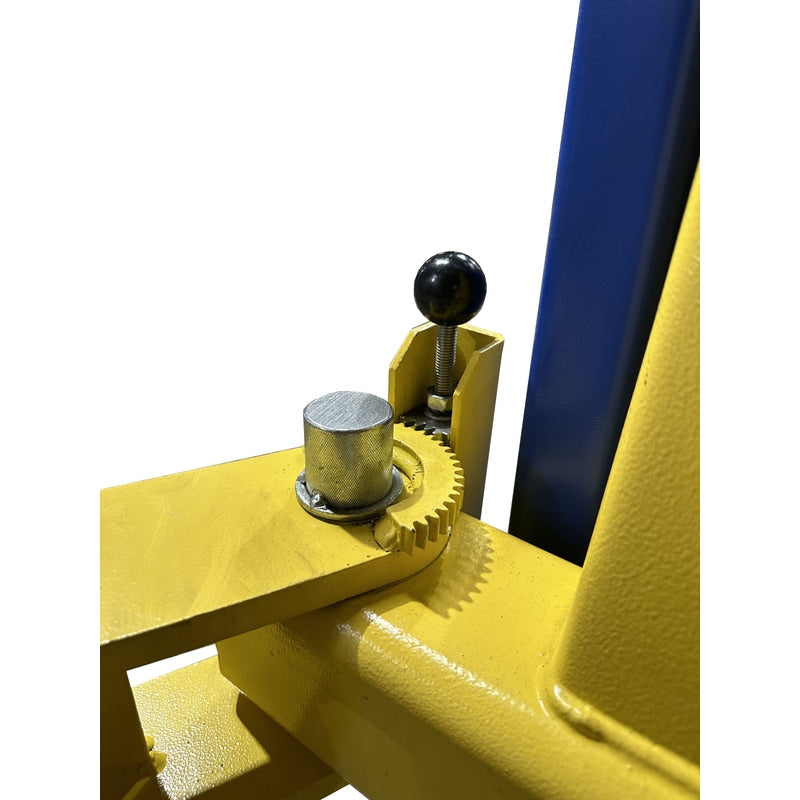

  • Auto Arm Restraint System — Automatically locks arms for added safety.

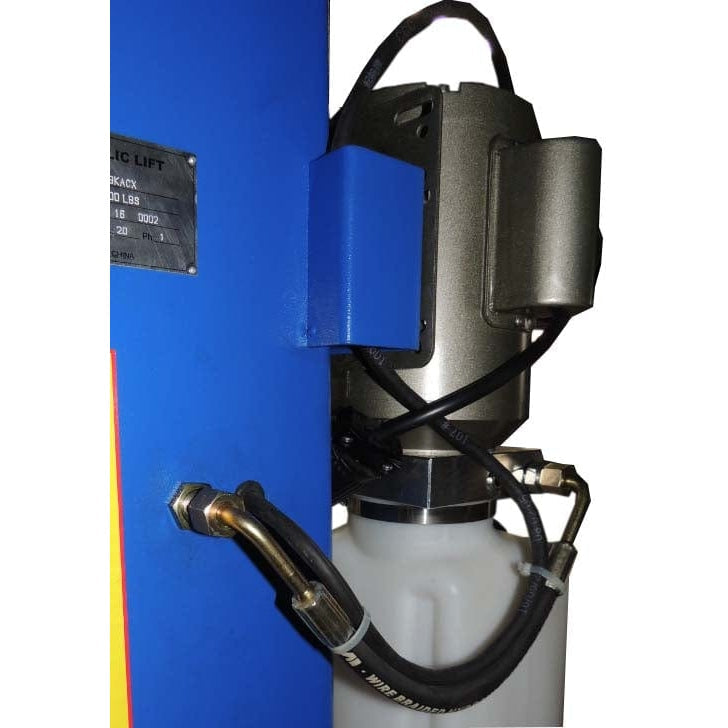

  • Internal Hose Routing — Keeps hoses protected and the workspace uncluttered.

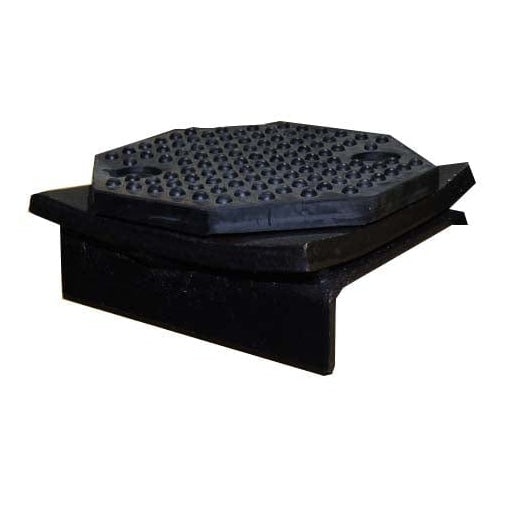

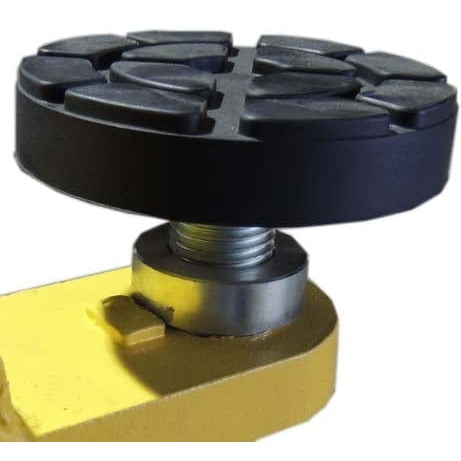

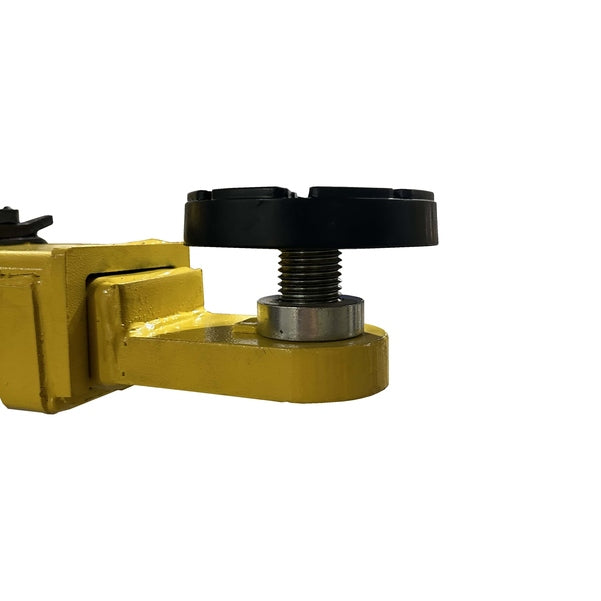

  • Low-Profile Spin-Up Pads — Allow easy placement under low-clearance vehicles.

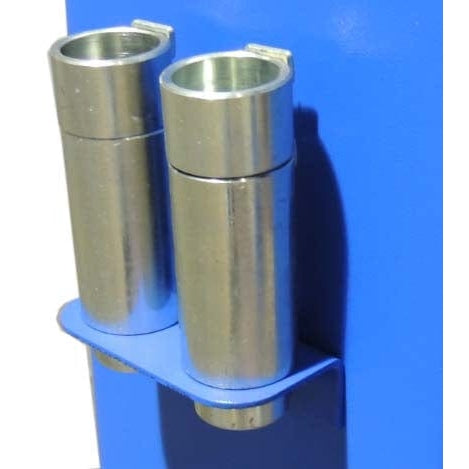

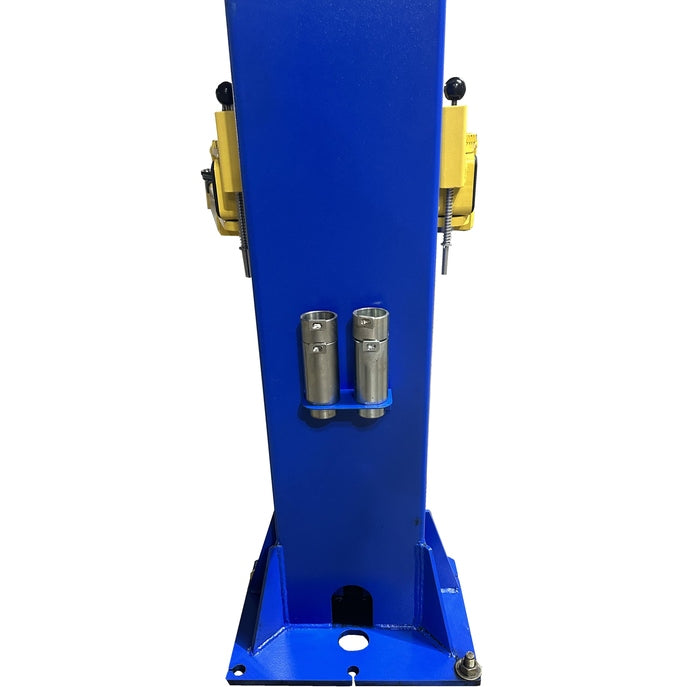

  • Stackable Height Adapters Included — Expand versatility for different lift points.

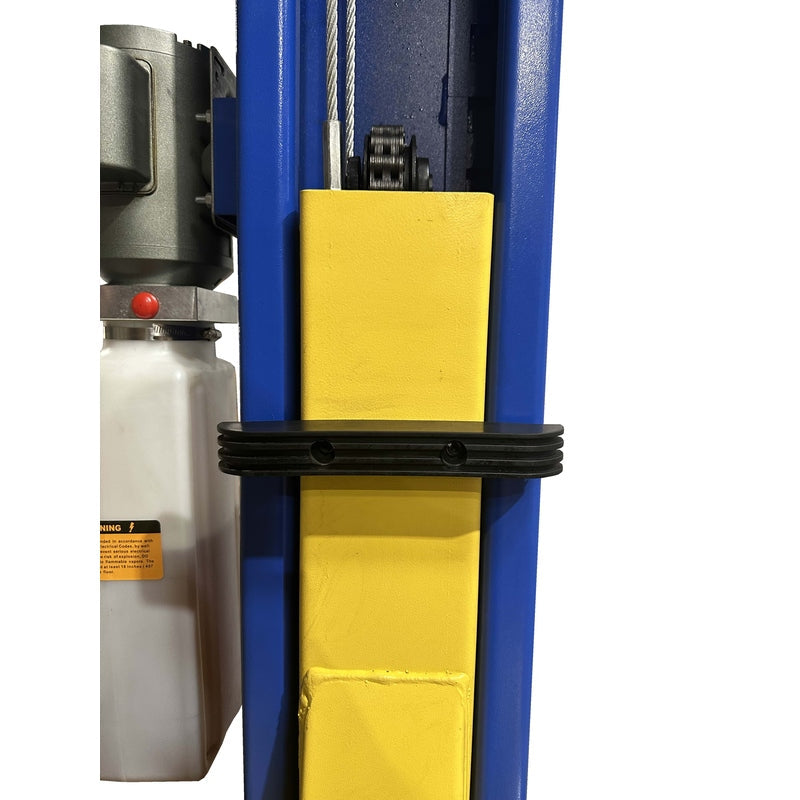

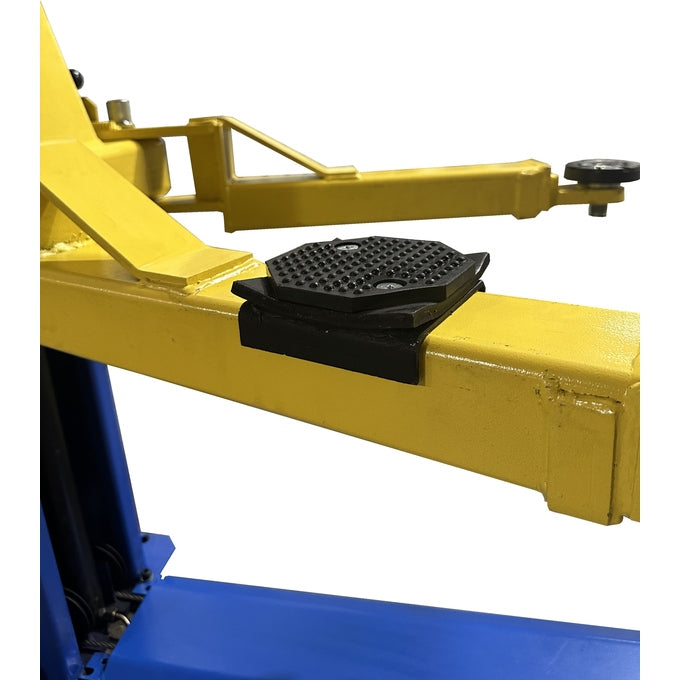

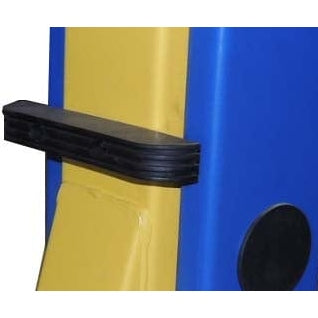

  • Rubber Door Guards — Prevent vehicle damage during use.

  • Padded Overhead Shut-Off Bar with Kill Switch — Adds an extra layer of safety.

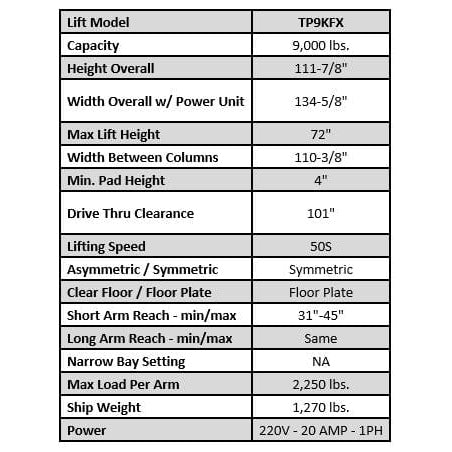

Specifications

Specification Details
Model TP9KFX
Capacity 9,000 lbs

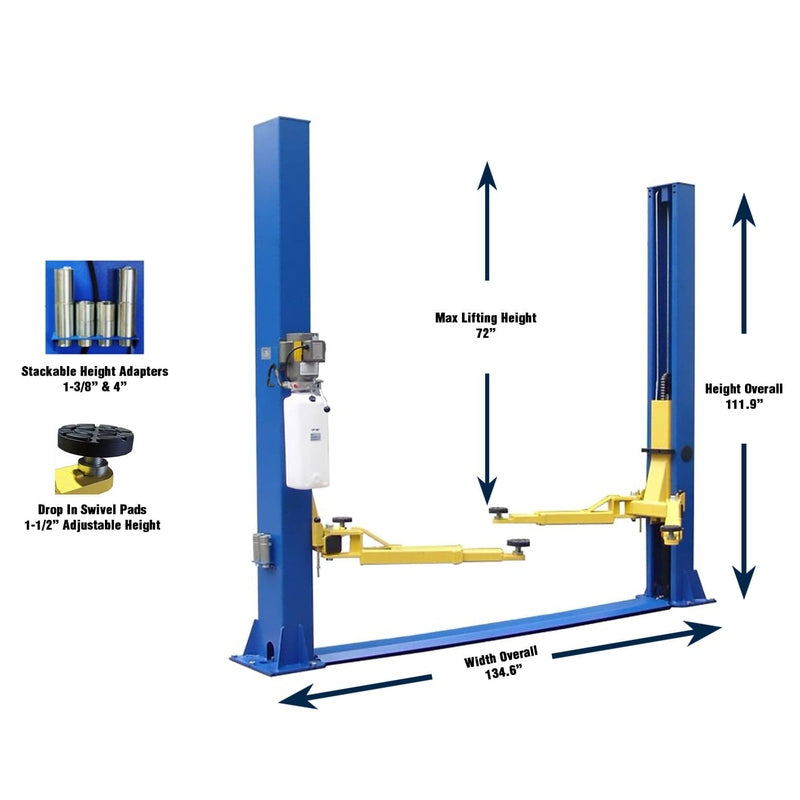

Overall Height 111-7/8"
Overall Width (with Power Unit) 134-5/8"
Maximum Lift Height 72"
Width Between Columns 110-3/8"
Minimum Pad Height 4"
Drive-Thru Clearance 101"
Lifting Speed 50 seconds
Arm Type Symmetric
Design Floor Plate
Short Arm Reach (min/max) 31" – 45"
Long Arm Reach (min/max) Same
Maximum Load per Arm 2,250 lbs

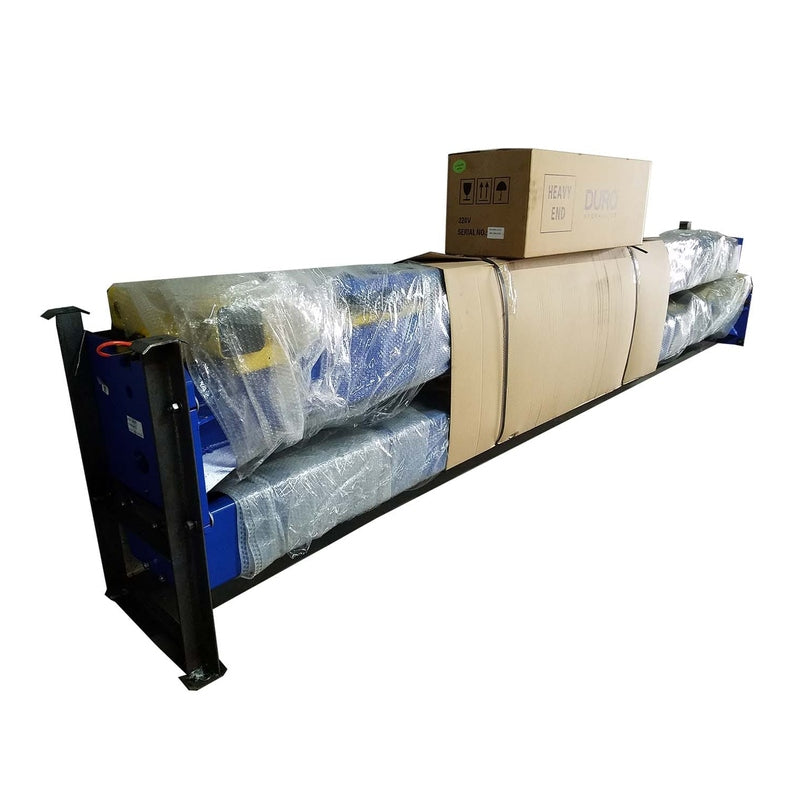

Shipping Weight 1,270 lbs

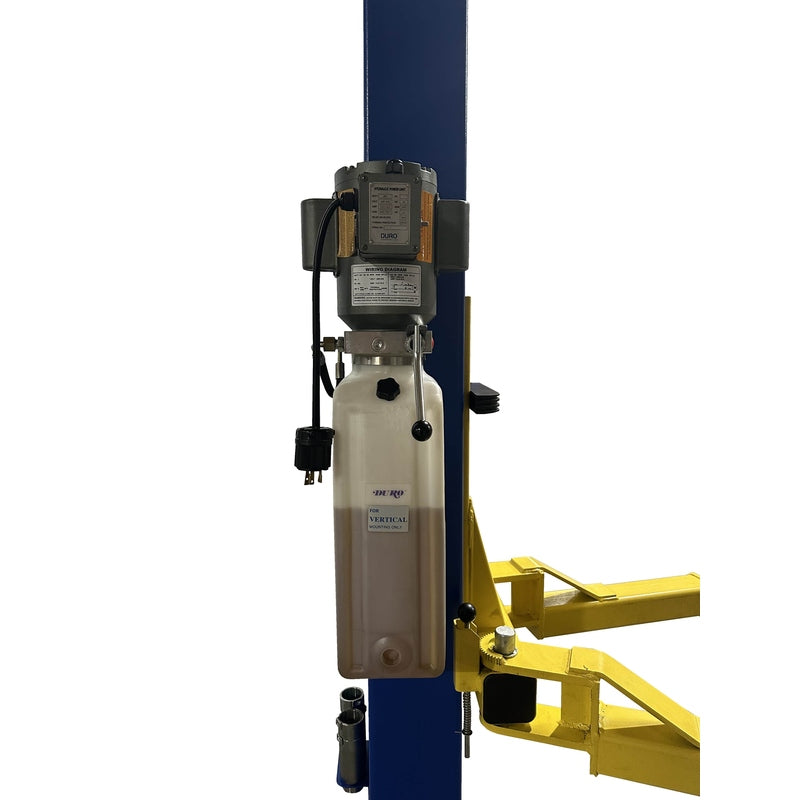

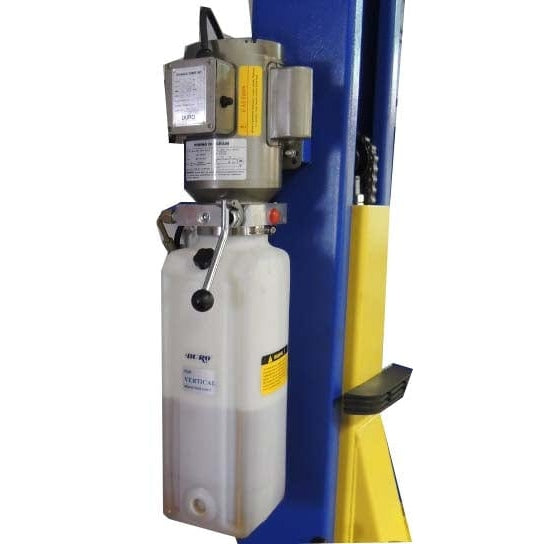

Power 220V / 20 Amp / 1PH

Manual

Tuxedo TP9KFX 9,000 lb 2 Post Lift Manual
