TuxedoSKU: TP9KSCX

At a Glance

  • Max Lifting Height: 72"
  • Drive-Thru Clearance: 96"
Price:
$2,690.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.

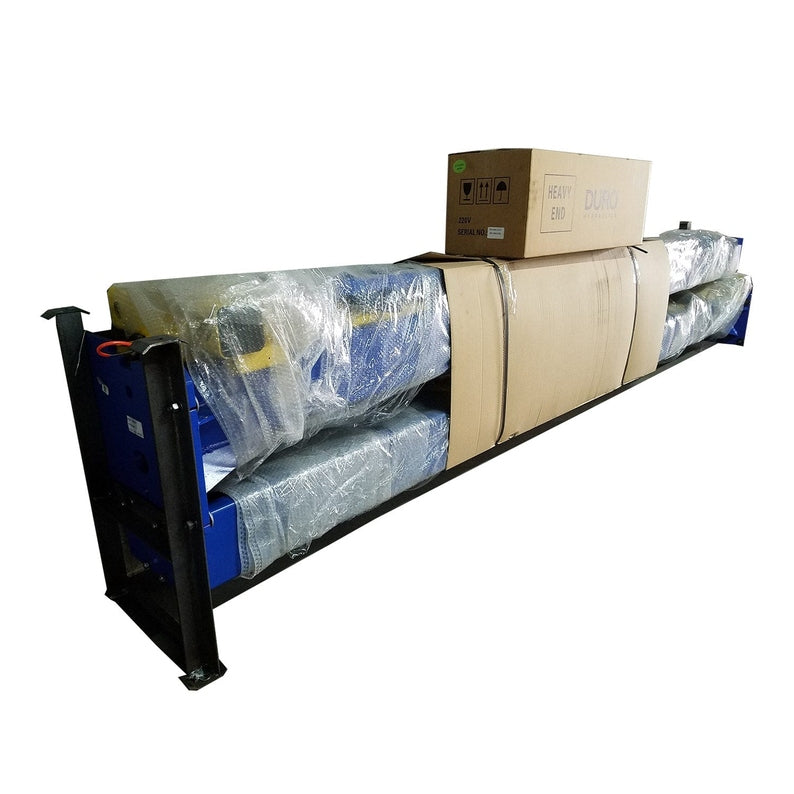

  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

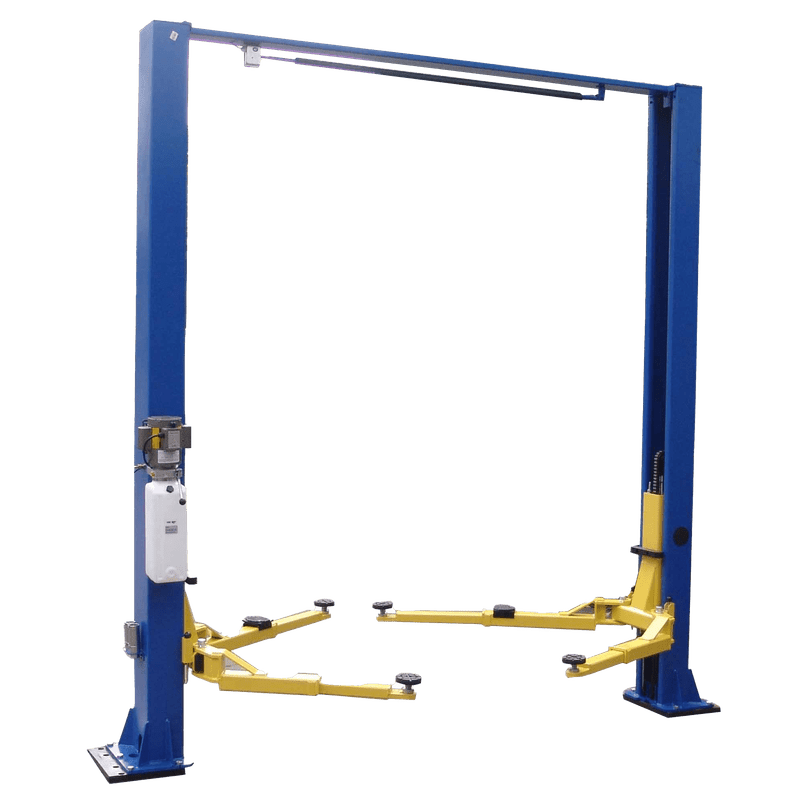

The Tuxedo TP9KSCX 9,000 lb Two-Post Lift combines reliability, safety, and efficiency in a durable, redesigned structure. Built for professional and home garages alike, this model features single-piece column construction, chain-driven cylinders, and symmetric lifting arms for stable and consistent performance.

The updated design includes internal hose routing, a padded overhead shut-off bar with kill switch, and reduced overall width to save valuable floor space. Operators benefit from low-profile spin-up pads, stackable adapters, and rubber door guards, all designed to protect vehicles and ensure smooth, flexible operation.

Engineered for everyday service use, the TP9KSCX delivers dependable lifting capability and exceptional value for a wide range of vehicles up to 9,000 lbs.

Features

  • 9,000 lb Lifting Capacity — Ideal for passenger vehicles, SUVs, and light trucks.

  • Symmetric Arm Design — Ensures balanced lifting for all vehicle types.

  • Single-Piece Columns — Improve strength, alignment, and durability.

  • Chain-Driven Cylinders — Provide smooth and consistent lift operation.

  • Dual-Point Lock Release — Simplifies operation for safe and controlled lowering.

  • Auto Arm Restraint System — Automatically secures arms during lifting.

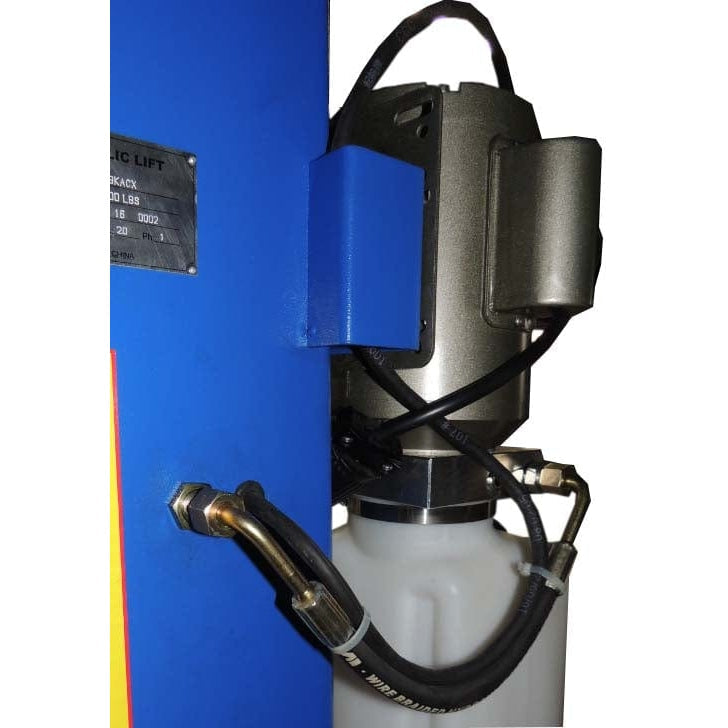

  • Internal Hose Routing — Keeps hoses protected and the work area organized.

  • Padded Overhead Shut-Off Bar with Kill Switch — Prevents accidental overhead contact.

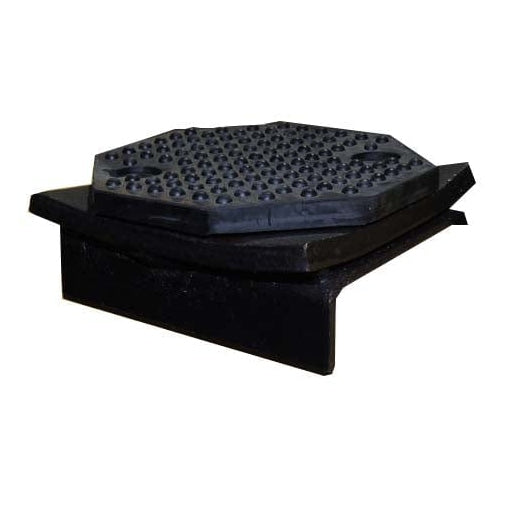

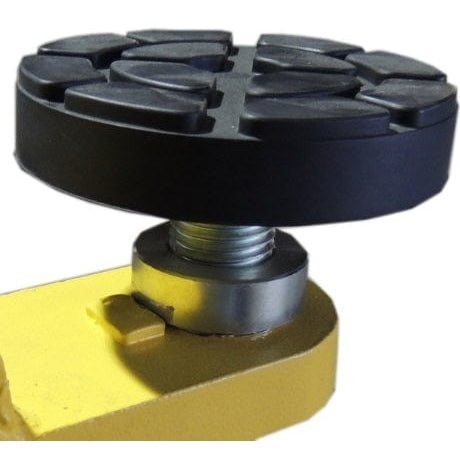

  • Low-Profile Spin-Up Pads — Offer easy access to low-clearance vehicles.

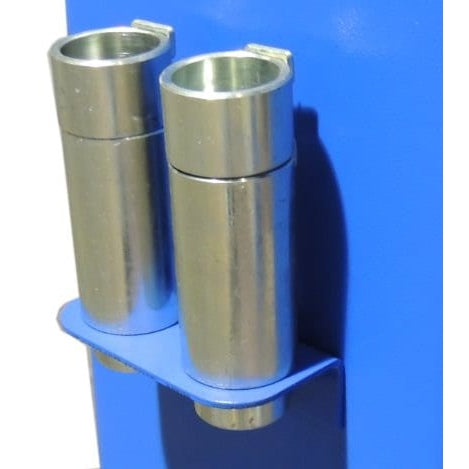

  • Stackable Height Adapters Included — Expand versatility for different vehicle lift points.

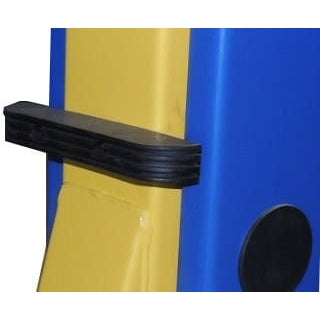

  • Rubber Door Guards — Protect vehicle doors during operation.

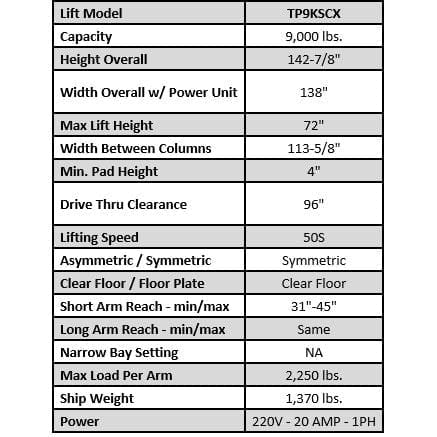

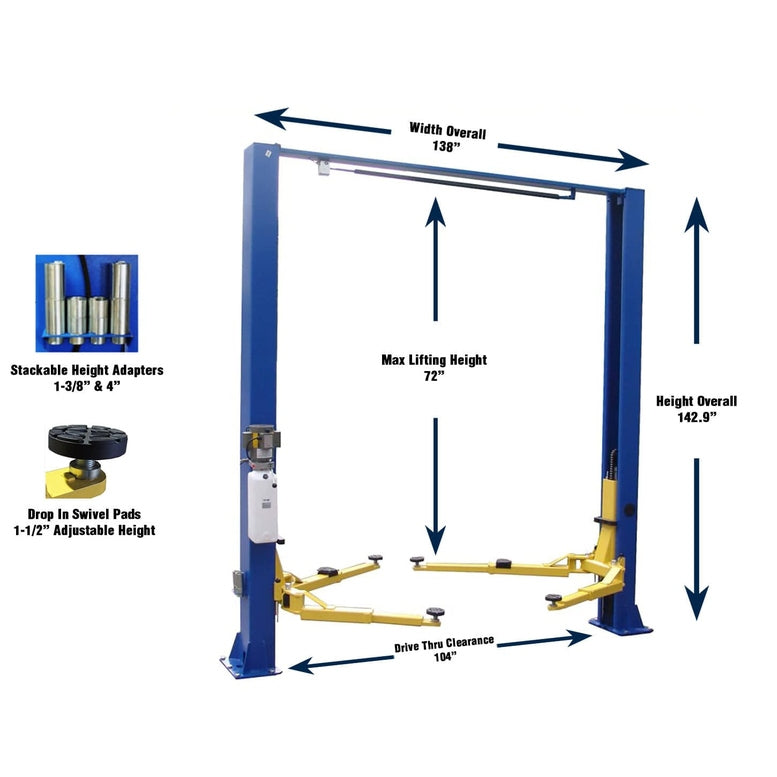

Specifications

Specification Details
Model TP9KSCX
Capacity 9,000 lbs
Overall Height 142-7/8"
Overall Width (with Power Unit) 138"
Maximum Lift Height 72"
Width Between Columns 113-5/8"
Minimum Pad Height 4"
Drive-Thru Clearance 96"
Lifting Speed 50 seconds
Arm Type Symmetric
Design Clear Floor
Short Arm Reach (min/max) 31" – 45"
Long Arm Reach (min/max) Same
Maximum Load per Arm 2,250 lbs
Shipping Weight 1,370 lbs

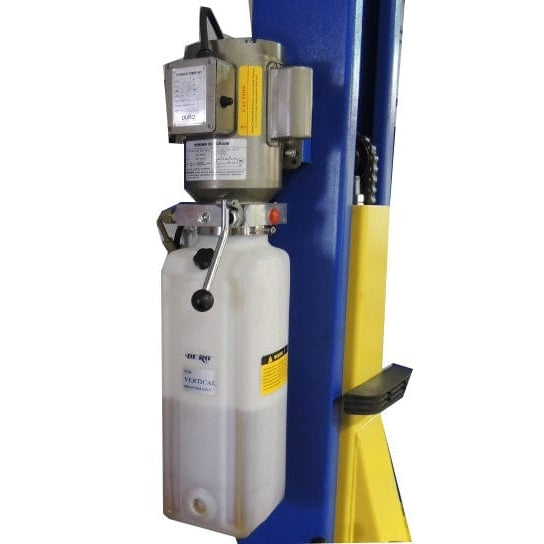

Power 220V / 20 Amp / 1PH

Manual

Tuxedo TP9KSCX 9,000 lb 2 Post Lift Manual
