Atlas® Garage PRO7000ST – 7,000 lb. Capacity Super Tall 4-Post Lift

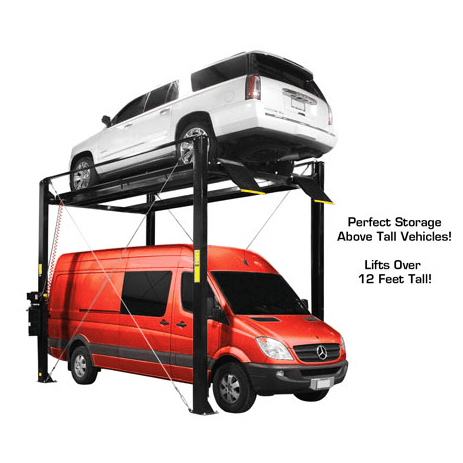

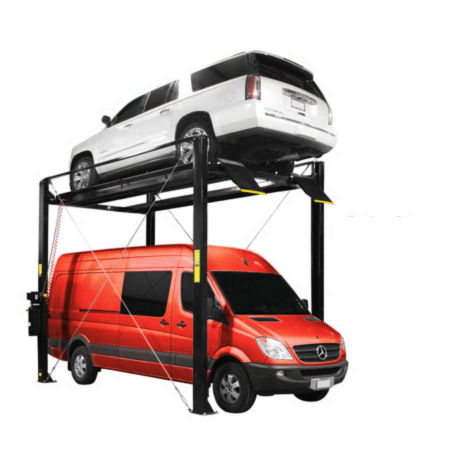

The Atlas® Garage PRO7000ST is the ultimate solution for automotive enthusiasts who have extra-tall garage ceilings and want to stack full-size vehicles with maximum vertical clearance. With a 7,000 lb. lifting capacity, this super-tall four-post lift raises vehicles to an impressive 12 feet (144 inches) of under-runway clearance, allowing users to park standard-height cars or SUVs above taller trucks, vans, or specialty vehicles with ease.
Built with the same heavy-duty runways used on the Atlas® Garage PRO9000, the PRO7000ST delivers exceptional strength and stability. The runways include welded tracks that accommodate rolling bridge jacks (such as the Atlas® RJ6BK, sold separately), enabling convenient wheel-off service work.

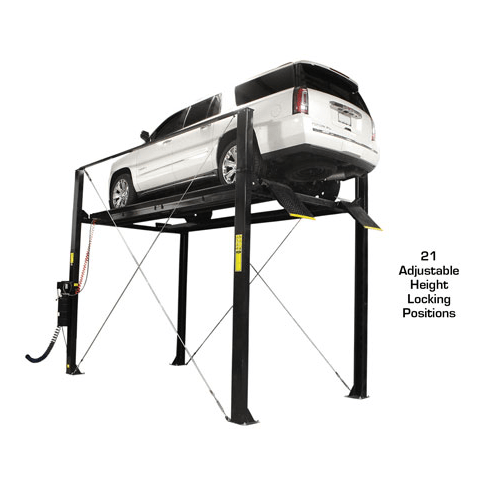

The extra-tall lifting height provides unmatched flexibility for both storage and maintenance, making this model ideal for garages or facilities that require maximum use of vertical space. The lift includes 21 locking positions built into the adjustable lock ladder, offering nearly unlimited height customization during installation to suit different vehicles and ceiling heights.

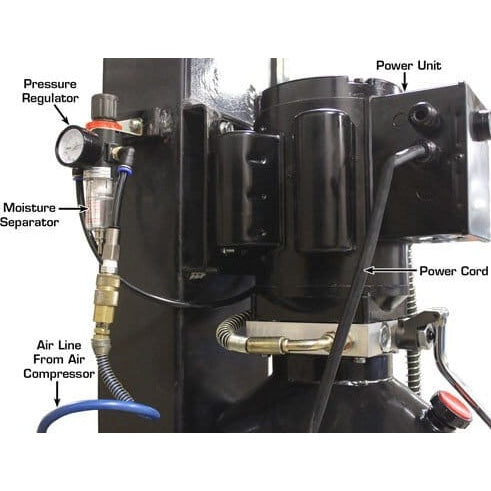

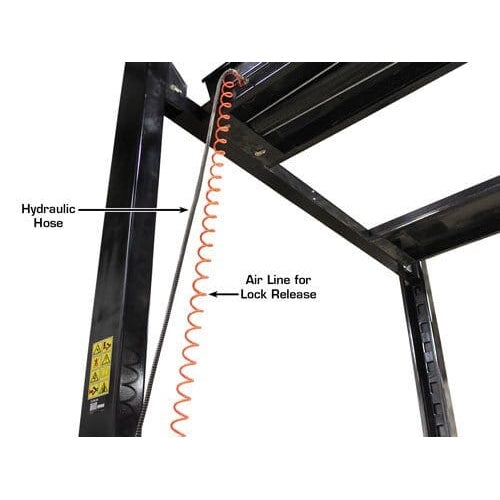

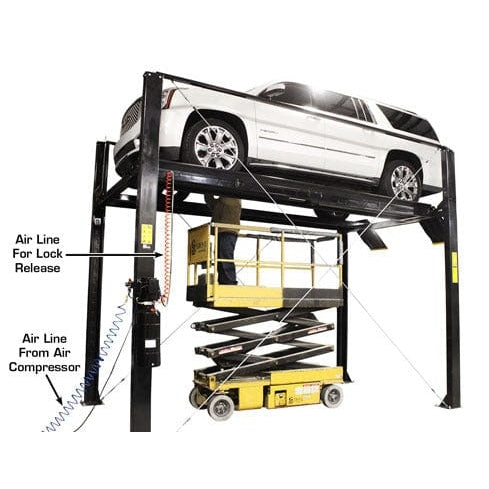

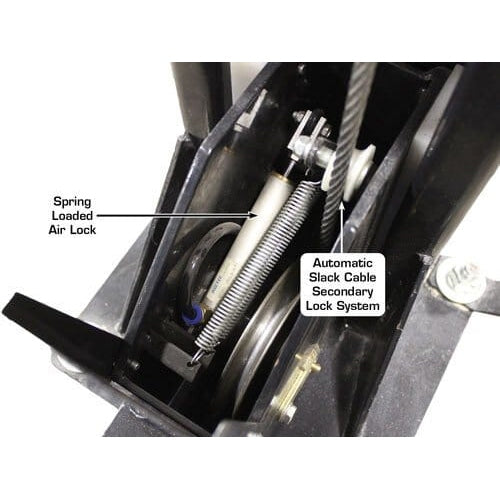

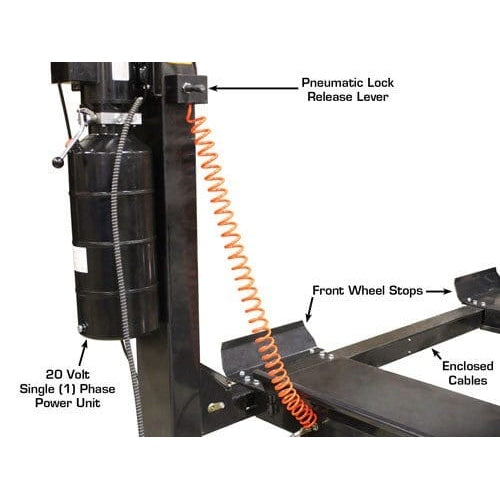

Operation is simple and safe, thanks to the single-point pneumatic lock release system located beside the power unit. A quick toggle automatically releases all four spring-loaded locks simultaneously (an external air supply is required). For added safety, the emergency slack-cable secondary lock system is always active and will automatically engage if cable tension is compromised.
Engineered for precision, safety, and professional-grade performance, the Atlas® Garage PRO7000ST is the perfect lift for users who need maximum height capability and reliable lifting power in a free-standing design.
Features
-
7,000 lb. Lifting Capacity
-
Heavy-Duty Construction for long-term durability and stability
-
“Super Tall” Lifting Height — perfect for garages with high ceilings
-
Extra-Wide and Extra-Long Design accommodates a wide range of vehicles
-
Diamond-Plated Runways for superior traction and wear resistance
-
Single-Point Pneumatic Lock Release (requires external air supply) for smooth, synchronized operation
-
Adjustable Lock Ladder Design for multiple height settings
-
Dual Lock Safety System ensures secure vehicle positioning at every height
-
Steel Approach Ramps (Included) for easy vehicle access
-

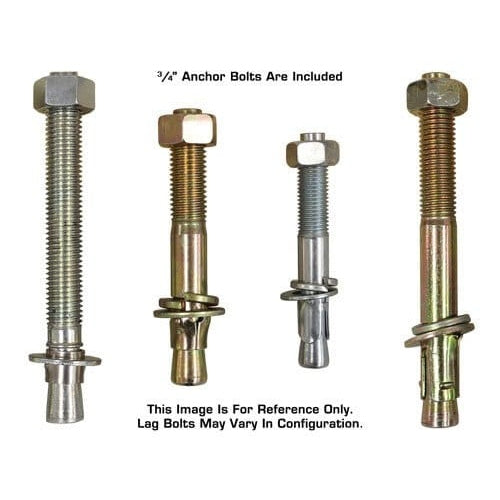

Mounting Hardware (Included) for quick installation
-
Ideal for Both Vehicle Storage and Maintenance
-
220V / 1-Phase Electrical Operation (requires 30A breaker)
-

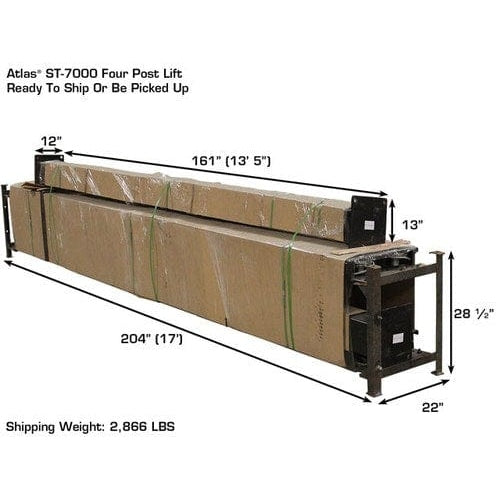

Shipping Weight: 2,866 lb.
-
Warranty: 2-Year Structural | 1-Year Hydraulic (Parts Only)
Specifications
| Specification | Measurement |
|---|---|
| Capacity | 7,000 lb. |

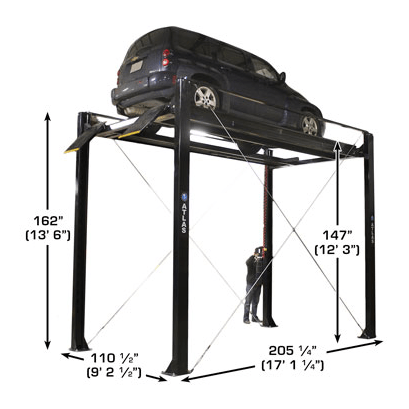

| Lifting Height (to Top of Runway) | 147" (12' 3") |

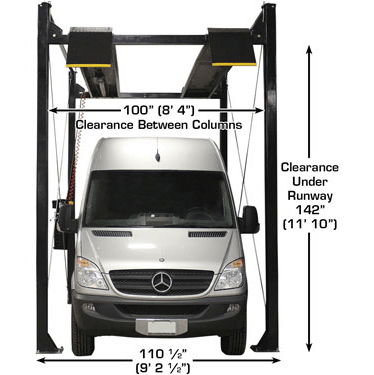

| Clearance Under Runways | 142" (11' 10") |

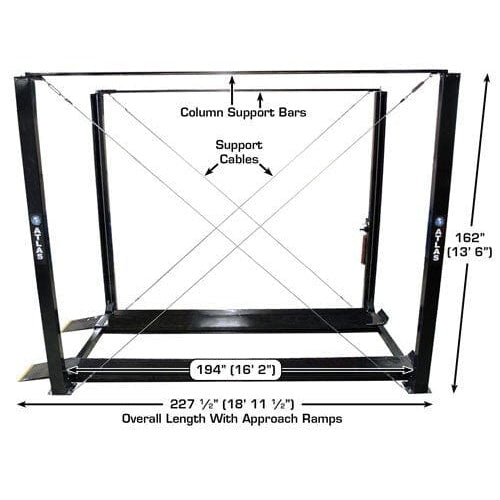

| Height of Columns | 162" (13' 6") |

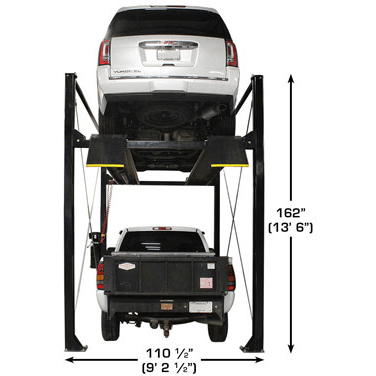

| Overall Width (w/o Motor) | 110 ½" (9' 2 ½") |
| Overall Width (w/ Motor) | 123" (10' 3") |
| Overall Length (w/ Approach Ramp) | 227 ½" (18' 11 ½") |
| Approach Ramp Length | 31" (2' 7") |

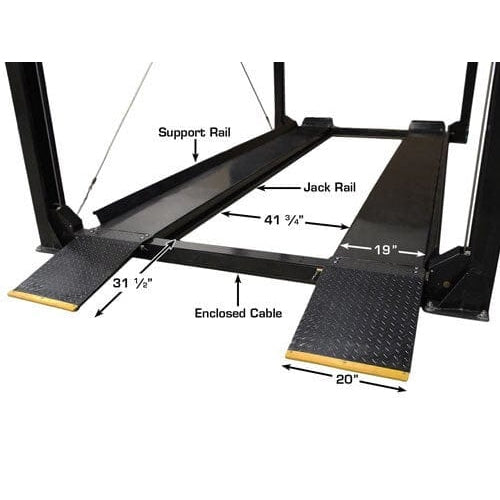

| Runway Width | 21" (with rails) / 20" (driving surface) |
| Runway Length | 194" (16' 2") |
| Runway Thickness | 4 ¾" |
| Width Between Runways | 45" (3' 9") |
| Width Between Runway Rails | 41 ¾" (3' 5 ¾") |
| Outside Runway to Outside Runway | 83" (6' 11") |

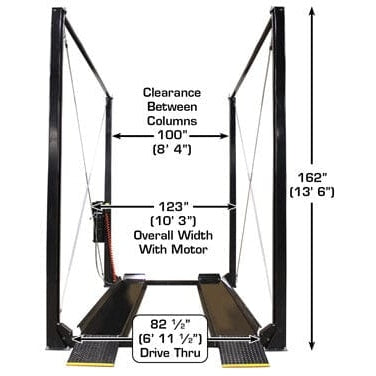

| Clearance Between Columns | 100" (8' 4") |
| Length Between Columns | 185" (15' 5") |
| Maximum Wheelbase | 182" (15' 2") |
| Drive-Through Width (Outside Tire to Outside Tire) | 82 ½" (6' 10 ½") |
| Electrical Requirement | 220V, 1-Phase, 30A Breaker Required |
| Shipping Weight | 2,866 lb. |
Locking Positions (±2")
| Height (inches) | Height (feet & inches) |
|---|---|
| 23" | 1' 11" |
| 29" | 2' 5" |
| 35" | 2' 11" |
| 41" | 3' 5" |
| 47" | 3' 11" |
| 52" | 4' 4" |
| 58" | 4' 10" |
| 64" | 5' 4" |
| 70" | 5' 10" |
| 76" | 6' 4" |
| 82" | 6' 10" |
| 88" | 7' 4" |
| 94" | 7' 10" |
| 100" | 8' 4" |
| 106" | 8' 10" |
| 112" | 9' 4" |
| 118" | 9' 10" |
| 124" | 10' 4" |
| 130" | 10' 10" |
| 136" | 11' 4" |
| 142" | 11' 10" |
Documents
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
