Description
High-Capacity Tire Changer with Bead Blaster & Precision Laser-Guided Wheel Balancer

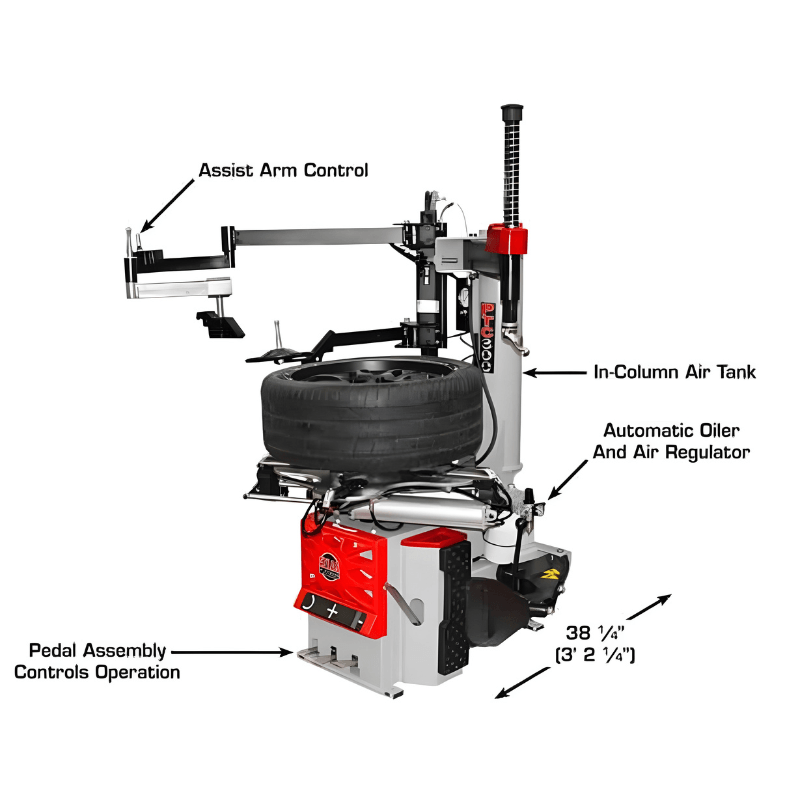

Take on even the toughest tire jobs with the Atlas Platinum PTC300 Tire Changer, designed for fast, accurate, and trouble-free operation. Equipped with a left-side assist arm, integrated bead blaster, and a powerful electric turntable, it handles low-profile and stubborn tires with ease. Built using premium Italian components, this heavy-duty machine is made to perform reliably in high-demand shop environments.

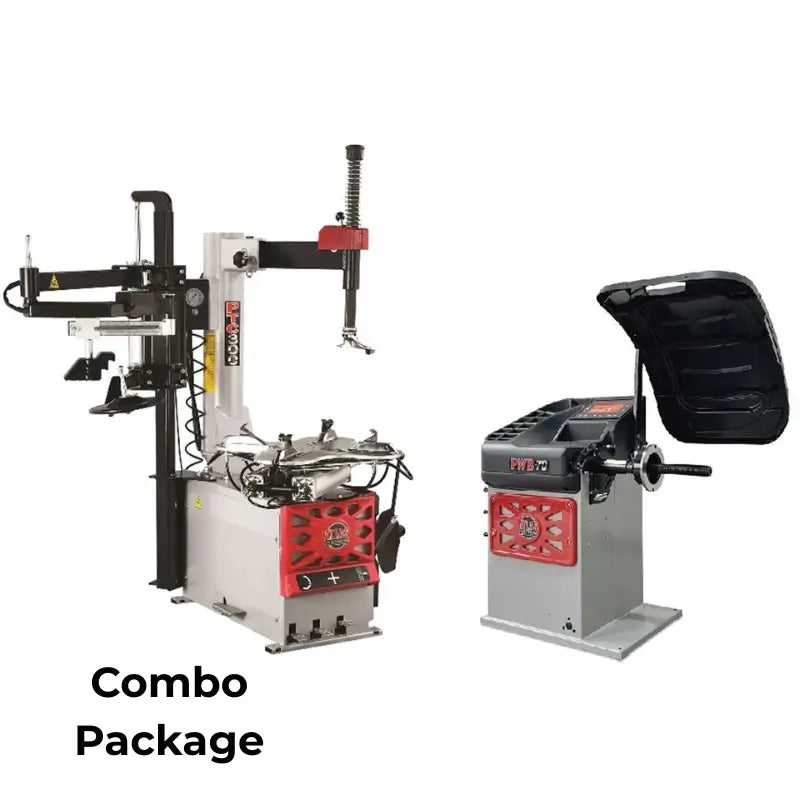

Paired with the Atlas Platinum PWB70 Wheel Balancer, this combo delivers exceptional precision and efficiency. The PWB70 features computer-controlled spin balancing, a laser-guided weight placement system, and LED lighting for improved visibility. With automatic start/stop and advanced functions like Optimatch, FES, and ALU-S modes, it ensures smooth, accurate balancing results every time.
Together, this package gives your shop a competitive edge—faster service times, fewer mistakes, and improved customer satisfaction. Built for durability and backed by a 2-year parts-only warranty, it’s an ideal upgrade for high-volume tire operations.

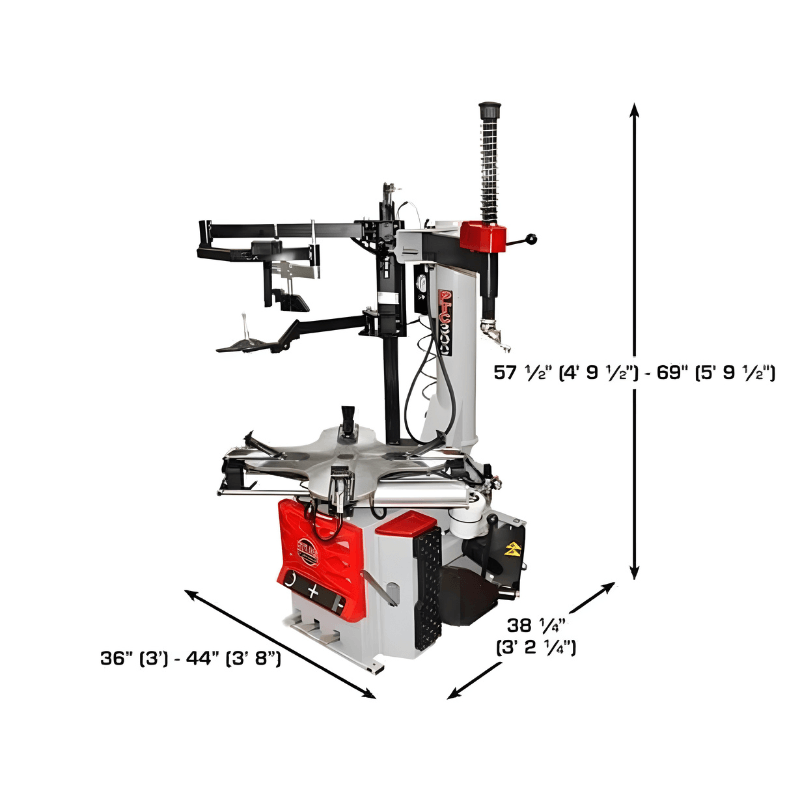

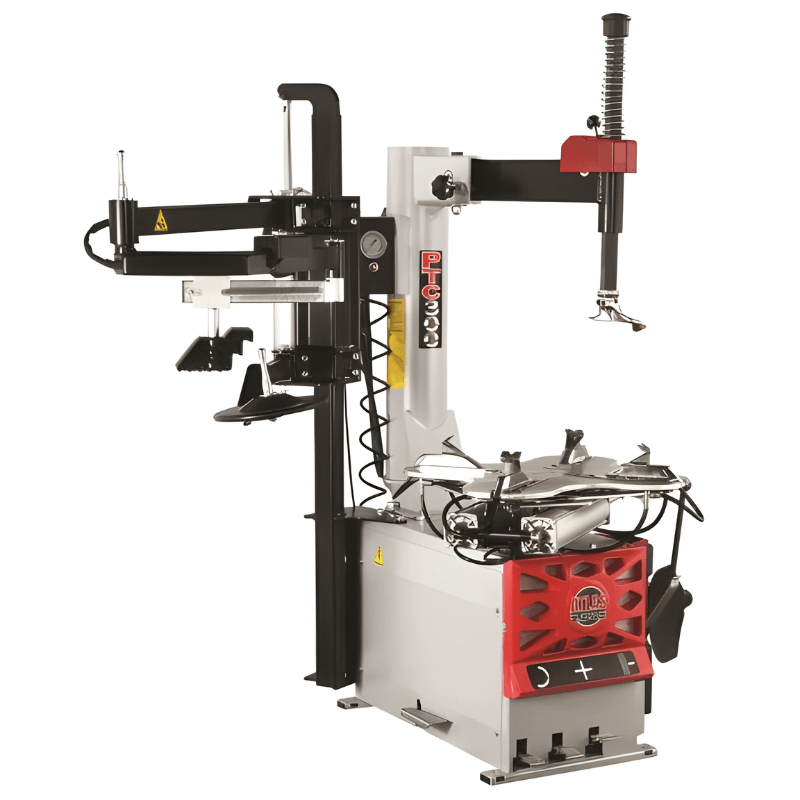

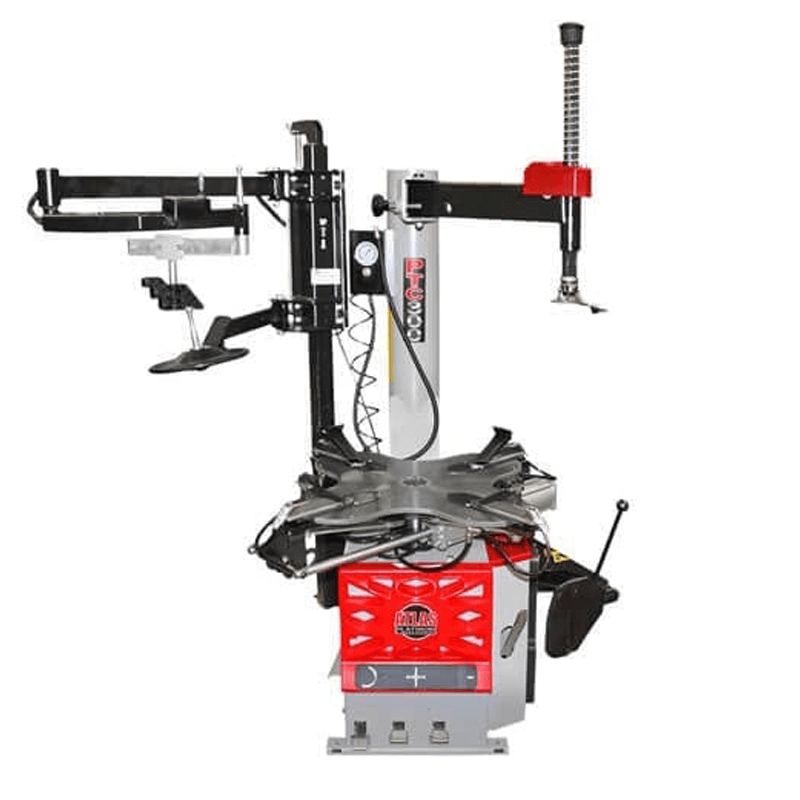

Atlas Platinum PTC300 Tire Changer – Specifications
- Compatible with Steel, Aluminum, and Alloy Wheels

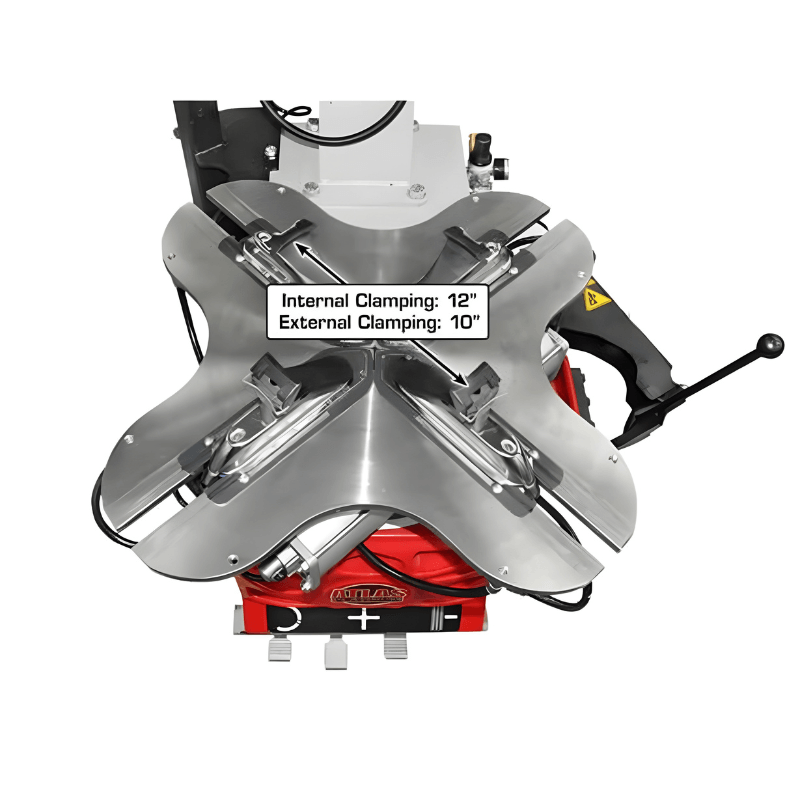

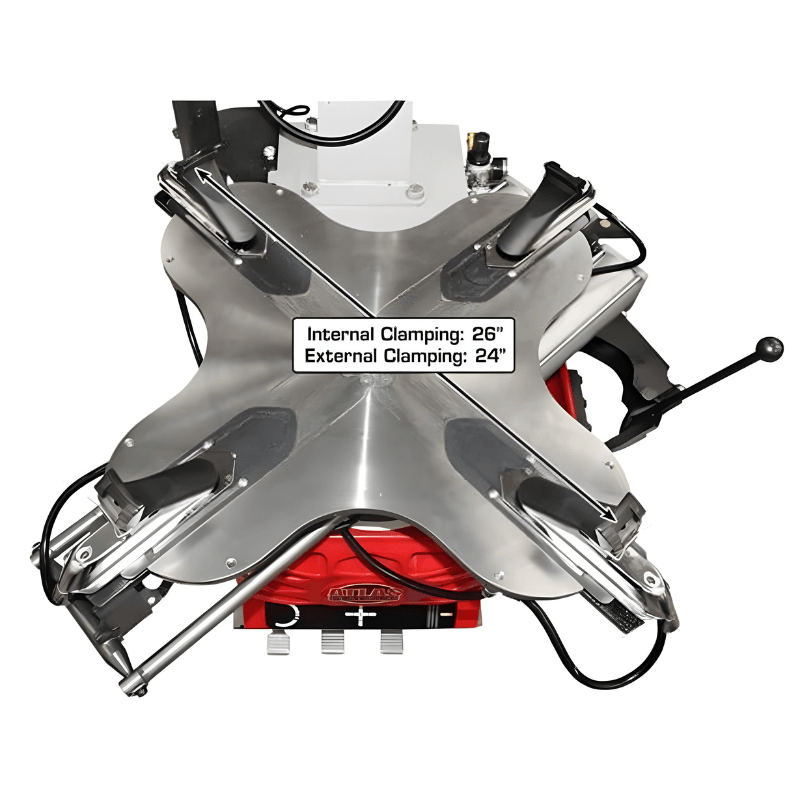

- External Clamping Range: 10" – 24"
- Internal Clamping Range: 12" – 26"
- Maximum Tire Diameter: 43"
- Maximum Wheel Width (Bead Breaker): 15"
- Turntable Speed: 7 RPM

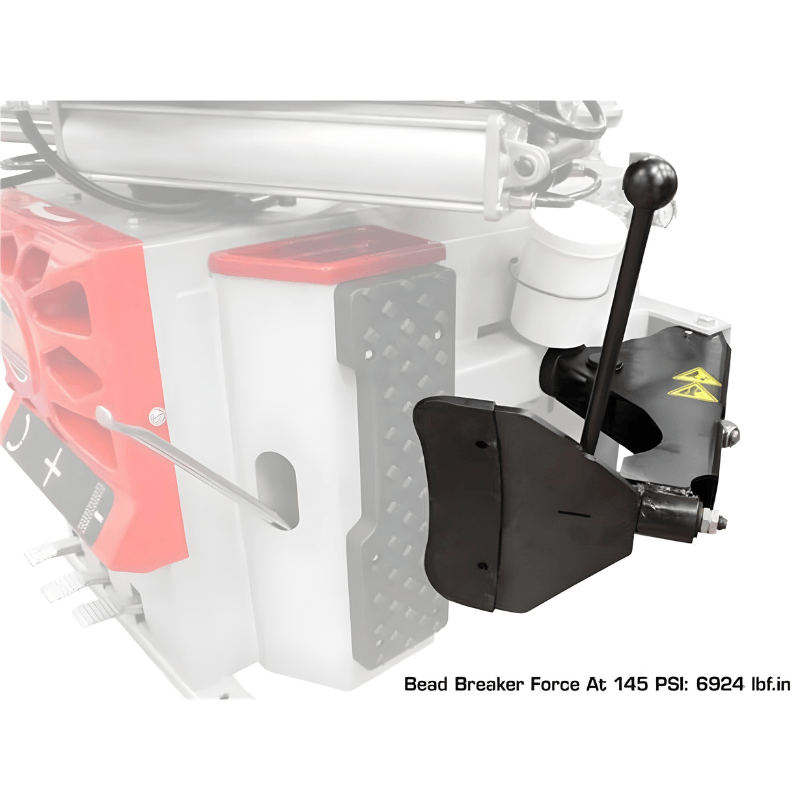

- Bead Breaker Force: 6,924 lbs
- Air Requirement: 120–145 PSI
- Power Requirement: 110V

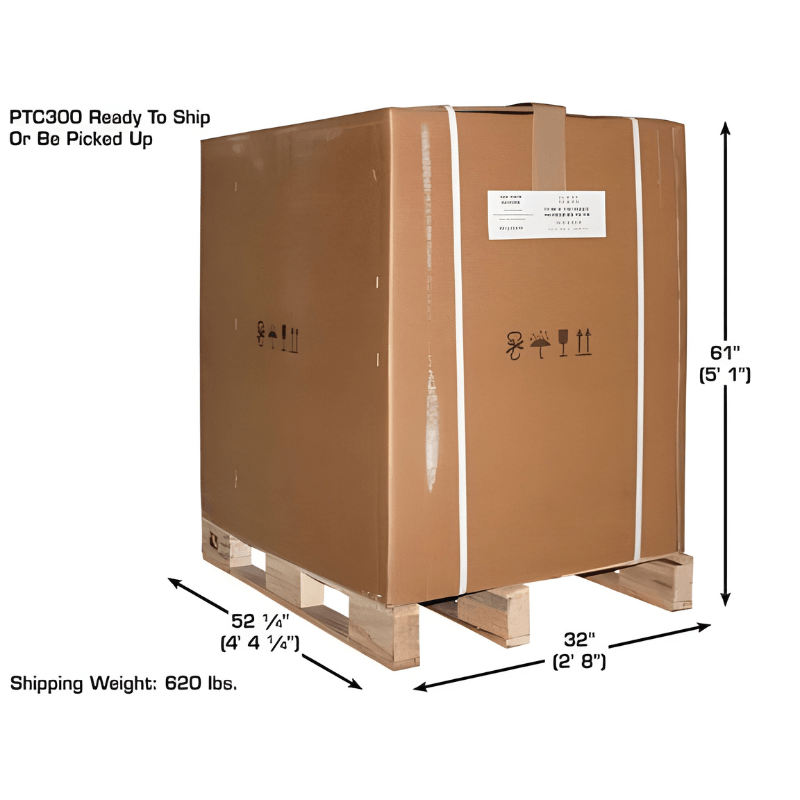

- Shipping Weight: 620 lbs

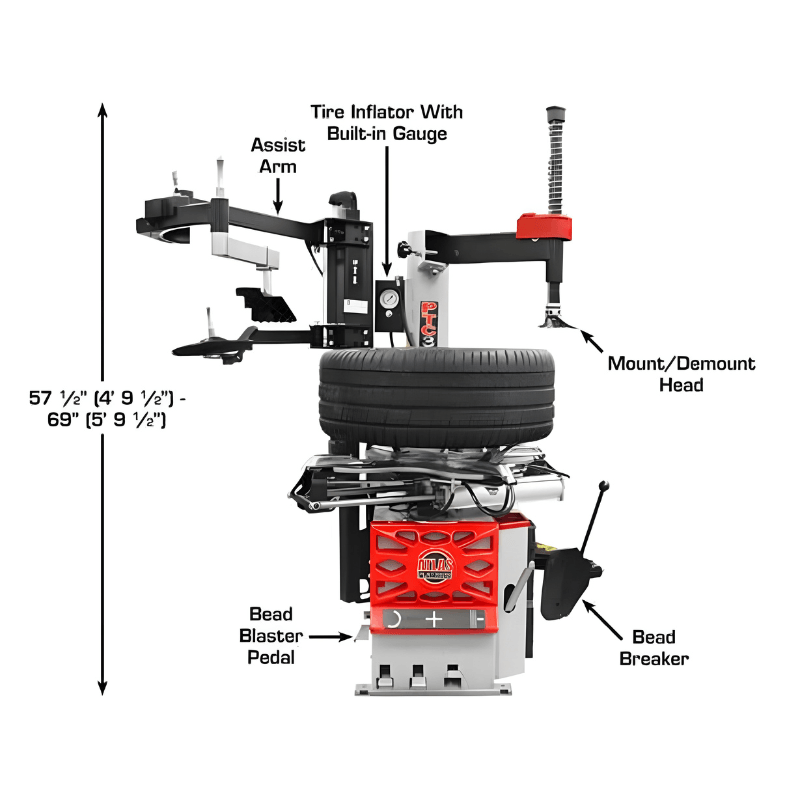

PTC300 Tire Changer – Key Features

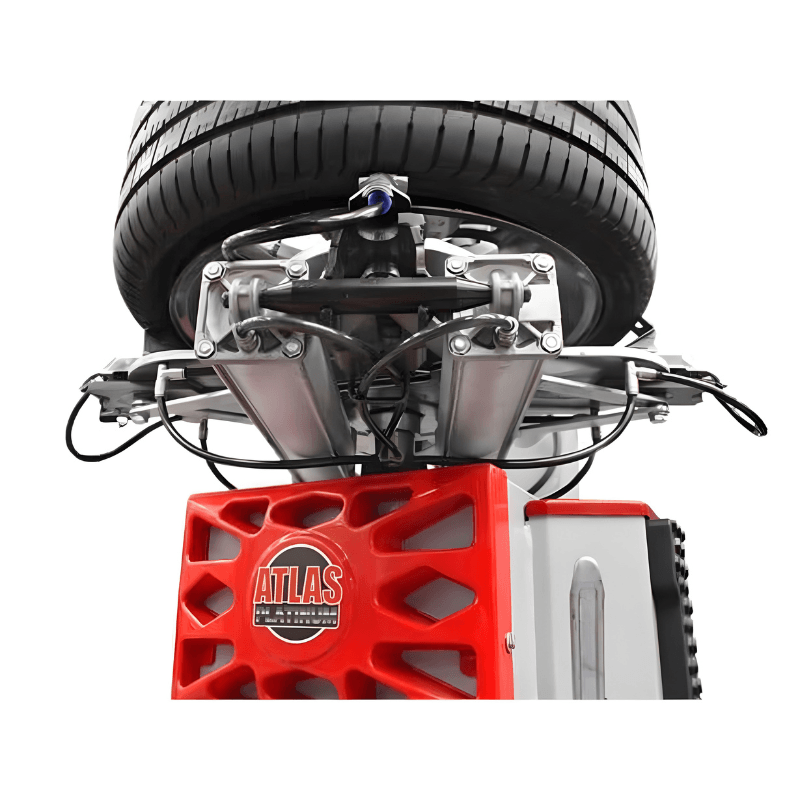

- Platinum swing-arm rim clamp design

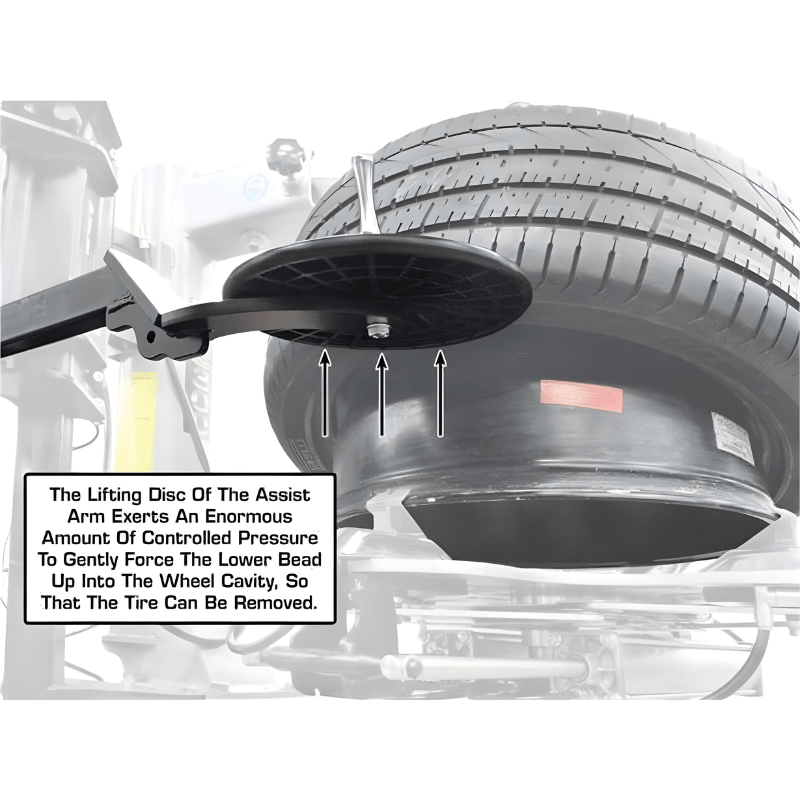

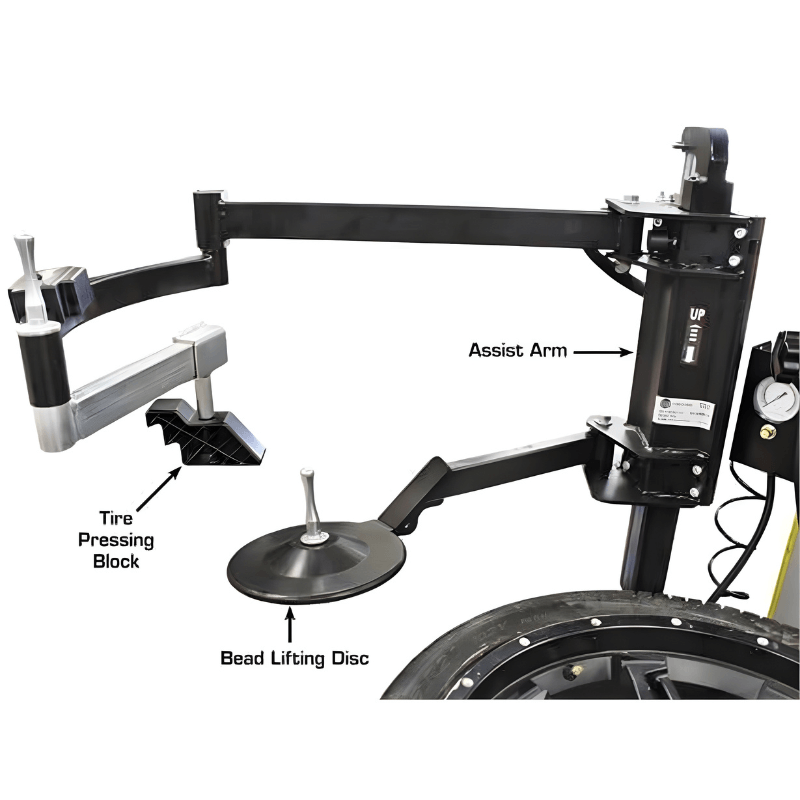

- Left-hand assist arm with pressing/lifting disc
- Extra-large star-shaped turntable

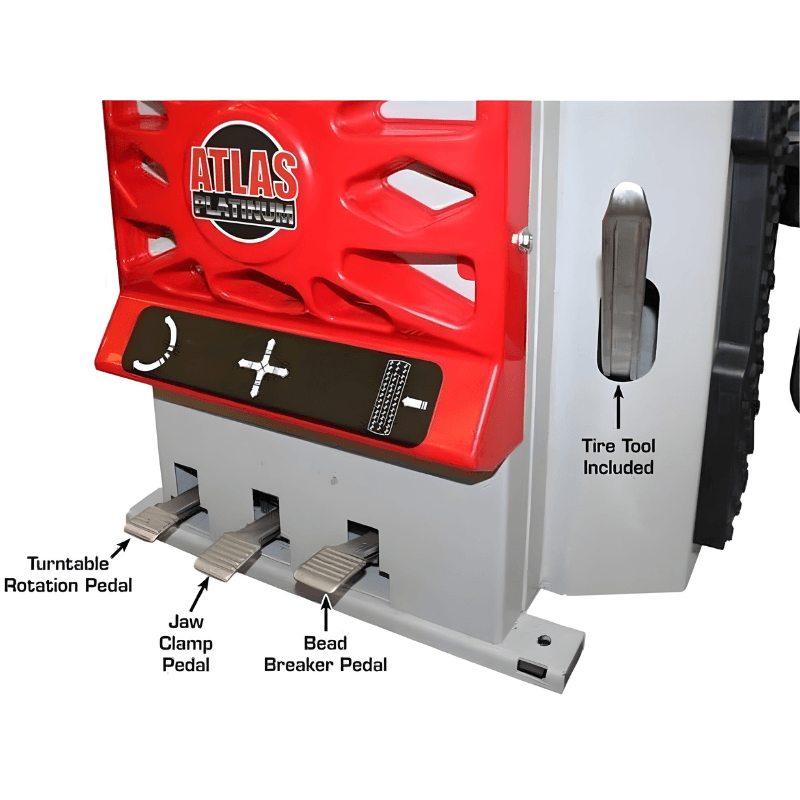

- Air-operated jaws and bead breaker
- Integrated bead blaster for fast tire seating
- Electric turntable for smooth, consistent operation
- Column-mounted inflator box with pressure gauge
- Includes tire tool, lube bucket with brush, and jaw protectors
- Filter, regulator, and lubricator (FRL) system included

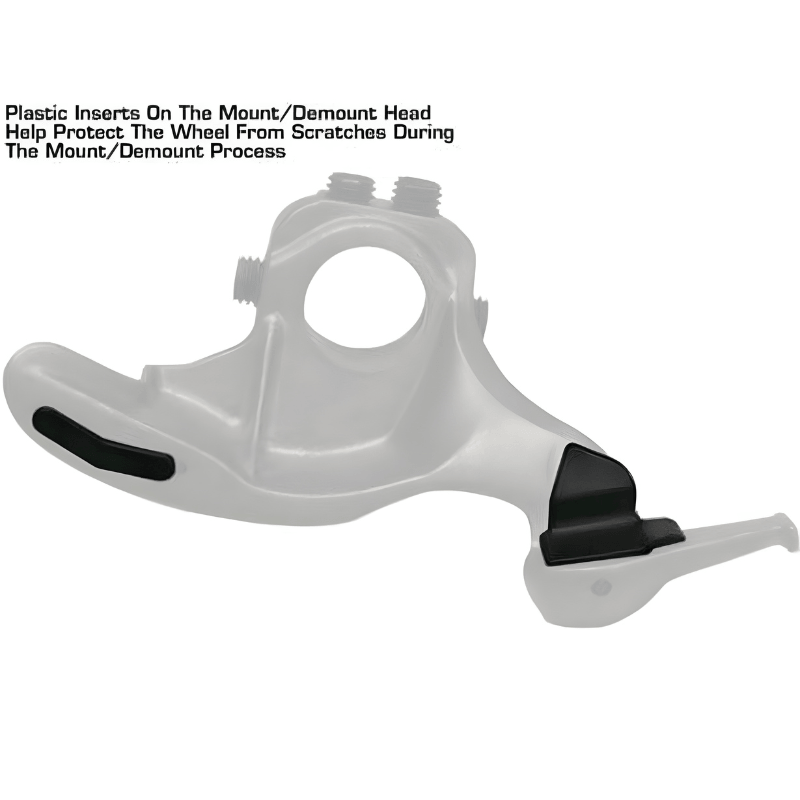

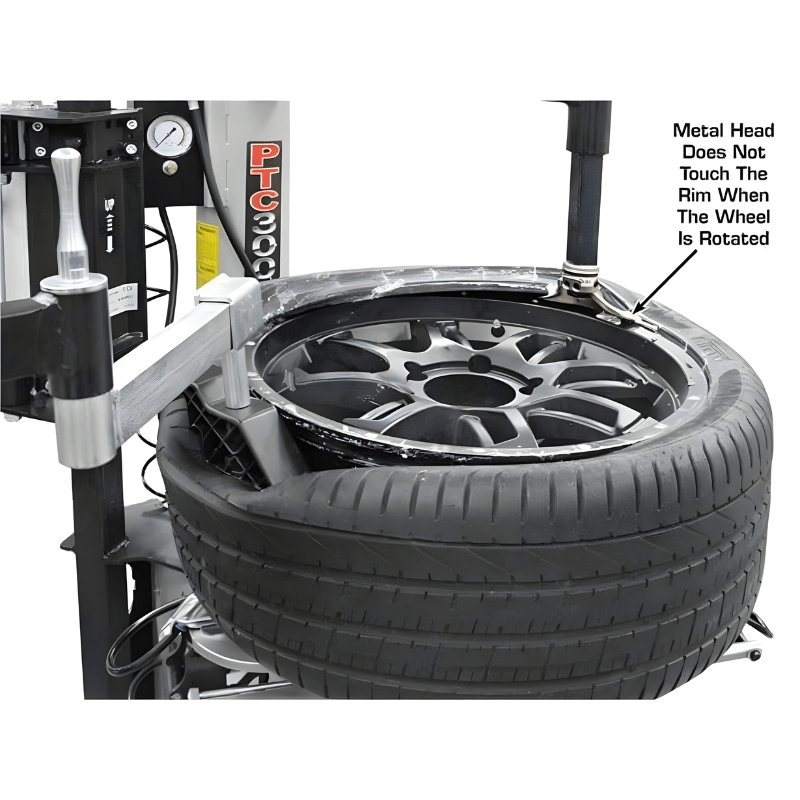

- Metal mount/demount head with replaceable plastic inserts
- Protective plastic cover for bead breaker shovel
- Backed by a 2-year parts-only warranty

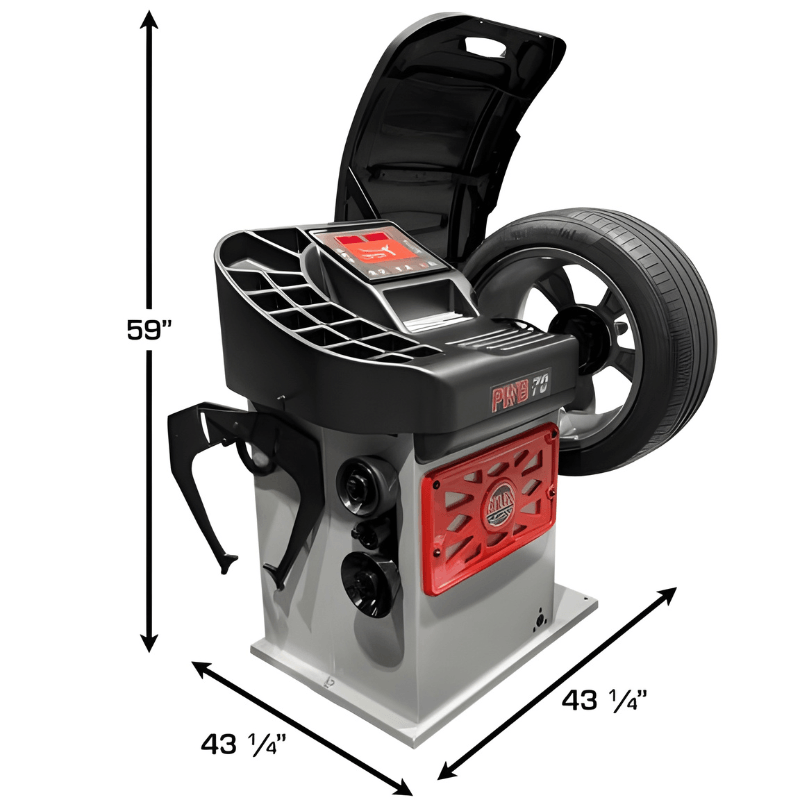

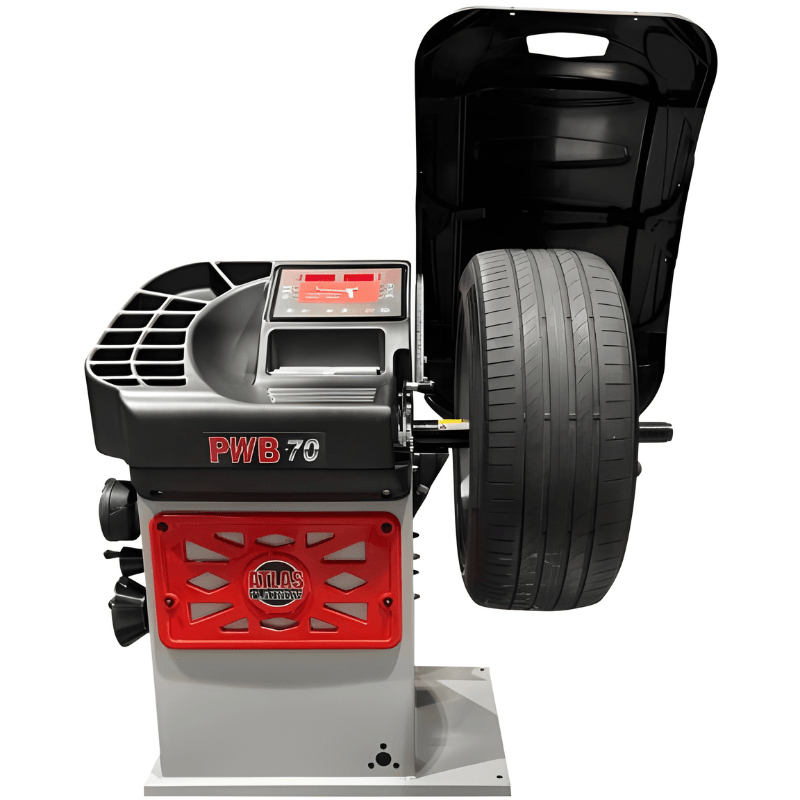

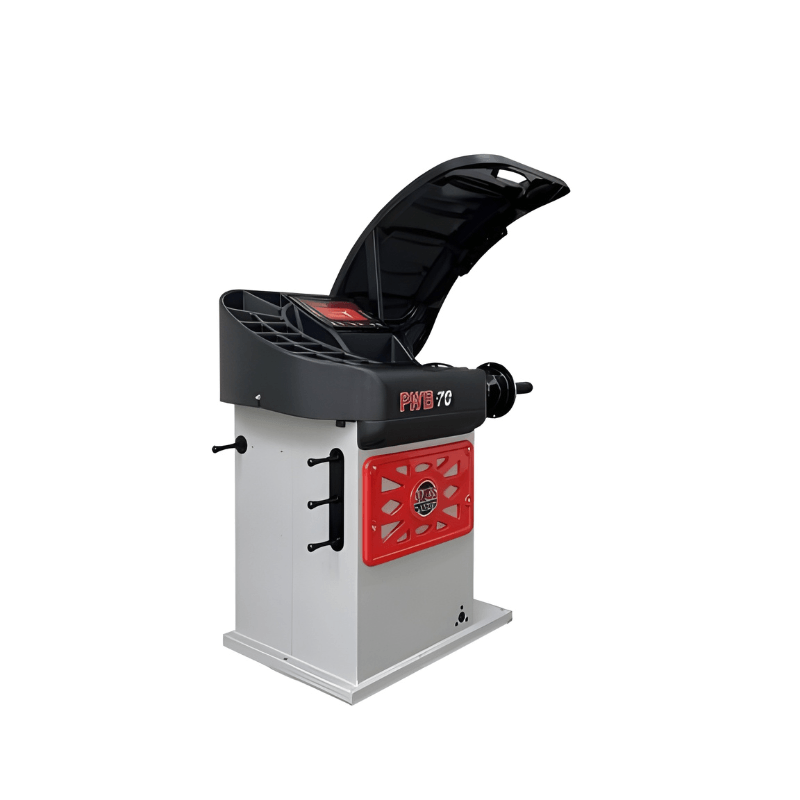

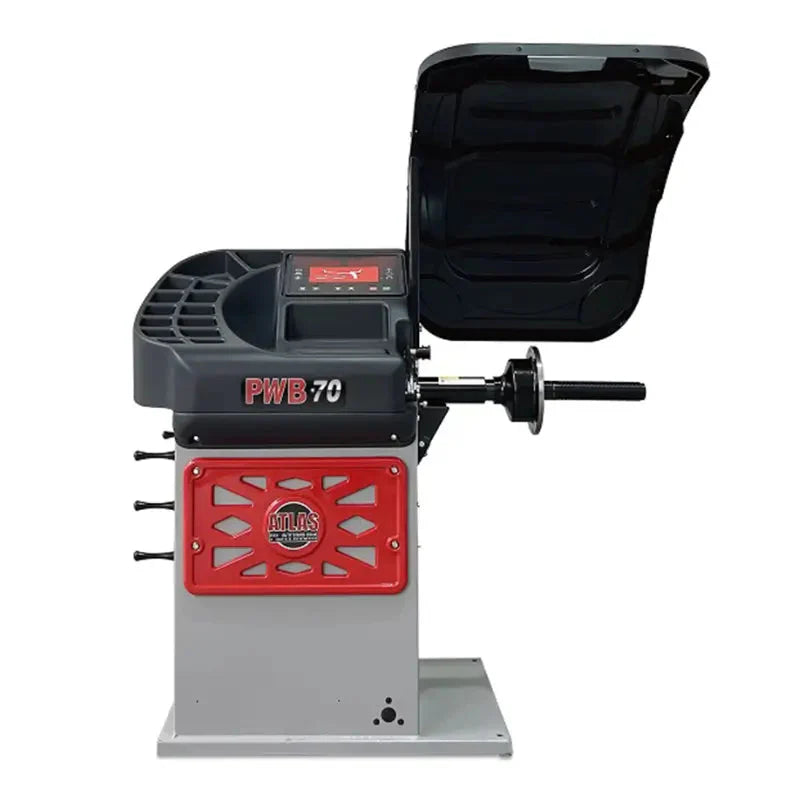

Atlas Platinum PWB70 Wheel Balancer – Specifications
- Rim Size (Car/Light Truck): 10" – 30"

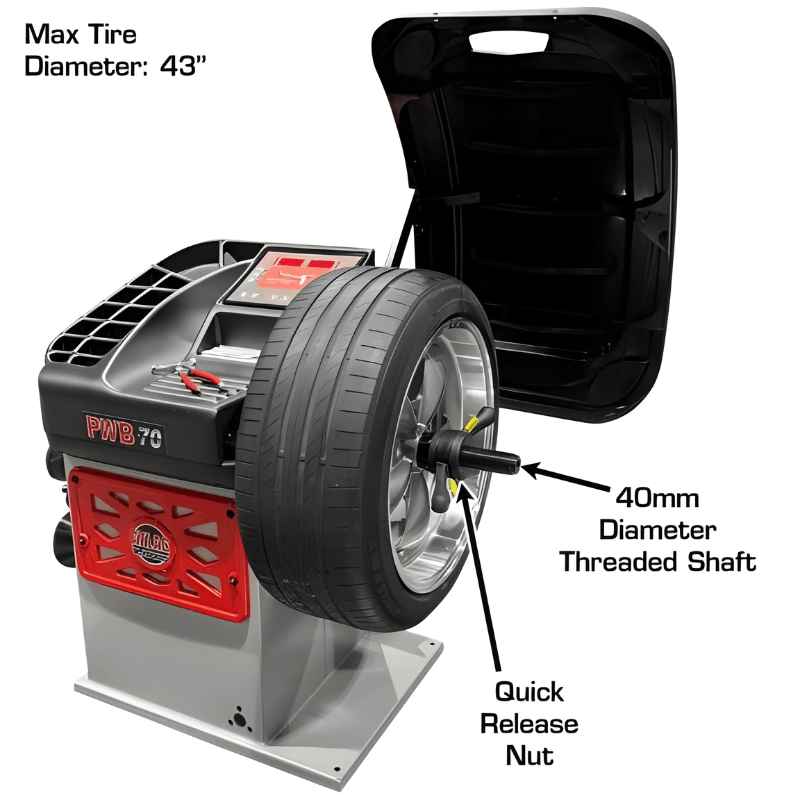

- Maximum Tire Diameter: 43"
- Rim Width: 1.5" – 20"
- Maximum Wheel Weight: 165 lbs
- Shaft Diameter: 40mm
- Balancing Speed: 130 RPM
- Cycle Time: 7 seconds
- Accuracy: 1 gram
- Weight Position Resolution: 1.4°
- Power Requirement: 110V
- Data Entry: Automatic 2D
- Measurement Units: Standard or Metric
- Shipping Weight: 280 lbs
PWB70 Wheel Balancer – Key Features
- Computer-controlled motorized spin balancer
- Premium Italian construction for durability
- LED work light with laser-guided weight placement
- Large weight tray and oversized hood
- Electric brake with smart positioning system
- Optimatch, FES, and Opposite Weight Function
- Static, dynamic, ALU, and ALU-S balancing modes
- No-Wheel-Needed (NWN) system
- Self-diagnosing and self-calibrating capabilities
- Automatic start/stop with hood operation
- USB port for firmware updates
- Includes cones, quick-release nut, pliers, and calipers
- No anchor-down installation required
- 2-year parts-only warranty
Atlas Platinum PTC300 + PWB70 Manual
