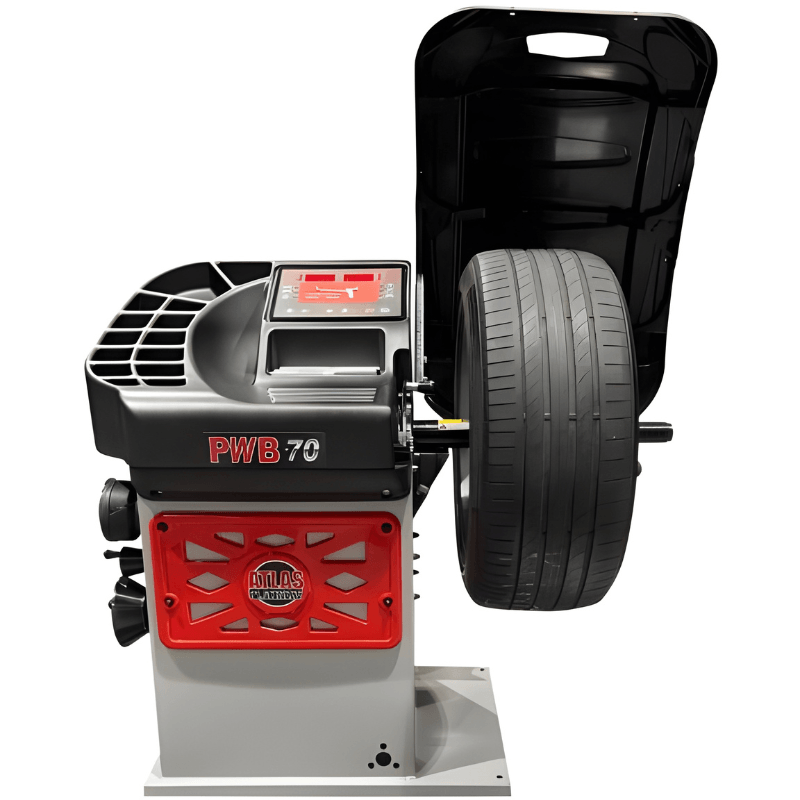

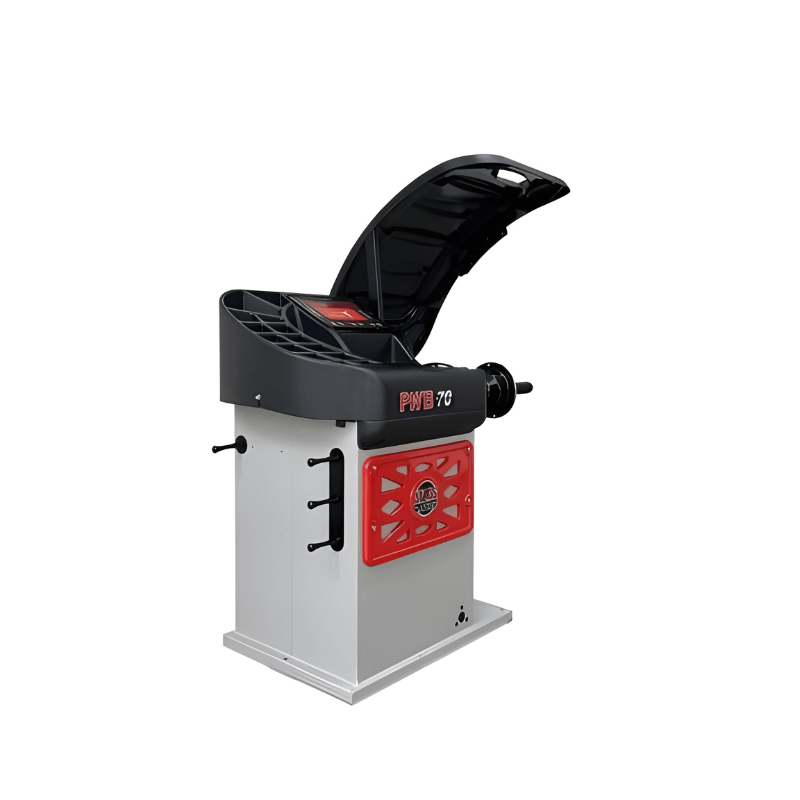

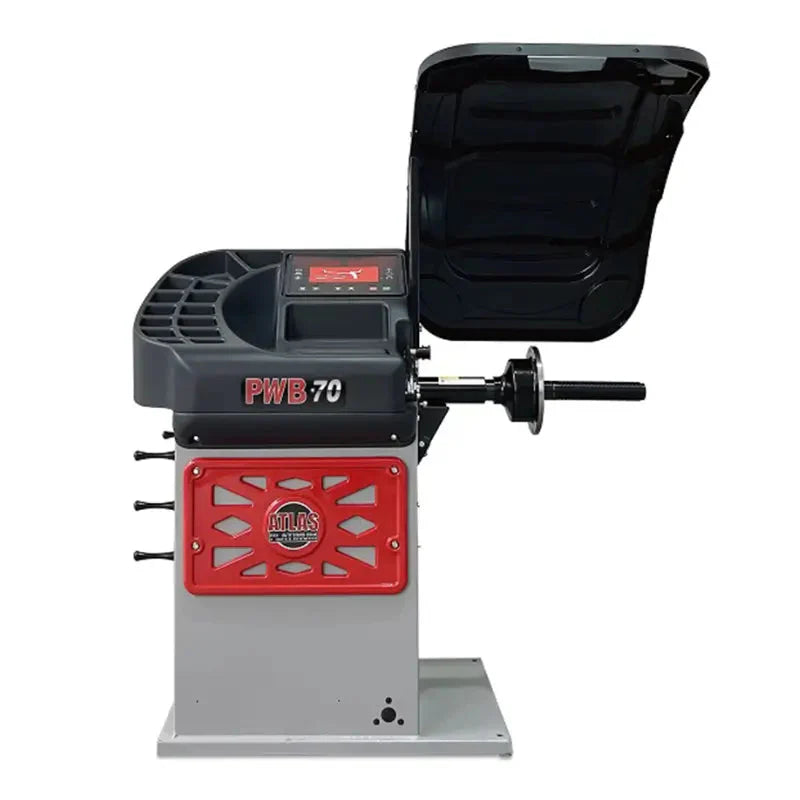

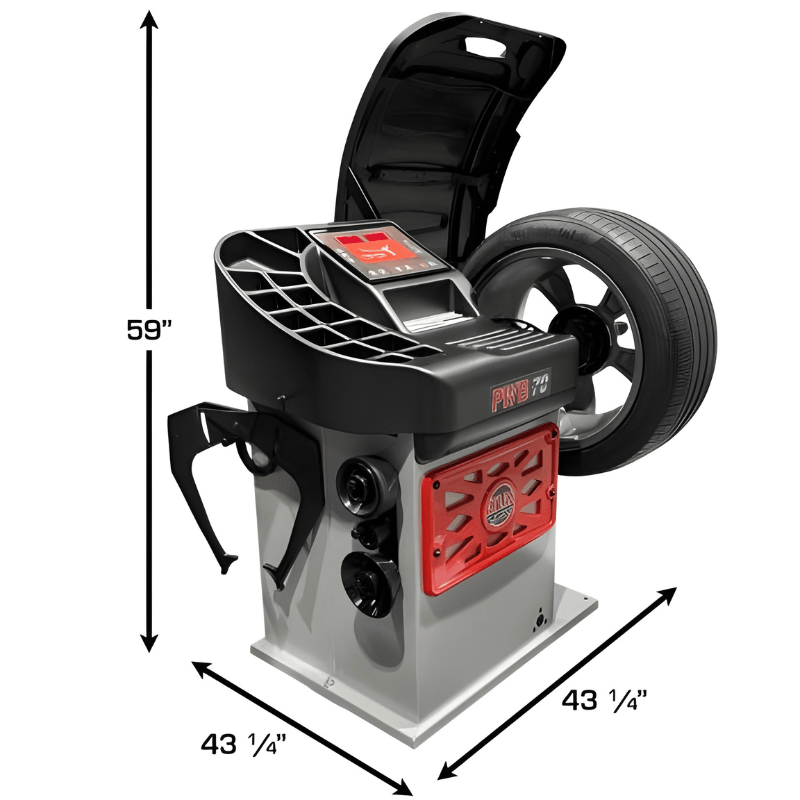

PWB70 Wheel Balancer with Laser
The Atlas Platinum PWB70 Motorized Spin Wheel Balancer is a premium, high-performance machine built for modern tire shops and service centers that need speed, precision, and long-term reliability. Building on the success of the PWB50, the PWB70 adds several upgrades, including a laser guide for accurate weight placement, a bright LED work light for better visibility inside the wheel, an expanded weight tray, and a larger hood to handle bigger wheel assemblies. Paired with Italian engineering and top-tier components, it delivers consistent, accurate balancing across a wide range of passenger vehicle wheels.
Capable of handling wheels up to 30 inches in diameter and 165 lbs, the PWB70 offers 1-gram accuracy with a fast 7-second cycle time. Its user-friendly interface makes operation simple and efficient, even for new technicians. The unit comes complete with essential accessories—centering cones, a quick-release nut, wheel weight pliers, and measuring calipers—and is backed by a dependable 2-year parts-only warranty. With no need for anchor-down installation, it’s an ideal upgrade for busy shops looking to improve workflow without sacrificing quality.
PWB 70 Specifications
- Rim Size (Car/Light Truck): 10" – 30"

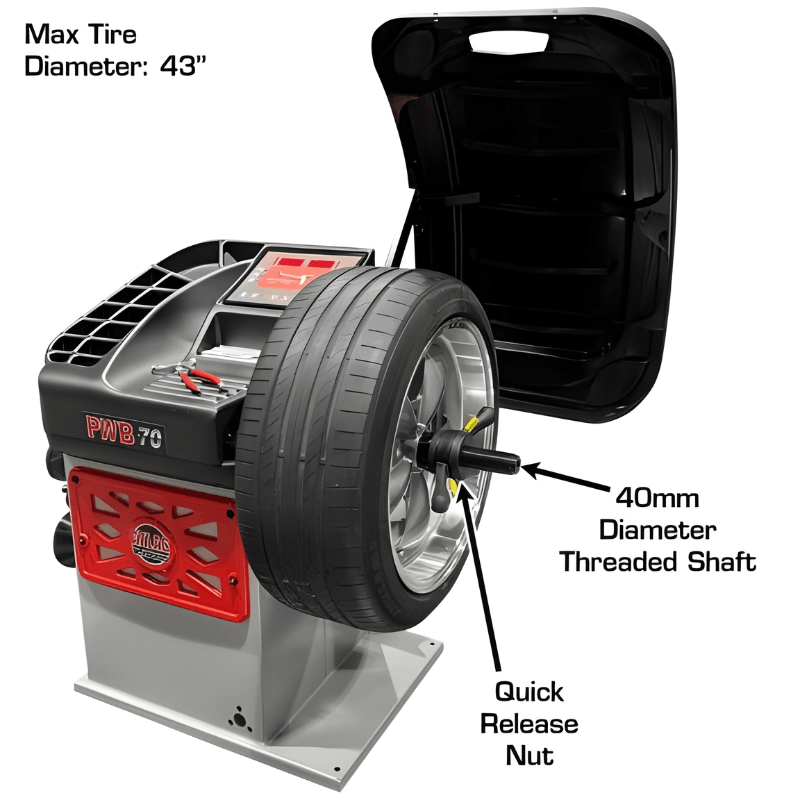

- Maximum Tire Diameter: 43"
- Rim Width: 1.5" – 20"
- Maximum Wheel Weight: 165 lbs
- Shaft Diameter: 40mm
- Balancing Speed: 130 RPM
- Cycle Time: 7 seconds
- Accuracy: 1 gram
- Weight Position Resolution: 1.4°
- Power Requirement: 110V
- Data Entry: Automatic 2D
- Measurement Units: Standard or Metric
- Shipping Weight: 280 lbs
Key Features
- Computer-controlled, motorized spin balancing system
- Built with premium Italian components
- Integrated LED work light and laser weight placement guide
- Enlarged weight tray and oversized protective hood
- Electric brake with intelligent positioning system
- Optimatch, FES, and Opposite Weight Function capabilities
- Supports static, dynamic, ALU, and ALU-S balancing modes
- No-Wheel-Needed (NWN) system
- Self-diagnosing and self-calibrating functionality
- Automatic start and stop with hood operation
- USB port for firmware updates
- Includes cones, quick-release nut, pliers, and calipers
- No anchor-down installation required
- Backed by a 2-year parts-only warranty
PWB70 Manual
Not Available
Atlas Platinum PWB70 Optional Item Sold Separately
