Description
Center Post Tire Changer with Assist Arm & Precision Laser-Guided Wheel Balancer
Boost your shop’s productivity with the Atlas Platinum PTC400 Tire Changer and PWB70 Wheel Balancer combo—engineered in Italy for performance, accuracy, and long-term durability.

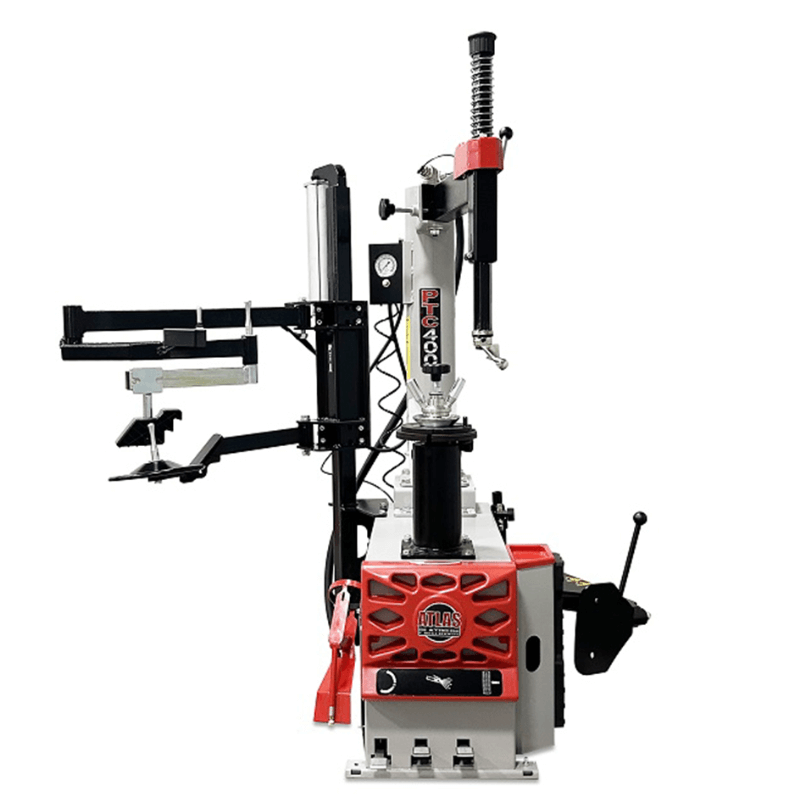

The PTC400 enhances the trusted PTC300 platform with a rugged center post swing-arm design and a left-side assist arm, making it ideal for handling low-profile and run-flat tires. With a 26" clamping range, support for tires up to 43" in diameter, and an integrated bead blaster system, it streamlines tire mounting and removal. It also comes equipped with a full FRL system, tire tool, and lube bucket to keep operations running efficiently.

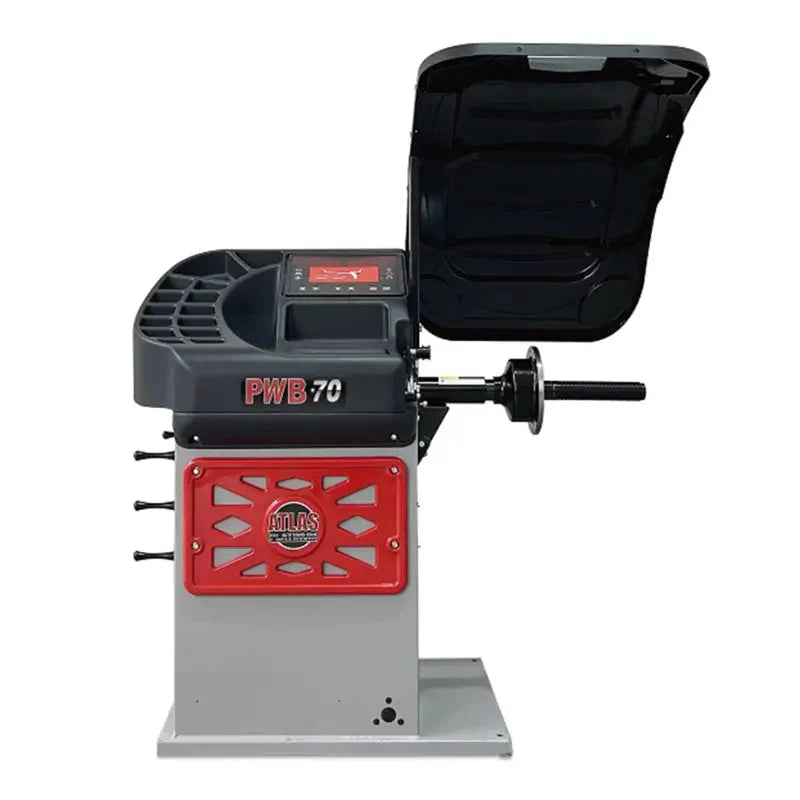

Matched with the PWB70 wheel balancer, this combo ensures precise results every time. Featuring a laser-guided weight placement system, LED work light, and premium Italian components, the PWB70 delivers 1-gram accuracy with a fast 7-second cycle time. Its intuitive controls, multiple balancing modes, and automatic start/stop functionality make it a reliable solution for high-volume shops—without requiring anchor-down installation.
This complete package is ideal for busy service centers looking to increase efficiency without sacrificing precision. Both units are backed by a 2-year parts-only warranty.
Atlas Platinum PTC400 Tire Changer – Specifications
- Clamping Range: 10" – 26"
- Maximum Tire Diameter: 43"
- Maximum Wheel Width: 15" (13" reverse)
- Rotation Speed: 7 RPM
- Bead Breaker Force: 6,924 lbs
- Power Requirement: 110V
- Air Requirement: 120–145 PSI
- Shipping Weight: 620 lbs
PTC400 Tire Changer – Key Features
- Italian-engineered center post swing-arm design
- Left-hand assist arm for demanding tire jobs
- High-torque 110V electric turntable
- Air-operated bead breaker with protective plastic cover
- External flexible bead blast system
- Metal mount/demount head with replaceable plastic inserts
- Includes filter, regulator, and lubricator (FRL) system
- Comes with tire tool, lube bucket, and brush
- Anodized aluminum bead breaker cylinder
- Heavy-duty construction with premium components
- Replacement parts and wear items readily available
- 2-year parts-only warranty
Atlas Platinum PWB70 Wheel Balancer – Specifications
- Rim Size (Car/Light Truck): 10" – 30"
- Maximum Tire Diameter: 43"
- Rim Width: 1.5" – 20"
- Maximum Wheel Weight: 165 lbs
- Shaft Diameter: 40mm
- Balancing Speed: 130 RPM
- Cycle Time: 7 seconds
- Accuracy: 1 gram
- Weight Position Resolution: 1.4°
- Power Requirement: 110V
- Data Entry: Automatic 2D
- Measurement Units: Standard or Metric
- Shipping Weight: 280 lbs
PWB70 Wheel Balancer – Key Features
- Computer-controlled motorized spin balancer
- Built with premium Italian components
- Integrated LED work light and laser weight placement guide
- Large weight tray and oversized hood
- Electric brake with smart positioning system
- Optimatch, FES, and Opposite Weight Function capabilities
- Supports static, dynamic, ALU, and ALU-S modes
- No-Wheel-Needed (NWN) system
- Self-diagnosing and self-calibrating operation
- Automatic start/stop with hood movement
- USB port for firmware updates
- Includes cones, quick-release nut, pliers, and calipers
- No anchor-down installation required
- 2-year parts-only warranty
Manual: Not available
Atlas PTC400 & PWB70 – Optional Equipment (Sold Separately)
