Description

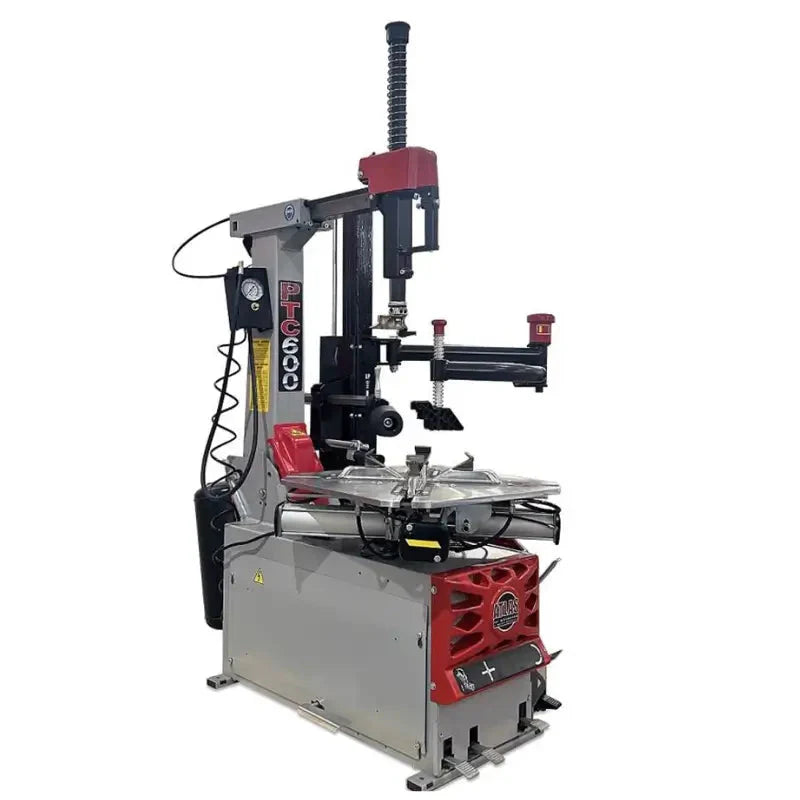

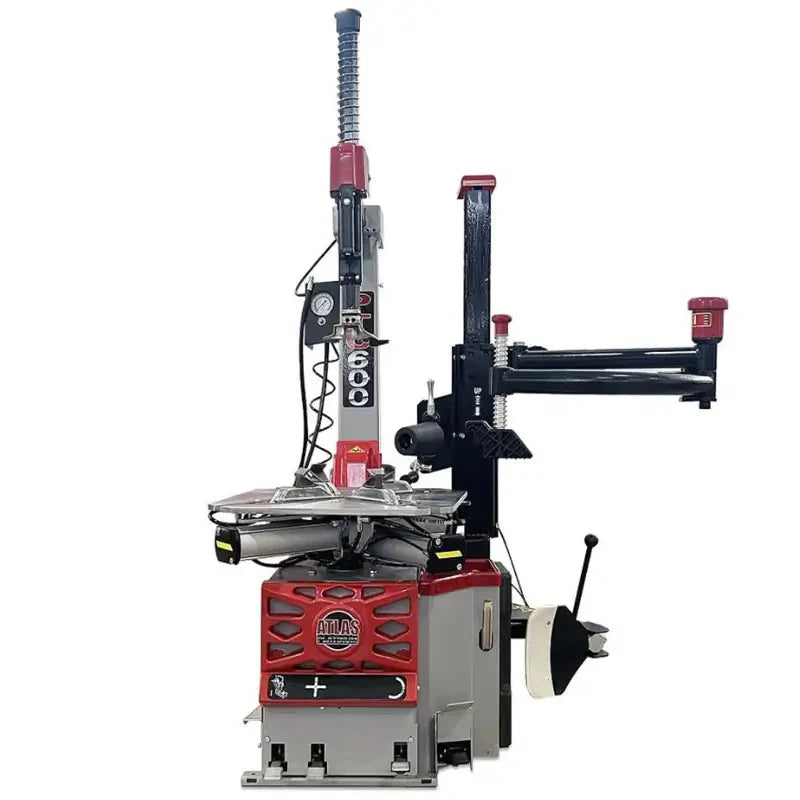

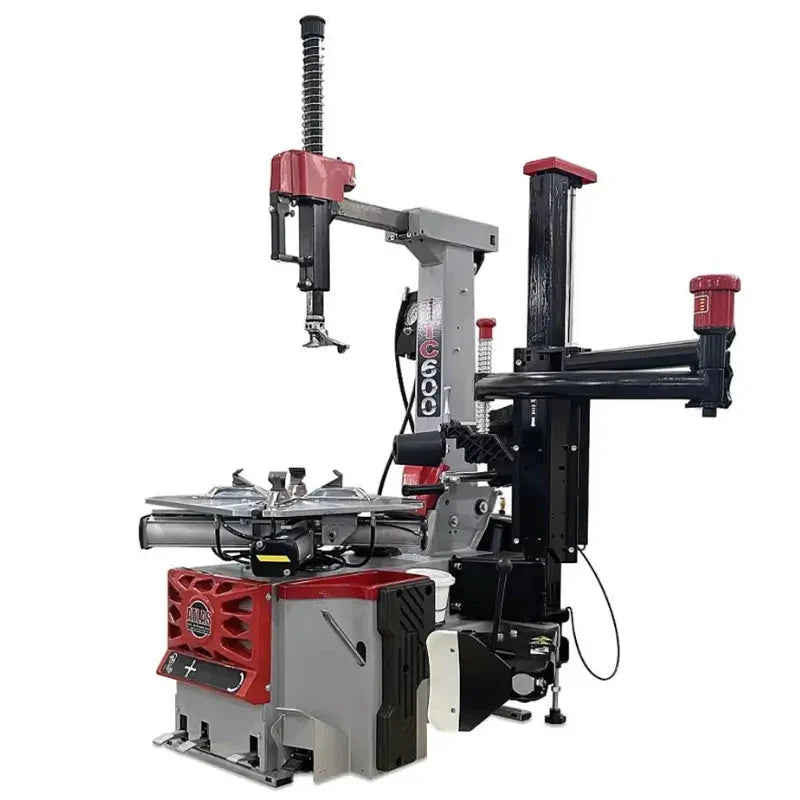

Platinum PTC600 Tilt-Back Tire Changer with Assist Arm by Atlas
The Atlas Platinum PTC600 is purpose-built for professional tire shops and high-volume dealerships that require a strong, reliable, and user-friendly tire changer. Outfitted with Italian-engineered components, it delivers outstanding accuracy and efficiency across both standard and demanding tire applications.
Equipped with a right-side assist arm and a pneumatic tilt-back column, the PTC600 improves workflow while helping minimize the risk of wheel damage. It also features replaceable plastic inserts on the mount/demount head and air-powered clamping jaws for added protection. A high-torque 110V electric turntable and heavy-duty bead breaker cylinder provide the strength needed to handle stiff sidewalls, low-profile tires, and larger wheel assemblies without struggle.
Built for durability in busy shop environments, the PTC600 includes a complete filter-regulator-lubricator (FRL) system, integrated bead blaster, oversized jaw protectors, and multiple replacement inserts. With an internal clamping capacity of up to 29" and the ability to handle tires up to 43" in diameter, it offers excellent performance and value, all backed by a 2-year parts-only warranty.
PTC600 Specifications
- External Clamping Range: 10" – 27"
- Internal Clamping Range: 12" – 29"
- Maximum Tire Diameter: 43"
- Maximum Wheel Width: 16"
- Turntable Speed: 7 RPM
- Bead Breaker Force: 6,924 lbs
- Air Requirement: 120–145 PSI
- Power Requirement: 110V
- Shipping Weight: 795 lbs
Key Features
- Tilt-back clamping design for safer, more efficient operation
- Right-hand assist arm for bead pressing and rolling
- Air-operated jaws and bead breaker system
- High-torque 110V electric turntable
- Metal mount/demount head with replaceable plastic inserts
- Column-mounted inflator box with built-in pressure gauge
- Integrated bead blaster for quick tire seating
- Includes filter, regulator, and lubricator (FRL) system
- Comes with tire tool, lube bucket, and brush
- Large plastic jaw protectors and bead breaker cover included
- Replacement plastic inserts provided
- Readily available replacement parts
- Backed by a 2-year parts-only warranty
Platinum PTC600 Tire Changer Manual
Not Available
Atlas Platinum PTC600 Optional Item Sold Separately
