Description

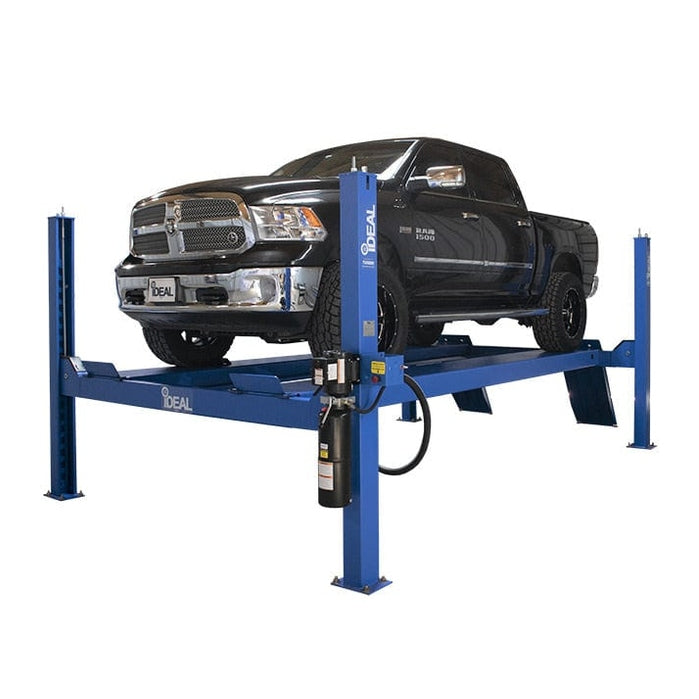

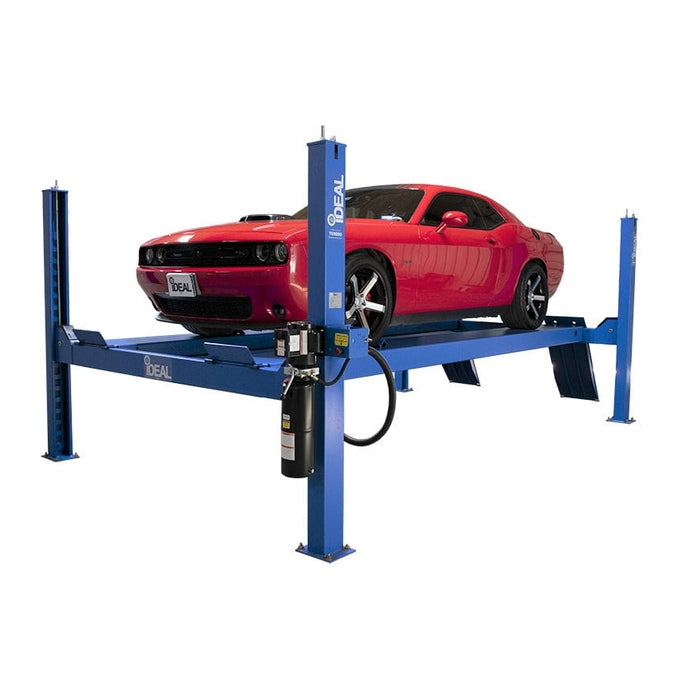

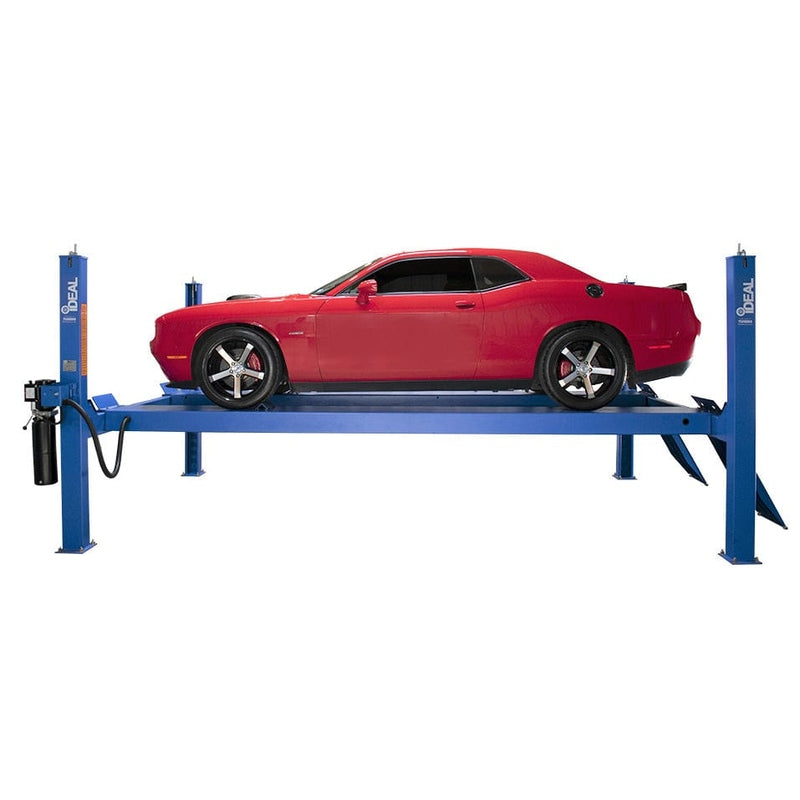

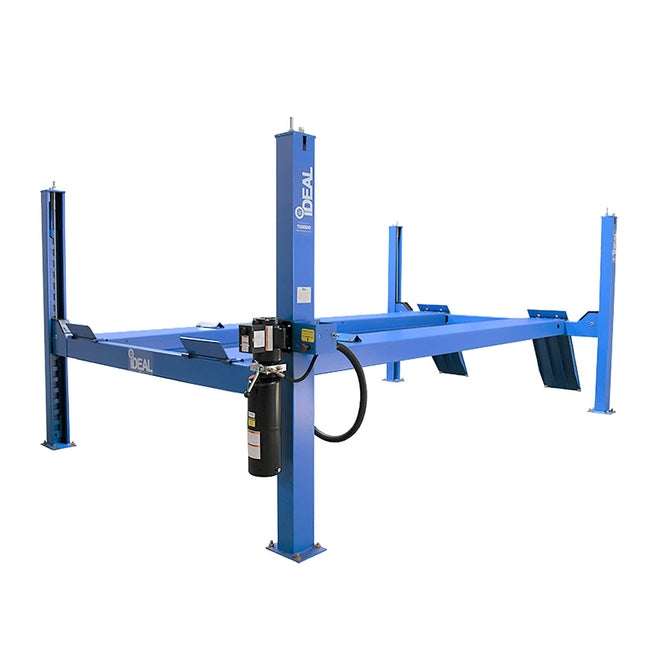

The iDEAL FP14KC-X 14,000 lb. 4-Post Commercial Lift is a heavy-duty, closed-front cable-pull service lift engineered for cars, SUVs, vans, and light- to medium-duty trucks. Designed with performance, safety, and versatility in mind, this lift delivers exceptional reliability for busy automotive service environments.
Featuring narrow and wide runway mounting positions, an extended rise height, and a concealed hydraulic/mechanical cable system with slack cable safety locks, the FP14KC-X ensures smooth, stable, and secure operation. The lift’s durable pulley and shaft design incorporates accessible grease fittings for long-lasting service life.
A single-point pneumatic lock release and DURO power unit provide effortless operation, while self-chocking approach ramps, wheel stops, and 18 locking height positions enhance user safety and convenience. The modular runway design allows for optional extensions to accommodate longer vehicles or easy conversion into an alignment lift.
Finished with a durable powder-coated surface, 20-inch wide runways, and fully adjustable lock stops for simple leveling, the FP14KC-X offers professional-grade quality and flexibility — all at exceptional value.

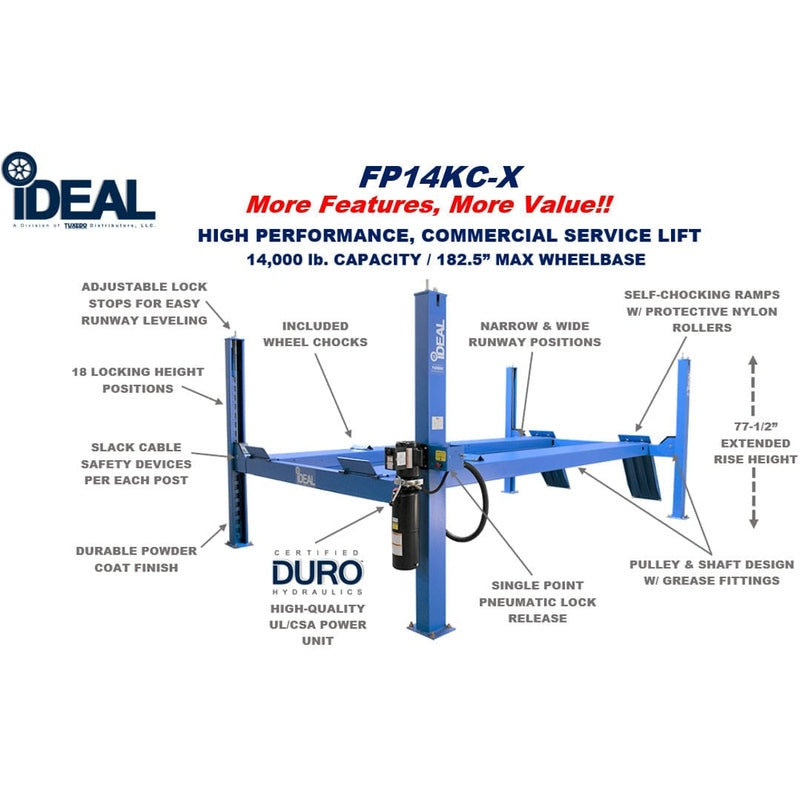

Key Features
-
14,000 lb. lifting capacity for commercial-grade service use
-
Closed-front design for enhanced stability and accessibility
-
Concealed hydraulic and cable system with slack cable safety devices
-
Single-point pneumatic lock release for easy, efficient operation
-
DURO power unit for reliable hydraulic performance
-

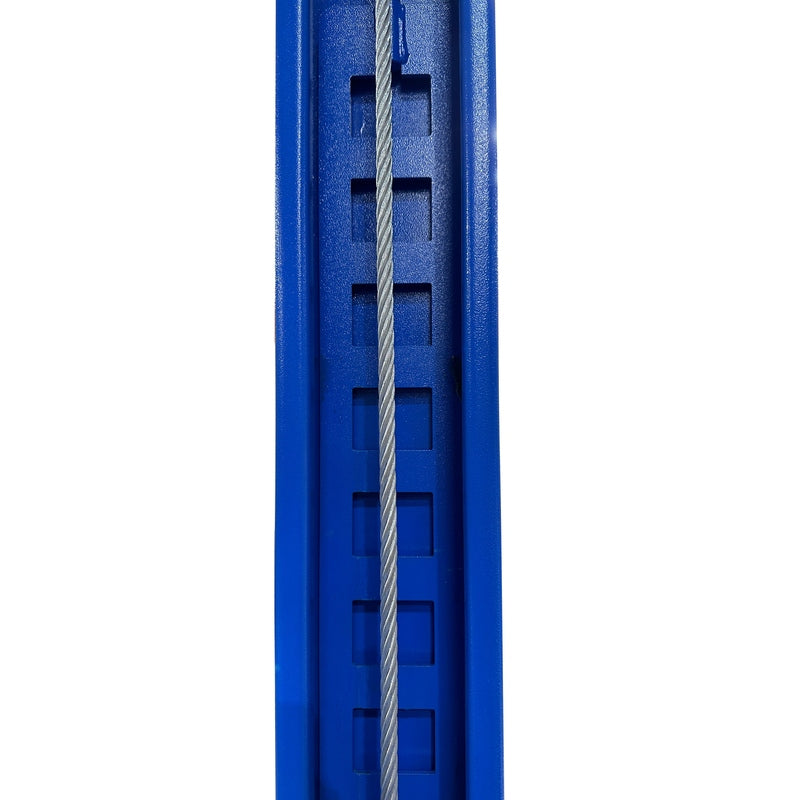

18 locking positions for precise height control
-

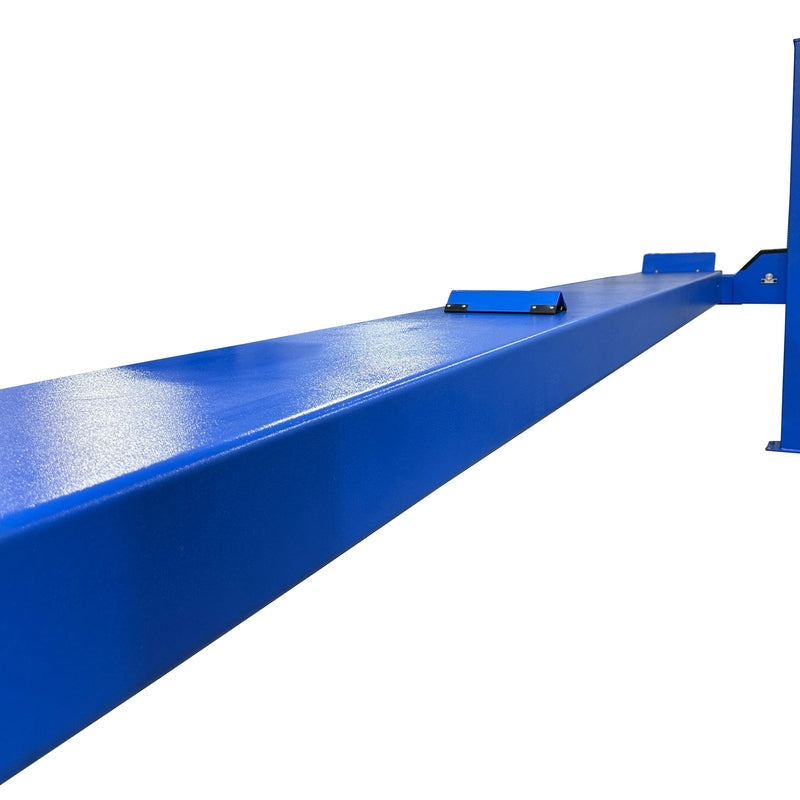

20″ wide runways with narrow and wide mounting options
-
Extended rise height for superior undercarriage access
-

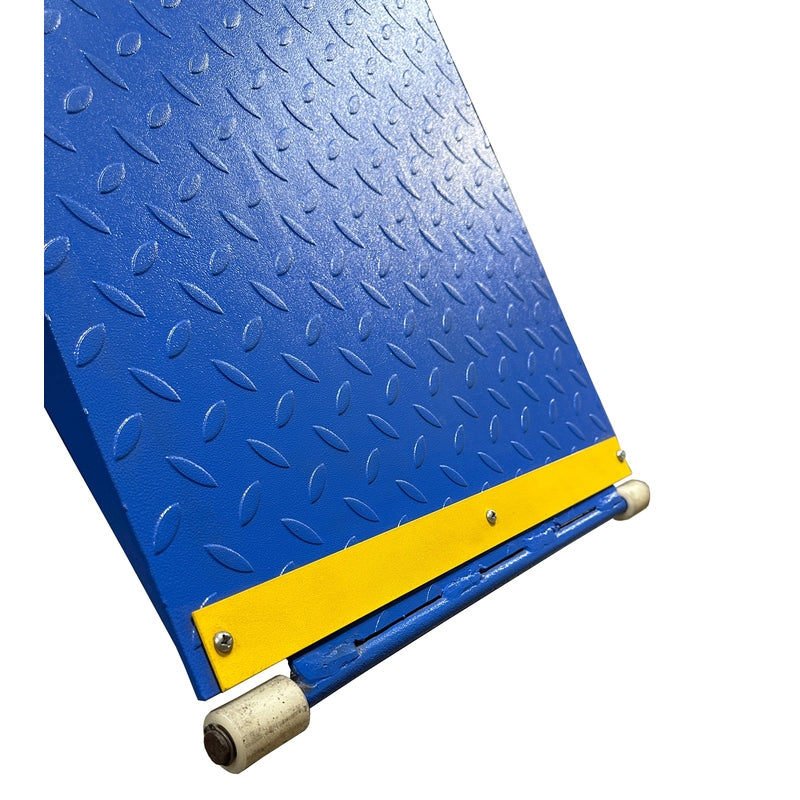

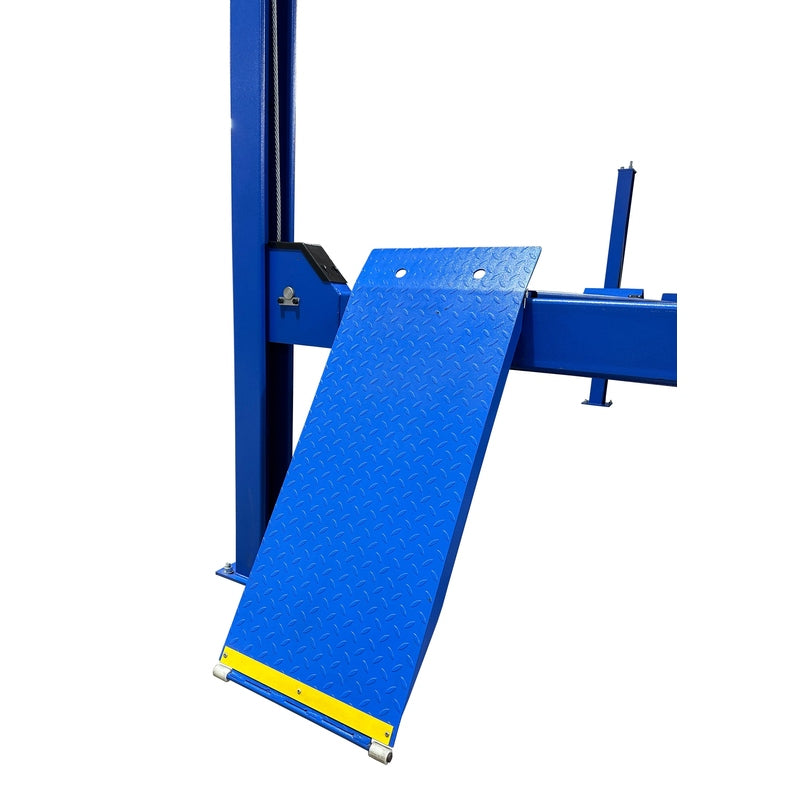

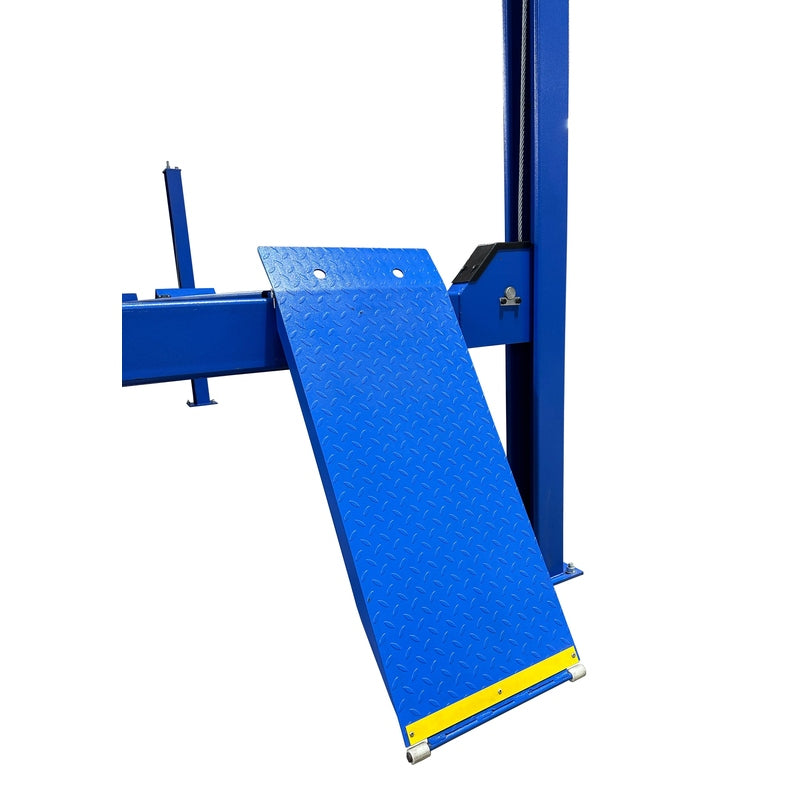

Self-chocking ramps with nylon rollers for added safety
-

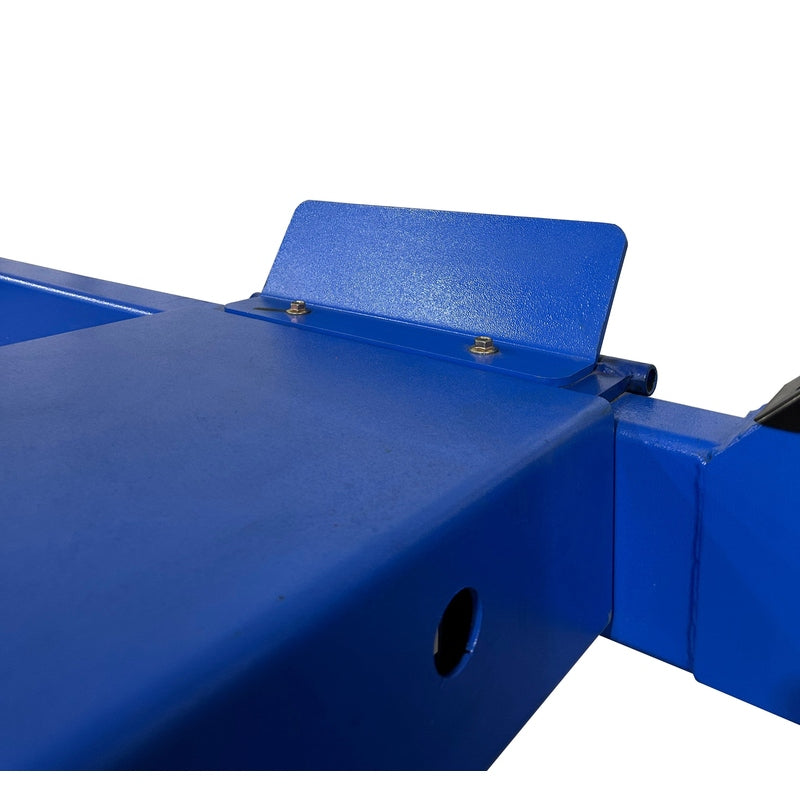

Wheel chocks (1 pair) included
-
Adjustable lock stops for easy runway leveling
-
Powder-coated finish for long-lasting durability
-
Modular design allows runway extensions or alignment lift conversion

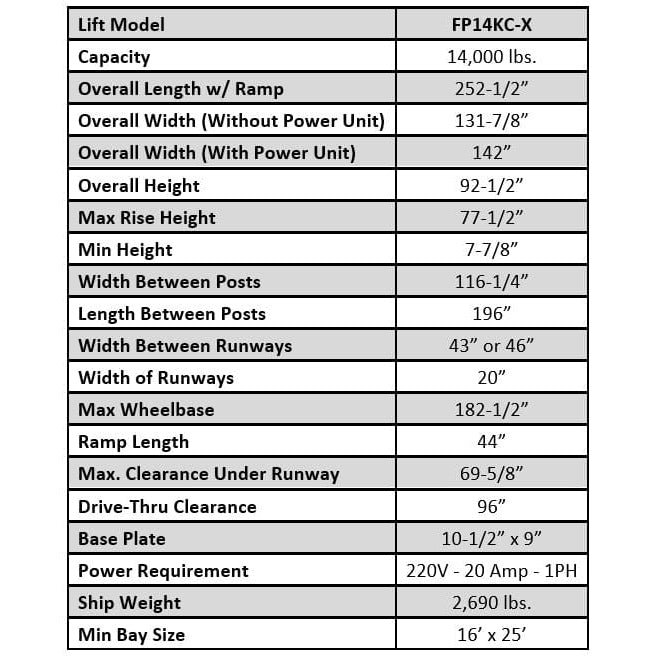

Specifications
| Specification | Detail |
|---|---|
| Model | FP14KC-X |
| Capacity | 14,000 lbs |
| Overall Length (with Ramp) | 252.5″ |
| Overall Width (without / with Power Unit) | 131.9″ / 142″ |
| Overall Height | 92.5″ |
| Max Rise Height | 79.5″ |
| Min Height | 9.9″ |
| Width Between Posts | 116.25″ |
| Length Between Posts | 196″ |
| Width Between Runways | 43″ or 46″ |
| Width of Runways | 20″ |
| Max Wheelbase | 182.5″ |
| Alignment Wheelbase (2-Wheel / 4-Wheel) | 166.75″ / 103″–157″ |
| Ramp Length | 44″ |
| Max Clearance Under Runway | 69.6″ |
| Drive-Thru Clearance | 100″ |

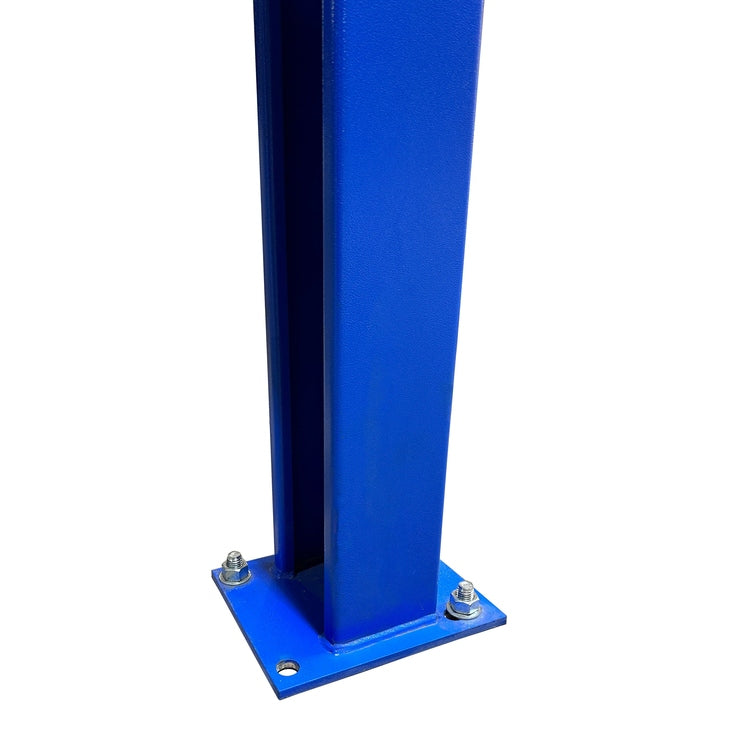

| Base Plate Size | 10.5″ × 9″ |
| Power Requirement | 220V, 20 Amp, 1PH |
| Shipping Weight | 3,810 lbs |
| Minimum Bay Size | 16′ × 25′ |
Manual
The iDEAL FP14KC-X 14,000 lb. 4 Post Commercial Service Lift Manual
