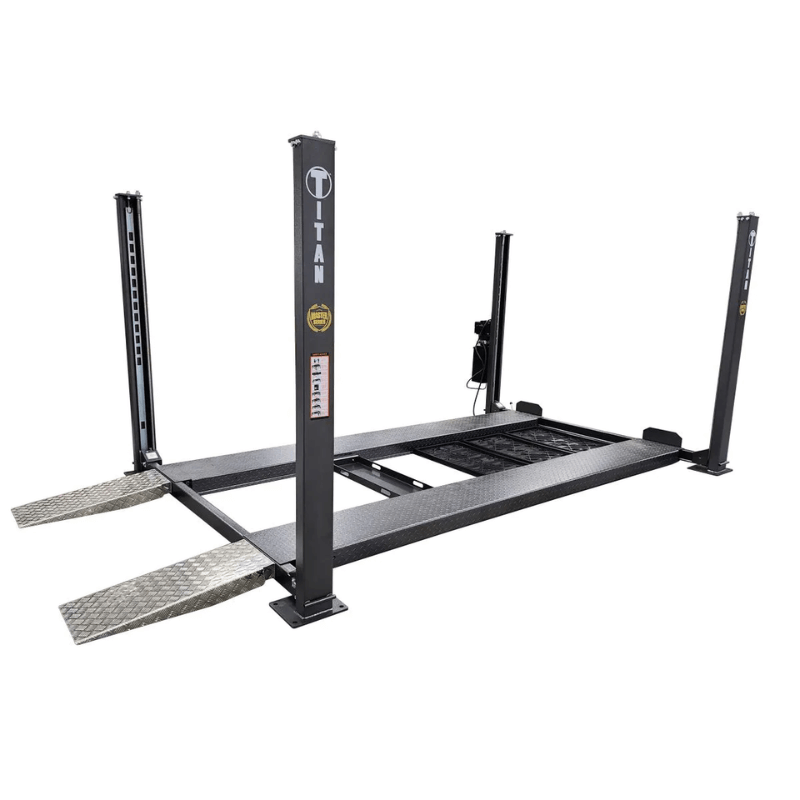

The Titan SDPL-8KMS Four-Post Lift is a versatile and dependable lifting solution designed for vehicle storage, maintenance, and service applications. Featuring an 8,000 lb lifting capacity, this lift combines commercial-grade durability with user-friendly operation, making it an excellent choice for professional shops, home garages, and automotive enthusiasts.
Finished in a durable hammered dark powder coat, the SDPL-8KMS is built to withstand years of use while maintaining its appearance. Internal linkage rods provide a clean, streamlined design while improving accessibility and reducing clutter around the lift structure. The conveniently positioned single-point safety lock release handle allows for easy operation without excessive bending, enhancing both comfort and safety during daily use.
Powered by a standard 110V household electrical connection, this lift is easy to install in most residential garages without requiring specialized electrical upgrades. Diamond-plated one-piece steel runways, a metal hydraulic reservoir, and a variety of included accessories further enhance the lift's functionality, making it ideal for vehicle storage, routine maintenance, and repair work.
Specifications
Lifting Capacity: 8,000 lbs
Overall Height: 83-9/16"
Maximum Lifting Height: 76-3/4"
Runway Length: 160"
Runway Width: 18-11/16"
Overall Width (with Motor): 122-5/8"
Overall Width (without Motor): 107-1/16"
Inside Column Width: 100-3/8"
Overall Length (Outside of Columns): 164-3/8"
Inside Column Length: 151-3/4"
Drive-Thru Width: 90"
Width Between Runways: 43-1/2"
Outside Runway Width: 80-7/8"
Ramp Length: 36-5/8"
Baseplate Dimensions: 11-13/16" x 10-1/4"
Power Requirements: 110V–120V, 60Hz, 20 Amp
Plug Type: Standard 3-Prong Outlet
Motor: 1.5 HP
Shipping Dimensions: 164"L x 23"W x 45"H
Shipping Weight: 1,667 lbs
Features
8,000 lb lifting capacity
Durable hammered dark powder-coated finish
Internal linkage rods for a cleaner appearance and improved accessibility
Single-point safety lock release handle

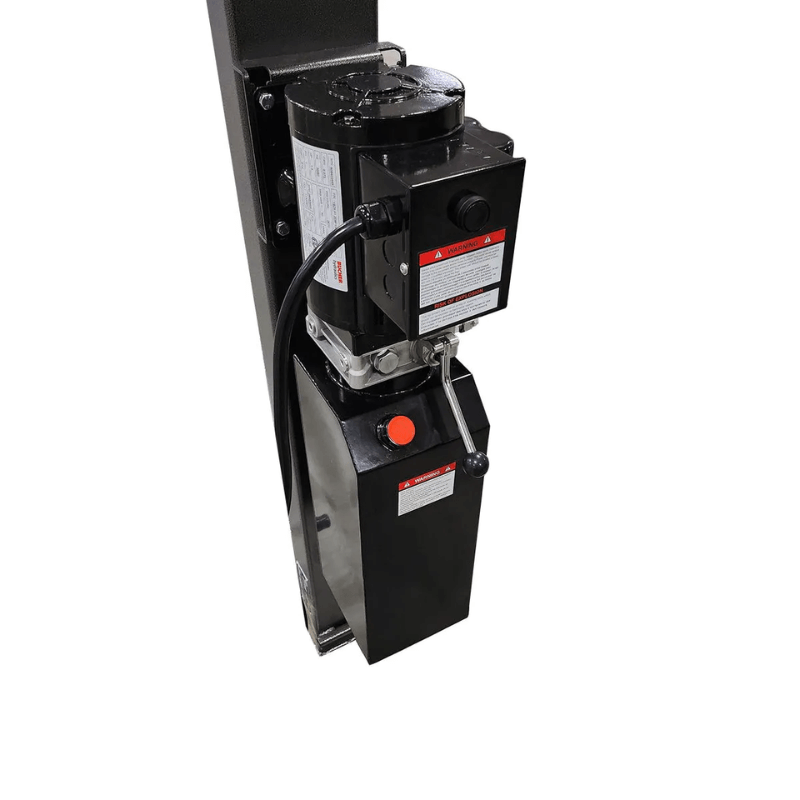

Heavy-duty metal hydraulic oil reservoir
Diamond-plated one-piece formed steel runways
Operates on standard 110V–120V household power
Ideal for vehicle storage and service applications
Designed for residential and commercial use
Included Accessories
Aluminum approach ramps

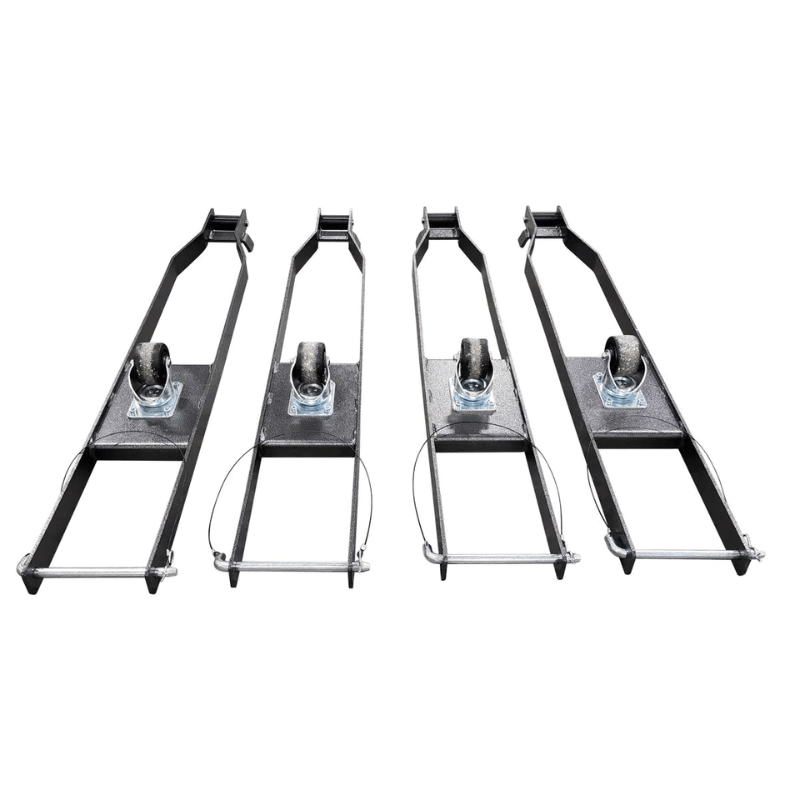

Caster kit for portability
Three drip trays
Jack tray
Two wheel stop plates
Optional Accessories

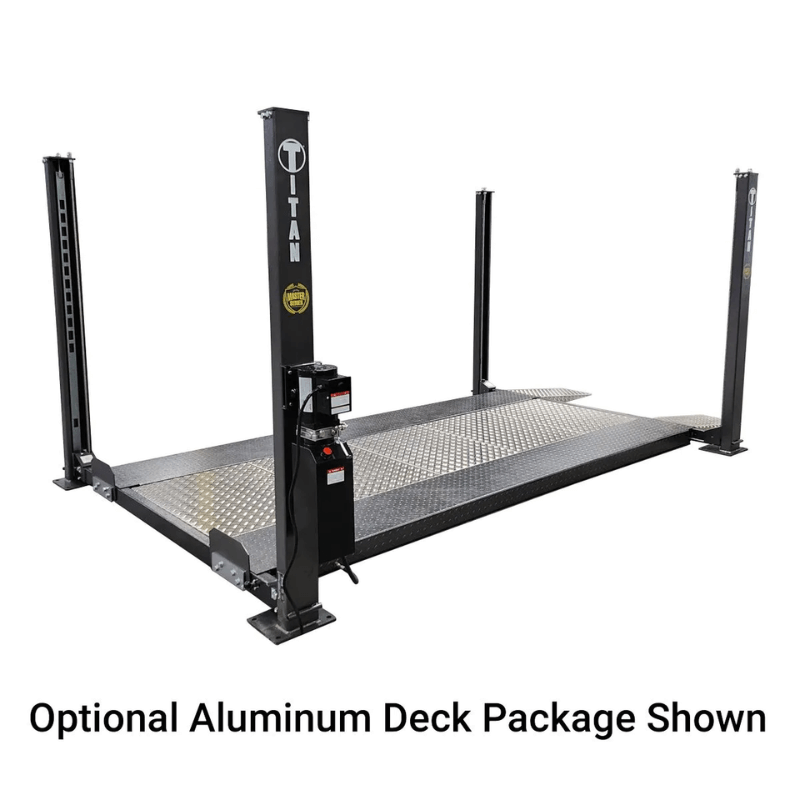

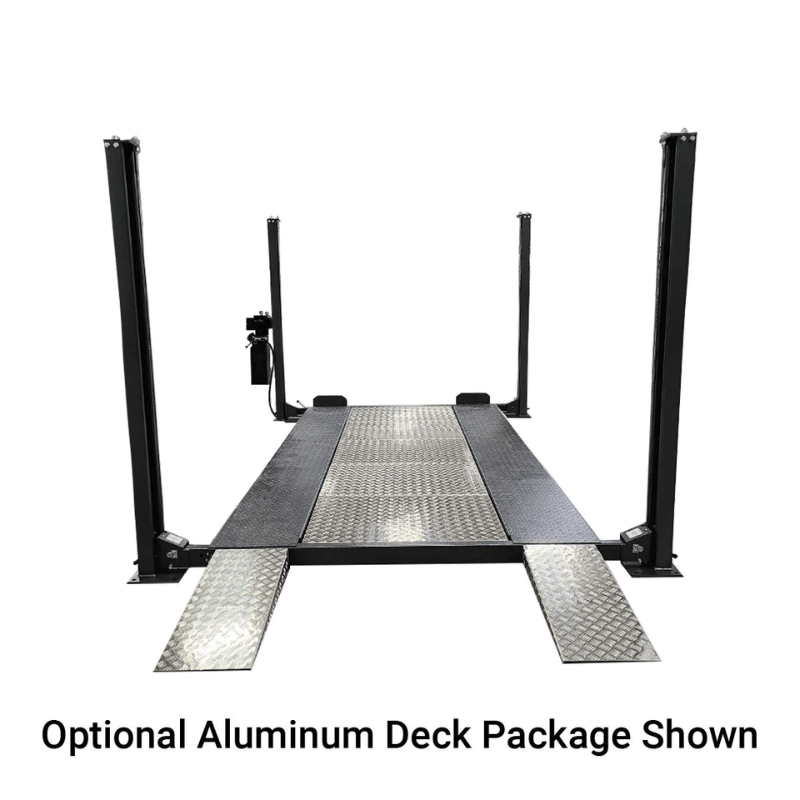

Aluminum center deck package
Sliding bridge jack
Warranty
2-Year Electrical & Hydraulic Warranty
6-Year Structural Warranty
The Titan SDPL-8KMS offers an excellent balance of strength, convenience, and versatility, making it a dependable four-post lift for vehicle storage, maintenance, and professional-grade service work. Its residential-friendly power requirements, included accessory package, and long-term warranty coverage make it a valuable addition to any garage.
