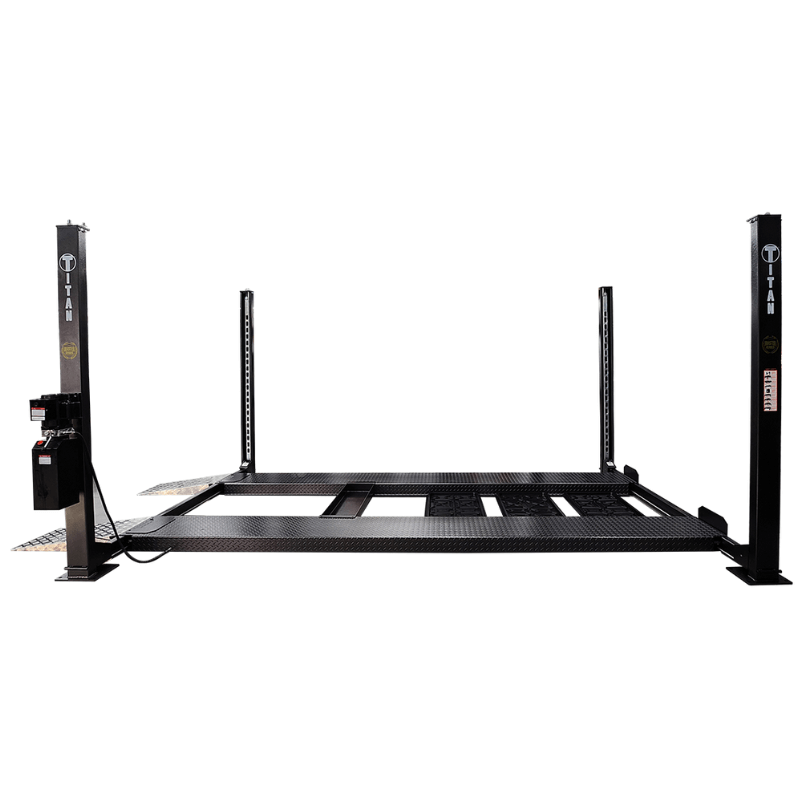

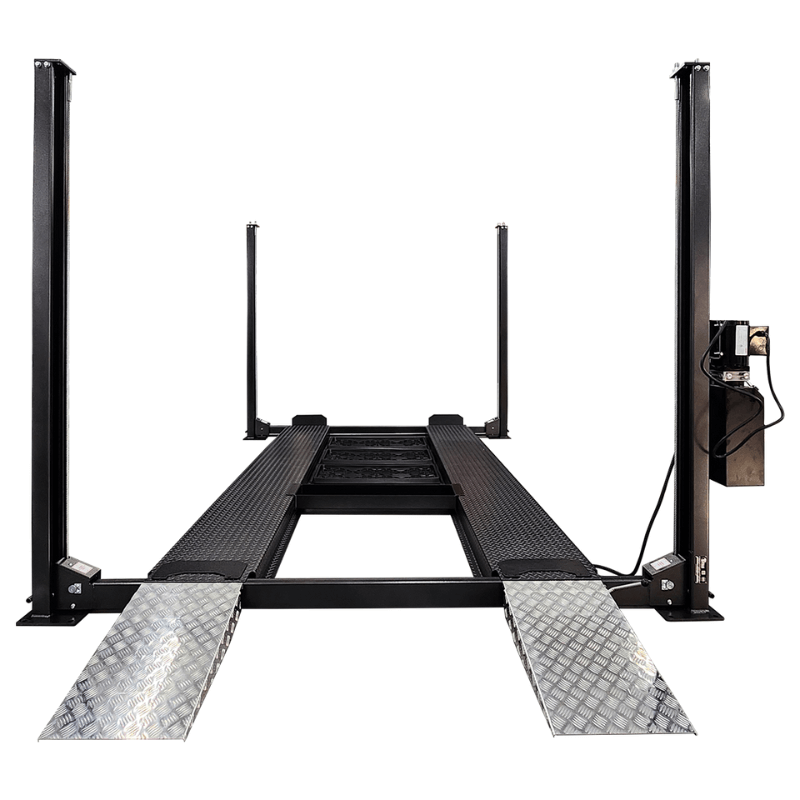

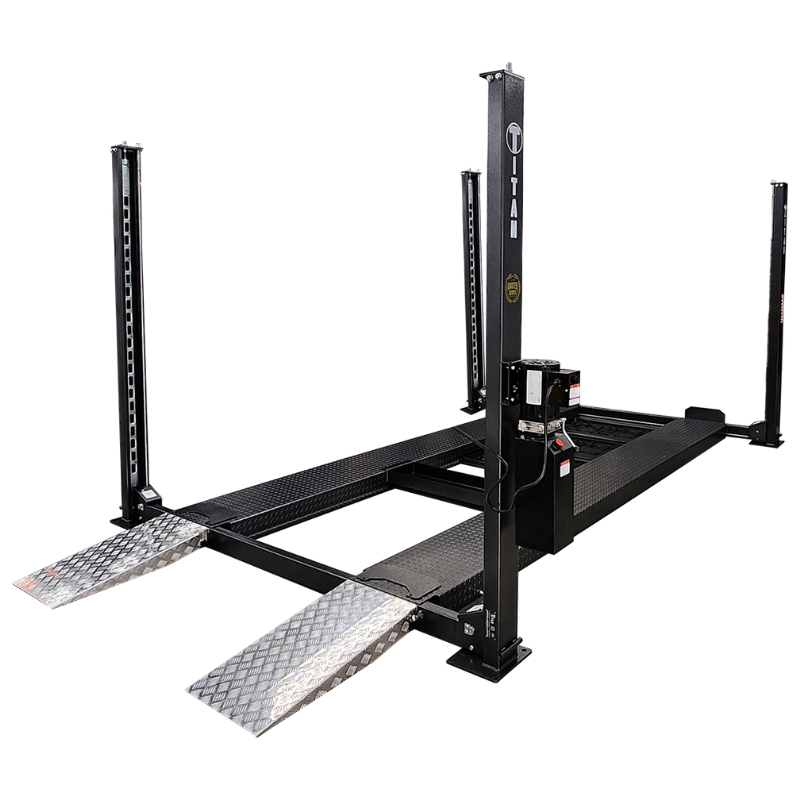

Titan SDPL-9KMS-XLT 9,000 lb Four-Post Lift – Master Series
The Titan SDPL-9KMS-XLT Master Series Four-Post Lift is a premium storage and service solution designed for automotive enthusiasts, collectors, and homeowners who want to maximize garage space while maintaining professional-grade lifting capabilities. With a robust 9,000 lb lifting capacity, this lift is ideal for storing and servicing cars, trucks, SUVs, boats, and other recreational equipment.
Powered by a standard 110V electrical system, the SDPL-9KMS-XLT easily integrates into most residential garages without requiring special electrical upgrades. Its thoughtful design incorporates internal linkage rods, greaseable pulleys, and a conveniently positioned single-point safety lock release handle, providing smooth operation while reducing maintenance requirements and improving user convenience.
Built for durability and long-term reliability, the Master Series lift features heavy-duty one-piece diamond-plated steel runways, reinforced runway supports, and a rugged hammered dark powder-coated finish that resists corrosion and everyday wear. Generous under-runway clearance, included service accessories, and available upgrade options make this lift an excellent choice for both vehicle storage and maintenance applications.
Specifications
- Lifting Capacity: 9,000 lbs
- Lifting Height: 5-1/2" – 87-3/16"
- Overall Height: 97-5/16"
- Maximum Under-Runway Clearance: 81"
- Drive-Thru Width: 99-1/2"
- Overall Width with Motor: 133-7/8"
- Width Between Runways: 43-1/2"
- Outside Runway Width: 83-1/4"
- Runway Length: 189-9/16"
- Runway Width: 19-7/8"
- Total Ramp Length: 36-5/8"
Base & Column Dimensions
- Baseplate Dimensions: 11-13/16" x 10-1/4"
- Column Dimensions: 3-1/4" x 6-1/4"
- Center of Baseplates (Width): 112-3/16"
- Outside of Baseplates (Width): 121-1/2"
- Outside of Columns (Width): 118-3/4"
- Inside of Columns (Width): 112"
- Center of Baseplates (Length): 187-5/8"
- Outside of Baseplates (Length): 199-1/2"
- Outside of Columns (Length): 193-7/8"
- Inside of Columns (Length): 180-1/2"
- Overall Length with Ramps: 231"

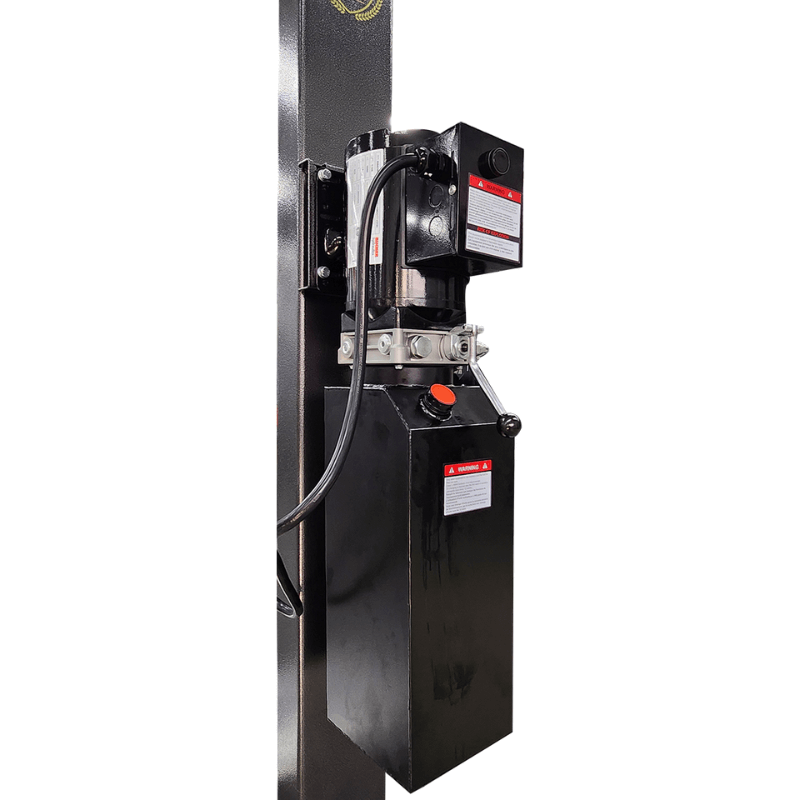

Power Requirements
- 110V Power Supply
- 1.5 HP Motor
- 20 Amp Breaker Required
- Standard 3-Prong Plug
Shipping Information
- Shipping Weight: 2,002 lbs
Features
- 9,000 lb lifting capacity
- Durable hammered dark powder-coated finish
- One-piece diamond-plated steel runways
- Reinforced runway supports for added strength
- Internal linkage rod design for a clean appearance and improved accessibility
- Single-point safety lock release handle
- Heavy-duty metal hydraulic reservoir
- Greaseable pulleys for smooth operation and extended service life
- Increased under-runway clearance for enhanced storage and maintenance access
- Designed for vehicle storage and service applications
Included Accessories
- Aluminum approach ramps
- Three drip trays
- Jack tray
- Wheel stops
Optional Accessories (Sold Separately)
- Caster kit for lift mobility
- Sliding bridge jack
- Aluminum center deck package
The Titan SDPL-9KMS-XLT Master Series combines exceptional lifting capacity, extended runway length, and premium construction to deliver a versatile four-post lift capable of meeting the needs of both vehicle storage and maintenance. Its residential-friendly power requirements, heavy-duty design, and included accessories make it a dependable addition to any garage or workshop.
