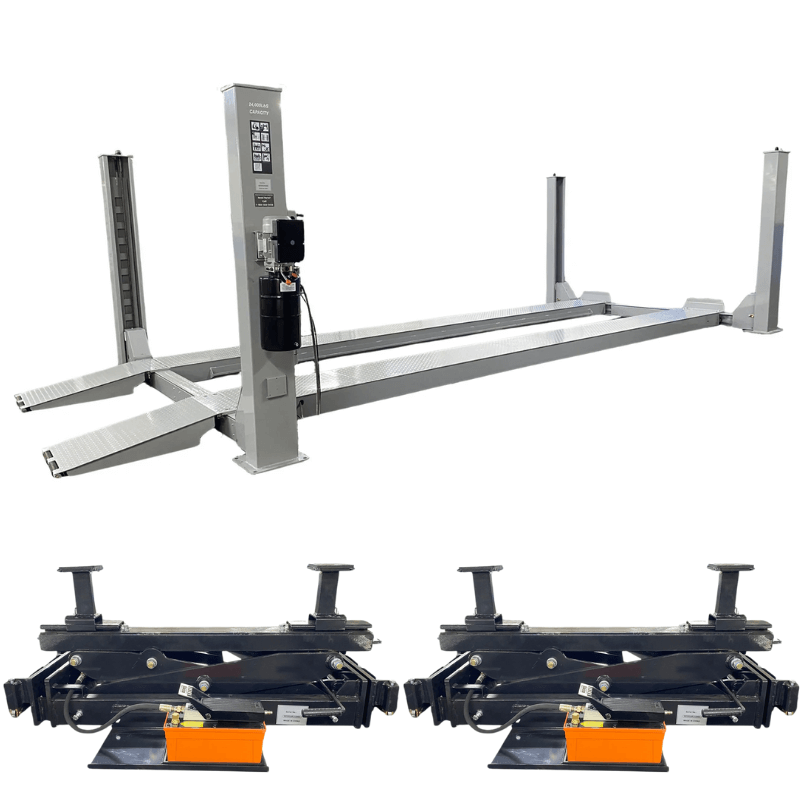

Triumph NTR-16 16,000 lb 4 Post Lift With (2) RJ-9000 Rolling Bridge Jack Combo

NTR-16 16,000 lb 4-Post Lift with (2) RJ-9000 Rolling Bridge Jack Combo by Triumph

The Triumph NTR-16 4-Post Lift paired with dual RJ-9000 Rolling Bridge Jacks delivers a complete heavy-duty lifting solution built for professional shops and serious enthusiasts. With a massive 16,000 lb lifting capacity, the NTR-16 is designed to handle everything from pickup trucks to fully loaded commercial vans, providing a stable and reliable platform for maintenance, storage, and repair work.

Engineered for versatility, the NTR-16 features 12 locking positions and adjustable runway spacing, allowing it to accommodate a wide range of vehicle sizes with confidence. Its 74.4" maximum lifting height offers generous undercarriage clearance, while the robust steel construction and 220V single-phase power system ensure consistent, smooth operation in demanding environments.

The included RJ-9000 Rolling Bridge Jacks take this setup to the next level. Each jack offers a 9,000 lb lifting capacity, allowing you to raise the front or rear of the vehicle off the runways for precise axle, brake, and suspension work. With adjustable lifting pads ranging from 40.1" to 59.8" and included height adapters (1.5" and 5"), these jacks provide the flexibility needed to service a wide variety of vehicles.

---

Complete Shop Solution

Together, the NTR-16 and dual RJ-9000 jacks create a highly capable, all-in-one lifting system that combines strength, accessibility, and precision. The lift’s wide 161" overall width and extended 224.5" runways provide ample working space, while the bridge jacks’ compact roll-in design allows for easy positioning along the lift.

With a lifting range from 16.9" to 32.4", the RJ-9000 adapts seamlessly to different vehicle profiles, making axle work safer and more efficient. Whether you're a professional technician handling high-volume jobs or an enthusiast working on larger vehicles, this combination delivers the control and performance needed to get the job done right.

---

Combo Specifications

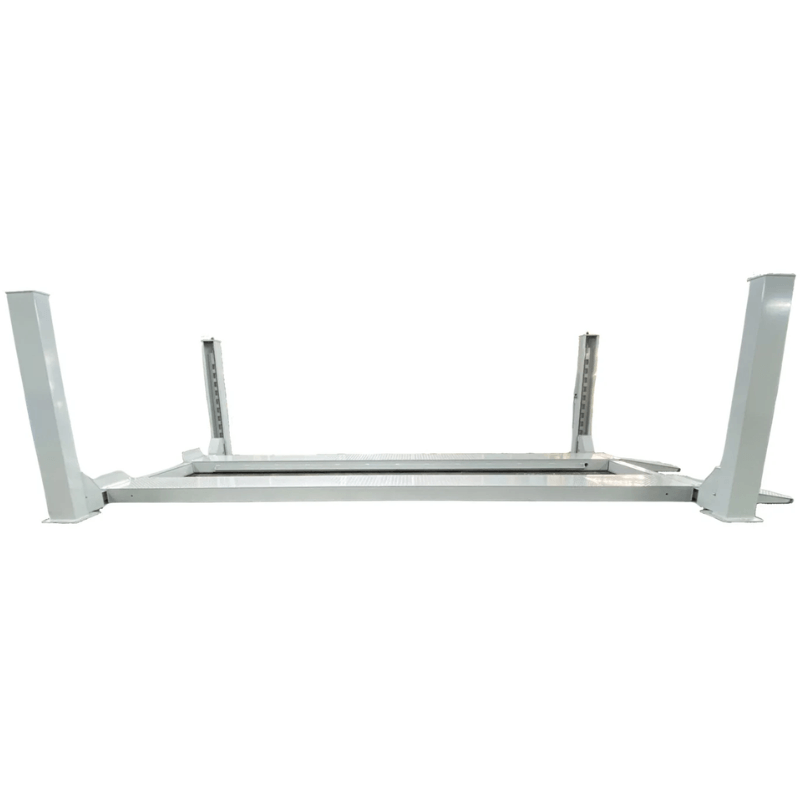

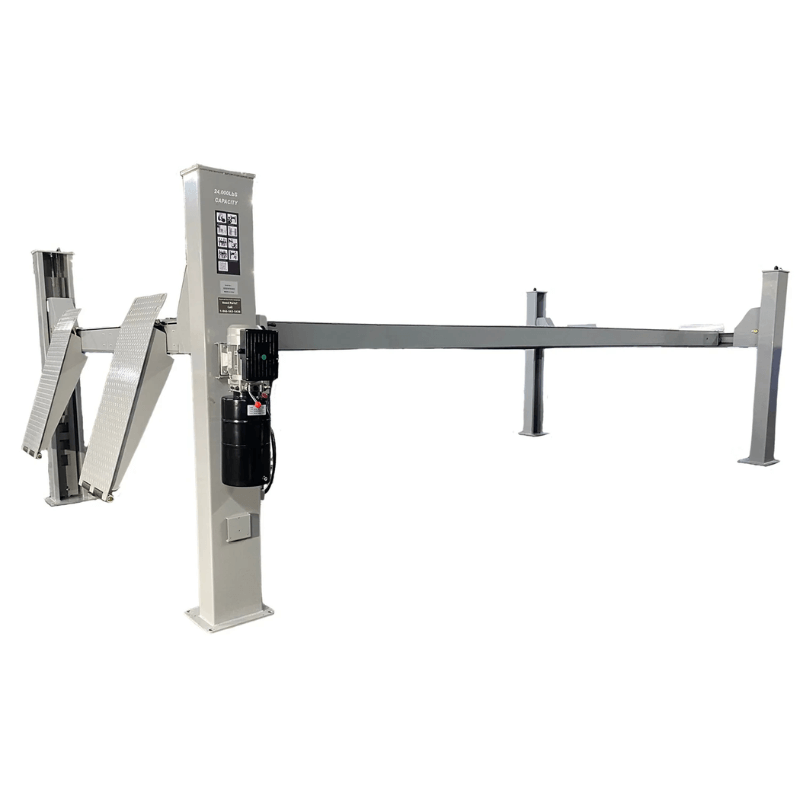

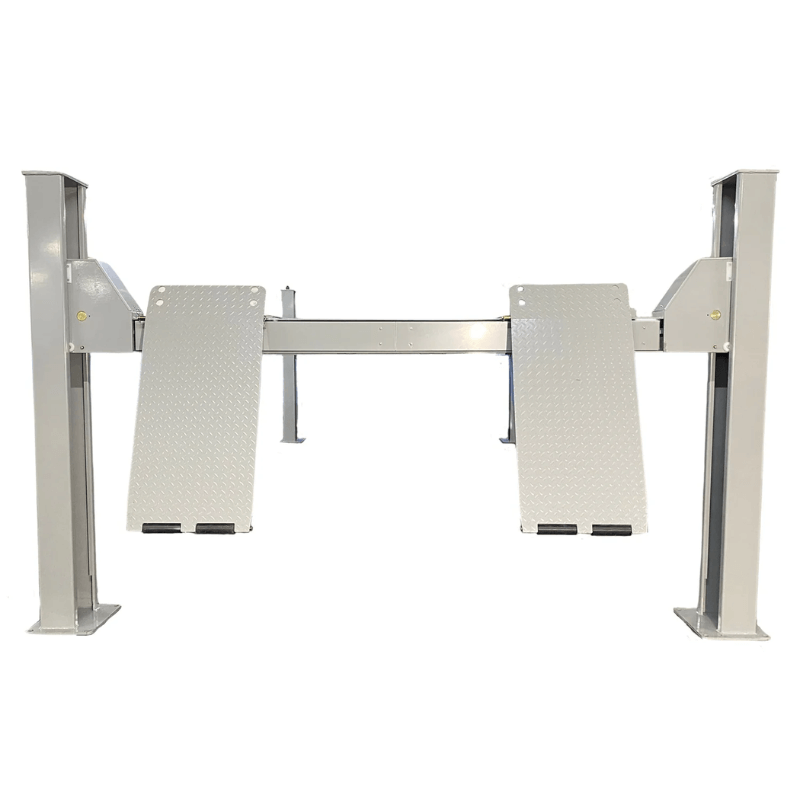

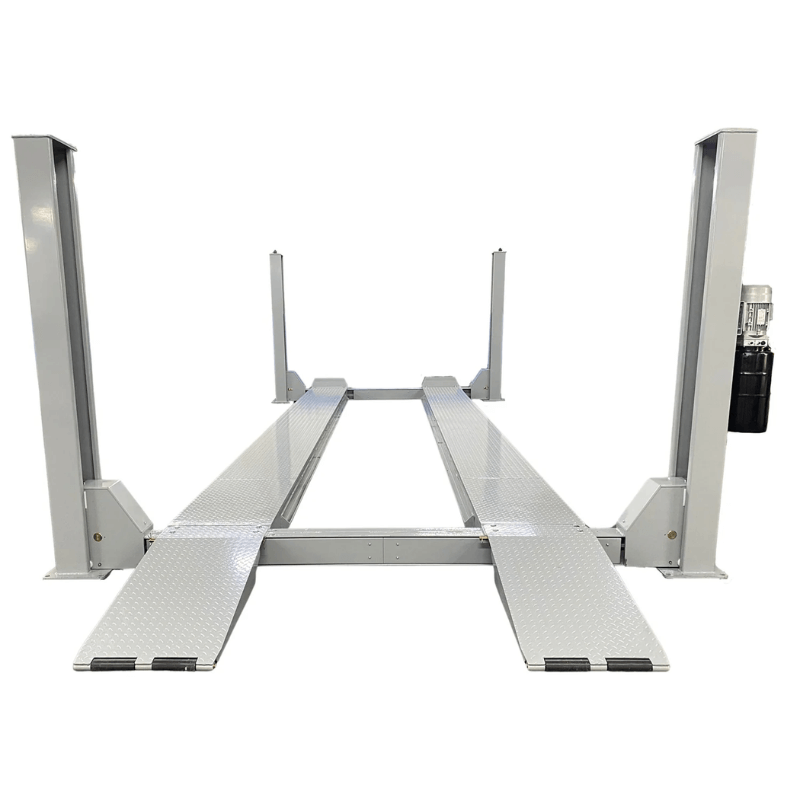

NTR-16

• Lifting Capacity: 16,000 lbs

• Overall Height: 88.7"

• Overall Length (without ramps): 235"

• Overall Length (with ramps): 273.9"

• Overall Width: 161" (base plate to base plate)

• Minimum Runway Height: 7.5"

• Maximum Lift Height: 74.4"

• Runway Length: 224.5"

• Runway Width: 20"

• Width Between Runways: 42.5" – 46.4"

• Width Between Columns: 134.2"

• Drive-Thru Clearance: 114"

• Lock Positions: 12

• Power Requirement: 220V Single Phase

• Shipping Weight: 3,112 lbs

• Pallet Dimensions: 234" x 23" x 43"

---

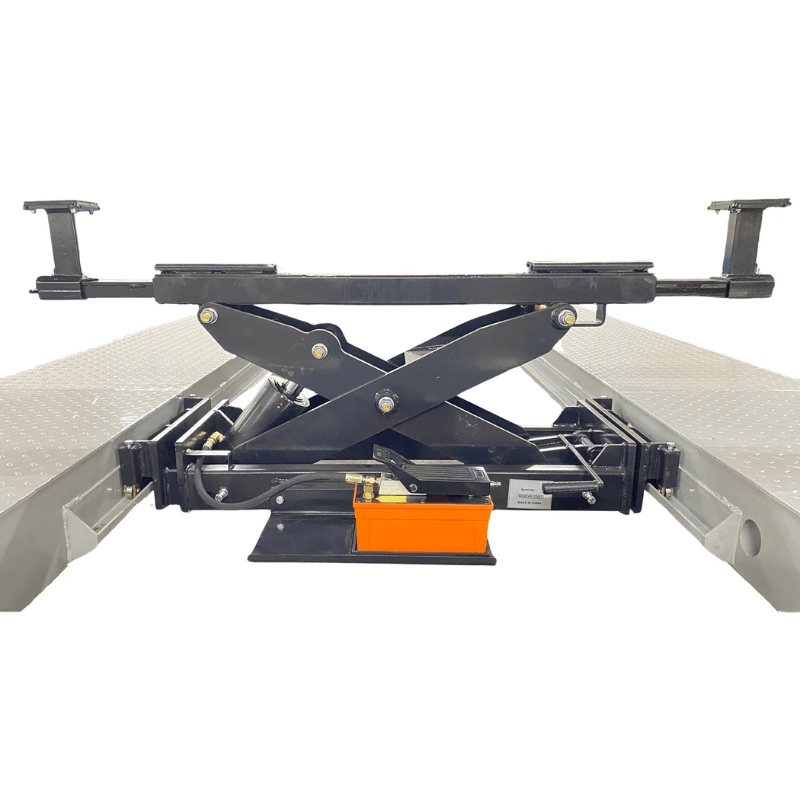

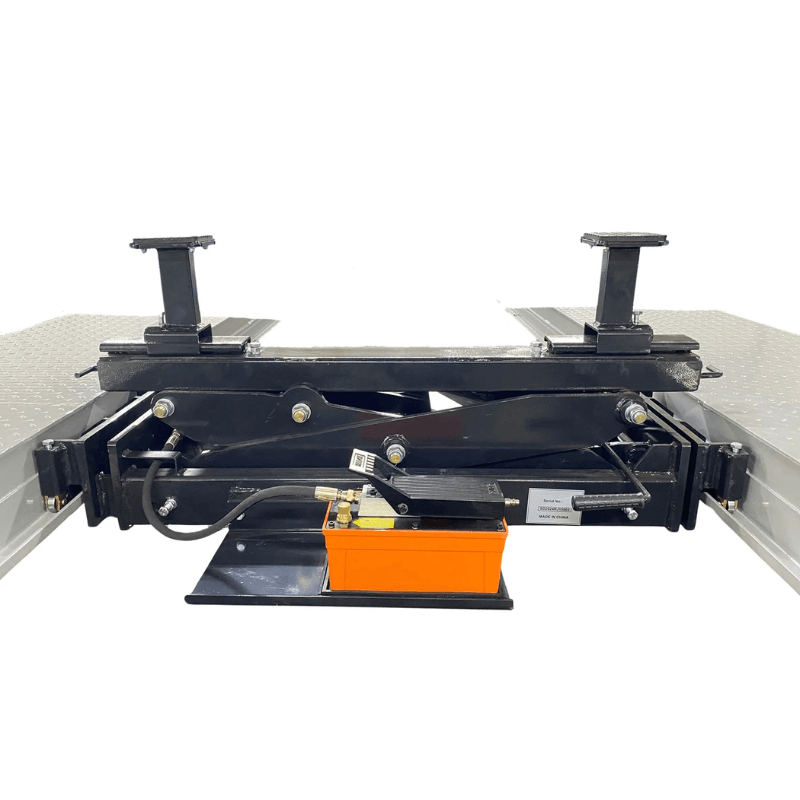

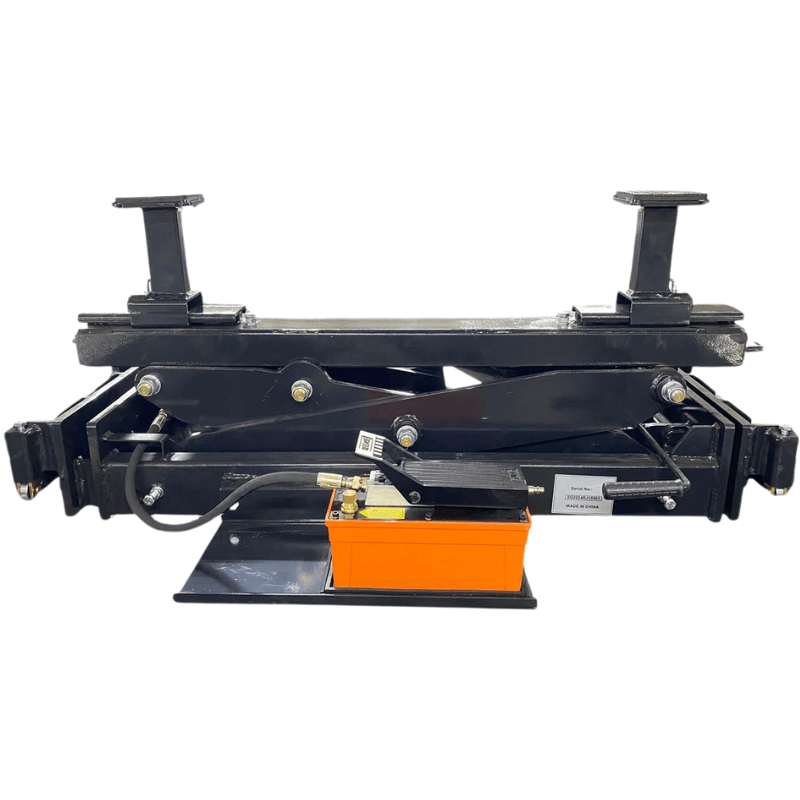

RJ-9000 Rolling Bridge Jack (Each)

• Lifting Capacity: 9,000 lbs

• Lowered Height: 16.9"

• Maximum Lift Height: 32.4"

• Min Pad Width: 40.1"

• Max Pad Width: 59.8"

• Compatible Runway Width: 43.8" – 52.3"

• Shipping Weight: 600 lbs

• Shipping Dimensions: 48" x 28" x 16"

---

Special Features

NTR-16

• Heavy-duty steel construction for long-term durability

• 12 locking positions for secure and adjustable lifting heights

• CE Certified and manufactured in ISO9001-certified facilities

• Wide runways to accommodate larger vehicles

• Adjustable runway spacing for added flexibility

• 220V single-phase system for efficient power delivery

• Designed to handle commercial vehicles, trucks, and more

• Smooth operation with user-friendly controls

---

RJ-9000 Rolling Bridge Jacks

• 9,000 lb lifting capacity for axle, brake, and suspension work

• Adjustable lifting pads for multiple vehicle sizes

• Includes height adapters (1.5" and 5") for precise positioning

• Compact, roll-in design for easy placement and movement

• Compatible with a wide range of 4-post lift runway widths

• Durable steel construction for long-lasting performance

• Wide lifting range (16.9" – 32.4") for maximum versatility

• Easy-to-use operation for safe and efficient lifting

---

Final Takeaway

The NTR-16 with dual RJ-9000 bridge jacks is more than just a lift—it’s a complete service system. You get the stability and capacity of a heavy-duty 4-post lift combined with the flexibility of axle lifting, allowing you to perform everything from storage to full mechanical work in a single setup.

NTR-16 Manual

No documents

Triumph NTR-16  With (2) RJ-9000 Optional Item Sold Separately

• NTR-16 16,000 lb 4 Post Lift
• RJ-9000 Rolling Bridge Jack
